1. Einleitung
This manual provides essential information for the safe and efficient operation of your VEVOR 14-inch High-Velocity Drum Air Circulator Fan. Designed for powerful air circulation, this fan features a 3-speed dual ball-bearing motor, 360° adjustable tilt, and a durable construction suitable for various indoor environments such as homes, gyms, offices, garages, commercial shops, and bedrooms. Please read this manual thoroughly before first use and retain it for future reference.
2. Wichtige Sicherheitshinweise
Um das Risiko von Bränden, Stromschlägen oder Verletzungen zu verringern, befolgen Sie stets diese grundlegenden Sicherheitsvorkehrungen:
- Lesen Sie alle Anweisungen sorgfältig durch, bevor Sie den Ventilator in Betrieb nehmen.
- Betreiben Sie keinen Ventilator mit beschädigtem Kabel oder Stecker. Werfen Sie den Ventilator weg oder schicken Sie ihn zur Überprüfung und/oder Reparatur an eine autorisierte Serviceeinrichtung zurück.
- Keep hands, hair, and clothing away from moving parts to prevent injury.
- Do not immerse the fan, cord, or plug in water or other liquids.
- Unplug the fan from the power outlet before cleaning, servicing, or when not in use.
- Dieser Ventilator ist nur für den Innenbereich bestimmt. Nicht im Freien verwenden.
- Bei der Benutzung von Geräten durch oder in der Nähe von Kindern ist eine genaue Aufsicht erforderlich.
- Do not operate the fan near windows, as rain may create an electrical hazard.
- Stellen Sie sicher, dass der Ventilator auf einer stabilen, ebenen Fläche steht, um ein Umkippen zu verhindern.
- Die Belüftungsöffnungen dürfen nicht blockiert werden. Das Gerät darf nicht in der Nähe von weichen Oberflächen betrieben werden, die die Öffnungen blockieren könnten.
3. Packungsinhalt
Prüfen Sie beim Öffnen der Verpackung, ob alle Komponenten vorhanden sind:
- 1 x VEVOR 14-inch High-Velocity Drum Air Circulator Fan
- 1 x Netzteil (zum Laden)
Image: The VEVOR 14-inch drum fan with its power adapter, ready for use.
4. Produktüberschreitungview
The VEVOR 14-inch High-Velocity Drum Air Circulator Fan is engineered for powerful and efficient air movement. Key features include:
- High-Speed, Low Noise Operation: Equipped with a 3-speed dual ball-bearing enclosed motor and a spiral grill design, it delivers up to 2520 CFM airflow with an air throw distance of 29.53 ft and a wind speed of 23.62 ft/s. The maximum noise level is maintained below 65 dB(A).
- Langlebige Konstruktion: Features a robust metal grill with a black powder rust-proof coating and 14-inch wide aluminum blades for enhanced durability and resistance to breakage.
- 360° einstellbarer Luftstrom: A built-in pivot adjustment allows for a full 360° vertical tilt, enabling precise direction of airflow.
- Tragbares Design: Includes a built-in handle and a lightweight design for easy movement and storage.
- Integrated Battery and USB Port: Features a rechargeable battery for cordless operation and a USB port for charging external devices.
Image: The fan demonstrating whole-room air circulation in a garage setting, highlighting its powerful airflow.
Image: A person easily carrying the fan using its built-in portable handle, illustrating its lightweight and portable design.
5. Einrichtung
Your VEVOR drum fan comes largely pre-assembled for immediate use. Follow these steps for initial setup:
- Auspacken: Nehmen Sie den Ventilator und sämtliches Zubehör vorsichtig aus der Verpackung. Bewahren Sie die Verpackung für die spätere Lagerung oder den Transport auf.
- Platzierung: Place the fan on a firm, level surface. Ensure there is adequate space around the fan for optimal air circulation and to prevent obstruction of air intake/exhaust.
- Neigung einstellen: Loosen the adjustment knobs on either side of the fan frame. Tilt the fan head to your desired angle (up to 360° vertical adjustment). Tighten the knobs securely to lock the fan head in position.
- Erstaufladung (optional): For cordless operation, ensure the fan's internal battery is charged. Connect the provided power adapter to the charging port on the control panel and plug it into a suitable AC outlet. The LED indicators on the control panel will show the charging progress.
Image: The fan positioned on the floor, demonstrating its 360-degree adjustable head for directing airflow.
6. Bedienungsanleitung
Operating your VEVOR fan is straightforward:
- Ein-/Ausschalten: Locate the control knob on the rear of the fan. Turn the knob clockwise from the "OFF" position to power on the fan. Turn it counter-clockwise to the "OFF" position to power off.
- Lüftergeschwindigkeit anpassen: The control knob offers continuous speed adjustment. Rotate the knob clockwise to increase the fan speed and airflow. Rotate it counter-clockwise to decrease the speed. The fan has 3 distinct speed settings, with a maximum airflow of 2520 CFM.
- Batteriestatusanzeigen: The control panel features LED lights indicating the battery charge level: 20%, 40%, 60%, 80%, and 100%. These lights illuminate when the fan is in operation or charging.
- Charging External Devices (USB): A USB output port is located on the control panel. You can use this port to charge compatible electronic devices when the fan is powered on or off, provided the internal battery has sufficient charge.

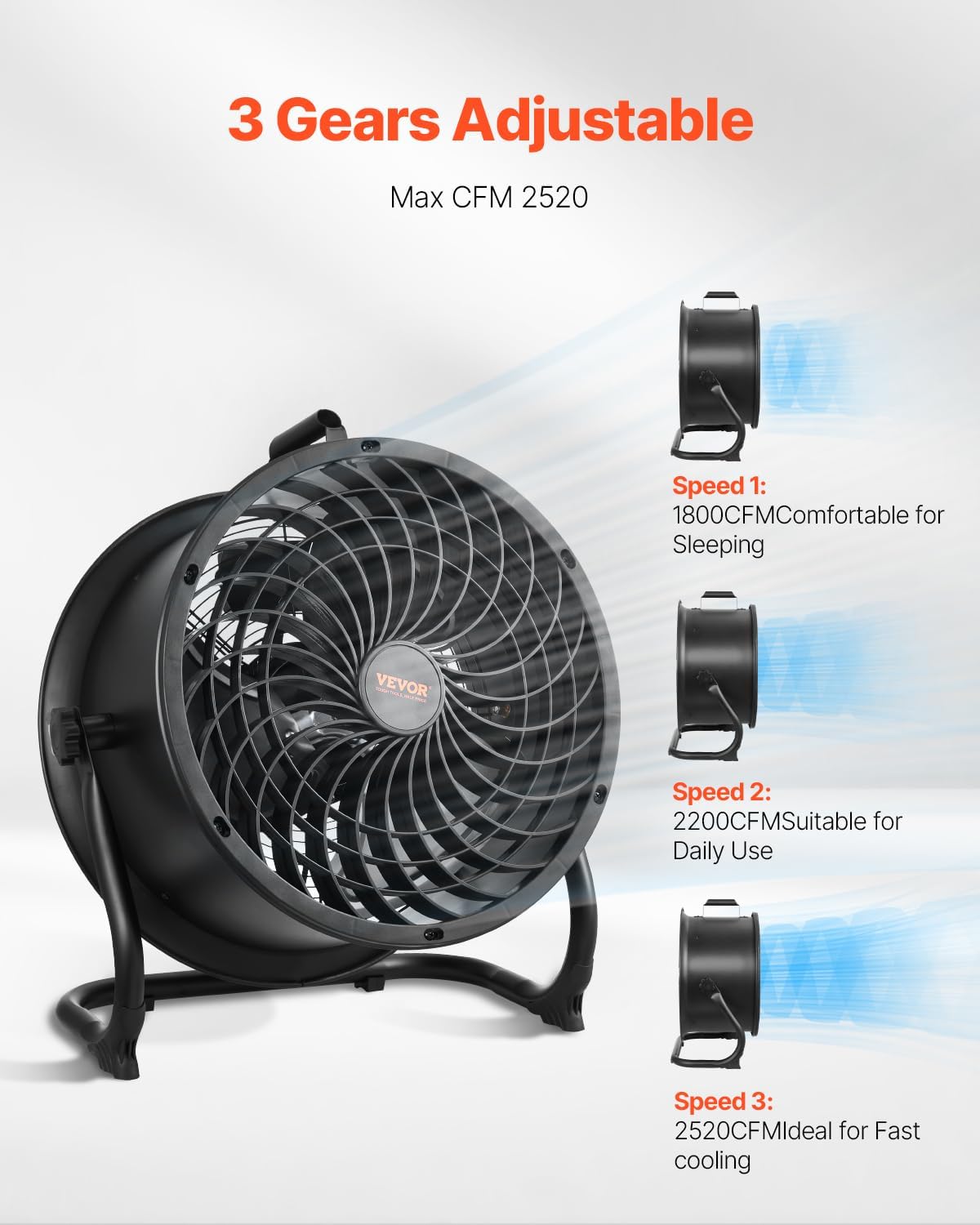

Image: Illustration of the fan's three adjustable speed settings, from comfortable for sleeping to fast cooling.
Bild: Eine detaillierte view of the fan's control panel, showing the variable speed knob and LED battery charge indicators.
7. Wartung
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your fan:
- Den Ventilator immer vom Stromnetz trennen. from the power source before attempting any cleaning or maintenance.
- Reinigung der Außenseite: Verwenden Sie ein weiches,amp Verwenden Sie ein Tuch, um die Außenflächen des Ventilators abzuwischen. Verwenden Sie keine Scheuermittel oder Lösungsmittel.
- Cleaning the Grill and Blades: The fan features a detachable grill and water-washable blades for easy cleaning.
- Carefully remove the front grill by unscrewing any retaining clips or screws.
- Wischen Sie die Lüfterblätter mitamp cloth. For thorough cleaning, the blades can be removed and washed with water. Ensure they are completely dry before reassembly.
- Clean the front and rear grills with a damp cloth or by washing with water.
- Once all parts are dry, reassemble the fan, ensuring the grill is securely fastened.
- Lagerung: Bei längerer Nichtbenutzung sollte der Ventilator an einem kühlen, trockenen Ort, vorzugsweise in seiner Originalverpackung, aufbewahrt werden.
Bild: Eine explodierte view of the fan, illustrating its metal construction and detachable components for maintenance.
8. Fehlerbehebung
If you encounter issues with your VEVOR fan, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Der Ventilator schaltet sich nicht ein. | Keine Stromversorgung oder schwacher Akku. | Ensure the power adapter is securely plugged into a working outlet. If operating on battery, check battery charge level and recharge if necessary. |
| Schwacher oder kein Luftstrom. | Fan speed set too low; obstructions in front or rear grill. | Increase fan speed using the control knob. Check and remove any obstructions from the fan grills. |
| Ungewöhnliche Geräusche oder Vibrationen. | Loose components; debris on blades; fan not on a stable surface. | Turn off and unplug the fan. Check for any loose parts or debris on the blades and clean if necessary. Ensure the fan is placed on a stable, flat surface. |
| Akku lädt nicht. | Power adapter not connected properly; faulty adapter or charging port. | Ensure the power adapter is firmly connected to both the fan and the power outlet. Try a different outlet. If the issue persists, contact customer support. |
9. Spezifikationen
| Besonderheit | Detail |
|---|---|
| Marke | VEVOR |
| Modellnummer | BT-HF14A |
| Größe | 14in Drum Fan |
| Elektrisches Ventilatordesign | Bodenventilator |
| Stromquelle | AC (with rechargeable battery for cordless use) |
| Anzahl der Geschwindigkeiten | 3 (variable speed control) |
| Geräuschpegel | ≤ 65 Dezibel |
| Wastage | 65 Watt |
| Luftstromkapazität | 2520 Kubikfuß pro Minute (CFM) |
| Bandtage | 230 Volt (Wechselstrom) |
| Innen- und Außennutzung | Innenbereich |
| Kontrollmethode | Rotary Knob (variable speed) |
| Material | Aluminum (blades), Metal (frame/grill) |
| Artikelgewicht | 15 Pfund |
| Artikelabmessungen (T x B x H) | 20"T x 10"B x 22.91"H |
| UPC | 197988655787 |
Image: Technical diagram displaying the fan's dimensions and key performance specifications.
10. Garantie und Support
VEVOR products are designed for durability and performance. For specific warranty details, please refer to the warranty information included with your product packaging or visit the official VEVOR website. For technical support, product inquiries, or assistance with troubleshooting, please contact VEVOR customer service through their official channels. You can often find support contact information on the product packaging or the VEVOR brand store on Amazon.
Weitere Informationen finden Sie im VEVOR Store.
