SYTUNG 150PSI Akku-Reifenfüller/Luftkompressor – Bedienungsanleitung

1. Sicherheitshinweise

Please read all safety instructions carefully before operating this device. Failure to follow these instructions may result in injury or damage to the product.

• Dieses Gerät ist kein Spielzeug. Außerhalb der Reichweite von Kindern aufbewahren.
• Das Aufblasgerät darf nicht bei Nässe oder in der Nähe von brennbaren Flüssigkeiten oder Gasen betrieben werden.
• Avoid over-inflating items. Always check the recommended pressure for the item being inflated.
• Lassen Sie den Aufblaser während des Betriebs nicht unbeaufsichtigt.
• Allow the device to cool down after prolonged use to prevent overheating. The built-in overheating protection will automatically shut off the pump if it gets too hot.
• Setzen Sie den Akku keinen extremen Temperaturen oder direkter Sonneneinstrahlung aus.
• Verwenden Sie ausschließlich das mitgelieferte Ladekabel und die Adapter.
• Vor dem Aufpumpen sicherstellen, dass die Luftschlauchverbindung fest sitzt.

2. Packungsinhalt

Überprüfen Sie, ob alle Artikel im Paket vorhanden sind:

• SYTUNG Cordless Tyre Inflator Unit
• Luftschlauch
• Nozzle Adapters (various types for different inflatables)
• USB-Ladekabel
• 12-V-Auto-Netzteil
• Aufbewahrungstasche
• Benutzerhandbuch (dieses Dokument)

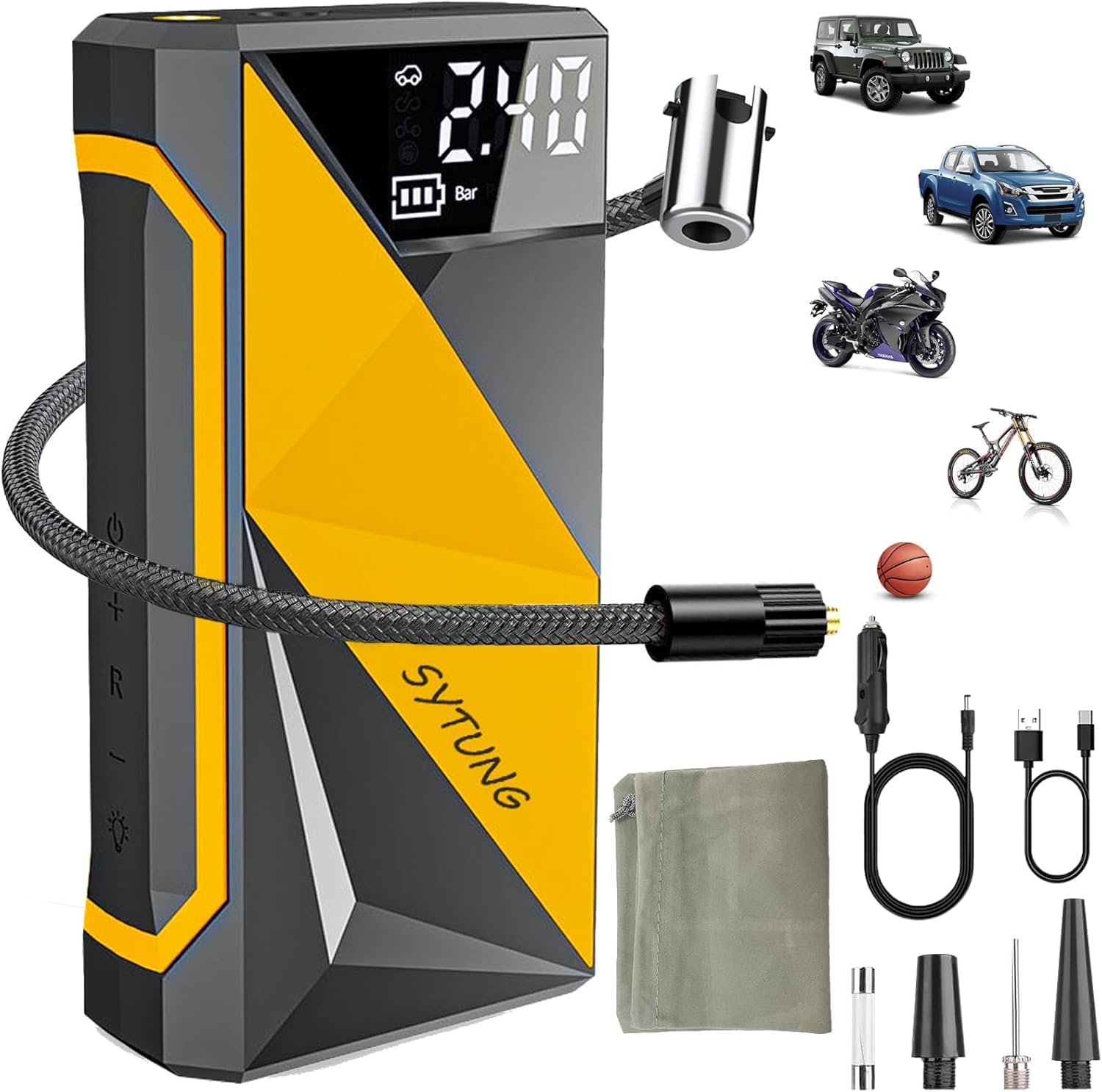

Abbildung 1: Contents of the SYTUNG Cordless Tyre Inflator package, including the main unit, air hose, various adapters, charging cables, and a storage bag.

3. Produktüberschreitungview

3.1. Komponenten

The SYTUNG Cordless Tyre Inflator features a compact design with essential components for efficient operation.

• Digitaler Bildschirm: Zeigt den aktuellen Druck, den Zieldruck, den Batteriestand und den gewählten Modus an.
• Bedienfeld: Buttons for power, mode selection, pressure adjustment, and LED light.
• Anschluss für Luftschlauch: For attaching the flexible air hose.
• LED-Licht: Provides illumination for night use or emergency situations.
• USB-C-Ladeanschluss: Zum Aufladen des internen Akkus.
• USB-A-Ausgangsanschluss: Dient als Powerbank zum Aufladen externer Geräte.

3.2. Digitale Anzeige und Bedienelemente

The high-definition digital display provides real-time information and allows for precise control.

• Netzschalter: Zum Ein-/Ausschalten gedrückt halten. Kurz drücken, um das Aufblasen zu starten/stoppen.
• Modus-Taste (M): Durchläuft voreingestellte Aufblasmodi (Auto, Motorrad, Fahrrad, Ball).
• Druckeinstellungsknöpfe (+/-): Increases or decreases the target pressure value.
• Unit Button (R): Changes pressure units (PSI, BAR, KPA, Kg/cm²).
• LED-Lichttaste: Toggles the LED light on/off.

4. Einrichtung

4.1. Aufladen des Geräts

Before first use, fully charge the inflator's internal 6000mAh battery.

1. Connect the provided USB charging cable to the USB-C input port on the inflator.
2. Connect the other end of the USB cable to a suitable USB power adapter (not included) or the 12V car power adapter.
3. The digital display will show the battery charging status. Charge until the battery indicator shows full.

4.2. Anschließen des Luftschlauchs

1. Screw the air hose securely into the air hose connection port on the top of the inflator.
2. Select the appropriate nozzle adapter if inflating items other than standard car/bike valves.

5. Bedienungsanleitung

5.1. Einschalten und anschließen

1. Press and hold the Power button to turn on the inflator. The digital display will illuminate.
2. Connect the air hose to the valve stem of the item you wish to inflate. The display will show the current pressure.

Abbildung 2: The SYTUNG Cordless Tyre Inflator connected to a car tire, displaying the current pressure and indicating fast inflation capability.

5.2. Select Mode and Set Pressure

1. Press the Mode (M) button to cycle through the preset inflation modes (Car, Motorcycle, Bicycle, Ball). Each mode has a default target pressure.
2. Alternatively, press the Unit (R) button to select your preferred pressure unit (PSI, BAR, KPA, Kg/cm²).
3. Use the Pressure Adjustment (+/-) buttons to set your desired target pressure.

Abbildung 3: The SYTUNG Cordless Tyre Inflator actively inflating a car tire, demonstrating its quick inflation and automatic shut-off feature upon reaching the set pressure.

5.3. Inflation auslösen

1. Once the desired pressure is set, short press the Power button to begin inflation.
2. Der Aufblaser schaltet sich automatisch ab, sobald der Zieldruck erreicht ist.
3. Den Luftschlauch vom Ventilschaft abziehen.

5.4. Verwendung des LED-Lichts

Press the LED Light button to turn the integrated light on or off. This is useful for night-time operation or emergency situations.

5.5. Powerbank-Funktion

The inflator can also serve as a mobile power source.

1. Connect your mobile phone or other USB-powered device to the USB-A output port using a compatible cable.
2. The inflator will begin charging the connected device.

Abbildung 4: The SYTUNG Cordless Tyre Inflator demonstrating its multi-functionality, including its use as a power bank for mobile devices and its integrated LED emergency lighting.

6. Anwendungen

This cordless tyre inflator is suitable for a wide range of inflation tasks:

• Car Tyres: Inflate standard car tyres to recommended pressure levels.
• Motorcycle Tyres: Suitable for various motorcycle tyre types.
• Bicycle Tyres: Compatible with most bicycle tyre valves (Presta adapter may be required for some, not explicitly mentioned as included but common).
• Sportbälle: Use the needle adapter for basketballs, footballs, etc.
• Other Inflatables: Can inflate small inflatable pools, swimming rings, and camping mats using appropriate nozzle adapters.

7. Wartung

7.1. Reinigung

Wischen Sie die Außenseite des Inflator mit einem weichen, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the device is off and disconnected from any power source before cleaning.

7.2. Speicherung

Store the inflator in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the battery is partially charged (around 50-70%) if storing for extended periods to prolong battery life. Use the provided storage bag to keep the unit and accessories organized.

8. Fehlerbehebung

9. Spezifikationen

10. Garantie und Support

For warranty information or technical support, please contact SYTUNG customer service. Refer to the product packaging or the official SYTUNG webWebsite für Kontaktdaten.
