Generic Fully Automatic Egg Incubator User Manual

1. Einleitung

Thank you for choosing the Generic Fully Automatic Egg Incubator. This device is designed to provide an optimal environment for hatching various types of poultry eggs, including chicken, duck, goose, and pigeon eggs. It features automatic temperature and humidity regulation, an LED temperature display, and an automatic egg-turning mechanism to ensure a high success rate for your incubation projects.

Please read this manual thoroughly before operating the incubator to ensure proper setup, safe use, and effective operation. Keep this manual for future reference.

2. Sicherheitshinweise

• Elektrische Sicherheit: Ensure the incubator is connected to a grounded power outlet with the correct voltage (95-125V). Do not operate with wet hands or near water. Disconnect power before cleaning or maintenance.
• Platzierung: Place the incubator on a stable, level surface away from direct sunlight, drafts, or extreme temperature fluctuations. Maintain an ambient temperature between 15°C and 30°C (59°F - 86°F).
• Belüftung: Ensure adequate air circulation around the incubator. Do not block the incubator vents.
• Kinder und Haustiere: Keep the incubator out of reach of children and pets to prevent accidental damage or injury.
• Wasserhandhabung: Use distilled or demineralized water for the humidity tray to prevent mineral buildup. Avoid overfilling to prevent spills onto electrical components.
• Schaden: Do not use the incubator if the power cord or plug is damaged, or if the unit shows any signs of malfunction. Contact customer support for assistance.

3. Packungsinhalt

Bitte überprüfen Sie nach dem Auspacken, ob alle Komponenten vorhanden sind:

• 1 x Egg Incubator Unit
• 1 x Stromkabel
• 1 x Benutzerhandbuch (dieses Dokument)

4. Produktmerkmale

• Automatische Eierwende: Equipped with an automatic egg turning device that rotates eggs every two hours. Manual turning can also be initiated.
• Feuchtigkeitskontrolle: Features a water tank for adjusting humidity levels, crucial for successful hatching.
• Optimierter Luftstrom: Angled air guides ensure consistent air circulation and minimize temperature differences within the incubator. A large fan enhances temperature balance.
• Wärmedämmung: Designed with a "warm coat" to improve energy efficiency and maintain stable internal temperatures, even in cooler ambient conditions.
• LED Temperaturanzeige: Provides easy monitoring of the internal temperature.
• LED Candling Lamp: Integrierte lamp to quickly check egg fertility and detect unfertilized eggs.
• Vielseitige Kapazität: Suitable for incubating up to 16 standard chicken eggs, or a comparable number of duck, goose, or quail eggs.

5. Einrichtung

1. Auspacken und prüfen: Carefully remove all components from the packaging. Inspect the incubator for any signs of damage during transit.
2. Komponenten zusammenbauen:

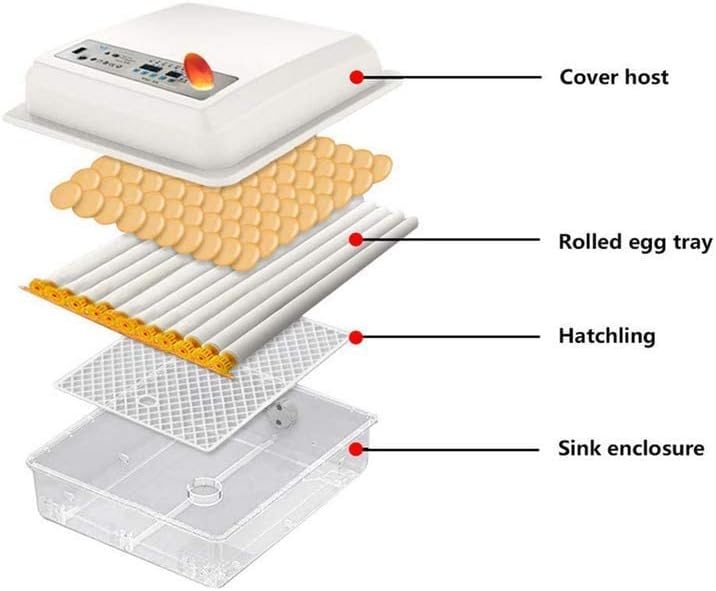

   Abbildung 5.1: Explosionsdarstellung view showing the main components of the incubator. From top to bottom: the cover host (top unit with controls), the rolled egg tray, the hatchling grid, and the sink enclosure (base).

   • Place the sink enclosure (bottom tray) on a stable surface.
   • Insert the hatchling grid into the sink enclosure.
   • Place the rolled egg tray on top of the hatchling grid.
   • Carefully place the cover host (top unit) onto the assembled base, ensuring it sits securely.
3. Wasser hinzufügen, um die Luftfeuchtigkeit zu erhöhen: Fill the water channels in the sink enclosure with distilled or demineralized water. Do not overfill. The water level will need to be maintained throughout the incubation period.
4. Strom anschließen: Plug the power cable into the incubator's power interface and then into a suitable electrical outlet.


   Figure 5.2: The control panel features an LED temperature display for monitoring, a power interface for connection, and an LED candling lamp for inspecting eggs.
5. Pre-heat and Stabilize: Allow the incubator to run for at least 2-4 hours (preferably 24 hours) before placing eggs inside. This allows the internal temperature and humidity to stabilize and ensures the unit is functioning correctly.

6. Bedienungsanleitung

6.1. Setting Temperature and Humidity

The incubator is designed for automatic temperature and humidity regulation. Refer to the specific requirements for the type of eggs you are incubating. The LED display shows the current internal temperature. Adjustments can typically be made using the control buttons on the panel (refer to Figure 5.2).

• Temperatur: Standard chicken egg incubation temperature is typically around 37.5°C (99.5°F). Consult specific guidelines for other egg types.
• Luftfeuchtigkeit: Initial humidity for most eggs is around 50-60%. This often increases to 65-75% during the last few days before hatching. Add water to the channels as needed to maintain desired humidity.

6.2. Placing Eggs

Once the incubator has stabilized, carefully place the fertilized eggs into the rolled egg tray. Ensure eggs are clean and free from cracks. The incubator is designed to accommodate various egg sizes.

Figure 6.1: The adjustable egg tray can hold various egg sizes, including bird, chicken, duck, and goose eggs.

6.3. Automatic Egg Turning

The incubator automatically turns the eggs every two hours. This is crucial for preventing the embryo from sticking to the shell and for proper development. You can also manually activate the turning mechanism if needed, typically via a button on the control panel.

6.4. Candling Eggs

Use the integrated LED candling lamp (refer to Figure 5.2) to periodically check the development of the embryos. This allows you to identify infertile eggs or those with early embryonic death, which should be removed to prevent contamination.

6.5. Schlüpfzeit

Approximately 3 days before the expected hatch date, stop the automatic egg turning. Remove the rolled egg tray and place the eggs directly onto the hatchling grid. Increase humidity during this period to aid in hatching. Avoid opening the incubator frequently during hatching to maintain stable conditions.

7. Wartung

7.1. Reinigung

After each hatch, or if the incubator becomes soiled, disconnect it from power and thoroughly clean all components. Use a mild disinfectant solution suitable for poultry equipment. Ensure all parts are completely dry before reassembly or storage.

• Wipe down the cover host and control panel with a damp Tuch.
• Wash the egg tray, hatchling grid, and sink enclosure with warm soapy water and disinfectant.
• Ensure the fan area is free from dust or debris.


  Figure 7.1: The high-power insulation fan, located inside the incubator, ensures even temperature distribution. Keep this area clean for optimal performance.

7.2. Speicherung

Store the clean and dry incubator in a cool, dry place away from direct sunlight and extreme temperatures when not in use.

8. Fehlerbehebung

9. Spezifikationen

• Modell: 16-Egg Capacity (B0F52PXTXV)
• Gesamtabmessungen (L x B x H): 32 x 20.5 x 12.5 cm (12.6 x 8.1 x 4.9 Zoll)
• Material: ABS
• Eingangsleistung: Control board DC12V ± 10%, power supply AC220V ± 10% 50Hz
• Bandtage: 95 bis 125 V
• Ausgabe: Gleichstrom 12 V, 3 A
• Temperaturmessbereich: 0.1 °C - 99.9 °C
• Optimum Ambient Humidity: < 85 % relative Luftfeuchtigkeit
• Optimum Ambient Temperature: 15 °C - 30 °C (59 °F - 86 °F)
• Hersteller: YINWUMAOSI

10. Garantie und Support

For warranty information, technical support, or service inquiries, please refer to the retailer's return policy or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Hersteller: YINWUMAOSI

Please visit the retailer's website or contact their customer service for specific support details.
