Einführung
Thank you for choosing the FiveWillowise 67''H Dark Brown Tall Corner Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new furniture. Please read these instructions carefully before beginning assembly and retain them for future reference.
Sicherheitshinweise
- Use caution when placing heavy items in the cabinet. Distribute weight evenly across shelves.
- Avoid placing the cabinet in areas where it may be exposed to excessive moisture or heat, as this can damage the engineered wood material.
- Always follow the assembly instructions precisely to ensure the cabinet is stable and secure.
- Utilize the included anti-tipping device to anchor the cabinet to the wall, preventing accidental tipping and ensuring family safety.
- Halten Sie Kleinteile und Verpackungsmaterialien während der Montage von Kindern fern.
Packungsinhalt
Before assembly, verify that all components and hardware are present. Refer to the parts list provided in the separate assembly guide. The package typically includes:
- All necessary engineered wood panels for the cabinet structure.
- Four tempered glass doors and two barn doors.
- Adjustable shelves and their support pins.
- All required assembly hardware (screws, dowels, hinges, handles, etc.).
- Anti-tipping device and mounting hardware.
- Step-by-step instruction manual (this document provides general guidance; a detailed assembly guide with diagrams is included in the product packaging).
Einrichtung und Montage
Assembly is required for this corner storage cabinet. It is recommended to have two people for assembly. Please follow the detailed, step-by-step instructions provided in the separate assembly guide included in your product packaging. Below are general guidelines and important considerations:
- Vorbereitung: Clear a spacious area for assembly. Lay out all parts and hardware. Use a soft cloth or cardboard to protect surfaces from scratches.
- Erforderliche Werkzeuge: A Phillips head screwdriver and a hammer are typically needed. A power drill with appropriate bits can expedite the process but use caution to avoid overtightening.
- Komponentenidentifikation: Match each part to the diagrams in the assembly guide. Components are usually labeled with letters or numbers.
- Rahmenkonstruktion: Begin by assembling the main frame of the cabinet, ensuring all connections are secure. The 90-degree corner design is crucial for proper fit.
- Regalinstallation: Install the fixed shelves first, then the adjustable shelves. The adjustable shelves allow for customization of storage space.
- Türbefestigung: Attach the tempered glass doors to the upper section and the barn doors to the lower section using the provided hinges. Adjust hinges as needed for proper alignment.
- Anti-Tipper Installation: Securely attach the anti-tipping device to the top rear of the cabinet and then to a wall stud. This step is critical for stability and safety.
Abbildung 1: Product Dimensions. This diagram illustrates the overall dimensions of the cabinet (67 inches high, 25.6 inches wide, 14 inches deep) and the triangular footprint for corner placement. It also indicates a maximum load capacity of 22 lbs per shelf.

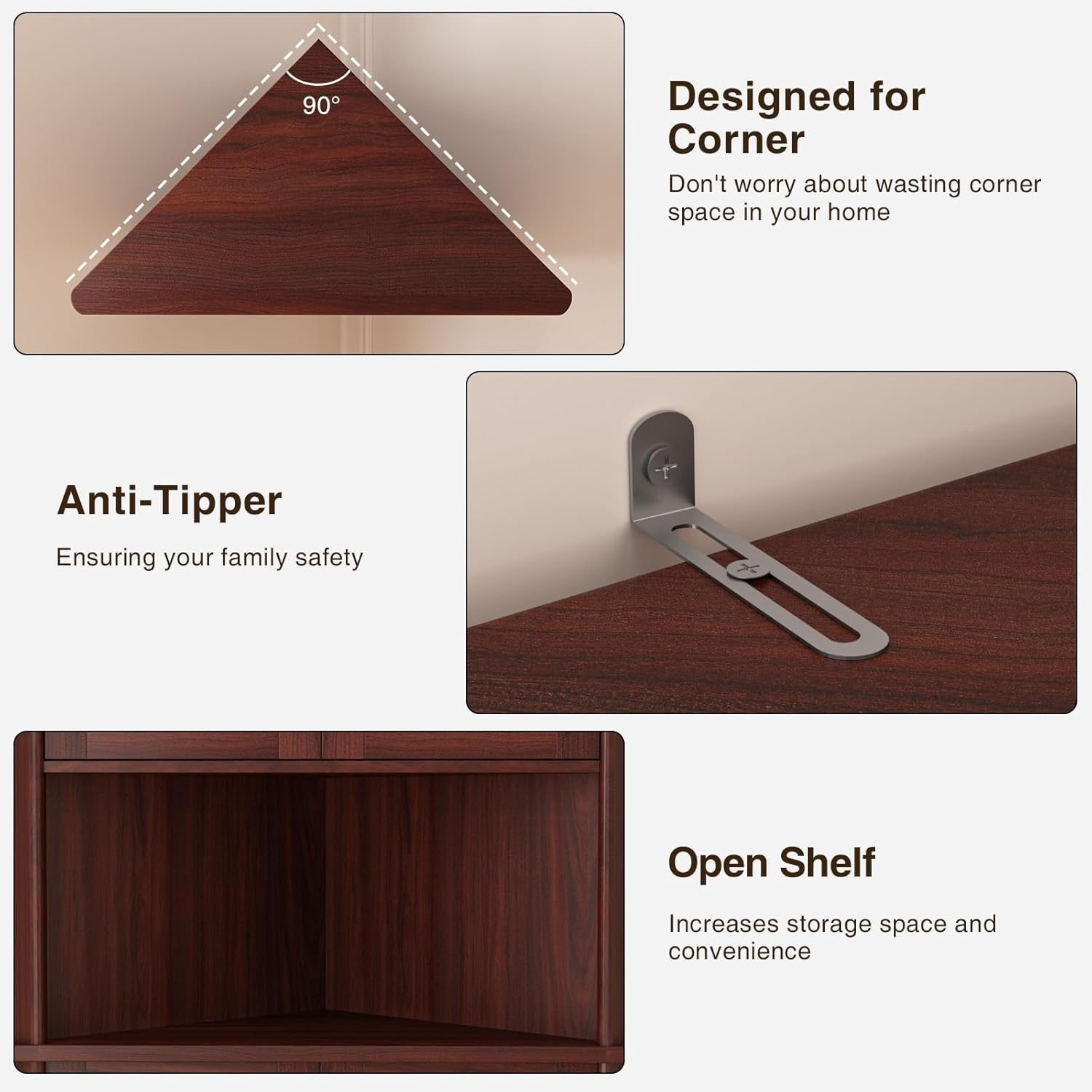

Abbildung 2: Corner Design and Anti-Tipper. This image highlights the cabinet's 90-degree corner design for efficient space utilization and demonstrates the anti-tipper mechanism for enhanced stability and safety.
Video 1: FiveWillowise 67''H Dark Brown Tall Corner Storage Cabinet OverviewDieses Video bietet einen visuellen Überblick überview of the cabinet's features and design, which can be helpful during assembly and understanding its functionality.
Bedienungsanleitung
The FiveWillowise Corner Storage Cabinet is designed for versatile storage and display in various rooms.
- Verstellbare Einlegeböden: The cabinet features adjustable shelves in both the upper glass-door section and the lower barn-door section. To adjust a shelf, carefully remove any items, lift the shelf, remove the support pins from their current holes, reposition them to the desired height, and then place the shelf back onto the pins. Ensure all four pins are securely in place before loading the shelf.
- Türen: The upper tempered glass doors allow for display of items while protecting them from dust. The lower barn doors provide concealed storage. Open and close doors gently using the handles to prevent wear on hinges.
- Gewichtskapazität: Each shelf has a maximum load capacity of 22 lbs. Do not exceed this limit to maintain stability and prevent damage.
Abbildung 3: Kabinett öffnen View. This image shows the interior of the cabinet with all doors open, demonstrating the adjustable shelves and potential storage configurations.

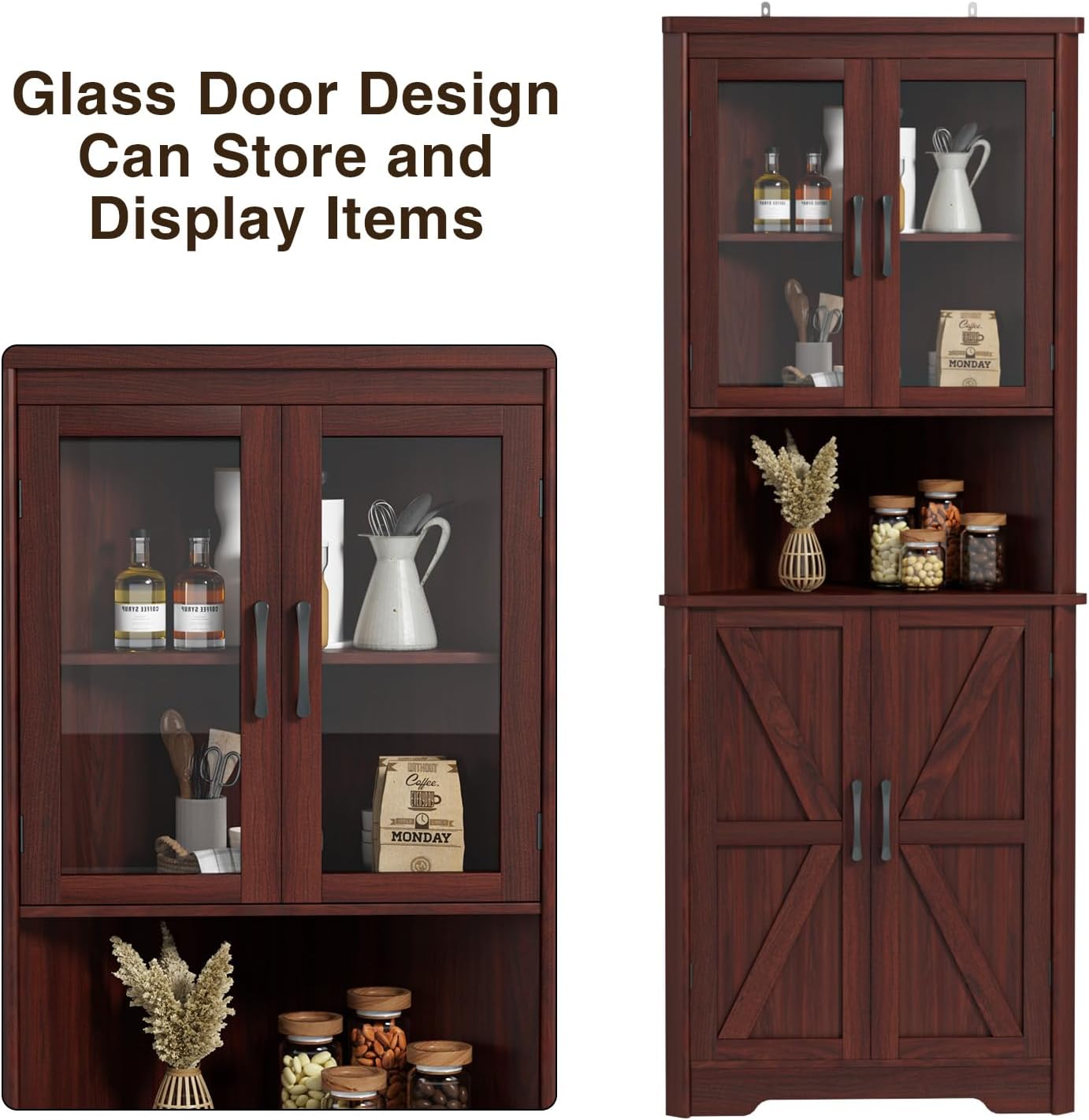

Abbildung 4: Glass Door Design. A detailed view of the upper section, showcasing the tempered glass doors suitable for displaying decorative items or frequently used essentials.

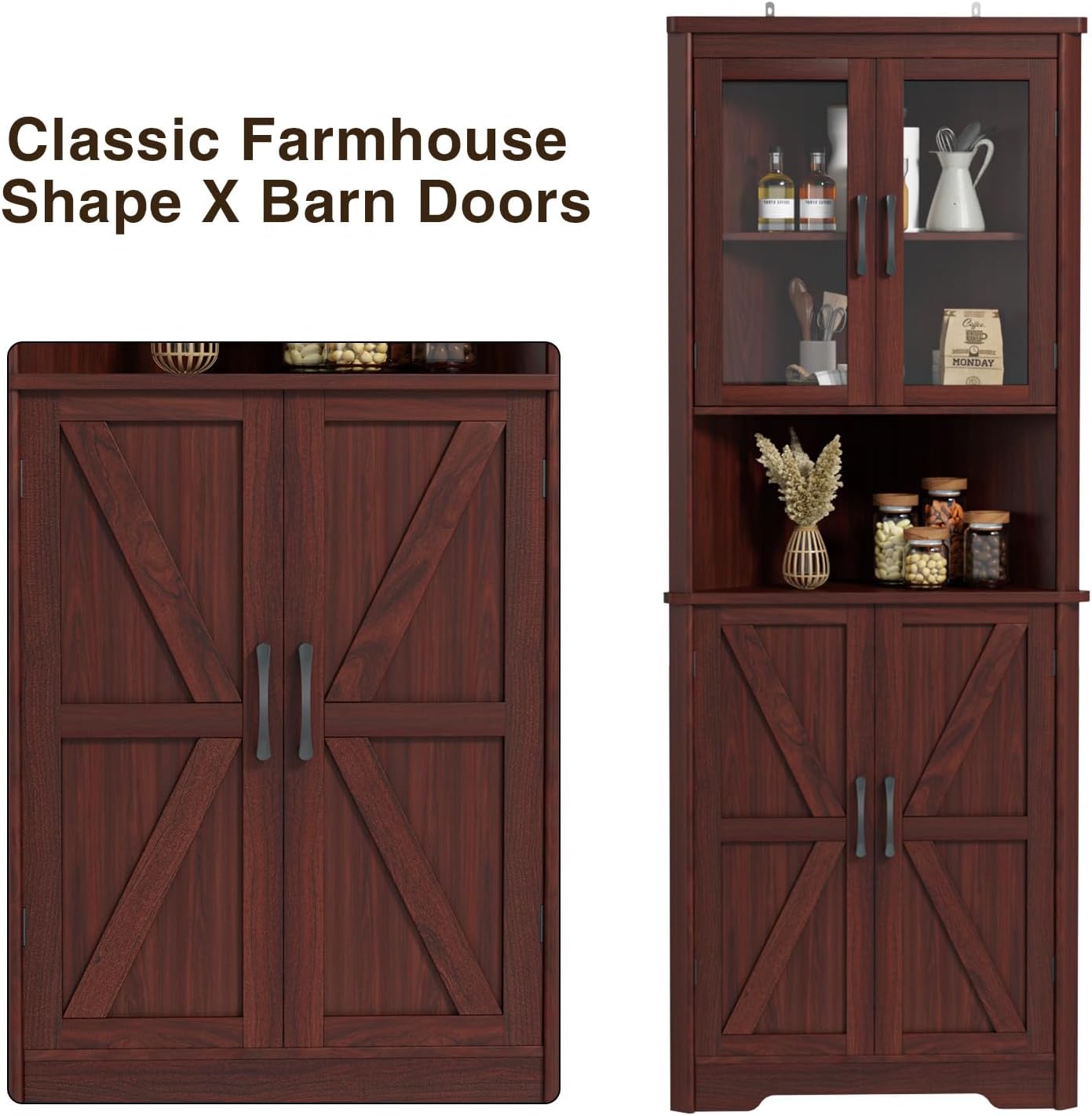

Abbildung 5: Barn Door Design. This image focuses on the lower section of the cabinet, highlighting the decorative barn doors that provide discreet storage.
Wartung
Die richtige Pflege verlängert die Lebensdauer und erhält das Aussehen Ihres Schranks.
- Reinigung: Wischen Sie Oberflächen mit einem weichen, damp cloth. Avoid harsh chemicals, abrasive cleaners, or excessive moisture, which can damage the finish. For glass doors, use a standard glass cleaner.
- Verschüttungen: Verschüttete Flüssigkeiten sofort aufwischen, um Fleckenbildung oder Wasserschäden am Holzwerkstoff zu vermeiden.
- Hardware: Überprüfen Sie regelmäßig alle Schrauben und Befestigungselemente, um sicherzustellen, dass sie fest sitzen. Ziehen Sie sie gegebenenfalls nach, um die strukturelle Integrität zu gewährleisten.
- Sonneneinstrahlung: Vermeiden Sie längere direkte Sonneneinstrahlung, da diese zu einem Ausbleichen oder einer Verfärbung der Oberfläche führen kann.
Fehlerbehebung
Sollten Sie Probleme mit Ihrem Schrank haben, beachten Sie bitte die folgenden gängigen Lösungsansätze:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Der Schrank ist wackelig oder instabil. | Loose fasteners; uneven floor; anti-tipper not installed. | Ensure all screws are tightened. Place shims under the base if the floor is uneven. Install the anti-tipping device securely to the wall. |
| Die Türen schließen nicht richtig oder schleifen aneinander. | Hinges are loose or misadjusted; cabinet frame is not square. | Adjust the screws on the hinges to align the doors. Ensure the cabinet frame was assembled squarely. If screw holes are improperly placed (as noted in some reviews), contact customer support. |
| Schwierigkeiten beim Zusammenbau. | Anleitung unklar; Teile falsch identifiziert. | Review the assembly manual carefully, paying close attention to diagrams. Ensure parts are correctly identified. If issues persist, contact customer support. |
Technische Daten
- Marke: FiveWillowise
- Modellnummer: J1S051
- Farbe: Dunkelbraun
- Material: Holzwerkstoff
- Produktabmessungen (T x B x H): 14" x 25.6" x 67" (35.56 cm x 65.02 cm x 170.18 cm)
- Anzahl der Einlegeböden: 5 (einschließlich fester und verstellbarer Teile)
- Verstellbare Einlegeböden: 2
- Türtyp: 4 Tempered Glass Doors, 2 Barn Doors
- Installationstyp: Freistehend, Bodenmontage
- Montage erforderlich: Ja
- Besondere Merkmale: Anti-tipping device, 90-degree corner design
- Empfohlene Verwendung: Kitchen, Living Room, Dining Room, Bathroom
Garantie und Support
FiveWillowise products are manufactured with quality and care. For specific warranty details, please refer to the documentation included with your purchase or contact FiveWillowise customer service directly. If you have any questions regarding assembly, missing parts, or product functionality, please reach out to our support team for assistance.
Kundendienst: Please refer to the contact information provided in your product packaging or visit the official FiveWillowise webSite für Supportoptionen.
