1. Einleitung
The Aquaguard Neo RO+UV water purifier is designed to provide pure and safe drinking water. It utilizes advanced RO technology to remove bacteria, viruses, protozoa, and chemical impurities. This system also incorporates Mineral Charge technology to maintain essential minerals in the water. This manual provides instructions for the proper installation, operation, and maintenance of your water purifier.

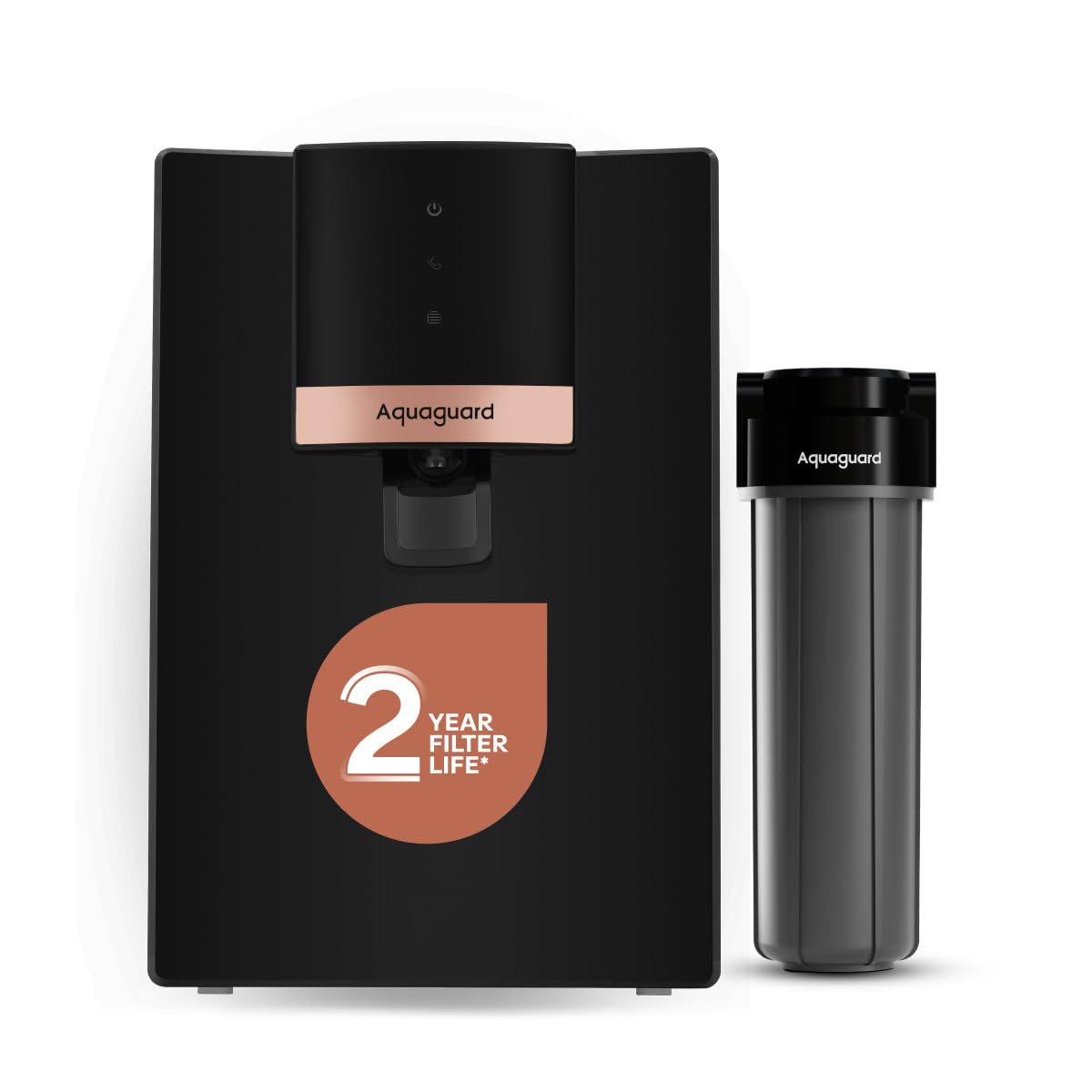

Image 1: Aquaguard Neo RO+UV Water Purifier unit.
2. Hauptmerkmale
- 2-Year Filter Life: Filters are designed to last for 2 years or 12,000 liters, whichever occurs first, under standard lab test conditions (TDS ≤ 200 ppm with NaCl).
- Nanopore-Filtertechnologie: Provides protection against modern pollutants such as microplastics, pesticides, lead, and mercury.
- Compatibility with All Water Sources: Purifies water from municipal, borewell, or tanker sources, supporting a maximum TDS level of 2000 mg/L.
- Patentierte 3-in-1-Aktivkupfertechnologie: Gibt ab dem ersten Tropfen die korrekte Menge Kupfer an das Wasser ab und entspricht damit den BIS-Normen. Mit reinigungsfreier Technologie und für alle Altersgruppen geeignet.
- Überlegene 9-Stage Reinigung: Includes RO+UV purification.
- RO Maxx 2X: Offers protection against pesticides, microplastics, and industrial waste.
- UV e-boiling: Ensures water purity equivalent to water boiled for over 20 minutes.
- Zusätzlicher Mega-Sedimentfilter: Removes fine dust, dirt, and mud particles from water, preventing choking and extending the life of internal filters.
- Wassersparende Umkehrosmosetechnologie: Designed to recover more than 40% of water during the purification process.
Image 2: Diagram illustrating NanoPore Filter Technology removing microplastics, pesticides, and industrial waste.
Image 3: Visual representation of the water purifier's compatibility with various water sources.
Image 4: Diagram showing the 3-in-1 Active Copper Technology with copper, magnesium, and calcium infusion.
Image 5: Illustration of the 9 stages of advanced purification, including Mega Sediment Filter, Sedi Shield 2X, Particulate Filter, Chemi Block 2X, RO Maxx 2X, UV e-boiling, and 3-in-1 Active Copper.
Image 6: The Aquaguard Neo unit shown with an external Mega Sediment Filter.
Image 7: Diagram highlighting the water saving RO technology, indicating over 40% water recovery.
3. Einrichtung
3.1 Installation
Professional installation is recommended for the Aquaguard Neo RO+UV water purifier. The product includes a free installation service. Please contact customer support to schedule your installation.
- Ensure the purifier is installed on a stable countertop or wall-mounted as per the provided installation kit.
- Connect the water inlet to a suitable water source. The system is compatible with municipal, borewell, and tanker water.
- Ensure proper drainage for the reject water line.
- Connect the power supply to a standard electrical outlet.
3.2 Erstgebrauch
After installation, the purifier will undergo an initial flushing process to prepare the filters for use. Follow the instructions provided by the installation technician for the first use. It is normal for the first few liters of purified water to be discarded during this process.
4. Bedienungsanleitung
4.1 Wasserausgabe
To dispense purified water, place a clean container under the water outlet and activate the dispenser lever or button. The purifier will automatically fill the internal storage tank after dispensing water.
4.2 Kontrollleuchten
The purifier features indicator lights to communicate its status:
- Betriebsanzeige: Leuchtet, wenn das Gerät eingeschaltet ist.
- Reinigungsindikator: Illuminates during the purification process.
- Tank-Voll-Anzeige: Leuchtet auf, wenn der Reinwassertank voll ist.
- Filterlebensdaueranzeige: Alerts when filters are nearing the end of their life and require replacement.
- Serviceanzeige: May illuminate to indicate a need for service or maintenance.
5. Wartung
5.1 Filterwechsel
The Aquaguard Neo RO+UV features filters designed for a 2-year life cycle. Regular filter replacement is crucial for maintaining water quality and purifier performance. Refer to the filter life indicator for timely replacement. Contact authorized service personnel for genuine filter replacements.
5.2 Reinigung
- Außenreinigung: Wischen Sie die Außenseite des Luftreinigers mit einem weichen, fusselfreien Tuch ab.amp Tuch. Verwenden Sie keine scharfen Chemikalien oder Scheuermittel.
- Tankreinigung: The internal storage tank should be cleaned periodically by authorized service personnel.
5.3 Serviceplan
The product includes a Free Genuine Service Plan for the first year, offering free installation, two free cleaning services, and unlimited repair visits. For service requests, please refer to the contact information in the Warranty and Support section.
6. Fehlerbehebung
If you encounter any issues with your Aquaguard Neo RO+UV water purifier, please refer to the common troubleshooting steps below. If the problem persists, contact customer support.
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Keine Wasserabgabe | No power, water inlet closed, tank empty, or clogged filters. | Check power supply, open water inlet valve, wait for tank to fill, or contact service for filter inspection. |
| Langsamer Wasserfluss | Clogged filters, low water pressure, or airlock. | Check filter life indicator, ensure adequate water pressure, or contact service. |
| Ungewöhnlicher Geschmack/Geruch im Wasser | Expired filters, new filter installation (initial flushing required), or contamination. | Replace filters if expired, flush new filters as per instructions, or contact service for inspection. |
| Leckage aus dem Gerät | Loose connections, damaged components, or improper installation. | Immediately turn off water supply and power. Contact authorized service personnel. |
7. Spezifikationen
- Marke: Aquaguard
- Modellname: Aquaguard Enrich Neo RO+UV 2X
- Artikelmodellnummer: GWPDEN2XR00B00
- Besonderheit: 2 Year Filter Life, 9 Stage Purification, Added Calcium and Magnesium, Double Life Filters, Mega Sediment Filter
- Produktabmessungen: 32L x 27.8B x 47.6H Zentimeter
- Verpackungsinformationen: Spender
- Installationstyp: Arbeitsplatte
- Energiequelle: Kabelgebundene Elektrik
- Artikelgewicht: 7.5 Kilogramm (7 kg 500 g)
- Niedrigere Temperaturbewertung: 10 Grad Celsius
- Maximale Durchflussrate: 24 Liter pro Stunde
- Betriebsdruckbereich: Bis zu 3 Kilogramm pro Quadratzentimeter
- Obere Temperaturbewertung: 40 Grad Celsius
- Supported Water TDS Level Maximum (PPM): 1000
- Wassereinsparung in Prozenttage: 50 %
- Filterlebenszyklus: 2 Jahre
- Herstellungsjahr: 2025
- Ursprungsland: Indien
- Material: Acrylnitril-Butadien-Styrol
- Kapazität: 6.2 Liter
- Enthaltene Komponenten: Einbausatz
Image 8: Diagram showing the dimensions of the Aquaguard Neo water purifier.
8. Garantie und Support
Your Aquaguard Neo RO+UV water purifier comes with a comprehensive warranty and support:
- Kostenloser Original-Serviceplan: Includes free installation, 2 free cleaning services, and unlimited repair visits for the first year.
- Größtes Servicenetz: Backed by India's widest service network, accessible with one click across 19,500+ pin-codes.
For service requests, technical assistance, or to inquire about extended warranty plans, please contact Aquaguard customer support. Refer to the product packaging or official webWebsite für Kontaktdaten.
