Generic Carburetor for Dongfang 200CC Go Kart DF200GKA - Instruction Manual

1. Einführung und Endeview

This manual provides essential instructions for the installation, operation, and maintenance of your new Generic Carburetor, specifically designed for Dongfang 200CC Go Karts, model DF200GKA. Please read this manual thoroughly before attempting any installation or operation to ensure proper function and safety.

2. Packungsinhalt

Upon unpacking, please verify that all components are present and undamaged. The package includes the carburetor unit and all associated parts as depicted in the primary product image. If any items are missing or damaged, please contact your seller immediately.

Wichtiger Hinweis:

This is an aftermarket custom item. Before installation, ensure it is compatible with your specific Dongfang 200CC Go Kart engine model (DF200GKA) to avoid fitment or performance issues.

Abbildung 2.1: Vorne links view of the Generic Carburetor, showing fuel lines and electrical connections.

3. Einrichtung und Installation

Installation of a carburetor requires mechanical aptitude. If you are unsure about any step, it is recommended to seek assistance from a qualified mechanic.

3.1 Sicherheitsvorkehrungen

• Ensure the Go Kart engine is completely off and cool before beginning any work.
• Um ein versehentliches Starten oder Kurzschlüsse zu verhindern, sollte die Batterie abgeklemmt werden.
• Arbeiten Sie in einem gut belüfteten Bereich.
• Have a fire extinguisher nearby, as you will be working with fuel.

3.2 Erforderliches Werkzeug

You will typically need a set of wrenches, screwdrivers, pliers, and possibly a fuel line clamp.

3.3 Installationsschritte

1. Locate Old Carburetor: Identify the existing carburetor on your Dongfang 200CC Go Kart engine.
2. Komponenten trennen: Carefully disconnect the fuel lines, throttle cable, and any electrical connections (e.g., choke wires) from the old carburetor. Be prepared for minor fuel spills.
3. Alten Vergaser ausbauen: Unbolt the mounting nuts or screws that secure the old carburetor to the engine intake manifold. Gently remove the old unit, ensuring no debris falls into the engine.
4. Prepare New Carburetor: Ensure the new Generic Carburetor has all necessary gaskets and seals in place.
5. Neuen Vergaser einbauen: Position the new carburetor onto the intake manifold, ensuring the gaskets are properly seated. Secure it with the mounting nuts/screws, tightening them evenly to prevent air leaks.
6. Komponenten wieder verbinden: Reattach the fuel lines, throttle cable, and electrical connections to the new carburetor. Ensure all connections are secure and free from kinks or leaks.
7. Endkontrolle: Double-check all connections, hoses, and wires for proper routing and security.

4. Bedienungsanleitung

After successful installation, follow these steps to operate your Go Kart with the new carburetor:

1. Kraftstoffversorgung: Ensure the Go Kart's fuel tank contains fresh, clean fuel appropriate for your engine.
2. Choke-Operation: If your carburetor has a manual choke, engage it for cold starts. If it has an automatic choke, it will activate as needed.
3. Starte den Motor: Follow your Dongfang 200CC Go Kart's manufacturer instructions for starting the engine. This typically involves turning the key or pulling the starter cord.
4. Sich warm laufen: Allow the engine to warm up for a few minutes. If using a manual choke, gradually disengage it as the engine warms.
5. Leerlaufeinstellung: If the engine idles too high or too low, locate the idle speed screw on the carburetor and adjust it until a stable idle speed is achieved.
6. Gasannahme: Gently test the throttle response. The engine should rev smoothly without hesitation or bogging.

5. Wartung

Regular maintenance ensures optimal performance and longevity of your carburetor.

5.1 Allgemeine Wartungstipps

• Luftfilter: Überprüfen und reinigen oder ersetzen Sie den Luftfilter regelmäßig. Ein verstopfter Luftfilter kann den Luftstrom behindern und die Vergaserleistung beeinträchtigen.
• Kraftstoffqualität: Always use clean, fresh fuel. Stale or contaminated fuel can lead to clogs and poor engine performance. Consider using a fuel stabilizer if the Go Kart will be stored for extended periods.
• Kraftstofffilter: Check and replace the inline fuel filter periodically to prevent debris from reaching the carburetor.
• Außenreinigung: Keep the exterior of the carburetor clean from dirt, oil, and debris.
• Dichtungsintegrität: Periodically inspect all gaskets and seals around the carburetor for signs of wear or damage. Replace any compromised gaskets to prevent air or fuel leaks.

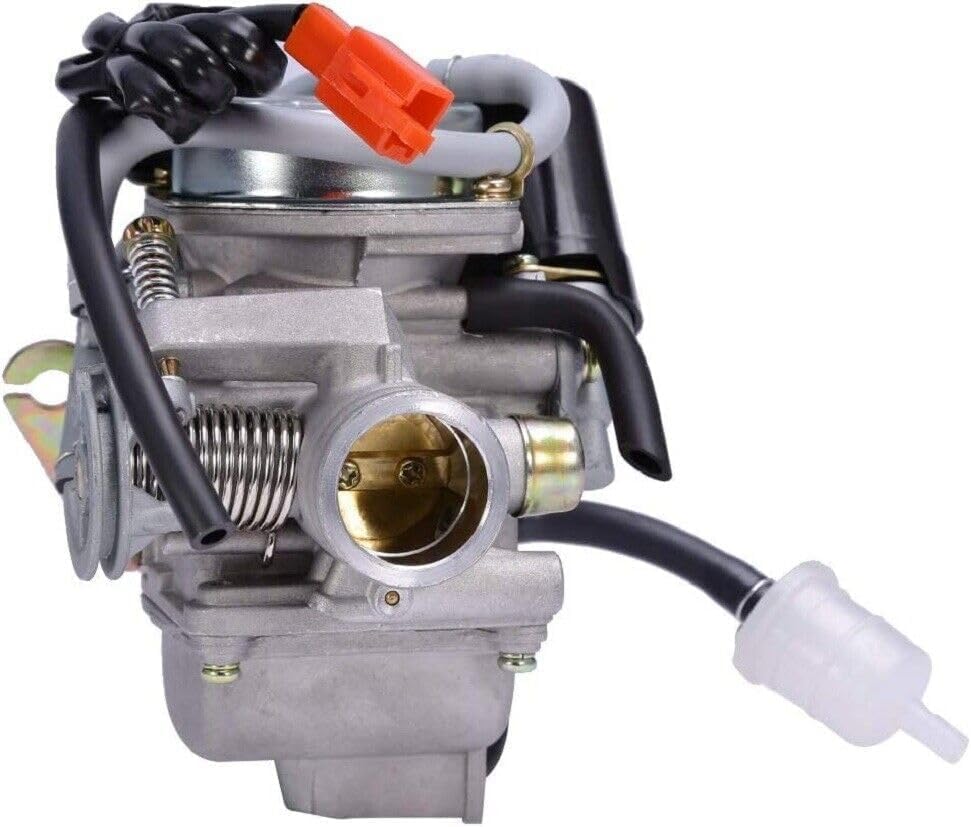

Abbildung 5.1: Hinten rechts view of the Generic Carburetor, showing the float bowl and adjustment screws.

6. Fehlerbehebung

If you encounter issues, refer to the following common problems and their potential solutions:

If these troubleshooting steps do not resolve the issue, it is recommended to consult a professional mechanic.

7. Spezifikationen

• Modell: DF200GKA
• Marke: Generisch
• Kompatibilität: Dongfang 200CC Go Kart
• UPC: 776728365782
• ASIN: B0FDK28TYN
• Hersteller: Tamiake

8. Garantie und Support

As an aftermarket custom item, specific warranty details may vary. Please refer to the seller's return policy or contact the seller directly for information regarding warranty coverage, returns, or exchanges.

For technical assistance or further support, it is recommended to contact the seller or a qualified powersports mechanic.
