ALDIPRO Cordless 20V 12'' Electric String Trimmer (AD-ST-002) User Manual

1. Wichtige Sicherheitshinweise

Lesen und verstehen Sie vor der Inbetriebnahme dieses Produkts stets alle Sicherheitshinweise und Anweisungen. Die Nichtbeachtung der Hinweise und Anweisungen kann zu Stromschlag, Brand und/oder schweren Verletzungen führen.

• Always wear eye protection, long pants, and closed-toe shoes when operating the string trimmer.
• Halten Sie beim Bedienen des Geräts einen sicheren Abstand zu anderen Personen, insbesondere zu Kindern und Haustieren.
• Do not trim near flammable materials or liquids.
• Ensure the battery is fully charged before use and properly installed.
• Never operate the trimmer with damaged or missing guards.

2. Produktüberschreitungview

The ALDIPRO Cordless 20V 12'' Electric String Trimmer (AD-ST-002) is a versatile 3-in-1 tool designed for trimming, edging, and light lawn mowing. It features an automatic line feed system, a powerful motor, and a lightweight, adjustable design for comfortable use.

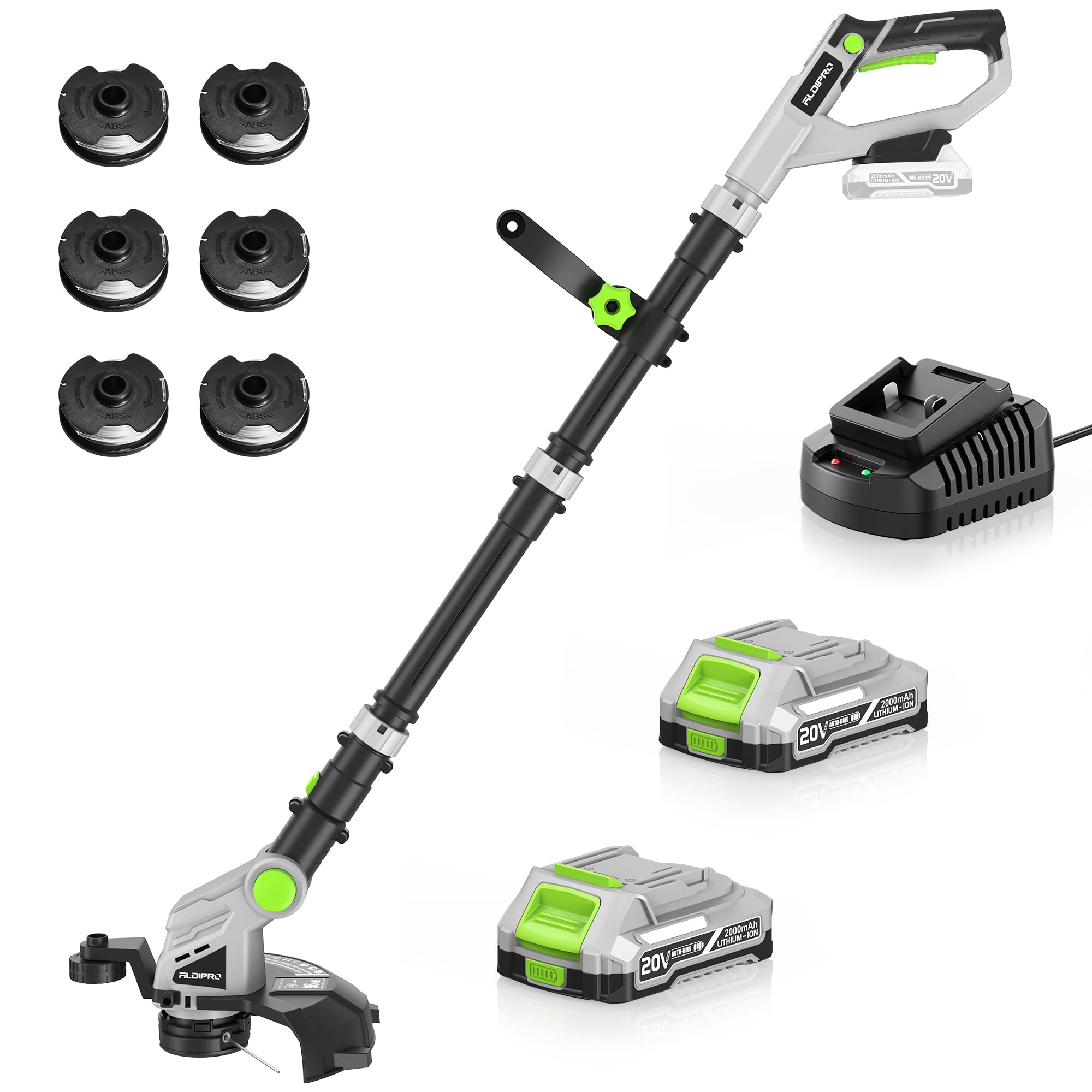

Image: The ALDIPRO Cordless 20V 12'' Electric String Trimmer with battery and charger.

Hauptmerkmale:

• 3-In-1 Functionality: Easily switches between trimmer, edger, and lawn mower modes.
• Automatischer Zeilenvorschub: Automatically releases 0.1-0.3 inches of new line each time the machine is turned on.
• Erweiterte Laufzeit: Includes 2 x 2.0Ah lithium-ion batteries for over 70 minutes of continuous trimming (no load).
• Schnelles Laden: UL-certified charger provides a full charge in approximately 60 minutes.
• Detachable & Adjustable Structure: Innovative pole design allows for adjustable length and easy storage.
• Flexible Anpassung: Head rotates 180°, adjusts 60° up and down, and the handle swivels 180° for various trimming angles.

3. Packungsinhalt

Prüfen Sie beim Auspacken, ob alle Artikel vorhanden sind:

• 1 x Cordless String Trimmer
• 1 x Schnellladegerät
• 2 x 2.0 Ah Lithium-Ionen-Akku
• 1 x Benutzerhandbuch
• 6 x Replacement Line

4. Montageanleitung

Follow these steps to assemble your ALDIPRO Cordless String Trimmer:

1. Connect the main shaft sections. Ensure they click securely into place.
2. Attach the auxiliary handle to the desired position on the shaft and tighten the knob.
3. Install the safety guard onto the trimmer head. Secure it with the provided screws.
4. Remove the protective film from the cutting blade on the safety guard.

Image: Visual guide showing the three main steps for assembling the string trimmer: connecting shaft sections, attaching the handle, and securing the trimmer head.

5. Bedienungsanleitung

5.1 Akkuladung und Installation

Before first use, fully charge both 2.0Ah lithium-ion batteries. The UL-certified fast charger can charge a battery in approximately 60 minutes.

1. Schließen Sie das Schnellladegerät an eine Steckdose an.
2. Slide the battery onto the charger until it clicks into place. The charger will indicate charging status.
3. Sobald der Akku vollständig aufgeladen ist, nehmen Sie ihn aus dem Ladegerät.
4. To install the battery into the trimmer, align the battery with the battery slot on the handle and slide it in until it locks securely.

Image: The UL-listed fast charger and two 20V 2000mAh lithium-ion batteries.

5.2 3-in-1 Functionality (Trimmer, Edger, Mower)

The trimmer can be easily converted between three modes:

• Trimmermodus: For cutting grass and weeds in open areas.
• Kantenschneider-Modus: Rotate the trimmer head 90 degrees to create clean edges along sidewalks and driveways.
• Mähmodus: Adjust the wheel for a consistent cutting height for light lawn mowing tasks.

Image: Illustration of the ALDIPRO string trimmer demonstrating its use as a trimmer, edger, and mower.

5.3 Automatischer Zeilenvorschub

The automatic line feeding system ensures a continuous cutting line. Each time the machine is turned on, it automatically releases approximately 0.1-0.3 inches of new line. This eliminates the need for manual bumping or adjustments during operation.

Image: Diagram showing the automatic line feed spool mechanism in action, extending the cutting line.

5.4 Adjustable Features

Customize the trimmer for optimal comfort and control:

• Kopfdrehung: The trimmer head can be rotated 180° for edging tasks.
• Kopfwinkeleinstellung: Adjust the head 60° up and down to reach various angles and under obstacles.
• Handle Swivel: The auxiliary handle can swivel 180° for improved ergonomics and control during operation.
• Einstellbare Länge: The innovative pole design allows for length adjustment to suit users of different heights and for compact storage.

Image: Demonstrates the flexible application of the trimmer, highlighting the 180° head rotation, 60° up/down adjustment, and 180° handle swivel.

6. Wartung

Regular maintenance ensures optimal performance and extends the life of your string trimmer:

• Reinigung: Reinigen Sie nach jedem Gebrauch den Trimmerkopf und die Schutzhaube, um Grasschnitt und Schmutz zu entfernen.amp Tuch; verwenden Sie keine aggressiven Chemikalien.
• Leitungsersatz: When the cutting line runs out, replace it with the specified nylon line (diameter 0.065"). Refer to the manual for detailed instructions on how to replace the line spool.
• Batteriepflege: Bewahren Sie Batterien an einem kühlen, trockenen Ort und vor direkter Sonneneinstrahlung geschützt auf. Lagern Sie vollständig entladene Batterien nicht über längere Zeit.
• Lagerung: Store the trimmer in a dry, secure location, out of reach of children. The detachable structure allows for compact storage.

7. Spezifikationen

8. Garantie und Support

For warranty information, technical support, or to purchase replacement parts, please refer to the contact information provided in your product packaging or visit the official ALDIPRO webBewahren Sie Ihren Kaufbeleg als Kaufnachweis für Garantieansprüche auf.
