1. Einleitung
This manual provides essential information for the safe and effective operation of your Flashback Events 150W 6-Arm Hybrid Moving Head Light. This versatile fixture combines six independently motorized RGBW beams, a Bee Eye effect, an LED halo ring, strobe, and red & green laser effects. Please read this manual thoroughly before use and retain it for future reference.

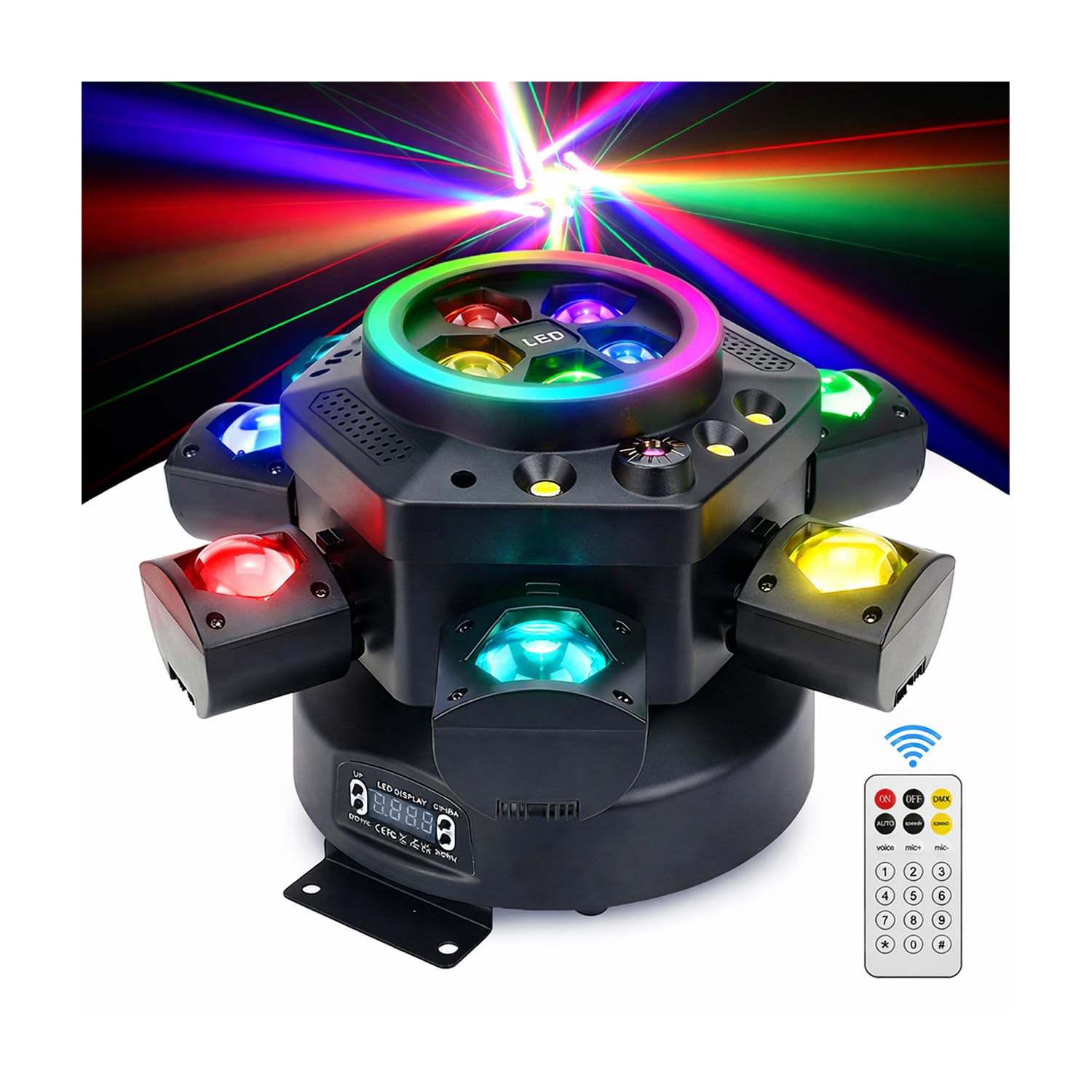

Bild 1.1: Überview of the Flashback Events 150W 6-Arm Hybrid Moving Head Light and its effects.
2. Sicherheitshinweise
- Schließen Sie das Gerät immer an eine geerdete Steckdose an.
- Do not open the housing; there are no user-serviceable parts inside. Refer servicing to qualified personnel.
- Avoid direct eye exposure to the light source, especially the laser. Class 3R lasers can cause eye injury.
- Sorgen Sie für eine ausreichende Belüftung rund um das Gerät, um eine Überhitzung zu vermeiden.
- Das Gerät darf nicht mit Feuchtigkeit, Wasser oder brennbaren Materialien in Berührung kommen.
- Montieren Sie die Leuchte mit geeignetem Befestigungsmaterial sicher, um ein versehentliches Herunterfallen zu verhindern.
3. Lieferumfang
Prüfen Sie beim Auspacken, ob alle Komponenten vorhanden sind:
- 1x Flashback Events 150W 6-Arm Hybrid Moving Head Light + LED Halo Light Strip
- 1x Stromkabel
- 1x DMX Cable
- 1x Fernbedienung
- 1x Montagehalterung
- 1x Truss Clamp
Image 3.1: Contents of the Flashback Events 150W 6-Arm Hybrid Moving Head Light package.
4. Einrichtung
4.1 Montage
The fixture can be mounted in various orientations: truss mount, wall mount, floor mount, or table mount. Use the included mounting bracket and truss clamp for secure installation. Ensure the mounting surface or truss can support the weight of the fixture (approximately 9.15 lbs / 4.15 kg).
Image 4.1: Illustration of the fixture's 540° pan and 180° arm rotation capabilities.
4.2 Stromanschluss
Connect the included power cable to the fixture's power input and then to a standard 95-245V AC, 50/60Hz grounded power outlet.
4.3 DMX-Anschluss (optional)
For DMX control, connect a DMX cable from your DMX controller's output to the fixture's DMX IN port. For multiple fixtures, daisy-chain them by connecting the first fixture's DMX OUT to the next fixture's DMX IN.
5. Betriebsarten
The fixture offers several operating modes, selectable via the onboard LED digital display or the remote control.
- Soundaktivierter Modus: Das Licht reagiert auf Umgebungsgeräusche und ändert Muster und Farben synchron zur Musik.
- Automatikmodus: Die Leuchte spielt automatisch vorprogrammierte Lichtshows ab.
- DMX-Modus: Provides full control over all light functions (beams, Bee Eye, halo, strobe, laser) using a DMX controller.
- Master/Slave-Modus: Link multiple fixtures together. One unit acts as the master, controlling all other slave units to synchronize effects.
- Wireless Remote Mode: Use the included remote control for convenient operation and mode selection.
Image 5.1: Key features and operating modes of the 150W Six-Arm Stage Beam.
5.1 Visual Effects Overview
The light produces a variety of dynamic effects:
- 6-Arm Moving RGBW Beams: Six arms sweep, cross, and fan in all directions with RGBW color mixing.
- Bee Eye Effect: A central light engine floods the dance floor with rich colors.
- LED Halo Ring: A glowing ring around the central Bee Eye with 7 solid colors and 31 flowing animation effects, independently speed controlled.
- Red & Green Laser Starry Sky Effect: Integrated Class 3R lasers project thousands of starry dots.
- Weiß & Bernstein Stroboskop: Dedicated strobe channels fire at up to 20 flashes per second.
Abbildung 5.2: Beispielamples of the various light effects produced by the fixture.
Abbildung 5.3: Zusätzliches Beispielamples of beam, dance floor, and laser starry sky effects.
5.2 Offizielle Produktvideos
Video 5.1: Demonstrates the various light patterns and movements of the 6-Arm DJ Light. This video showcases the dynamic capabilities of the fixture, including beam sweeps and color changes.
Video 5.2: A shorter demonstration of the 6-Arm DJ Lights in action, highlighting its versatility for different event settings.
Video 5.3: Shows the Flashback Events DJ Lights 6 Arms DJ light creating various effects in a vertical format, suitable for different display orientations.
6. DMX-Steuerung
The FBE-BE6KK-LS features a 26-channel DMX profile, allowing for granular control over its various functions. This includes individual control of LED Halo Ring color, halo animation pattern, and halo animation speed, in addition to the standard beam, Bee Eye, strobe, and laser controls.
6.1 DMX Channel Map (Example)
| Kanal | Funktion | Wertebereich |
|---|---|---|
| 1 | Schwenkbewegung | 0-255 |
| 2 | Neigungsbewegung | 0-255 |
| 3 | Master-Dimmer | 0-255 (0-100% Dimming) |
| 4 | Blitzgeschwindigkeit | 0-255 |
| ... | ... | ... |
| 26 | Halo Animation Speed | 0-255 |
Refer to the full DMX channel map provided with your product for complete details on all 26 channels.
7. Wartung
- Reinigung: Regularly clean the lenses and exterior with a soft, lint-free cloth. Do not use abrasive cleaners or solvents.
- Inspektion: Überprüfen Sie regelmäßig die Strom- und DMX-Kabel auf Beschädigungen. Stellen Sie sicher, dass alle Befestigungselemente fest sitzen.
- Lagerung: Bewahren Sie die Leuchte bei Nichtgebrauch in einer trockenen, staubfreien Umgebung auf.
8. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Kein Strom | Power cable disconnected, faulty outlet, or internal fuse. | Check power connections, try a different outlet. If problem persists, contact support. |
| Keine Lichtleistung | Dimmer at 0%, incorrect mode, or DMX signal issue. | Increase dimmer, switch operating modes, check DMX connections and address. |
| Keine Bewegung | Movement locked, incorrect mode, or DMX signal issue. | Ensure no physical obstructions, switch operating modes, check DMX settings. |
| Fernbedienung funktioniert nicht | Batterie leer oder Sichtlinie unterbrochen. | Replace remote battery, ensure clear line of sight to the fixture's IR receiver. |
For issues not listed or if troubleshooting steps do not resolve the problem, please contact Flashback Events customer support.
9. Spezifikationen
Abbildung 9.1: Detaillierte Produktparameter und Abmessungen.
| Besonderheit | Detail |
|---|---|
| Modellnummer | FBE-BE6KK-LS |
| Leistungsabgabe | 150 Watt |
| Bandtage | 95-245V AC |
| Frequenz | 50/60 Hz |
| Lichtquellentyp | LED (RGBW), Red & Green Laser |
| Anzahl der Lichtquellen | 17 (10x CREE 10W RGBW LED, 2x 10W Amber Strobe, 2x 10W White Strobe, Red & Green Laser, LED Halo Light Strip) |
| DMX-Kanäle | 26-Kanal |
| Schwenkbewegung | 540° |
| Armrotation | 180° (independent) |
| Dimmen | 0-100% Smooth |
| Blitzrate | Up to 20 flashes/second |
| Material | Aluminum, High brightness RGBW lamp beads, Plastic |
| Ausführung | Mattschwarz |
| Artikelabmessungen (L x B x H) | 12.2" x 8.26" x 12.2" (31 cm x 21 cm x 31 cm) |
| Gewicht | 9.15 kg |
| Im Lieferumfang enthaltene Komponenten | Light fixture, Power Cable, DMX Cable, Remote, Mounting Bracket, Truss Clamp |
10. Garantie und Support
10.1 Gewährleistung
This Flashback Events product is covered by a 1 Jahr Herstellergarantie Diese Garantie gilt ab Kaufdatum und deckt Material- und Verarbeitungsfehler bei normalem Gebrauch ab. Sie deckt keine Schäden ab, die durch Missbrauch, Unfälle, unbefugte Änderungen oder unsachgemäße Installation verursacht wurden.
10.2 Kundendienst
Flashback Events is committed to providing responsive customer service. If you have any questions, require technical guidance, or need assistance with your product, please contact us directly. Our support team is available to help ensure your satisfaction.
For contact information, please refer to the packaging or the official Flashback Events webWebsite.
