1. Sicherheitshinweise
Bitte lesen und verstehen Sie alle Anweisungen, bevor Sie mit der Montage und dem Gerät beginnen. Bewahren Sie diese Anleitung zum späteren Nachschlagen auf.
- Montage durch Erwachsene erforderlich: Dieses Produkt muss von einem Erwachsenen zusammengebaut werden.
- Montage durch zwei Personen empfohlen: For safety and ease of assembly, it is recommended that two adults assemble this daybed.
- Halten Sie Kleinteile von Kindern fern: Achten Sie während der Montage darauf, dass alle Kleinteile und Verpackungsmaterialien für Kinder unzugänglich sind, um Erstickungsgefahren zu vermeiden.
- Verwendung auf einer ebenen Fläche: Ensure the daybed is assembled and used on a flat, level surface to prevent instability.
- Überprüfen Sie regelmäßig die Verbindungen: Überprüfen Sie regelmäßig alle Schrauben und Bolzen auf festen Sitz. Ziehen Sie sie gegebenenfalls nach.
- Maximale Gewichtskapazität: The daybed and trundle each have a weight capability of 300 lbs. Do not exceed this limit.
- Matratzendicke: Recommended mattress thickness for both daybed and trundle is 6 inches.
2. Packungsinhalt
Prüfen Sie vor der Montage, ob alle unten aufgeführten Komponenten vorhanden und unbeschädigt sind. Sollten Teile fehlen oder beschädigt sein, fahren Sie nicht mit der Montage fort und kontaktieren Sie den Kundendienst.
- Upholstered L-Shaped Daybed Frame (Multiple Sections)
- Ausziehbettrahmen
- Storage Drawers (Quantity: 2 or 3, depending on model)
- Wood Slats for Daybed and Trundle
- Hardware-Paket (Schrauben, Bolzen, Unterlegscheiben, Inbusschlüssel)
- Installationshandbuch (Dieses Dokument)
Note: The product is shipped in 3 separate packages. Ensure all packages have arrived before starting assembly.
3. Aufbau und Montage
Follow these steps carefully for proper assembly. An Allen wrench is included in the hardware pack. A Phillips head screwdriver (not included) may also be required.
3.1 Auspacken und Vorbereitung
- Schaffen Sie ausreichend Platz für die Versammlung.
- Packen Sie alle Komponenten vorsichtig aus und legen Sie sie auf eine weiche, saubere Unterlage, um Kratzer zu vermeiden.
- Identify all parts using the included parts list (if provided separately).
3.2 Assembling the Main Daybed Frame
Begin by connecting the L-shaped sections of the daybed. Ensure all bolts are securely tightened but do not overtighten.
Image: Fully assembled L-shaped daybed with trundle and drawers, shown in a room. This image provides an overview of the final product configuration.
3.3 Installing Wood Slats
Place the wood slats onto the designated support rails of both the main daybed sections and the trundle. Ensure slats are evenly spaced and secured if attachment points are present.
Bild: Nahaufnahme view of the daybed's internal structure, highlighting the wood slat support system for the main bed and the partially extended trundle bed. This shows how the slats are positioned.

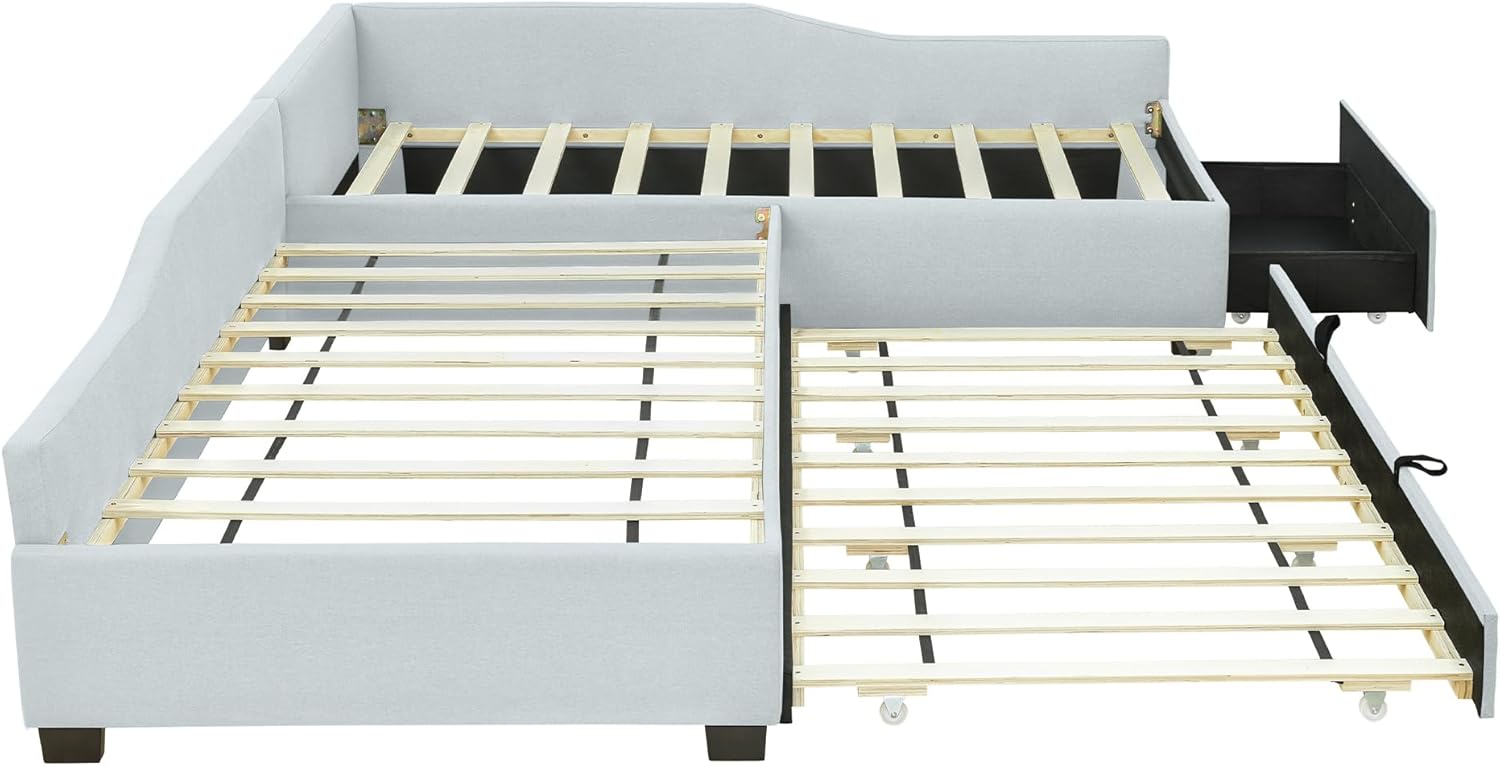

Abbildung: Draufsicht view of the daybed frame with the trundle fully extended, revealing the complete wood slat foundation for both sleeping surfaces. This illustrates the full extension of the trundle.
3.4 Assembling and Inserting the Trundle and Drawers
Assemble the trundle frame and attach the wheels. Slide the trundle into its designated space under the main daybed. Assemble the storage drawers and insert them into their compartments.
Image: The L-shaped daybed with the trundle bed fully pulled out and the storage drawers open, demonstrating the multi-functional design. This shows the trundle and drawers in use.
Bild: Ein schräger view from below the daybed, showing the trundle bed and storage drawers in their retracted positions, revealing the underlying support structure. This highlights the integrated storage and trundle design.
Bild: Eine andere Perspektive view from below the daybed, providing another perspective of the retracted trundle bed and storage drawers, emphasizing their compact integration. This offers an alternative view of the retracted components.
4. Bedienungsanleitung
4.1 Nutzung des Tagesbetts
The L-shaped daybed provides two twin-sized sleeping or lounging surfaces. Place appropriate twin-sized mattresses (max 6-inch thickness recommended) on the wood slat foundations.
4.2 Verlängern des Ausziehbetts
To use the trundle bed, gently pull the trundle frame from underneath the main daybed until it is fully extended. The trundle is equipped with wheels for easy movement. Ensure it is on a level surface before use.
4.3 Verwendung der Aufbewahrungsschubladen
The integrated drawers can be pulled out to store items such as bedding, clothing, or toys. Push them back in fully when not in use to maintain a tidy appearance.
5. Wartung
Proper care will extend the life and appearance of your JIVOIT daybed.
- Polsterreinigung: For general cleaning, vacuum the upholstered surfaces regularly with a soft brush attachment to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For stubborn stains, consult a professional upholstery cleaner or use a mild fabric cleaner according to its instructions, testing on an inconspicuous area first.
- Cleaning Wood Components: Holzoberflächen mit einem weichen, fusselfreien Tuch abwischenamp Mit einem sauberen Tuch abtrocknen. Scharfe Chemikalien oder Scheuermittel vermeiden.
- Hardwareprüfung: Periodically check all screws, bolts, and connections to ensure they remain tight. Retighten as needed to maintain structural integrity.
- Vermeiden Sie direktes Sonnenlicht: Prolonged exposure to direct sunlight can cause fabric fading. Position the daybed away from direct sunlight or use window coverings.
6. Fehlerbehebung
Sollten Sie Probleme mit Ihrem Tagesbett haben, beachten Sie bitte die folgenden häufig auftretenden Probleme und Lösungen:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Das Tagesbett wirkt wackelig oder instabil. | Lose Hardwareverbindungen. Unebener Bodenbelag. | Check and tighten all bolts and screws. Ensure the daybed is on a level surface; use shims if necessary. |
| Trundle or drawers are difficult to pull out/push in. | Obstruction in the track. Wheels are dirty or damaged. | Inspect the tracks for any obstructions. Clean wheels and tracks. If wheels are damaged, contact customer support. |
| Quietschgeräusche während des Gebrauchs. | Loose connections. Friction between wood slats and frame. | Tighten all hardware. Apply a small amount of furniture wax or felt pads where slats meet the frame to reduce friction. |
7. Spezifikationen
- Marke: JIVOIT
- Material: Plywood + Linen
- Farbe: Beige
- Größe: Twin/Twin (L-Shaped)
- Gesamtproduktabmessungen: 120 Zoll L x 78.5 Zoll B x 21.5 Zoll H
- Individual Bed Dimensions: 75.3 Zoll L x 39 Zoll B
- Gesamthöhe: 21.5''
- Gesamtgewicht des Produkts: 139.5 Pfund
- Weight Capability (Daybed/Trundle): Jeweils 300 lbs
- Empfohlene Matratzendicke: 6''
- Montage erforderlich: Ja
- Anzahl der Pakete: 3
Image: A detailed diagram showing the key dimensions of the L-shaped daybed, including length, width, and height, as well as dimensions for the trundle and drawers. This provides precise measurements for planning and setup.
8. Garantie und Support
For warranty information or assistance with your JIVOIT daybed, please refer to the purchase documentation or contact the retailer where the product was purchased. Keep your proof of purchase for any warranty claims.
If you have any questions regarding assembly, missing parts, or product functionality, please contact JIVOIT customer support through the contact information provided on the product packaging or the retailer's webBitte halten Sie Ihre Modellnummer und das Kaufdatum bereit, wenn Sie sich an den Support wenden.
