1. Einleitung
This manual provides detailed instructions for the safe and effective installation, operation, and maintenance of the Generic AR403 Round Type Gas Range Oven Igniter. This replacement part is designed to restore consistent ignition for gas ovens and ranges, ensuring reliable heating for baking and broiling functions. It is manufactured with high-quality ceramic and heat-resistant alloys for durability and precise compatibility with various oven and stove models, including specified Kenmore models.
Proper installation and adherence to safety guidelines are crucial for optimal performance and to extend the lifespan of your appliance. Please read this manual thoroughly before proceeding with any installation or maintenance.
2. Sicherheitshinweise
WARNING: Risk of Electric Shock, Fire, or Explosion.
- Vor jeglichen Wartungs- oder Installationsarbeiten muss die Stromzufuhr zum Gerät am Sicherungsautomaten oder Sicherungskasten unterbrochen werden.
- Turn off the gas supply to the appliance before beginning work.
- Tragen Sie geeignete persönliche Schutzausrüstung, einschließlich Handschuhe und Augenschutz.
- Wenn Sie sich bei einem der Schritte unsicher sind, wenden Sie sich an einen qualifizierten Haushaltsgerätetechniker.
- Stellen Sie nach der Installation sicher, dass alle Verbindungen sicher und ordnungsgemäß isoliert sind.
- Do not operate the oven if you smell gas. Immediately ventilate the area and contact a qualified service technician.
3. Packungsinhalt
Vor Beginn der Installation prüfen Sie, ob alle Komponenten vorhanden und unbeschädigt sind.
- 1 x Generic AR403 Oven Igniter
- 1 x Befestigungswinkel
- 1 x Wire Connector (may include ceramic wire nuts)
Abbildung 3.1: The Generic AR403 oven igniter, a cylindrical ceramic heating element with attached wires.
Abbildung 3.2: The metal mounting bracket used to secure the igniter in place.

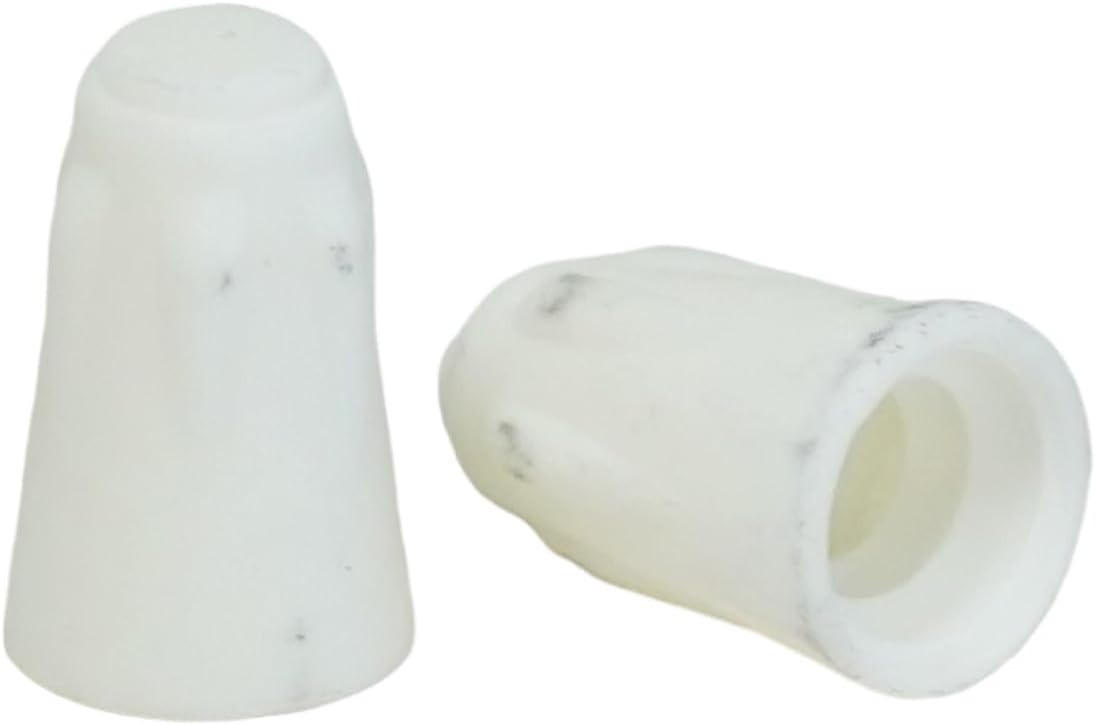

Abbildung 3.3: Ceramic wire connectors, typically used for high-temperature electrical connections.
Abbildung 3.4: Close-up of the igniter's wires, showing the pre-attached electrical connectors.
4. Installationsanweisungen
This section outlines the general procedure for replacing a gas oven igniter. Specific steps may vary slightly depending on your oven model. Always refer to your appliance's service manual for precise instructions.
- Bereiten Sie das Gerät vor:
- Disconnect the oven from its power supply by unplugging it or turning off the circuit breaker.
- Turn off the gas supply valve to the oven.
- Lassen Sie den Backofen vollständig abkühlen, falls er in Gebrauch war.
- Zugriff auf den Zünder:
- Open the oven door and remove any oven racks.
- Locate the bottom oven panel. This panel is usually held in place by screws or clips. Remove the screws or release the clips and lift out the bottom panel.
- Identify the igniter, which is typically located near the gas burner tube at the bottom of the oven cavity.
- Den alten Zünder ausbauen:
- Carefully disconnect the wires leading to the old igniter. Note their connection points. You may need to cut the wires if they are hardwired, or simply unplug them if they have quick-connect terminals.
- Unscrew the mounting bracket that holds the igniter in place.
- Gently remove the old igniter and its bracket from the oven.
- Installieren Sie den neuen Zünder:
- Attach the new AR403 igniter to the provided mounting bracket.
- Position the new igniter and bracket in the same location as the old one and secure it with the screws. Ensure it is firmly in place and properly aligned with the burner tube.
- Connect the new igniter's wires to the oven's wiring. If using ceramic wire nuts, twist the bare ends of the wires together and secure them tightly within the wire nuts. Ensure a good, secure electrical connection.
- Zusammenbau und Test:
- Replace the bottom oven panel and secure it with its screws or clips.
- Restore the gas supply to the oven.
- Restore power to the oven at the circuit breaker or by plugging it back in.
- Test the oven by setting it to bake at a moderate temperature. Observe the igniter; it should glow brightly within 30-60 seconds, followed by the burner igniting.
- If the oven does not ignite or if you detect a gas smell, immediately turn off the gas and power, and recheck your connections or consult a professional.
Abbildung 4.1: Diagram illustrating common locations for an appliance's model number, which is crucial for verifying part compatibility before installation. Always check your appliance's manual or information plate.
5. Funktionsprinzipien
The AR403 oven igniter is a glow-bar igniter. When the oven is turned on, electrical current flows through the igniter, causing it to heat up and glow. This glowing igniter serves two primary functions:
- Gas Valve Activation: As the igniter heats, its electrical resistance changes. This change is detected by a safety valve, which then opens to allow gas to flow to the burner.
- Gas Ignition: Once gas flows, the hot surface of the igniter ignites the gas, producing the flame necessary for heating the oven.
A properly functioning igniter will glow brightly and consistently, leading to quick and reliable ignition of the oven burner.
6. Wartung
The AR403 igniter is a sealed unit and does not require specific maintenance. However, general oven cleanliness can contribute to its longevity and efficient operation.
- Keep the oven cavity clean from food spills and debris, especially around the burner and igniter area.
- Avoid using harsh chemical cleaners directly on the igniter or burner components.
- Regularly inspect the igniter for any visible damage or excessive carbon buildup. If damage is observed, replace the igniter.
7. Fehlerbehebung
Falls Ihr Backofen nach dem Austausch des Zünders nicht richtig heizt, sollten Sie folgende häufige Ursachen in Betracht ziehen:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Der Ofen heizt nicht auf, der Zünder glüht nicht. | No power to the oven; faulty wiring connection; igniter failure (unlikely if new). | Check circuit breaker/fuse. Verify all wire connections are secure. Ensure igniter is correctly installed. |
| Igniter glows, but oven does not ignite. | Igniter not getting hot enough to open gas valve; gas supply issue; faulty gas valve. | Ensure igniter glows brightly for 30-60 seconds. Check if gas supply valve is fully open. If igniter glows correctly and gas is on, the gas valve may be faulty (professional service required). |
| Oven ignites slowly or intermittently. | Weak igniter (if old); insufficient gas pressure; partial obstruction in burner. | Ensure igniter is clean and glowing brightly. Check gas pressure (professional service). Clean burner ports. |
| Smell of gas without ignition. | Gas valve opening but no ignition; gas leak. | Immediately turn off gas and power. Ventilate area. Do not operate. Contact a qualified technician. |
For issues not resolved by these steps, it is recommended to contact a qualified appliance repair technician.
8. Spezifikationen
- Modellnummer: AR403
- Typ: Round Style Oven Igniter
- Bandtage: Designed for 120V household gas ovens and ranges
- Gesamtlänge: Ungefähr 7 Zoll
- Abmessungen: 7 x 2 x 2 Zoll (Produkt)
- Gewicht: 0.42 Pfund
- Material: High-quality ceramic and heat-resistant alloys
- Enthaltene Komponenten: 1 oven igniter, 1 mounting bracket, 1 wire connector
- Hersteller: Quoc Huy Appliance Hub
9. Garantieinformationen
Dieses Produkt wird mit einem 1 Jahre Herstellergarantie. For details regarding warranty claims or coverage, please retain your proof of purchase and contact the manufacturer or seller directly.
10. Kundendienst
We are committed to providing excellent after-sales support. If you encounter any product-related issues, require assistance with troubleshooting, or have questions, please do not hesitate to contact our dedicated customer service team. We are available to help ensure your complete satisfaction.
For support, please refer to the contact information provided by your retailer or the manufacturer, Quoc Huy Appliance Hub.
