ARCCAPTAIN TIG 205 Pro

ARCCAPTAIN iControl TIG 205 Pro Welder User Manual

Model: TIG 205 Pro

1. Einleitung

This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your ARCCAPTAIN iControl TIG 205 Pro welder. Please read this manual thoroughly before using the equipment to ensure proper function and to prevent injury or damage.

ARCCAPTAIN iControl TIG 205 Pro Welder

Figure 1: The ARCCAPTAIN iControl TIG 205 Pro Welder. This image displays the front panel of the welding machine with its various connections and digital display.

2. Sicherheitshinweise

Welding operations can be hazardous. Always follow safety precautions to prevent electric shock, fire, burns, and other serious injuries. Keep this manual for future reference.

  • Elektrischer Schock: Always ensure the welder is properly grounded. Do not touch live electrical parts. Wear dry welding gloves and protective clothing.
  • Dämpfe und Gase: Ensure adequate ventilation to remove welding fumes and gases from the breathing zone.
  • Lichtbogenstrahlen: Lichtbogenstrahlen können Augen und Haut verbrennen. Tragen Sie einen Schweißhelm mit geeignetem Schutzfilter und Schutzkleidung.
  • Feuer und Explosion: Remove all flammable materials from the welding area. Have a fire extinguisher readily available.
  • Heiße Teile: Vor der Handhabung müssen die geschweißten Materialien und Geräte abkühlen.

3. Produktmerkmale

The ARCCAPTAIN iControl TIG 205 Pro offers advanced features designed for precision and versatility:

  • First App-Controlled TIG Welder: Connect to a mobile application by scanning a QR code on the welder. The app allows real-time monitoring, multi-functional welding process selection, parameter adjustments, error code analysis, and access to FAQs.
    • ARCCAPTAIN Welder App Control Interface

    Figure 2: Mobile application interface for controlling the ARCCAPTAIN TIG 205 Pro welder. The image shows a smartphone displaying welding parameters and settings, with the welder visible in the background.

  • 5-in-1 Multi-Process TIG Welder: Diese 205 amp welding machine supports COLD TIG, 4T DC TIG, COLD SPOT TIG, 2T DC TIG, and STICK welding processes. It is compatible with the ARCCAPTAIN 5-pin TIG foot pedal and WP-17 TIG torch for remote control.
    • ARCCAPTAIN 5-in-1 Welding Modes

    Figure 3: Visual representation of the five welding modes: Cold TIG, 4T (DC) HF TIG, Cold Spot TIG, 2T (DC) HF TIG, and Stick welding, demonstrating the versatility of the machine.

  • Großes LED-Display: The smart LED screen provides clear and accurate data display, making it easy to read welding parameters without removing your helmet.
    • ARCCAPTAIN Welder Large LED Display

    Abbildung 4: Nahaufnahme view of the welder's large LED display, showing various welding parameters such as voltage, amperage, and time settings, designed for enhanced visibility.

  • MCU Precision Control: Exclusive internal MCU control ensures a 99.99% arc initiation success rate and a 400% increase in arc start response speed. This provides precise control for sheet metal or bodywork and enhances electrode welding performance with stable current and minimal spatter.
    • ARCCAPTAIN Welder High Frequency Arc Start

    Figure 5: Illustration of the welder's high-frequency arc start capability, highlighting a 99.99% arc striking success rate and 400% increased arcing response speed for precise welding.

  • ER70S-6 TIG Welding Rod: The included ER70S-6 welding rods are composed of C, Mn, and Si, providing moderate carbon content for weld strength and enhancing mechanical properties, crack resistance, toughness, and strength.

4. Einrichtungsanweisungen

  1. Auspacken und Inspektion: Nehmen Sie das Schweißgerät und sämtliches Zubehör vorsichtig aus der Verpackung. Prüfen Sie es auf Transportschäden.
  2. Stromanschluss: Connect the welder to a suitable power supply (120V or 240V) using the appropriate power cord. Ensure the power source matches the welder's requirements.
  3. Gas Connection (for TIG): Connect your argon gas cylinder to the welder's gas inlet using a gas hose and regulator. Ensure all connections are tight to prevent leaks.
  4. Taschenlampe und Erdungsklemmeamp Verbindung: Connect the TIG torch to the designated port on the welder. Attach the ground clamp to the workpiece, ensuring a clean, secure electrical connection.
  5. Optional Foot Pedal: If using a foot pedal, connect it to the 5-pin port on the welder.

5. Bedienungsanleitung

  1. Einschalten: Turn on the welder using the main power switch. The LED display will illuminate.
  2. Modusauswahl: Use the 'MODE' button on the front panel or the mobile app to select your desired welding process (COLD TIG, 4T DC TIG, COLD SPOT TIG, 2T DC TIG, or STICK).
  3. Parameteranpassung: Schweißparameter wie z. B. anpassen amperage, pre-flow, post-flow, and pulse settings using the control knob on the panel or through the mobile app. Refer to the app for detailed parameter descriptions and error code analysis.
  4. App-Steuerung: Scan the QR code on the welder to connect your mobile device. The app allows for comprehensive control and monitoring of the welding process.
  5. Schweißen beginnen: Once parameters are set, initiate the arc according to the selected welding process. Always wear appropriate personal protective equipment.
Welder in TIG Application

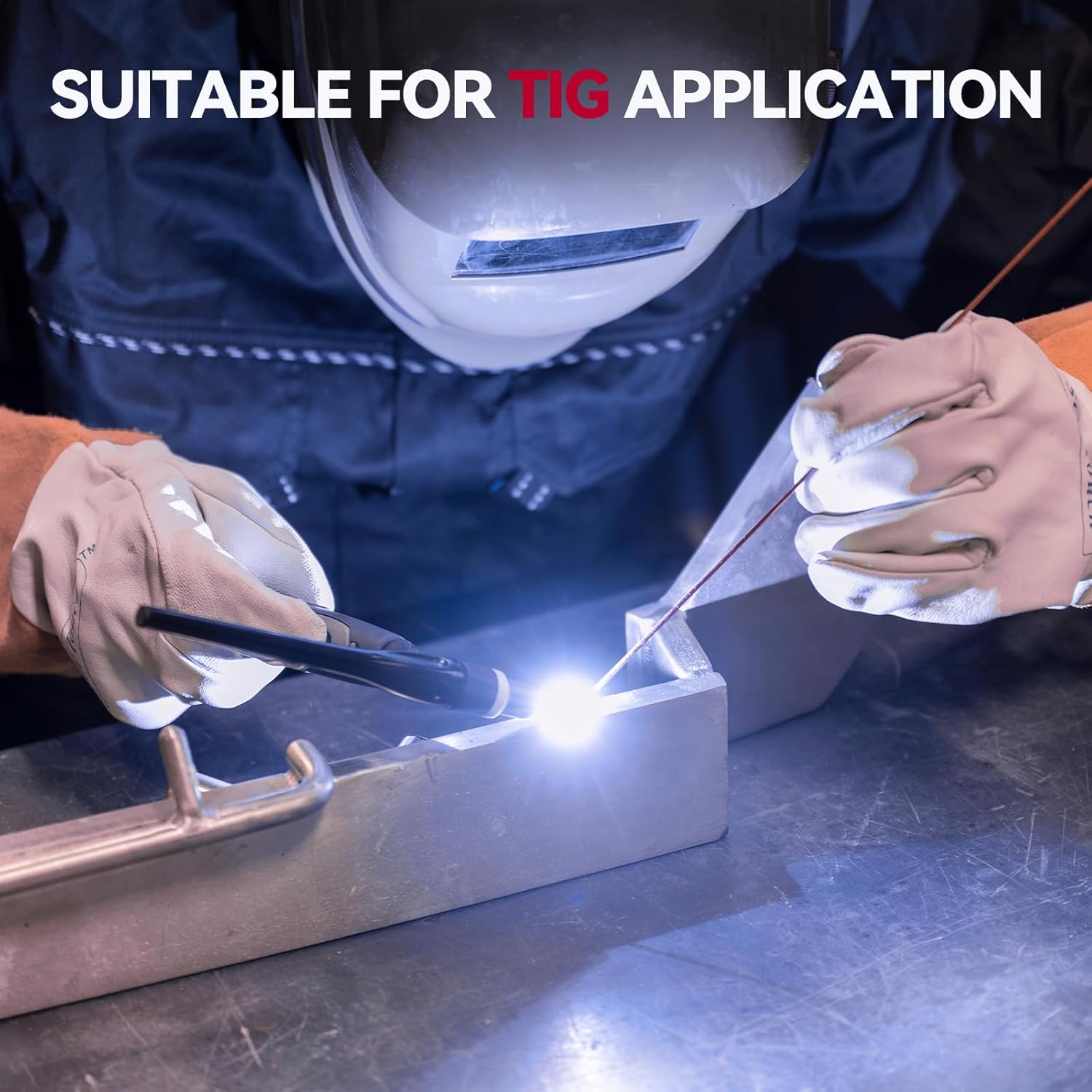

Figure 6: A welder performing a TIG welding operation on a metal workpiece, demonstrating the machine in practical use.

6. Wartung

Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihres Schweißgeräts.

  • Reinigung: Periodically clean the welder's exterior with a dry cloth. Use compressed air to clear dust from internal components, ensuring the power is disconnected.
  • Taschenlampen- und Kabelprüfung: Regularly inspect the TIG torch, cables, and ground clamp for wear, damage, or loose connections. Replace damaged parts immediately.
  • Gas System Check: Verify gas hose and regulator connections for leaks.
  • Lagerung: Bewahren Sie das Schweißgerät bei Nichtgebrauch in einer sauberen, trockenen Umgebung auf.

7. Fehlerbehebung

Refer to the following common issues and their solutions. For more detailed diagnostics, use the ARCCAPTAIN mobile app's error code analysis feature.

ProblemMögliche UrsacheLösung
No Arc / Weak ArcImproper ground connection, incorrect settings, worn electrode, insufficient gas flow.Erdungskl. prüfenampeinstellen amperage, replace electrode, verify gas supply.
Schlechte SchweißqualitätIncorrect parameters, contaminated workpiece, improper technique, gas shield issues.Adjust settings, clean workpiece, refine technique, check gas flow and purity.
Welder OverheatingExceeding duty cycle, blocked ventilation.Allow welder to cool, ensure clear airflow around the machine.
Angezeigter FehlercodeInterner Fehler oder spezifisches Betriebsproblem.Refer to the ARCCAPTAIN app for specific error code analysis and recommended actions.

8. Spezifikationen

Key technical specifications for the ARCCAPTAIN iControl TIG 205 Pro welder:

  • Modell: ARCCAPTAIN iControl TIG 205 Pro
  • ASIN: B0G1YCHSFK
  • Datum der Erstveröffentlichung: 20. Februar 2025
  • Schweißverfahren: COLD TIG, 4T DC TIG, COLD SPOT TIG, 2T DC TIG, STICK
  • Eingangslautstärketage: 120 V/240 V (Dual Vol)tage)
  • Max AmpZeitalter: 205 Amps
  • Kontrolle: App-controlled, MCU Precision Control

9. Garantie und Support

For warranty information, technical support, or service inquiries, please refer to the official ARCCAPTAIN webBesuchen Sie die Website oder kontaktieren Sie direkt den Kundenservice. Bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.

You can visit the ARCCAPTAIN store for more information: ARCHCAPTAIN Store
