Instruction Manual: Generic Carburetor Assembly for Craftsman Tiller 917.293480

1. Einleitung

This instruction manual provides essential information for the proper installation, operation, and maintenance of your new Generic Carburetor Assembly. This carburetor is designed as a replacement part for Craftsman Tiller Model 917.293480. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safe and correct usage.

2. Produktüberschreitungview

The carburetor assembly is a critical component of your tiller's engine, responsible for mixing air and fuel in the correct proportions for combustion. This replacement kit includes the main carburetor unit and various associated components necessary for installation.

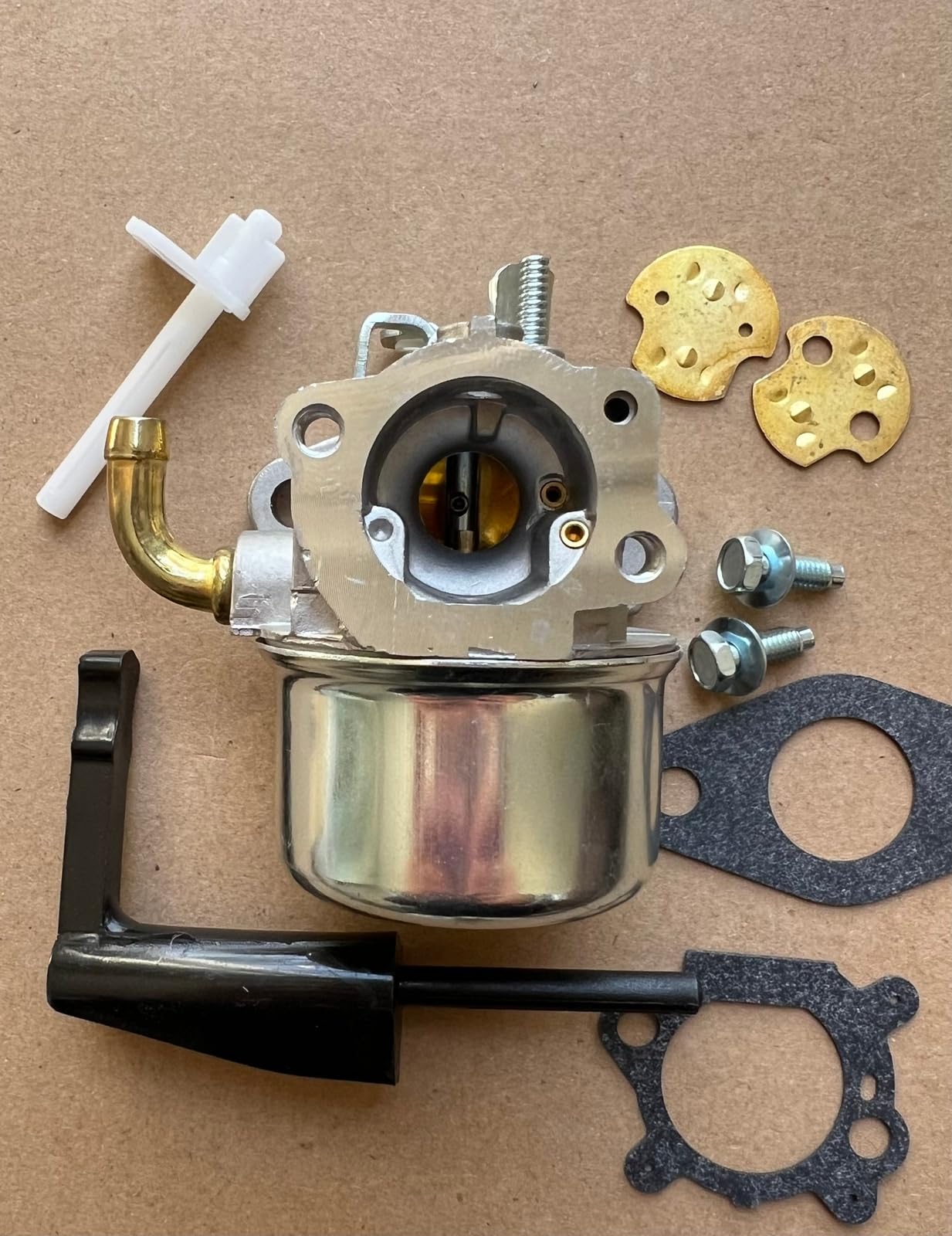

Abbildung 1: Generic Carburetor Assembly Kit. This image displays the complete kit, including the main carburetor body, fuel bowl, choke lever, mounting gaskets, brass fittings, and various fasteners. The white plastic component is likely a fuel line or vent tube, and the two brass discs are typically for air or fuel filtration.

Das Kit enthält normalerweise:

• Carburetor body with integrated fuel bowl
• Mounting gaskets for a secure seal
• Choke lever for engine starting
• Assorted screws and bolts for installation
• Additional small components such as brass fittings or filters

3. Sicherheitshinweise

Always prioritize safety when working with engine components and fuel. Failure to follow these safety guidelines can result in serious injury or property damage.

• Zündkerze abziehen: Before beginning any work, always disconnect the spark plug wire to prevent accidental engine startup.
• Kraftstoffhandhabung: Gasoline is highly flammable. Work in a well-ventilated area, away from open flames, sparks, or heat sources. Use an approved container for draining fuel.
• Augenschutz: Wear safety glasses or goggles to protect your eyes from fuel splashes, debris, or other hazards.
• Handschuhe: Tragen Sie geeignete Handschuhe, um Ihre Hände vor Kraftstoff, Öl und scharfen Kanten zu schützen.
• Belüftung: Sorgen Sie für ausreichende Belüftung, um das Einatmen von Kraftstoffdämpfen zu vermeiden.
• Heiße Oberflächen: Um Verbrennungen zu vermeiden, lassen Sie den Motor vollständig abkühlen, bevor Sie daran arbeiten.
• Professionelle Hilfe: If you are unsure about any step of the installation or repair process, consult a qualified service technician.

4. Installation

This section provides general steps for replacing a carburetor. Specific procedures may vary slightly depending on your tiller's exact configuration. Refer to your tiller's original service manual for detailed instructions if available.

1. Vorbereitung:
   • Stellen Sie sicher, dass der Motor kühl ist.
   • Trennen Sie das Zündkerzenkabel.
   • Turn off the fuel supply valve (if present) and drain the fuel tank into an approved container.
   • Remove any air filter housing or shrouds that obstruct access to the carburetor.
2. Komponenten trennen:
   • Carefully disconnect the fuel line(s) from the old carburetor. Be prepared for residual fuel to spill.
   • Disconnect any throttle linkages, choke linkages, or governor springs attached to the carburetor. Note their positions for reassembly.
3. Alten Vergaser ausbauen:
   • Unbolt the old carburetor from the engine manifold. There are typically two or more mounting bolts.
   • Remove the old carburetor and any old gaskets. Inspect the mounting surfaces for cleanliness and damage.
4. Neuen Vergaser einbauen:
   • Place new gaskets on the engine manifold and/or the carburetor mounting surface as appropriate. Ensure they are correctly oriented.
   • Mount the new carburetor assembly, ensuring all linkages and springs are correctly attached before fully tightening the mounting bolts. Do not overtighten.
   • Reconnect the fuel line(s) securely.
   • Reinstall the air filter housing and any shrouds removed earlier.
5. Letzte Kontrollen:
   • Füllen Sie den Kraftstofftank mit frischem, geeignetem Kraftstoff auf.
   • Turn on the fuel supply valve.
   • Schließen Sie das Zündkerzenkabel wieder an.
   • Auf Kraftstofflecks prüfen.
   • Start the engine according to your tiller's operating instructions. The engine may require a few pulls to prime the carburetor.

Notiz: This is a replacement part. While the model number 917.293480 is a good reference for compatibility, always compare the physical appearance of the item with your original part before installation to ensure a correct fit.

5. Wartung

Proper maintenance of your carburetor ensures optimal engine performance and longevity.

• Kraftstoffqualität: Always use fresh, clean gasoline. Stale fuel or fuel containing ethanol can cause deposits and corrosion within the carburetor. Consider using a fuel stabilizer if the tiller will be stored for extended periods.
• Kraftstofffilter: Regularly check and replace the fuel filter (if present) to prevent contaminants from reaching the carburetor.
• Luftfilter: A clean air filter is crucial. A dirty air filter can restrict airflow, causing the engine to run rich and potentially foul the carburetor. Clean or replace the air filter as recommended by your tiller's manufacturer.
• Lagerung: Before long-term storage, either run the engine until it runs out of fuel or drain the fuel system to prevent fuel degradation and carburetor clogging.
• Reinigung: If performance issues arise due to a clogged carburetor, it may require cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This procedure should only be performed by individuals with mechanical experience.

6. Fehlerbehebung

If your tiller experiences issues after carburetor installation, consider the following common troubleshooting steps:

• Motor startet nicht:
  • Check for fuel in the tank and ensure the fuel valve is open.
  • Verify the spark plug wire is connected and the spark plug is clean and functional.
  • Stellen Sie sicher, dass der Choke für den Startvorgang richtig eingestellt ist.
  • Prüfen Sie, ob der Kraftstofffluss zum Vergaser ordnungsgemäß ist.
• Engine Runs Rough/Stalls:
  • Inspect for vacuum leaks around the carburetor mounting gaskets.
  • Check that all linkages (throttle, choke) are moving freely and correctly.
  • Stellen Sie sicher, dass der Luftfilter sauber und nicht verstopft ist.
  • Consider if the fuel is stale or contaminated.
• Kraftstofflecks:
  • Tighten all fuel line connections and carburetor mounting bolts.
  • Inspect gaskets for proper seating and damage.
  • Check the fuel bowl for cracks or improper sealing.

For persistent issues, it is recommended to consult a professional small engine mechanic.

7. Spezifikationen

8. Garantie und Support

This product is a replacement part. Specific warranty information from the manufacturer is not provided in the product details. For any warranty claims or support inquiries, please refer to the seller or retailer from whom the product was purchased. It is recommended to retain your proof of purchase for any potential claims.
