Einführung
This manual provides instructions for the installation, operation, and maintenance of the Generic A051001111 Starter Assembly. This component is designed as a replacement part for specific Echo hedge trimmer models. Please read this manual thoroughly before attempting any installation or repair to ensure proper function and safety.
Produkt überview

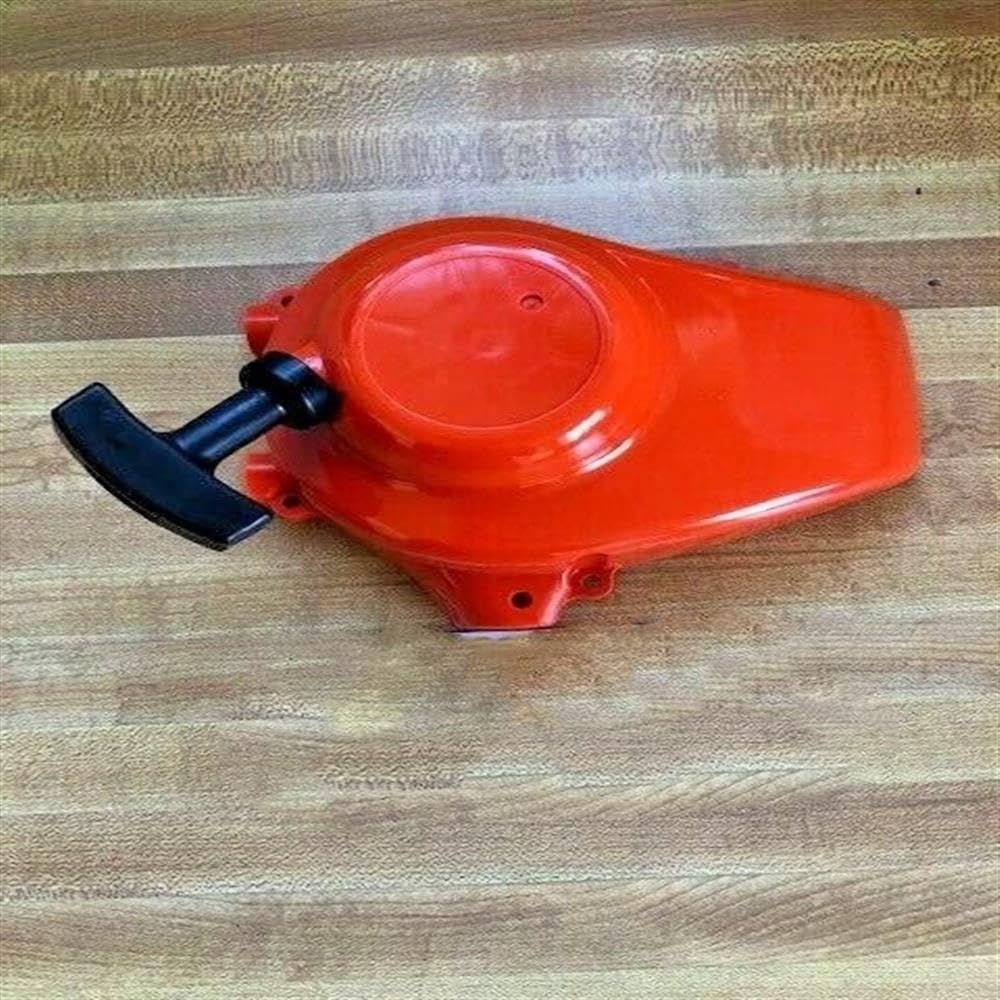

Abbildung 1: The A051001111 Starter Assembly. This image shows the complete starter assembly, featuring an orange plastic housing. Inside, a white recoil pulley and spring mechanism are visible, which are essential for starting the engine by pulling the starter rope.
The A051001111 Starter Assembly is a critical component responsible for initiating the engine's rotation in compatible equipment. It consists of a recoil spring, pulley, and housing, designed to engage with the engine's flywheel to start the unit.
Kompatibilität
This starter assembly is compatible with the following Echo models:
- HC-155: Serial Numbers T45914001001 - T45914999999
- HC-165: Serial Numbers T46014001001 - T46014999999
- HC-185: Serial Numbers T46114001001 - T46114999999
Verify your equipment's model and serial number before installation to ensure proper fitment.
Installationsanleitung
Sicherheit geht vor: Before beginning any installation, ensure the equipment is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting.
- Remove Old Starter Assembly: Locate the existing starter assembly on your Echo equipment. Typically, it is secured by several screws. Carefully remove these screws and detach the old assembly. Note the orientation for reassembly.
- Montagebereich prüfen: Clean any debris or dirt from the mounting area on the engine housing.
- Position New Starter Assembly: Align the new A051001111 Starter Assembly with the mounting holes on the equipment. Ensure the recoil rope handle is accessible and the assembly sits flush.
- Sichern Sie die Versammlung: Insert and tighten the mounting screws. Do not overtighten, as this can damage the plastic housing. Ensure the assembly is firmly attached and does not wobble.
- Test Recoil Function: Gently pull the starter rope a few times to ensure it extends and retracts smoothly without binding.
- Zündkerze wieder anschließen: Once the assembly is secure and functioning correctly, reconnect the spark plug wire.
Wenn Sie sich bei einem Arbeitsschritt unsicher sind, wenden Sie sich an einen qualifizierten Servicetechniker.
Bedienungsanleitung
The starter assembly functions as part of the engine's starting system. To operate the equipment after installation:
- Ausrüstung vorbereiten: Follow your equipment's specific starting procedures, including fueling, priming, and setting the choke.
- Anreißseil: Grip the starter handle firmly. Pull the rope slowly until you feel resistance, then give a quick, strong pull. Do not pull the rope to its full extension or let it snap back against the housing. Guide the rope back gently.
- Bei Bedarf wiederholen: If the engine does not start, repeat the pulling process as needed, adjusting choke settings according to your equipment's manual.
Refer to your Echo equipment's primary instruction manual for complete starting and operating procedures.
Wartung
Proper maintenance extends the life of your starter assembly:
- Sauber halten: Regularly clean the starter assembly area to prevent dirt and debris from entering the recoil mechanism. Use a brush or compressed air.
- Seil prüfen: Periodically check the starter rope for fraying or damage. Replace the rope if it shows signs of wear.
- Avoid Harsh Pulls: Do not yank the starter rope aggressively or allow it to snap back uncontrolled, as this can damage the recoil spring and pulley.
- Lagerung: When storing equipment, ensure the starter assembly is clean and dry.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Das Starterseil zieht sich nicht vollständig ein. | Damaged or worn recoil spring; debris in mechanism. | Clean the assembly. If issue persists, the recoil spring may need replacement. |
| Das Starterseil lässt sich herausziehen, aber der Motor startet nicht. | Starter pawls are stuck or broken; flywheel engagement issues. | Inspect pawls for damage or obstruction. Ensure proper alignment with flywheel. |
| Das Starterseil ist ausgefranst oder gerissen. | Normaler Verschleiß; unsachgemäße Zugtechnik. | Replace the starter rope. Ensure proper pulling technique. |
For complex issues, it is recommended to seek assistance from a qualified service technician.
Technische Daten
- Teilenummer: A051001111 (OEM)
- Modellnummer: PL202948
- Hersteller: LAPHATSTE
- Produktabmessungen: 1 x 1 x 1 Zoll (ungefähr)
- Energiequelle: Hand-powered (Recoil)
- ASIN: B0G9N55PCK
Garantieinformationen
According to the product information, there is NEIN stated warranty for this item. Please verify warranty terms with your retailer at the time of purchase.
Kundenservice
For further assistance or technical inquiries regarding the Generic A051001111 Starter Assembly, please contact your original point of purchase or refer to the manufacturer's official support channels if available.
