Generic Carburetor Rebuild Kit Instruction Manual

1. Einleitung

This instruction manual provides general guidance for the installation and maintenance of the Generic Carburetor Rebuild Kit. This kit is designed to restore the performance of your motorcycle's carburetors by replacing worn or damaged internal components. It is compatible with Honda Nighthawk CB550 SC, CB650 SC, CB700 SC, and CB750 SC models.

The kit includes components necessary for a comprehensive carburetor overhaul, ensuring an exact fit and reliable performance. Utilizing premium materials, these parts are built to withstand the demands of motorcycle operation, helping to restore smooth and efficient engine function.

2. Sicherheitshinweise

• Professionelle Installation empfohlen: Carburetor rebuilding requires specialized knowledge and tools. If you are not experienced with motorcycle mechanics, it is highly recommended to seek professional assistance.
• Siehe Servicehandbuch: Always refer to your motorcycle's official service manual for specific disassembly, assembly, and torque specifications for your model.
• Kraftstoffhandhabung: Gasoline is highly flammable. Perform all work in a well-ventilated area, away from open flames, sparks, or heat sources. Wear appropriate personal protective equipment, including eye protection and chemical-resistant gloves.
• Batterie abklemmen: Disconnect the motorcycle's battery before beginning any work to prevent accidental electrical shorts.
• Sauberkeit: Maintain a clean workspace. Even small particles of dirt can cause carburetor malfunctions.

3. Produktkomponenten

Each individual carburetor rebuild kit typically includes essential components such as gaskets, O-rings, and a float needle valve, designed to replace worn parts within a single carburetor. The image below illustrates the typical contents of one kit.

Bild 3.1: Contents of a single carburetor rebuild kit, including various O-rings, gaskets, and a float needle valve.

Packungsinhalt

This product includes four (4) complete carburetor rebuild and repair kits, suitable for motorcycles with multiple carburetors or for having spare kits. The image below shows the complete package as received.

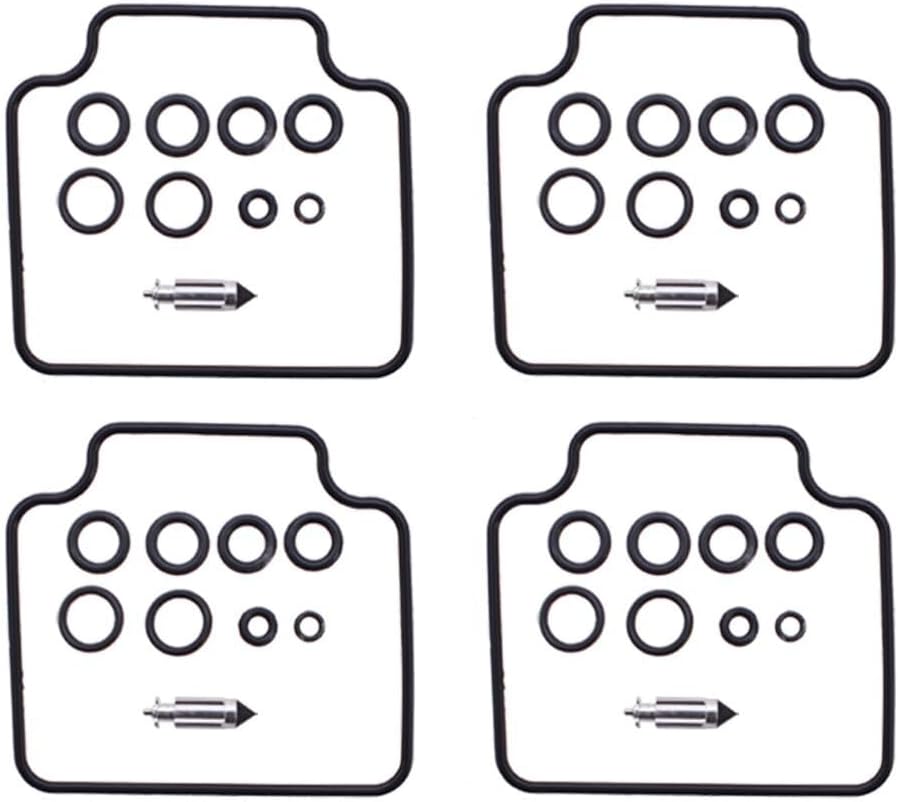

Bild 3.2: The complete package containing four individual carburetor rebuild kits.

4. Einrichtung und Installation

The following are general steps for carburetor rebuilding. Always refer to your specific Honda Nighthawk service manual for detailed, model-specific instructions.

1. Carburetor Removal: Carefully remove the carburetors from the motorcycle. Ensure all fuel lines, vacuum lines, and throttle cables are disconnected properly.
2. Demontage: Disassemble each carburetor, paying close attention to the order and orientation of all components. Take photos or make notes if necessary.
3. Reinigung: Thoroughly clean all metal parts of the carburetor using a suitable carburetor cleaner. Ensure all passages and jets are free of debris and varnish. Avoid using harsh cleaners on rubber or plastic components.
4. Inspektion: Inspect all carburetor body components for wear, cracks, or damage. Replace any damaged parts that are not included in the kit.
5. Komponentenaustausch: Replace all gaskets, O-rings, and the float needle valve with the new components from the rebuild kit. Ensure proper seating and fitment of each new part.
6. Zusammenbau: Reassemble the carburetors in reverse order of disassembly. Ensure all screws are tightened to the manufacturer's specified torque.
7. Installation: Reinstall the carburetors onto the motorcycle, reconnecting all lines and cables.
8. Synchronization and Adjustment: After installation, it is crucial to synchronize the carburetors (if applicable to your model) and adjust the idle mixture and speed according to your motorcycle's service manual. This ensures optimal engine performance.

5. Funktionsprinzipien

A properly rebuilt carburetor ensures the correct air-fuel mixture is delivered to the engine under various operating conditions. The new components in this kit are designed to restore the precise metering of fuel, leading to improved throttle response, fuel efficiency, and overall engine stability. After installation, the engine should start reliably and run smoothly across its RPM range.

6. Wartung

To ensure the longevity and optimal performance of your rebuilt carburetors, consider the following maintenance tips:

• Kraftstoffqualität: Always use fresh, high-quality gasoline. Stale or contaminated fuel can lead to deposits and corrosion within the carburetor.
• Kraftstoffstabilisator: If the motorcycle will be stored for an extended period, use a fuel stabilizer to prevent fuel degradation and gumming in the carburetors.
• Kraftstofffilter: Regularly inspect and replace the fuel filter to prevent contaminants from reaching the carburetors.
• Luftfilter: Ensure the air filter is clean and properly maintained. A dirty air filter can affect the air-fuel mixture.
• Regelmäßige Inspektion: Periodically check for any signs of fuel leaks around the carburetors and ensure all connections remain secure.

7. Fehlerbehebung

If you experience issues after rebuilding your carburetors, consider the following common troubleshooting steps:

• Kraftstofflecks: Check all gaskets and O-rings for proper seating and damage. Ensure float bowl screws are tightened correctly.
• Rough Idle or Poor Performance: Verify that all vacuum lines are connected and not leaking. Recheck carburetor synchronization and idle mixture screw settings. Ensure no passages are blocked.
• Schwieriger Start: Confirm proper choke operation. Check for adequate fuel flow to the carburetors and ensure the float levels are set correctly.
• Motorabwürgen: This could indicate an incorrect idle speed, a lean mixture, or a vacuum leak.
• Backfiring: Often a sign of an overly lean mixture or ignition timing issues. Double-check all carburetor adjustments.

If problems persist, it is advisable to consult a qualified motorcycle mechanic or refer to your motorcycle's service manual for more in-depth diagnostic procedures.

8. Spezifikationen

9. Garantie und Support

For information regarding product warranty, returns, or technical support, please contact the seller or manufacturer directly through the platform where the purchase was made. Keep your purchase receipt or order number handy for faster assistance.
