VOCIC Z25 Pro 3-Wheel Rollator Walker User Manual

Einführung

Thank you for choosing the VOCIC Z25 Pro 3-Wheel Rollator Walker. This manual provides essential information for the safe assembly, operation, and maintenance of your new rollator. Please read these instructions carefully before use and retain them for future reference.

Ein Überview of the VOCIC Z25 Pro 3-Wheel Rollator Walker, showcasing its compact design and red frame.

Sicherheitshinweise

Ihre Sicherheit hat oberste Priorität. Bitte beachten Sie folgende Vorsichtsmaßnahmen:

• Gewichtskapazität: Die maximale Tragfähigkeit von 300 lbs (136 kg) darf nicht überschritten werden.
• Bremsen: Always engage the parking brakes before sitting on the rollator or when stationary. Ensure brakes are functioning correctly before each use.
• Stabilität: Ensure all wheels are on a stable, level surface before applying weight to the rollator. Avoid uneven terrain or steep inclines without proper assistance.
• Anpassungen: Ensure all adjustment mechanisms (e.g., handle height) are securely locked in place before use.
• Falten: Exercise caution when folding or unfolding the rollator to prevent pinching fingers or hands.
• Wartung: Regularly inspect the rollator for loose parts, worn tires, or damaged components. Do not use if any part is damaged.
• Medizinischer Rat: Consult with a healthcare professional to determine if a rollator is appropriate for your specific mobility needs.

Packungsinhalt

Überprüfen Sie, ob alle Komponenten im Paket vorhanden sind:

• VOCIC Z25 Pro Rollator Frame
• Removable Non-Slip Tray
• Aufbewahrungstasche
• Stockhalter
• Getränkehalter
• Bedienungsanleitung

Einrichtung und Montage

The VOCIC Z25 Pro Rollator comes largely pre-assembled. Follow these steps for final setup:

1. Aufklappen des Rollators: Carefully remove the rollator from its packaging. Place it on a flat surface. Gently pull the handles apart until the frame locks into its open position. Ensure all locking mechanisms are engaged.
2. Anbringen von Zubehör:
• Aufbewahrungstasche: Attach the storage bag to the designated hooks or straps on the frame.
• Non-Slip Tray: Place the removable tray onto the top frame, ensuring it sits securely.
• Cane Holder & Cup Holder: Securely attach the cane holder and cup holder to the side of the frame as desired.
3. Griffhöhe einstellen:
• Locate the height adjustment pins or buttons on the handle tubes.
• Press the pins/buttons and slide the handles up or down to your desired height. The handles should be at wrist level when standing upright with arms relaxed.
• Ensure the pins snap securely into one of the 6 height adjustment holes (33.8" to 38.9"). Both handles must be set to the same height.

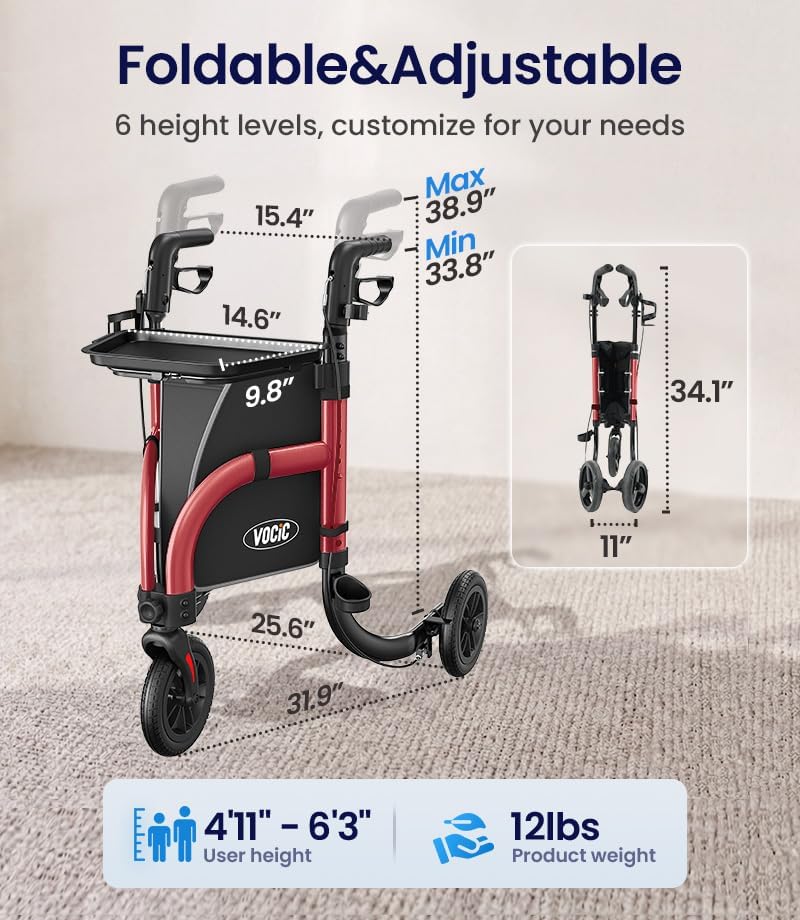

This diagram provides key dimensions and adjustable handle height range (33.8"-38.9"), indicating suitability for users between 4'11" and 6'3".

Bedienungsanleitung

Familiarize yourself with the rollator's features for safe and effective use.

1. Gehen mit dem Rollator:
• Stand behind the rollator with your body slightly forward, maintaining a natural posture.
• Schieben Sie den Rollator ein kurzes Stück vorwärts, dann machen Sie einen Schritt nach dem anderen. Halten Sie ein gleichmäßiges Tempo ein.
• The ergonomic inward-grip handles are designed to follow your natural stride, enhancing comfort and stability.
2. Using the Dual Brake System:
• To Slow Down (Hand Brakes): Squeeze the brake levers upwards towards the handles. Release to resume normal movement.
• To Lock (Parking Brakes): Push the brake levers downwards until they click into the locked position. This engages the parking brake, preventing the rollator from moving. Always engage parking brakes when stationary or before sitting.
• Zum Lösen der Feststellbremse: Ziehen Sie die Bremshebel nach oben, bis sie sich aus der verriegelten Position lösen.

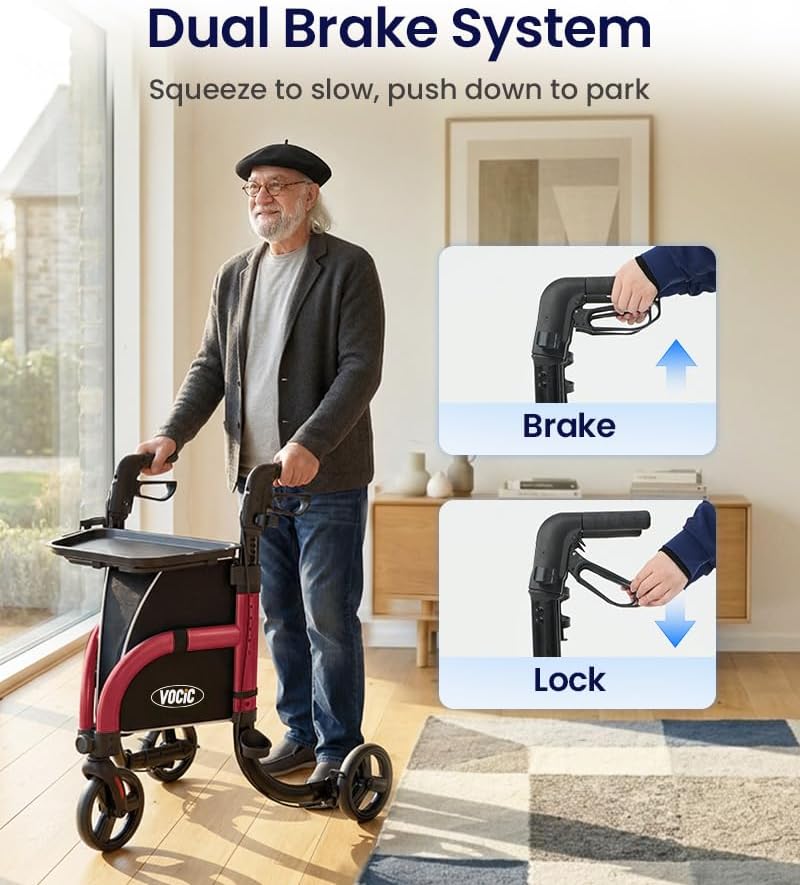

This image explains the dual brake system: pull up on the handles to slow down, and push down to engage the parking brake for stationary use.

3. Utilizing the Non-Slip Tray:
• The removable non-slip tray provides a stable surface for carrying small items like drinks or meals.
• Ensure items are placed securely on the tray before moving. Avoid overloading the tray.


The removable non-slip tray is shown holding items, demonstrating its utility for carrying essentials securely.

4. Zusammenklappbar für Lagerung und Transport:
• Ensure the storage bag is empty and the tray is removed.
• Locate the folding mechanism (usually a strap or lever in the center of the frame).
• Pull the strap/lever upwards to release the locking mechanism and fold the rollator inward until it is compact.
• The rollator is designed to stand independently when folded for easier storage.

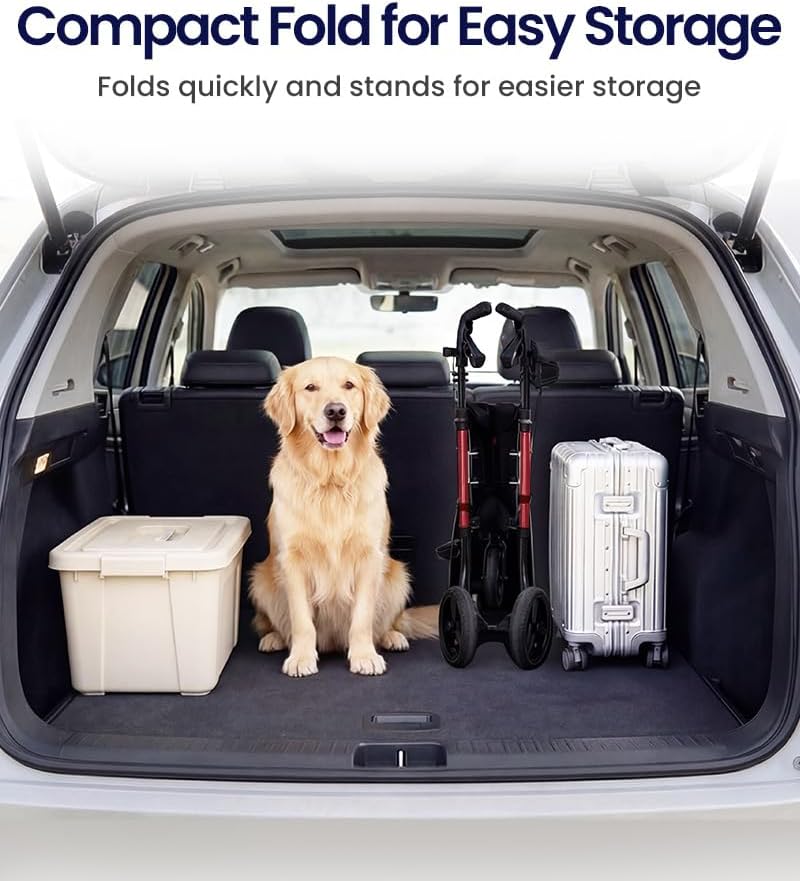

The rollator is shown folded and stored in a car trunk, illustrating its compact design for easy transport and storage.

Wartung

Regelmäßige Wartung gewährleistet die Langlebigkeit und den sicheren Betrieb Ihres Rollators.

• Reinigung: Rahmen und Griffe mit einem Reinigungsmittel abwischenamp cloth and mild soap. Avoid abrasive cleaners. Dry thoroughly.
• Räder: Periodically check the 8-inch airless tires for debris or wear. Clean as needed.
• Bremsen: Test the brakes regularly to ensure they engage and disengage smoothly and effectively. If brakes feel loose or ineffective, consult a professional for adjustment or repair.
• Befestigungsmaterial: Check all screws, bolts, and locking mechanisms periodically to ensure they are tight and secure.
• Lagerung: Bewahren Sie den Rollator an einem trockenen, sauberen Ort fern von extremen Temperaturen auf.

Fehlerbehebung

Hier finden Sie Lösungen für häufig auftretende Probleme:

Technische Daten

Garantie und Support

VOCIC is committed to providing high-quality products and customer satisfaction.

• Widerrufsfolgen: This product is eligible for 30-day returns. Please refer to your purchase platform's return policy for details.
• Unterstützung: VOCIC offers long-term support and professional after-sales care. For any questions, concerns, or assistance, please contact VOCIC customer service through the retailer where you purchased the product or visit the official VOCIC store online.
• FDA Registered: This product is FDA registered.
