1. Einleitung
The Amicura A10 Cat Water Fountain is designed to provide a continuous supply of fresh, clean water for your pets. This innovative system features a dual-tank design for wastewater separation, a large 4-liter capacity, and a built-in battery for wireless operation. Please read this manual thoroughly before use to ensure proper setup, operation, and maintenance.
2. Produktüberschreitungview
The Amicura A10 offers a unique approach to pet hydration, eliminating the need for traditional filters and pump scrubbing. It ensures your pet always has access to fresh water.
Image: The Amicura A10 Cat Water Fountain in use, showing a cat drinking from the dispenser.
Hauptmerkmale:
- Wastewater Separation: An intelligent dual-tank system separates fresh water from used water, ensuring your pet drinks only clean water.
- No Filter Cotton Required: Eliminates the need for recurring filter replacements and pump scrubbing.
- Drahtloser Betrieb: Powered by a 4000mAh built-in battery, offering up to 60 days of use on a single charge for flexible placement.
- Große Kapazität: A 4-liter fresh water reservoir provides ample water for multiple cats or a small dog for several days.
- Smart-Sensor: An infrared sensor detects your pet's presence, dispensing fresh water upon approach and clearing the bowl of used water after they leave.
- Einfache Wartung: Detachable tanks and a design without internal pump cavities simplify cleaning.
- LED-Anzeigen: A clear LED panel displays waste bin status, placement alerts, and battery life.
3. Sicherheitshinweise
- Lesen Sie vor der Verwendung des Geräts alle Anweisungen.
- Keep the appliance out of reach of children and pets when not in use or during maintenance.
- Use only the provided charging cable. Do not use other adapters or cables.
- Do not immerse the main unit (base with electronics) in water. Only the water tanks are washable.
- Stellen Sie den Brunnen auf eine stabile, ebene Fläche, um ein Umkippen zu verhindern.
- Verwenden Sie das Gerät nicht für andere Zwecke als den vorgesehenen Zweck.
- If the appliance is damaged, do not attempt to repair it yourself. Contact customer support.
4. Packungsinhalt
Überprüfen Sie, ob alle Artikel im Paket vorhanden sind:
Image: All components included in the Amicura A10 Cat Water Fountain package.
- Amicura A10 Main Unit (Base)
- 4L Fresh Water Tank
- Wastewater Collection Tank
- Drinking Bowl (pre-installed)
- Disposable Drinking Bowls (2 included)
- USB-Ladekabel
- Bedienungsanleitung
5. Einrichtung
- Auspacken: Entnehmen Sie vorsichtig alle Komponenten aus der Verpackung.
- Tanks reinigen: Wash the fresh water tank, wastewater tank, and drinking bowl with mild soap and water. Rinse thoroughly. Do not wash the main unit.
- Montieren: Insert the wastewater collection tank into the lower compartment of the main unit. Place the fresh water tank on top of the main unit, ensuring it is seated correctly.
- Akku aufladen: Connect the USB charging cable to the charging port on the main unit and plug it into a suitable USB power adapter (not included). Charge the fountain fully before first use. The LED indicator will show charging status.
- Frischwassertank füllen: Remove the lid of the fresh water tank and fill it with clean tap water up to the MAX line. Replace the lid securely.
- Platzierung: Place the assembled fountain on a flat, stable surface in an area accessible to your pet. Ensure there are no obstructions in front of the infrared sensor.

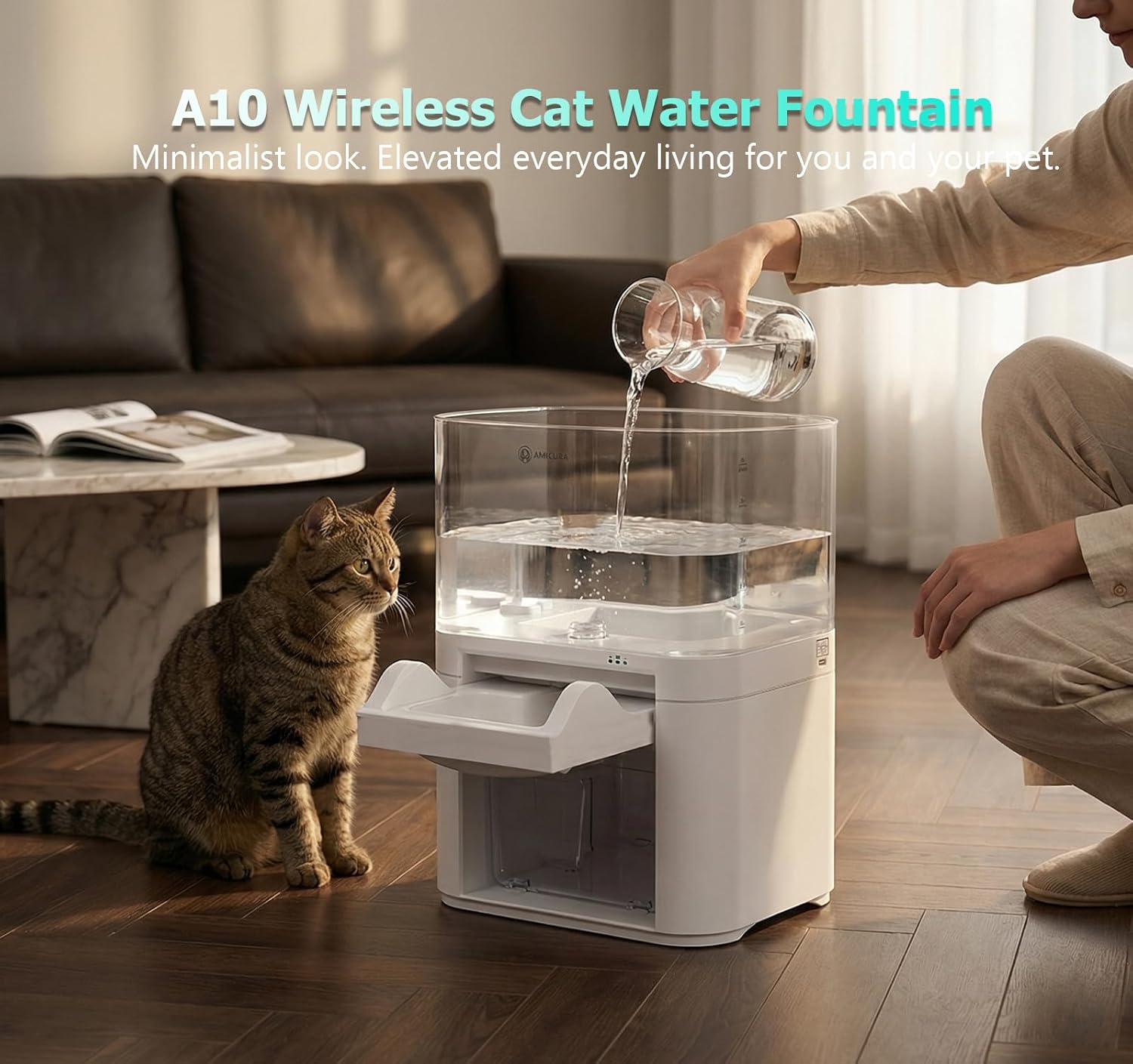

Image: Demonstrates refilling the fresh water tank of the Amicura A10 Cat Water Fountain.
6. Bedienungsanleitung
Automatische Operation:
The Amicura A10 operates automatically using its built-in infrared sensor. When your pet approaches the fountain, the sensor detects their presence, and fresh water is dispensed into the drinking bowl from the fresh water tank. After your pet finishes drinking and moves away, the system automatically drains the used water from the bowl into the separate wastewater collection tank, ensuring the bowl is clean for the next visit.
Image: Illustration of the automatic water refilling and wastewater removal process.
LED-Anzeigen:
The LED panel on the front of the main unit provides important status information:
- Batteriestatus: Indicates the current battery level. Recharge when low.
- Wastewater Tank Status: Alerts when the wastewater tank is full and needs to be emptied.
- Placement Alert: Indicates if the fountain is not properly assembled or placed.
Image: The Amicura A10 Cat Water Fountain emphasizing its long battery life.
7. Wartung und Reinigung
Regelmäßige Reinigung gewährleistet optimale Leistung und Hygiene für Ihr Haustier.
Image: The Amicura A10 Cat Water Fountain disassembled for easy cleaning, with detachable tanks and disposable bowls.
- Täglich:
- Check the fresh water level and refill as needed.
- Monitor the wastewater tank and empty it when the LED indicator signals it is full.
- Wöchentlich (oder nach Bedarf):
- Disconnect the power cable if charging.
- Remove the fresh water tank and wastewater tank from the main unit.
- Wash both tanks and the drinking bowl with mild soap and water. Rinse thoroughly to remove all soap residue.
- Wischen Sie die Außenseite des Hauptgeräts mit einem Tuch ab.amp Tuch. Tauchen Sie das Hauptgerät nicht in Wasser ein.
- Reassemble the fountain, ensuring all components are securely in place.
- Disposable Bowls: For convenience, two disposable drinking bowls are included. These can be used when you are short on time for cleaning or for travel. Simply replace the existing bowl with a new disposable one.
8. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Es wurde kein Wasser ausgegeben. | Fresh water tank is empty. Der Akku ist schwach oder leer. Infrared sensor is obstructed. Fountain not properly assembled. | Füllen Sie den Frischwassertank wieder auf. Charge the fountain. Entfernen Sie alle Hindernisse aus dem Sensorbereich. Ensure tanks are correctly seated. |
| LED indicator shows a warning. | Wastewater tank full. Schwache Batterie. Improper placement/assembly. | Entleeren Sie den Abwassertank. Charge the fountain. Check that all components are correctly assembled and placed on a flat surface. |
| Fountain not charging. | Das Ladekabel ist nicht richtig angeschlossen. USB power adapter faulty. Ladeanschluss beschädigt. | Ensure the USB cable is securely connected to both the fountain and the power adapter. Versuchen Sie es mit einem anderen USB-Netzteil. Wenden Sie sich an den Kundendienst, falls der Anschluss beschädigt erscheint. |
| Der Wasserfluss ist schwach oder unregelmäßig. | Low water level in fresh tank. Minor debris in water path. | Refill fresh water tank. Disassemble and clean the tanks and drinking bowl thoroughly. |
9. Spezifikationen
| Besonderheit | Detail |
|---|---|
| Marke | Amicura |
| Modell | A10 |
| Frischwasserkapazität | 4 Liter |
| Batteriekapazität | 4000mAh (up to 60 days runtime) |
| Material | Plastik |
| Farbe | Weiß |
| Abmessungen (L x B x H) | 14.02 x 10.87 x 9.33 Zoll |
| Gewicht | 5.91 Pfund |
| UPC | 712746271865 |
| ASIN | B0GR9C2X39 |
10. Garantie und Support
The Amicura A10 Cat Water Fountain comes with a 2 Jahr Garantie Diese Garantie gilt ab Kaufdatum und deckt Herstellungsfehler ab. Sie gewährleistet, dass das Produkt bei normalem Gebrauch wie vorgesehen funktioniert.
For any questions, concerns, or warranty claims, please contact our customer support team. Our friendly support team is available 24 hours a day, 7 days a week via email.
Kontaktinformationen: Bitte beachten Sie die auf der Produktverpackung oder unserer offiziellen Website angegebenen Kontaktdaten. webWebsite für die aktuellsten Supportinformationen.
