TALIX 190W 20000mAh Portable Charger User Manual

1. Einleitung

Thank you for choosing the TALIX 190W 20000mAh Portable Charger. This high-capacity power bank is designed to provide fast and efficient charging for a wide range of devices, including laptops, tablets, and smartphones. Featuring multiple charging ports and a convenient built-in retractable cable, it is an ideal power solution for both daily use and travel.

Image: The TALIX 190W 20000mAh Portable Charger, showcasing sein schlankes Design und seine kompakte Form.

2. Lieferumfang

• 1 x TALIX 190W 20000mAh Portable Charger
• Eingebautes USB-C-Kabel
• Benutzerhandbuch

3. Produktmerkmale

• 190W Schnellladung: Delivers up to 190W max output via USB-C to power laptops, tablets, and phones quickly.
• Hohe Kapazität von 20000 mAh: Bietet mehrfaches Laden für Smartphones und Tablets sowie ausreichend Leistung für Laptops.
• 3-Port-Ausgang: Features two USB-C ports and one USB-A port for simultaneous charging of up to three devices.
• Eingebautes, einziehbares USB-C-Kabel: An integrated 8.66 inch (22 cm) USB-C cable offers convenience and durability, tested to withstand over 30,000 bends.
• Intelligente LED-Anzeige: Zeigt die verbleibende Batterieladung in Prozent antage, real-time charging power (input/output), battery temperature, and estimated time to recharge or discharge.
• Schnelle Eingabe: Supports 30W fast input, allowing the power bank to be fully recharged in approximately 2-3 hours.
• Long-Lasting Battery Cells: Built with premium 18650 cells for extended lifespan and reliable performance over 1,000 charge cycles.

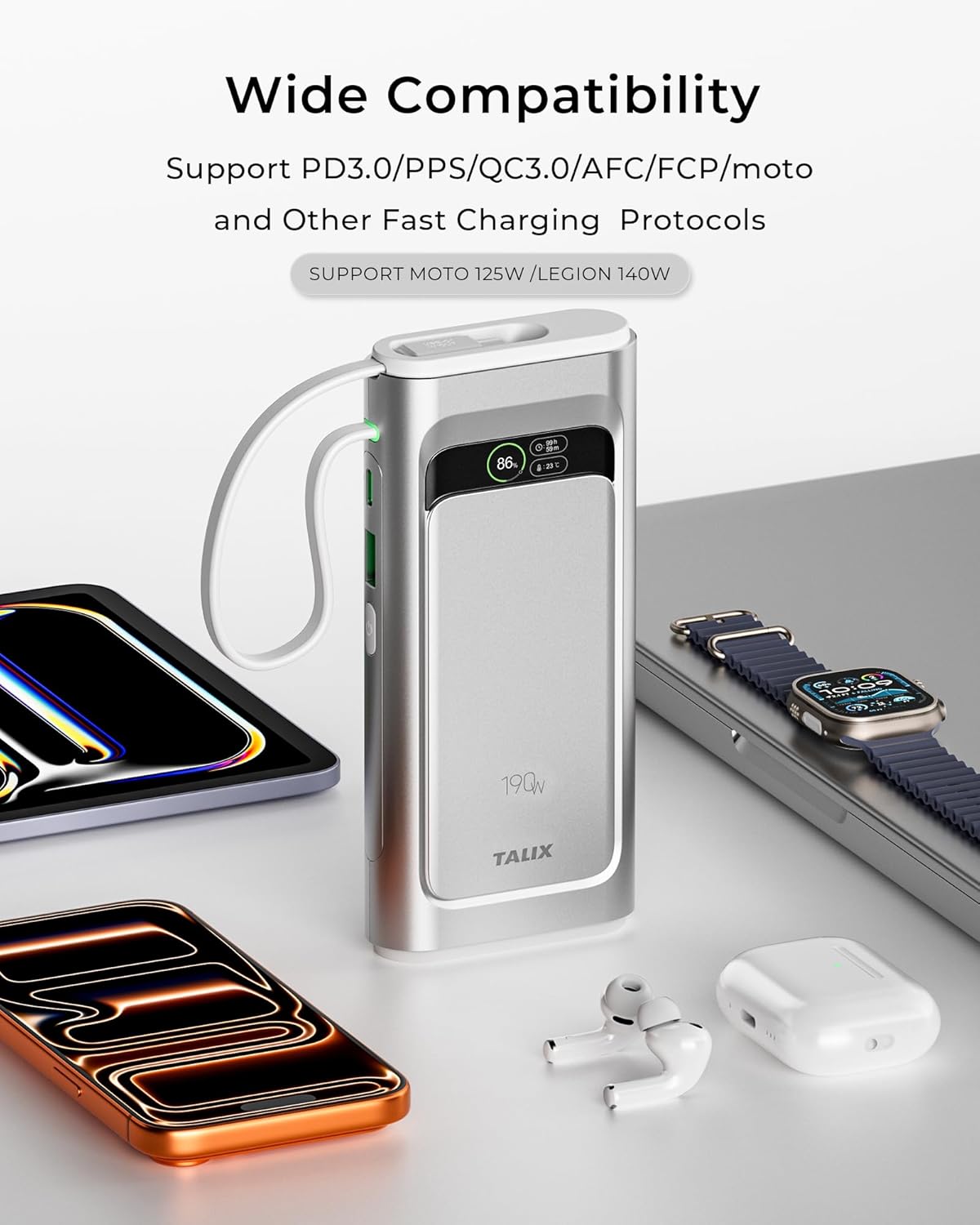

• Breite Kompatibilität: Supports PD3.0, PPS, QC3.0, AFC, and FCP fast charging protocols, compatible with a broad range of devices including MacBook, iPad, iPhone, Samsung Galaxy, Steam Deck, Switch, earbuds, smartwatches, and drones.
• Flight-Approved Design: Compact and meets TSA carry-on standards for air travel.
• Sicherheitsschutz: Includes over-charging protection and short-circuit protection.

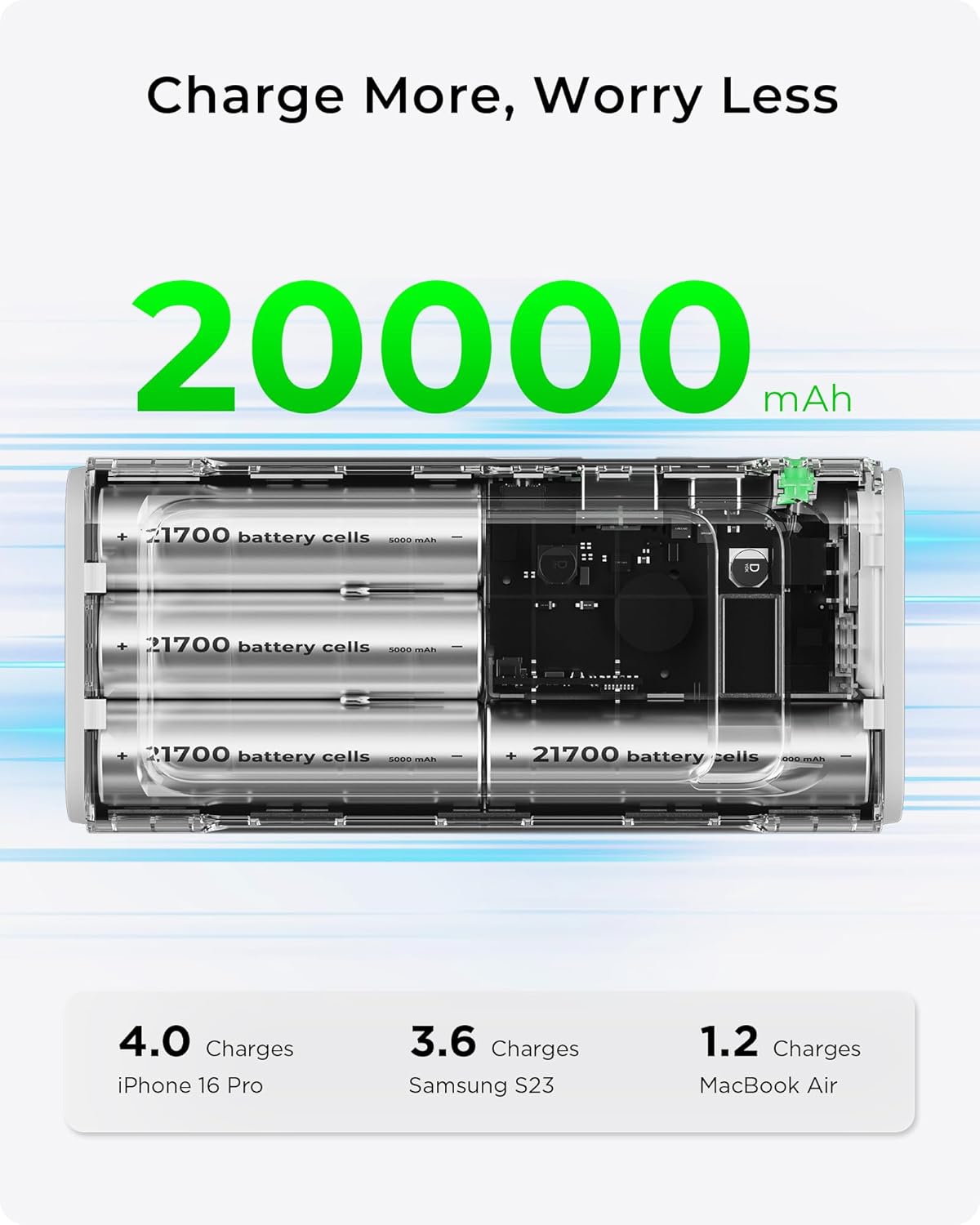

Image: An internal diagram illustrating the 20000mAh battery cells and estimated charge capacities for iPhone 16 Pro, Samsung S23, and MacBook Air.

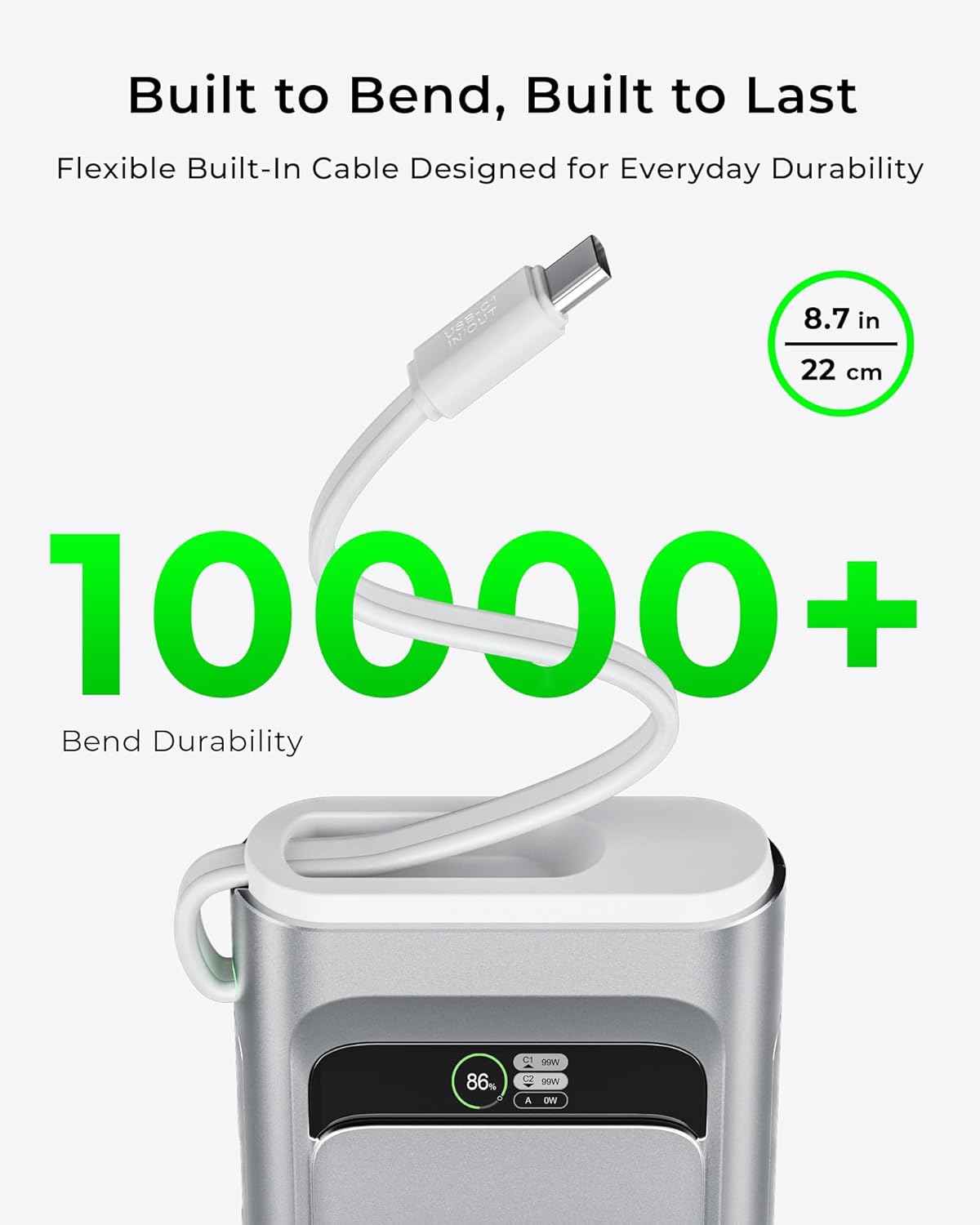

Image: Close-up of the TALIX power bank highlighting the built-in retractable USB-C cable and its 10,000+ bend durability rating.

4. Einrichtung

Before first use, fully charge your TALIX Portable Charger. Use a compatible USB-C power adapter (not included) with a minimum of 30W output for optimal charging speed. The LED display will indicate the charging status.

1. Connect a USB-C power adapter to one of the USB-C input/output ports on the power bank.
2. Die LED-Anzeige leuchtet auf und zeigt den aktuellen Akkustand in Prozent an.tage and input wattage.
3. Charge until the display shows 100%. This typically takes 2-3 hours with a 30W or higher power adapter.

Image: The TALIX power bank connected to a power source via its USB-C port for recharging.

5. Bedienungsanleitung

5.1 Ladegeräte

The TALIX Portable Charger can charge various devices using its USB-C and USB-A ports, or the built-in retractable USB-C cable.

• Verwendung des integrierten USB-C-Kabels: Gently pull out the retractable USB-C cable and connect it to your compatible device.
• Using USB-C Ports: Connect your device to either USB-C1 or USB-C2 port using a compatible USB-C to USB-C cable. These ports support up to 140W each for single-port charging.
• Verwendung des USB-A-Anschlusses: Connect your device to the USB-A port using a compatible USB-A cable. This port supports up to 30W.

Image: Illustration showing the fast charging capabilities of the TALIX power bank for MacBook Air 15, Galaxy S24 Ultra, iPad Air 13, and iPhone 16 Pro Max.

5.2 Laden mehrerer Geräte

The power bank can charge up to three devices simultaneously. The total output wattage will be distributed among the connected devices.

• Laden mit zwei Anschlüssen:
• USB-C1 + USB-A: Up to 155W (125W + 30W)
• USB-C1 + USB-C2: Up to 190W (125W + 65W)
• Laden mit drei Anschlüssen:
• USB-C1 + USB-C2 + USB-A: Up to 145W (125W + 20W)

Image: A user charging a laptop, smartphone, and wireless earbuds simultaneously using the TALIX power bank's multiple ports.

5.3-Zoll-LED-Displayinformationen

The integrated LED display provides real-time information about the power bank's status:

• Akku-Prozenttage: Zeigt den verbleibenden Ladestand an.
• Eingangs-/Ausgangswassertage: Displays the power being drawn by or supplied to each port (C1, C2, A).
• Batterietemperatur: Indicates the internal temperature of the power bank.
• Verbleibende Zeit: Estimates the time until the power bank is fully charged or depleted based on current usage.

Image: Close-up of the TALIX power bank's LED display, showing 86% battery, 99 hours 59 minutes remaining, and 23°C temperature.

6. Wartung

To ensure the longevity and optimal performance of your TALIX Portable Charger, follow these maintenance guidelines:

• Lagerung: Bewahren Sie die Powerbank an einem kühlen, trockenen Ort fern von direkter Sonneneinstrahlung und extremen Temperaturen auf.
• Reinigung: Reinigen Sie die Außenseite mit einem weichen, trockenen Tuch. Vermeiden Sie die Verwendung von scharfen Chemikalien oder Scheuermitteln.
• Ladezyklen: Um die Lebensdauer des Akkus zu optimieren, vermeiden Sie es, die Powerbank häufig vollständig zu entladen. Laden Sie sie auf, sobald der Akkustand niedrig ist.
• Kabelpflege: When retracting the built-in cable, do so gently to prevent damage. Avoid excessive force or sharp bends.
• Vermeiden Sie Tropfen: Schützen Sie das Gerät vor Stürzen und Stößen, da diese die internen Komponenten beschädigen können.

7. Fehlerbehebung

8. Spezifikationen

8.1 Port Output Details

• USB-C1: 140W Max (single port)
• USB-C2: 140W Max (single port)
• USB-A: 30W Max (single port)

Image: Diagram illustrating the maximum wattage output for each port when used individually.

Image: Diagram illustrating combined wattage output when two ports are used simultaneously.

Image: Diagram illustrating combined wattage output when three ports are used simultaneously.

9. Garantie und Support

The TALIX 190W 20000mAh Portable Charger comes with a 1 Jahr eingeschränkte Garantie Ab Kaufdatum. Diese Garantie deckt Herstellungsfehler und Verarbeitungsfehler bei normalem Gebrauch ab.

For warranty claims, technical support, or any questions regarding your product, please contact TALIX customer service through the retailer where the product was purchased or visit the official TALIX webWebsite für Kontaktinformationen.
