Einführung
The National Hardware N151-266 V833 Window Bolt in Brass is designed to provide enhanced security for various applications, including windows, cabinets, chests, and doors. Constructed with durable steel components for the case, strike, and bolt, this product ensures reliable performance. Its design allows for versatile installation in vertical, horizontal, left, or right-hand orientations, making it suitable for a wide range of security needs. The bolt features a diameter of 0.31 inches, contributing to its robust locking mechanism.

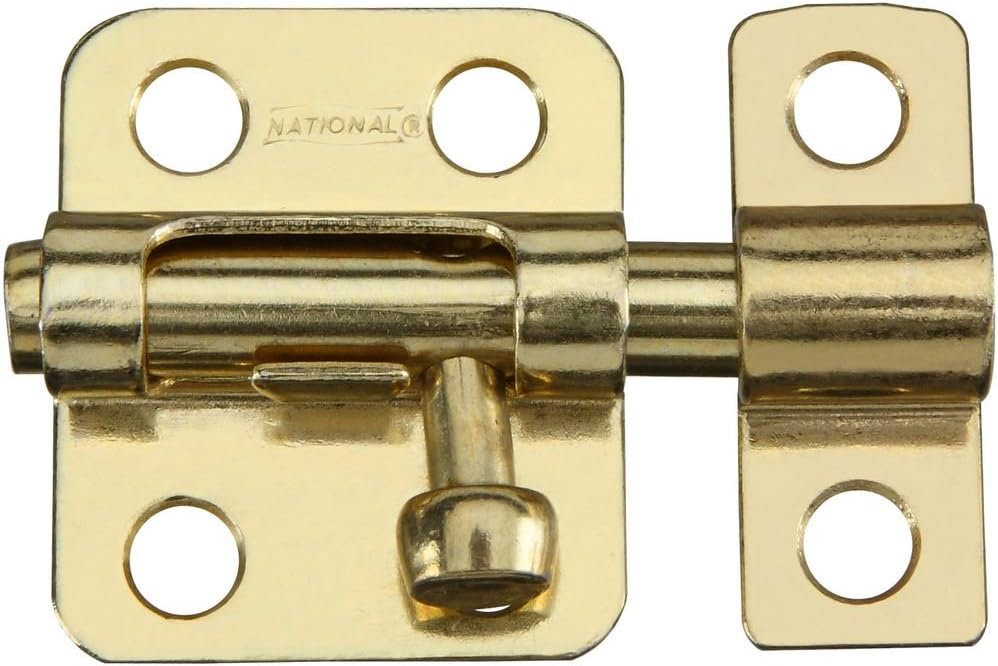

Image: The National Hardware N151-266 V833 Window Bolt, showcasing its brass finish and robust construction. This image displays the main components of the bolt, including the sliding bolt mechanism and mounting plates.
Produkteigenschaften
- Security Application: Specifically designed for security applications on windows, cabinets, chests, and doors.
- Langlebige Konstruktion: Features a steel case, strike, and bolt for enhanced durability and longevity.
- Einfache Installation: Engineered for straightforward installation processes.
- Vielseitig einsetzbar: Can be used in vertical, horizontal, left, or right-hand applications, offering flexibility in mounting.
- Robust Bolt Diameter: The bolt has a diameter of 0.31 inches, providing a secure locking mechanism.
- Korrosionsbeständigkeit: Features a proprietary Weather Guard zinc coating, offering three times more corrosion resistance compared to standard zinc plating.
Image: The WeatherGuard Rust Protection logo, indicating superior protective coating against various elements like rain, snow, and humidity. This feature extends the life of outdoor hardware and is safe for use with pressure-treated lumber.
Image: A comparison showing the results of salt spray testing. An untreated hinge shows significant rust after 312 hours, while a National Hardware product with WeatherGuard protection remains largely uncorroded, demonstrating superior rust resistance.
Corrosion Resistance Demonstration Video
Video: This video demonstrates the superior corrosion resistance of National Hardware products featuring WeatherGuard protection through a salt fog spray test. It visually compares the performance of a National Hardware hinge against a competitive brand's standard zinc-plated hinge after prolonged exposure to corrosive conditions, highlighting the enhanced durability of the WeatherGuard coating.
Installationsanleitung
Before beginning installation, ensure you have the necessary tools: a pencil, measuring tape, drill, drill bits appropriate for your mounting surface and screws, and a screwdriver. Always wear appropriate safety gear, such as eye protection.
- Montageort bestimmen: Identify the desired location for the window bolt on your window frame, cabinet, or door. Ensure the bolt will align properly with the strike plate when in the locked position.
- Mark Mounting Holes for Bolt Body: Position the main body of the bolt in the chosen location. Use a pencil to mark the centers of the mounting holes.
- Drill Pilot Holes for Bolt Body: Using a drill bit slightly smaller than your mounting screws, drill pilot holes at the marked locations. Ensure the depth is appropriate for your screws to prevent splitting the material.
- Attach Bolt Body: Secure the main body of the bolt to the surface using appropriate screws. Ensure it is firmly attached and level.
- Mark Mounting Holes for Strike Plate: Extend the bolt into the locked position and align the strike plate with the end of the bolt. Mark the centers of the mounting holes for the strike plate on the adjacent surface.
- Drill Pilot Holes for Strike Plate: Drill pilot holes for the strike plate at the marked locations.
- Attach Strike Plate: Secure the strike plate to the surface using appropriate screws. Test the bolt's operation to ensure smooth engagement with the strike plate. Adjust the strike plate's position if necessary for optimal function.
Bedienungsanleitung
The National Hardware N151-266 V833 Window Bolt is designed for simple and straightforward operation.
- Abschließen: Slide the bolt mechanism forward until the bolt fully extends into the strike plate, securing the window, cabinet, or door.
- So entsperren Sie: Slide the bolt mechanism backward, retracting the bolt from the strike plate, allowing the window, cabinet, or door to open.
Ensure the bolt slides freely and engages fully with the strike plate for maximum security.
Wartung
Regular maintenance will help ensure the longevity and smooth operation of your window bolt.
- Reinigung: Periodically wipe down the bolt and strike plate with a soft, damp cloth to remove dust and grime. Avoid abrasive cleaners that could damage the brass finish or protective coating.
- Schmierung: If the bolt mechanism becomes stiff or difficult to slide, apply a small amount of silicone-based lubricant to the sliding parts. Do not use oil-based lubricants, as they can attract dust and debris.
- Befestigungselemente prüfen: Over time, mounting screws may loosen. Periodically check all screws and tighten them as needed to ensure the bolt remains securely attached to the surface.
- Auf Verschleiß prüfen: Regularly inspect the bolt and strike plate for any signs of wear, damage, or corrosion. While the WeatherGuard coating provides excellent protection, extreme conditions or physical damage can affect it. Replace the unit if significant wear or damage is observed.
Fehlerbehebung
If you encounter issues with your National Hardware N151-266 V833 Window Bolt, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Bolt is difficult to slide. | Ansammlung von Schmutz oder mangelnde Schmierung. | Clean the bolt mechanism and apply a silicone-based lubricant. |
| Bolt does not fully engage with the strike plate. | Misalignment of the strike plate or bolt body. | Check the alignment of both components. Loosen strike plate screws, adjust position, and re-tighten. Ensure the mounting surface is flat. |
| Bolt feels loose after installation. | Loose mounting screws or improper pilot hole size. | Tighten all mounting screws. If screws continue to loosen, consider using slightly larger screws or wall anchors if applicable. |
| Sichtbarer Rost oder Korrosion. | Exposure to harsh elements or damage to the protective coating. | Clean the affected area. While the product has WeatherGuard protection, extreme conditions can still cause issues. If corrosion is severe, replacement may be necessary. |
Technische Daten
| Attribut | Detail |
|---|---|
| Modellnummer | N151-266 |
| Größe | 2 Zoll |
| Farbe | Messing |
| Beenden | Messing |
| Material | Steel (Note: Product description states steel, specifications list plastic. Prioritizing product description for material as it's more specific to the bolt components.) |
| Artikelgewicht | 1.6 Unzen |
| Technische Daten | 5.7 x 5.3 x 3.3 Zoll |
| Bolzendurchmesser | 0.31 Zoll |
| Hersteller | KWIK9 (for this specific listing, though brand is National Hardware) |
| Erstes verfügbares Datum | 17. Februar 2007 |
Garantie und Support
National Hardware products are designed for durability and reliability. This product comes with a warranty to ensure customer satisfaction.
- Garantiebeschreibung: The product is covered by a warranty. For specific details regarding the warranty period and terms, please refer to the packaging or contact National Hardware customer support.
- Rückgaberecht: The standard return policy for this product is 30 days for refund/replacement, typically handled by Amazon if purchased through them.
Image: A logo indicating a "Limited Lifetime Warranty" and "Lifespan Warranty" for National Hardware products, signifying the brand's commitment to product quality and durability.
For further assistance, technical support, or warranty claims, please visit the official National Hardware website or contact their customer service department. You can often find contact information on the product packaging or through the brand's official online presence.
