Produkt überview
The National Hardware N178-384 Pushbutton Latch is designed for use with wood or metal screen and storm doors. This latch features a dual locking design, incorporating both an exterior key lock and a separate interior locking mechanism for enhanced security. It is suitable for doors with 1-3/4 inch hole spacing and accommodates wood doors ranging from 5/8 inch to 2 inches thick. Mounting screws are included to match the product finish, along with a spring-loaded strike plate.
For 2-inch thick doors, two pan head machine screws (8/32 inch x 2-3/8 inch) are required and must be purchased separately. The latch uses a Y11 (SKU 202435) key blank.

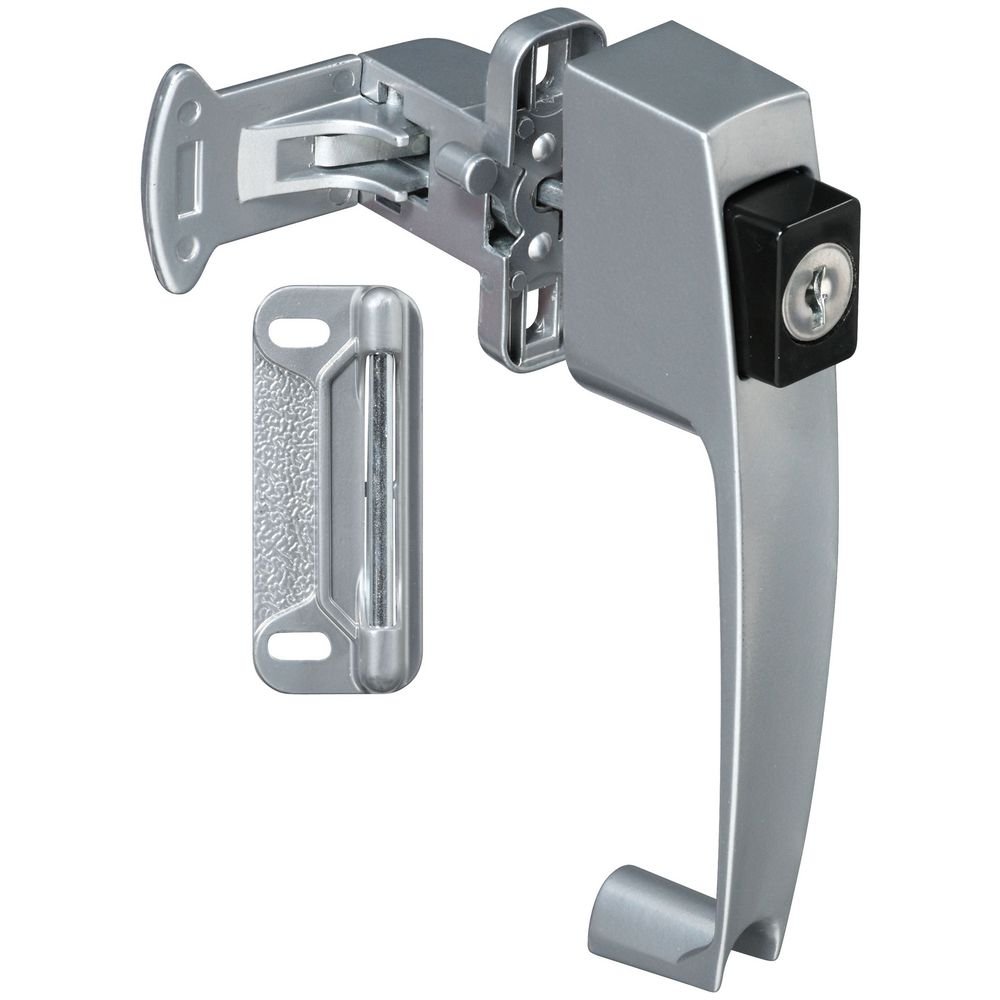

Bild: Hauptbild view of the National Hardware N178-384 Pushbutton Latch.
Installationsanleitung
- Bereiten Sie die Tür vor: Ensure your wood or metal screen/storm door has 1-3/4 inch hole spacing. The latch is compatible with wood doors from 5/8 inch to 2 inches thick.
- Check Door Thickness: If your door is 2 inches thick, acquire two pan head machine screws (8/32 inch x 2-3/8 inch) separately, as these are not included with the standard package.
- Position the Latch: Align the exterior and interior components of the pushbutton latch with the pre-drilled holes on your door.
- Sichern Sie den Riegel: Use the included mounting screws to firmly attach both the exterior and interior parts of the latch to the door. Ensure screws are tightened securely but do not overtighten.
- Montieren Sie die Schließplatte: Position the spring-loaded strike plate on the door frame, aligning it with the latch mechanism. Mark the screw holes.
- Attach Strike Plate: Secure the strike plate to the door frame using the provided screws. Test the latch operation to ensure smooth engagement with the strike plate. Adjust if necessary.
Image: Components of the pushbutton latch, showing the exterior and interior parts.
Betrieb
- Exterior Locking: To lock the door from the outside, insert the Y11 key (SKU 202435) into the exterior key lock and turn to engage the locking mechanism.
- Interior Locking: The interior locking mechanism provides additional security. Engage this mechanism from the inside as needed.
- Öffnung von außen: Use the key to unlock, then press the pushbutton to release the latch.
- Öffnung von innen: Disengage the interior lock (if active), then press the interior pushbutton or lever to release the latch.
Image: Close-up of the pushbutton latch, showing the keyhole for exterior locking.
Wartung
To ensure the longevity and smooth operation of your pushbutton latch, perform the following maintenance:
- Reinigung: Periodically clean the latch with a soft, damp Mit einem Tuch abwischen. Vermeiden Sie scheuernde Reiniger oder Lösungsmittel, die die Oberfläche beschädigen könnten.
- Schmierung: Apply a small amount of graphite lubricant or a silicone-based spray to the moving parts of the latch and the key cylinder annually to prevent sticking and ensure smooth operation.
- Schrauben festziehen: Check all mounting screws periodically and tighten them if they have become loose.
Fehlerbehebung
If you encounter issues with your pushbutton latch, consider the following common solutions:
- Latch Not Engaging:
- Check if the strike plate is properly aligned with the latch bolt. Adjust the strike plate position if necessary.
- Ensure no debris is obstructing the latch mechanism or strike plate opening.
- Key Sticking or Hard to Turn:
- Apply graphite lubricant to the key and insert it into the cylinder several times.
- Ensure the key is fully inserted and is the correct Y11 key blank.
- Loser Griff:
- Tighten all visible mounting screws on both the interior and exterior handles.
Technische Daten
| Modellnummer | N178384 |
| Marke | Nationale Hardware |
| Material | Zinc Die-Cast (Metal, Wood, Zinc) |
| Farbe | Silber |
| Außenverkleidung | Zink |
| Kompatibilität der Türstärke | 5/8" to 2" (wood doors) |
| Lochabstand | 1-3/4" |
| Sperrtyp | Key Lock (Y11 key blank) |
| Artikelgewicht | 0.72 Pfund (ca. 11.5 Unzen) |
| Technische Daten | 9.5 x 4.5 x 1.8 Zoll |
| Im Lieferumfang enthaltene Komponenten | Latch components, mounting screws, spring-loaded strike plate |
Garantieinformationen
National Hardware products are backed by a Limited Lifetime Warranty. For specific details regarding coverage and claims, please refer to the official National Hardware webWebsite oder wenden Sie sich an den Kundendienst.
Image: National Hardware brand logo.
Markeninformationen
National Hardware has been providing essential hardware solutions for over 120 years, inspiring creativity and craftsmanship in every project. Their commitment is to make hardware accessible and easy to use for all.
Video: "National Hardware, Built on Inspiration" - An overview of the National Hardware brand and its commitment to quality and craftsmanship. This video is provided by the seller.
Kontakt und Support
For further assistance, technical support, or warranty inquiries, please visit the official National Hardware webBesuchen Sie die Website oder wenden Sie sich an den Kundendienst. Die genauen Kontaktdaten finden Sie auf der Produktverpackung.
