1. Einleitung
Thank you for choosing Proficient Audio Systems AW830-WHITE 8" Indoor/Outdoor Speakers. These speakers are designed to deliver high-quality audio performance in various environments, both indoors and outdoors. This manual provides essential information for proper installation, operation, and maintenance of your speakers.
2. Sicherheitshinweise
Bitte lesen Sie vor der Installation und Inbetriebnahme alle Anweisungen sorgfältig durch. Bewahren Sie diese Anleitung zum späteren Nachschlagen auf.
- Warnung: Um Feuer- oder Stromschlaggefahren zu vermeiden, setzen Sie dieses Gerät weder Regen noch Feuchtigkeit aus.
- Vorsicht: Do not open the speaker enclosure. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.
- Ensure proper wiring and connections to avoid electrical hazards.
- Do not mount speakers in locations where they may fall and cause injury or damage.
- Avoid placing speakers near heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
3. Packungsinhalt
Bitte überprüfen Sie beim Auspacken, ob alle unten aufgeführten Artikel vorhanden und in gutem Zustand sind:
- Two (2) Proficient AW830-WHITE 8" Indoor/Outdoor Speakers
- Mounting Brackets (pre-attached or included separately)
- Bedienungsanleitung (dieses Dokument)
4. Einrichtung und Installation
The Proficient AW830-WHITE speakers are designed for versatile installation, suitable for both indoor and outdoor environments.
4.1. Montage
These speakers include a swivel bracket, allowing for horizontal or vertical mounting. The bracket enables adjustment of the speaker's direction for optimal sound dispersion.
- Ensure the mounting surface is structurally sound and can support the weight of the speakers (approximately 35.6 pounds per pair).
- Use appropriate hardware for the chosen mounting surface (e.g., wood screws for studs, masonry anchors for brick/concrete).
- For outdoor installations, position speakers under eaves or overhangs where possible to provide additional protection from direct exposure to extreme weather, although the speakers are weather-resistant.
- Securely attach the mounting bracket to the desired location, then attach the speaker to the bracket. Adjust the angle as needed and tighten all fasteners.
4.2. Verkabelung
Proper wiring is crucial for optimal performance and safety.
- Verbinden Sie die Lautsprecherkabel von Ihrem amplifier to the speaker terminals. Observe correct polarity (positive to positive and negative to negative) for optimal sound performance. Incorrect polarity can result in poor bass response and imaging.
- Use appropriate gauge speaker wire for the length of the run to minimize signal loss. Consult your amplifier's manual for recommended wire gauges.
- Die Lautsprecher haben eine Impedanz von 4 Ohm. Stellen Sie sicher, dass Ihre amplifier is compatible with a 4-ohm load. Connecting speakers with an impedance lower than your amplifier's minimum rating can cause damage to the ampschwerer.

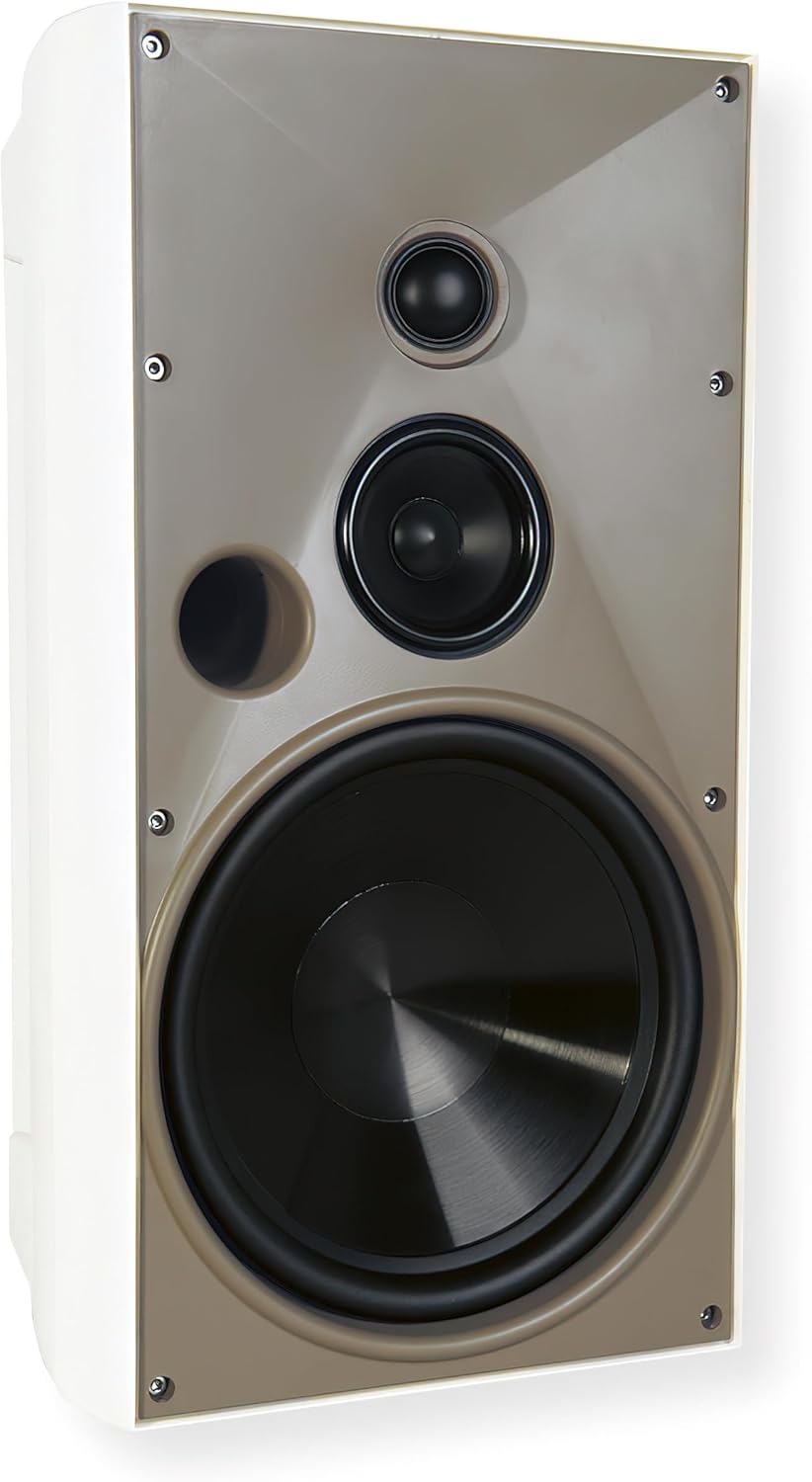

Dieses Bild zeigt die Vorderseite. view of the Proficient AW830-WHITE speaker. It features an 8-inch woofer at the bottom, a 3-inch midrange driver in the middle, and a 1-inch pivoting soft dome tweeter at the top. The speaker enclosure is white with a light gray grille, secured by screws at the corners.
5. Bedienungsanleitung
Follow these steps for basic operation of your Proficient AW830-WHITE speakers:
- Once properly installed and wired, connect your amplifier or receiver to a power source and turn it on.
- Select the appropriate audio input source on your ampschwerer.
- Stellen Sie die Lautstärke an Ihrem ein amplifier to a comfortable listening level. Avoid excessively high volumes to prevent speaker damage and hearing loss.
- These speakers are designed for a maximum output power of 175 watts. Do not exceed this power rating to prevent damage.
- The pivoting tweeter allows for directional adjustment of high frequencies. Gently pivot the tweeter to optimize sound in your listening area, aiming it towards the primary listening position.
6. Wartung
The AW830-WHITE speakers feature weather-resistant ABS housing and powder-coated aluminum grilles, making them suitable for outdoor use with minimal maintenance.
- Reinigung: Wipe the speaker enclosures and grilles with a soft, damp cloth. Do not use harsh chemicals, solvents, or abrasive cleaners, as these can damage the finish or components.
- Pflege im Freien: Periodically inspect outdoor installations for secure mounting and any signs of wear on wiring. While weather-resistant, prolonged exposure to extreme conditions (e.g., direct sunlight, heavy snow, standing water) can affect longevity. Consider covering speakers during extended periods of non-use in harsh weather conditions.
- Ensure drainage holes (if present) are clear of debris to prevent water accumulation.
7. Fehlerbehebung
Sollten Sie Probleme mit Ihren Lautsprechern haben, beachten Sie bitte die folgenden häufig auftretenden Probleme und Lösungen:
7.1. Kein Ton
- Überprüfen Sie alle Lautsprecherkabelverbindungen sowohl am Lautsprecher als auch am Gerät. amplifier ends. Ensure correct polarity (+ to + and - to -).
- Überprüfen Sie die ampDer Verstärker ist eingeschaltet und die richtige Eingangsquelle ist ausgewählt.
- Test with another audio source or speaker if available to isolate the problem to either the speaker or the audio system.
- Stellen Sie sicher, dass ampDie Lautstärke des Verstärkers ist nicht auf Minimum eingestellt oder stummgeschaltet.
7.2. Verzerrter Klang
- Reduzieren Sie die Lautstärke an Ihrem ampVerstärker. Eine Übersteuerung der Lautsprecher kann zu Verzerrungen führen.
- Check speaker wire connections for loose strands or short circuits. Ensure no bare wires are touching each other or the speaker frame.
- Stellen Sie sicher, dass ampDie Impedanz des Verstärkers ist mit der der Lautsprecher kompatibel (4 Ohm).
- Inspect speaker cones for any visible damage or obstructions.
- If using an equalizer or tone controls, try setting them to flat or neutral positions.
8. Spezifikationen
| Modell | AW830-WHITE |
| Lautsprechertyp | 8" Indoor/Outdoor Speaker |
| Komponenten | 8" Polypropylene Woofer, 3" Graphite Midrange, 1" Pivoting Soft Dome Tweeter |
| Frequenzgang | 35 Hz – 20 kHz |
| Impedanz | 4 Ohm |
| Belastbarkeit | 175 Watt (Maximal) |
| Abmessungen (H x B x T) | 15.75" x 8.75" x 8.75" |
| Gewicht | 35.6 Pfund (pro Paar) |
| Material | ABS Housing, Powder-coated Aluminum Grille |
| Besondere Merkmale | Weather-resistant, Bass Boost, Water-resistant |
| Konnektivität | Verdrahtet |
| Einheitenanzahl | 2 Lautsprecher |
| UPC | 664254005985 |
9. Gewährleistung
Proficient Audio Systems offers a limited warranty on the AW830-WHITE speakers. Specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please refer to the warranty card included with your product or visit the official Proficient Audio Systems website. This limited warranty typically covers defects in materials and workmanship under normal use.
10. Unterstützung
For technical assistance, troubleshooting beyond this manual, or service inquiries, please contact Proficient Audio Systems customer support.
- Visit the official Proficient Audio Systems webWebsite für Kontaktinformationen und weitere Ressourcen.
- When contacting support, please have your model number (AW830-WHITE) and proof of purchase readily available to expedite assistance.
