Benutzerhandbuch für den Fujifilm EF-42 Blitzschuhadapter

Einführung

This manual provides comprehensive instructions for the safe and effective use of your Fujifilm EF-42 Shoe Mount Flash. Please read this manual thoroughly before using the product and retain it for future reference. The Fujifilm EF-42 is designed to provide enhanced lighting capabilities for compatible Fujifilm cameras, featuring a guide number of 42 (at ISO 100, 105mm zoom) and versatile bounce and swivel functions.

Sicherheitsvorkehrungen

• Die Blitzeinheit darf nicht zerlegt oder verändert werden.
• Halten Sie das Blitzgerät trocken. Setzen Sie es weder Wasser noch hoher Luftfeuchtigkeit aus.
• Vermeiden Sie direkten Augenkontakt mit dem Blitzlicht, insbesondere aus nächster Nähe.
• Use only specified batteries (4 AA batteries).
• Store the flash unit in a cool, dry place away from direct sunlight.

Packungsinhalt

Überprüfen Sie, ob alle Artikel in Ihrem Paket vorhanden sind:

• Fujifilm EF-42 Blitzgerät mit Blitzschuhanschluss
• Soft Case (if included with your specific purchase)
• Mini Stand (if included)
• Bedienungsanleitung (dieses Dokument)

Aufstellen

1. Einlegen der Batterie

The EF-42 flash requires four (4) AA batteries. For optimal performance and recycle times, high-capacity rechargeable Ni-MH batteries are recommended.

1. Suchen Sie die Abdeckung des Batteriefachs an der Seite des Blitzgeräts.
2. Schieben Sie die Abdeckung in Pfeilrichtung auf.
3. Insert four AA batteries, ensuring correct polarity (+/-) as marked inside the compartment.
4. Schließen Sie den Batteriefachdeckel fest, bis er einrastet.

Bild: Vorderseite view of the Fujifilm EF-42 Shoe Mount Flash. This image displays the main flash head and the infrared assist beam window.

2. Montage an der Kamera

The EF-42 flash unit attaches to your camera's hot shoe.

1. Stellen Sie sicher, dass sowohl die Kamera als auch das Blitzgerät ausgeschaltet sind.
2. Remove the protective cap from the camera's hot shoe and from the flash unit's foot.
3. Slide the flash unit's mounting foot completely into the camera's hot shoe.
4. Tighten the locking wheel on the flash unit's foot to secure it firmly to the camera. Do not overtighten.

Bedienung des Blitzes

1. Ein-/Ausschalten

Locate the ON/OFF switch on the back panel of the flash unit.

• To power on, slide the switch to the "ON" position. The LCD panel will illuminate.
• Zum Ausschalten den Schalter in die Position „AUS“ schieben.

Bild: Rückseite view of the Fujifilm EF-42 Shoe Mount Flash, showing the LCD display, mode and select buttons, and the power switch.

2. Blitzmodi

The EF-42 offers various flash modes to suit different shooting conditions. Use the MODUS button to cycle through available modes and the SEL (Select) button to adjust settings within a mode.

• TTL-Modus (Through-The-Lens): The flash automatically adjusts its output based on the camera's metering system for balanced exposure. This is the recommended mode for most situations.
• Manueller Modus: Allows you to manually set the flash output power (e.g., 1/1, 1/2, 1/4, etc.). This mode provides precise control for advanced users.
• Multi-Modus: (If available) Fires the flash multiple times during a single exposure to capture stroboscopic effects.

3. Bounce and Swivel Functionality

The flash head can be tilted and swiveled to bounce light off ceilings or walls, creating softer, more natural-looking illumination and avoiding harsh direct flash.

• Kippen: The flash head can be tilted upwards to various angles (e.g., 0°, 45°, 60°, 75°, 90°). Gently push the flash head upwards until it locks into the desired position.
• Schwenkbar: The flash head can be swiveled horizontally (e.g., 90° left, 180° right). Gently rotate the flash head to the left or right until it locks into the desired position.

Image: Demonstration of the Fujifilm EF-42 flash head swiveling horizontally, illustrating its flexibility for bounce flash.

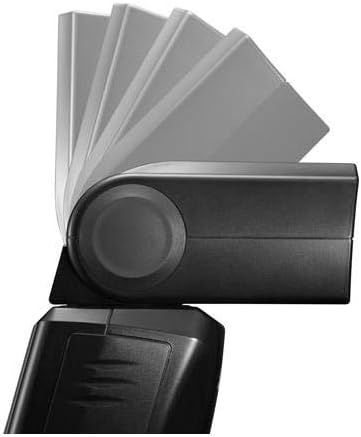

Image: Demonstration of the Fujifilm EF-42 flash head tilting vertically, showing its ability to direct light upwards for bounce lighting.

4. Zoom Head

The EF-42 features an automatic zoom head that adjusts to match the focal length of your lens, optimizing light coverage. In some modes, manual zoom adjustment may also be available via the SEL Taste.

5. Test Flash and Charge Indicator

Der TEST/CHARGE Der Knopf erfüllt zwei Funktionen:

• When the flash is charged and ready to fire, pressing this button will emit a test flash.
• The indicator light on this button will glow when the flash is fully charged and ready for use. It will blink or remain off during charging.

Wartung

• Reinigung: Reinigen Sie die Blitzeinheit mit einem weichen, trockenen Tuch. Bei hartnäckigem Schmutz kann ein leicht feuchtes Tuch hilfreich sein.amp Ein Tuch kann verwendet werden, anschließend mit einem trockenen Tuch nachwischen. Verwenden Sie keine Lösungsmittel oder Scheuermittel.
• Batteriepflege: Remove batteries if the flash unit will not be used for an extended period to prevent leakage.
• Lagerung: Store the flash in its protective case (if supplied) in a cool, dry environment.

Fehlerbehebung

Technische Daten

Garantie und Support

For warranty information, please refer to the warranty card included with your product or visit the official Fujifilm website. For technical support, service, or inquiries, please contact Fujifilm customer service.

Weitere Informationen und Unterstützungsangebote finden Sie auf der Offizieller Fujifilm-Shop auf Amazon.
