Laney AH80 Combo Amplifier-Benutzerhandbuch

1. Einleitung

The Laney AH80 is a versatile multi-input combo amplifier designed to accommodate a wide range of instruments. Featuring 3 channels, a 5-band graphic master EQ, and digital delay, it offers optimum performance, flexibility, and sound quality. Its compact design makes it suitable for various settings, from small stages to practice rooms.

Zu den Hauptmerkmalen gehören:

• 80 Watts of power, suitable for gigs.
• Multiple input options: XLR, 1/4-inch jack, and mini-jack.
• On-board Digital Delay effects.
• 3 independent channels, welcoming all instruments.
• Master 5-Band Graphic EQ for precise tone shaping.

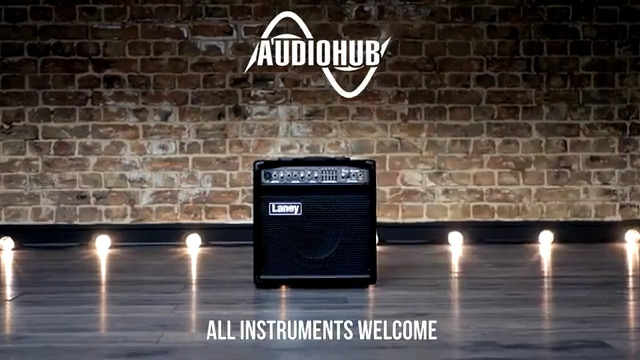

This image displays the front of the Laney AH80 amplifier, highlighting its robust speaker grille and the accessible control panel located at the top. The amplifier is black, designed for durability and clear sound projection.

2. Einrichtung

Before powering on your Laney AH80 amplifier, ensure all connections are secure and the volume controls are set to minimum. This prevents sudden loud noises that could damage your equipment or hearing.

2.1 Stromanschluss

• Locate the power input on the rear panel of the ampschwerer.
• Verbinden Sie das mitgelieferte Netzkabel mit dem amplifier and then to a suitable electrical outlet.
• Stellen Sie sicher, dass die LautstärketagDer e-Wahlschalter (falls vorhanden) ist auf Ihr lokales Netzteil abgestimmt.

2.2 Instrument Connections

The AH80 offers multiple input channels for various instruments and microphones.

This image shows the rear panel of the Laney AH80 amplifier, featuring the power input socket and two bass reflex ports designed to enhance low-frequency response.

3. Bedienungsanleitung

The Laney AH80 features a comprehensive control panel designed for intuitive operation across its three channels.

Dieses Bild liefert eine detaillierte Ansicht. view der amplifier's control panel, illustrating the various input jacks, individual channel level controls, the 5-band graphic equalizer, and the master volume knob.

3.1 Channel 1 (Microphone/Line In)

Channel 1 is ideal for microphones or instruments requiring an XLR input, such as acoustic guitars with active pickups. It features both an XLR and a 1/4-inch line input.

• MIC-Eingang (XLR): Schließen Sie hier Ihr Mikrofon an.
• LINE IN (1/4-inch): For instruments with a standard 1/4-inch jack output.
• EBENE: Adjusts the input gain for Channel 1.
• FX-Taste: Activates or deactivates the built-in digital delay effect for this channel.

3.2 Channel 2 (Stereo Inputs)

Channel 2 provides stereo 1/4-inch inputs, suitable for keyboards, drum machines, or guitar multi-effects units.

• LINE IN (L) & (R): Connect stereo sources using two 1/4-inch cables. If using a mono source, connect to the (L) input.
• EBENE: Controls the input gain for Channel 2.
• FX-Taste: Activates or deactivates the built-in digital delay effect for this channel.

3.3 Channel 3 (Line/Instrument Input)

Channel 3 is designed for line-level instruments or direct instrument connection, such as acoustic or electric guitars and basses.

• LINE IN/INST: Connect your instrument here using a 1/4-inch jack.
• EBENE: Adjusts the input gain for Channel 3.
• FX-Taste: Activates or deactivates the built-in digital delay effect for this channel.

3.4 Delay Effects

The AH80 includes a built-in digital delay effect that can be applied to individual channels.

• ZEIT: Controls the delay time, from short slap-back to longer echoes.
• RÜCKMELDUNG: Passt die Anzahl der Verzögerungswiederholungen an.
• EBENE: Sets the overall wet/dry mix of the delay effect.

3.5 Equalisation (EQ)

The 5-band graphic EQ allows for precise tone shaping across all active channels.

• Sliders for 100Hz, 340Hz, 1KHz, 3K4Hz, and 10KHz.
• Adjust these sliders to boost or cut specific frequency ranges to tailor your sound.

3.6 Hauptteil

• VOLUMEN: The master volume control adjusts the overall output level of the ampschwerer.
• AUX-IN: A stereo mini-jack input for connecting external audio devices like MP3 players or phones for backing tracks.
• LINE OUT (PRE): A balanced 1/4-inch output for sending the pre-EQ signal to a mixing console or recording device.
• TELEFONE: A 1/4-inch stereo headphone output for silent practice. Connecting headphones will mute the main speaker.
• LEISTUNG: Leuchtet, wenn die ampDer Verstärker ist eingeschaltet.

4. Wartung

Proper maintenance ensures the longevity and optimal performance of your Laney AH80 ampschwerer.

• Reinigung: Reinigen Sie die Außenseite mit einem weichen, trockenen Tuch. Vermeiden Sie Scheuermittel oder Lösungsmittel.
• Lagerung: Speichern Sie die ampVerstärker an einem kühlen, trockenen Ort ohne direkte Sonneneinstrahlung und extreme Temperaturen aufstellen.
• Belüftung: Sorgen Sie für ausreichende Belüftung um das ampVerstärker um Überhitzung herumschalten. Lüftungsschlitze nicht blockieren.
• Transport: When transporting, use appropriate covers or cases to protect the ampVerstärker vor physischen Schäden.

5. Fehlerbehebung

If you encounter issues with your AH80 amplifier, consult the following common troubleshooting steps before seeking professional service.

6. Spezifikationen

7. Garantie und Support

Laney products are designed and manufactured to the highest standards. For information regarding warranty coverage and support, please refer to the official Laney webBesuchen Sie unsere Website oder wenden Sie sich an Ihren lokalen Händler.

Ein offizielles Benutzerhandbuch im PDF-Format steht zum Download bereit: Benutzerhandbuch herunterladen (PDF)
