Linksys EA6900 Smart WiFi AC1900 Router Instruction Manual

Einführung

The Linksys EA6900 Smart WiFi AC1900 Router is designed to provide high-speed wireless connectivity for your home network. Featuring advanced Wireless-AC technology and simultaneous dual-band operation, it is optimized for demanding tasks such as HD video streaming and online gaming. This manual provides essential information for setting up, operating, and maintaining your router, ensuring optimal performance and a secure network environment.

Packungsinhalt

• Linksys Smart Wi-Fi Router AC1900, EA6900
• Kurzanleitung
• 3 Antennen
• CD-ROM mit Dokumentation
• Ethernet-Kabel
• Netzteil

Aufstellen

Befolgen Sie diese Schritte, um Ihren Linksys EA6900-Router einzurichten:

1. Router auspacken: Nehmen Sie den Router und sämtliches Zubehör vorsichtig aus der Verpackung.
2. Schließen Sie die Antennen an: Attach the three external antennas to the designated ports on the back of the router. Ensure they are securely fastened.
3. Positionieren Sie den Router: Platzieren Sie den Router an einem zentralen Ort in Ihrem Haus, fernab von Hindernissen und anderen elektronischen Geräten, die Störungen verursachen könnten.
4. An die Stromversorgung anschließen: Plug the power adapter into the router's power port and then into an electrical outlet. The power LED on the router should illuminate.
5. Verbindung zum Modem herstellen: Connect one end of the provided Ethernet cable to the yellow "Internet" (WAN) port on the router and the other end to your modem's Ethernet port.
6. Geräte anschließen (optional): For wired connections, connect Ethernet cables from your devices (e.g., computer, gaming console) to any of the four blue "Ethernet" (LAN) ports on the router.
7. Anfangskonfiguration:
   • Connect your computer or mobile device to the router's default Wi-Fi network (SSID and password can be found on the router's label or Quick Start Guide).
   • Öffnen Sie ein web browser and navigate to the Linksys Smart WiFi setup page (usually linksyssmartwifi.com or 192.168.1.1).
   • Follow the on-screen instructions to complete the setup, including creating a new Wi-Fi network name (SSID) and password, and setting up an administrator password for the router.

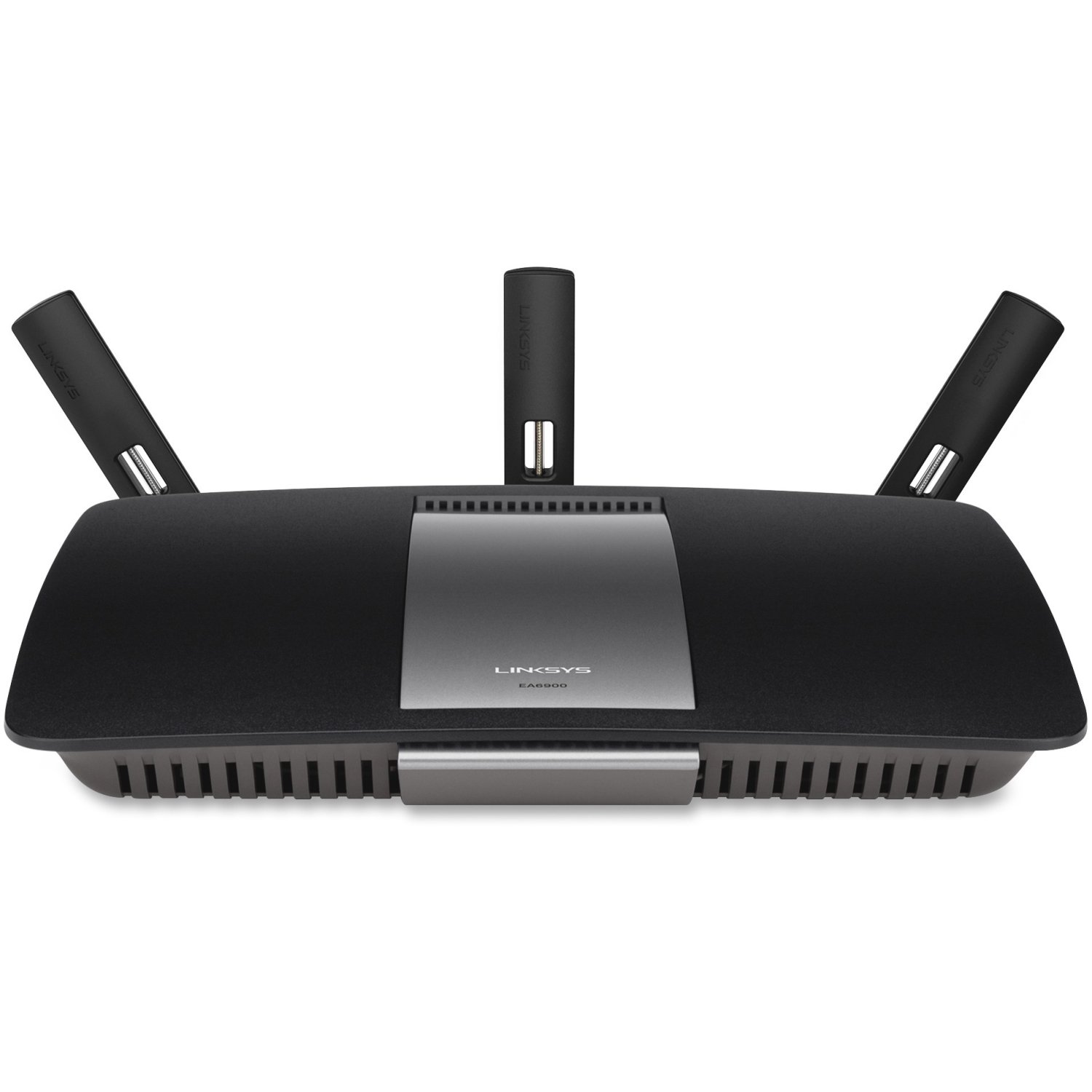

Abbildung 1: Vorderseite view of the Linksys EA6900 Router, showcasing sein Design und seine externen Antennen.

Figure 2: Rear panel of the Linksys EA6900 Router, showing the power port, WAN port, four LAN ports, and USB ports.

Bedienung des Routers

The Linksys EA6900 router offers various features to manage your network:

• Dualband-WLAN: The router operates on both 2.4 GHz and 5 GHz frequencies simultaneously. The 2.4 GHz band provides wider coverage, while the 5 GHz band offers faster speeds for compatible devices.
• Linksys Smart WiFi Software: Access your router settings and manage your network from anywhere using the Linksys Smart WiFi app or web interface. Features include guest access, parental controls, and device prioritization.
• Wi-Fi Protected Setup (WPS): Easily connect WPS-compatible devices to your Wi-Fi network by pressing the WPS button on the router and the device.
• USB-Anschlüsse: The router includes one USB 2.0 port and one USB 3.0 port. These can be used to connect external storage devices for network-attached storage (NAS) functionality, allowing you to share files in Ihrem gesamten Netzwerk.
• Gigabit-Ethernet-Ports: Four Gigabit LAN ports provide high-speed wired connections for devices like desktop computers, smart TVs, and gaming consoles.

Wartung

To ensure the longevity and optimal performance of your Linksys EA6900 router, consider the following maintenance tips:

• Firmware-Updates: Regularly check for and install firmware updates through the Linksys Smart WiFi software. Updates often include performance improvements, security patches, and new features.
• Physische Platzierung: Ensure the router is placed in a well-ventilated area to prevent overheating. Avoid placing it in enclosed spaces or near heat sources.
• Kabelmanagement: Keep all cables connected to the router tidy and free from kinks or excessive bending to prevent signal degradation.
• Regelmäßig neu starten: Ein gelegentlicher Neustart des Routers (Stromzyklus) kann helfen, den Speicher zu leeren und kleinere Leistungsprobleme zu beheben.

Fehlerbehebung

If you encounter issues with your Linksys EA6900 router, try these troubleshooting steps:

• Keine Internetverbindung:
  • Prüfen Sie, ob das Modem ordnungsgemäß funktioniert.
  • Ensure the Ethernet cable from the modem is securely connected to the router's yellow "Internet" (WAN) port.
  • Restart both your modem and router by unplugging them from power for 30 seconds and then plugging them back in.
• Slow Wi-Fi Speeds or Frequent Disconnects:
  • Move the router to a more central location, away from walls, large metal objects, and other electronics.
  • Ensure your devices are connected to the appropriate Wi-Fi band (5 GHz for faster speeds, 2.4 GHz for wider range).
  • Prüfen Sie, ob Firmware-Updates für Ihren Router verfügbar sind.
  • Reduce the number of active devices or bandwidth-intensive applications if possible.
• Zugriff auf Router-Einstellungen nicht möglich:
  • Stellen Sie sicher, dass Ihr Gerät mit dem WLAN-Netzwerk des Routers oder über ein Ethernet-Kabel verbunden ist.
  • Verify the router's IP address (usually 192.168.1.1) oder verwenden linksyssmartwifi.com.
  • If you forgot your administrator password, you may need to perform a factory reset (see Quick Start Guide for instructions).
• Wi-Fi Protected Setup (WPS) Issues:
  • Ensure your device supports WPS.
  • Try initiating WPS from both the router and the device within two minutes.
  • If WPS fails, connect the device manually using the Wi-Fi network name (SSID) and password.

Technische Daten

Garantie und Support

The Linksys EA6900 Smart WiFi AC1900 Router comes with a 1-year hardware limited warranty. For technical support, product registration, or to access the full documentation, please visit the official Linksys support website. You can also find additional resources and FAQs through the Linksys Smart WiFi software.
