Einführung
This manual provides essential information for the proper installation, operation, and maintenance of your TELEFUNKEN Elektroakustik ECC83-TK Preamplifier Vacuum Tube. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
The TELEFUNKEN ECC83-TK is a vacuum tube suitable for a wide range of music genres and playing styles. It is engineered to provide cleaner headroom compared to higher gain 12AX7 tubes when driven into overdrive, delivering distortion characterized by strongly defined low frequencies, a rich midrange, and clean, smooth high frequencies.
Produkt überview
The ECC83-TK is a premium vacuum tube specifically designed for preamplifier applications, offering superior audio fidelity and consistent performance. Its robust construction ensures reliability in various audio setups.

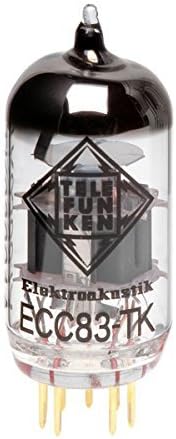

Bild: Eine Nahaufnahme view of the TELEFUNKEN ECC83-TK vacuum tube, showcasing its clear glass envelope, internal components, and the distinctive TELEFUNKEN diamond logo with the model number.
Image: The TELEFUNKEN ECC83-TK vacuum tube displayed alongside its retail packaging, which features the brand's classic design and product information.
Technische Daten
| Attribut | Wert |
|---|---|
| Marke | TELEFUNKEN Elektroakustik |
| Modellnummer | ECC83-TK |
| Kompatible Medien | Guitar, Bass, Keyboard, All |
| Farbe | Schwarz |
| Artikelgewicht | 34.02 g (1.2 Unzen) |
| Batterien erforderlich | NEIN |
Aufstellen
Proper installation is critical for the performance and safety of your vacuum tube. Always ensure the equipment is powered off and unplugged before handling tubes.
- Ausschalten: Schalten Sie das aus und ziehen Sie den Netzstecker amplifier or device where the tube will be installed. Allow sufficient time for the unit to cool down if it has been in operation.
- Buchse suchen: Identify the correct tube socket for the ECC83-TK. Refer to your amplifier's manual for specific tube placement and type compatibility.
- Gehen Sie vorsichtig damit um: Hold the tube by its base, avoiding direct contact with the glass envelope. Oils from your skin can create hot spots and potentially reduce tube life.
- Ausrichtungsstifte: Carefully align the pins of the ECC83-TK with the corresponding holes in the tube socket. The pins are keyed, meaning they will only fit in one specific orientation. Do not force the tube into the socket.
- Rohr einsetzen: Gently push the tube straight down into the socket until it is firmly and securely seated.
- Einschalten: Once the tube is securely installed, plug in and power on your equipment. Observe for proper operation.
Notiz: If you are replacing an existing tube, ensure the old tube is removed carefully by gently wiggling it while pulling straight up. Dispose of old tubes responsibly according to local regulations.
Betriebsanleitung
The ECC83-TK is designed for preamplifiertages. Its operational characteristics and sonic contribution will depend on the specific circuit it is used within.
- Aufwärmzeit: Allow a few minutes for the tube to warm up after powering on the equipment before expecting optimal performance and stable sound.
- Klangeigenschaften: This tube is recognized for providing a clean headroom when pushed into overdrive, distinguishing it from some higher gain 12AX7 variants. It contributes to a sound profile with well-defined lows, a rich and full midrange, and clear, smooth highs.
- Verstärkungseinstellung: Adjust the gain and volume controls on your amplifier or device according to its operational manual. The ECC83-TK's inherent characteristics will influence the overall tonal response and dynamic range.
- Überhitzung vermeiden: Ensure adequate ventilation around your equipment to prevent excessive heat buildup, which can significantly shorten the lifespan of vacuum tubes.
Wartung
Regular maintenance helps prolong the life of your vacuum tube and ensures consistent performance over time.
- Reinigung: Periodically, with the equipment powered off and cooled, gently wipe the glass envelope of the tube with a soft, dry, lint-free cloth to remove dust and fingerprints. Do not use liquid cleaners or abrasive materials.
- Steckdoseninspektion: Occasionally inspect the tube socket for any signs of corrosion, debris, or loose connections that could affect performance.
- Lagerung: If removing the tube for storage, keep it in its original packaging or a dedicated protective container. Store in a cool, dry place away from direct sunlight, extreme temperatures, and excessive vibration.
- Ersatz: Vacuum tubes have a finite lifespan. Replace the tube when you notice a degradation in sound quality (e.g., increased noise, loss of clarity, microphonics), or if the tube fails to light up. The lifespan varies depending on usage, operating conditions, and specific tube characteristics.
Fehlerbehebung
If you encounter issues with your ECC83-TK tube, consider the following common troubleshooting steps:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Kein Ton oder sehr geringe Lautstärke | Tube not seated properly; Tube failure; AmpLifier-Problem | Ensure tube is fully seated. Try re-inserting. If problem persists, replace tube with a known good one or consult amplifier handbuch. |
| übermäßiges Brummen oder Rauschen | Faulty tube; Ground loop; External interference | Try swapping the tube with a known good one. Check all cable connections. Ensure proper grounding of equipment. |
| Distorted or muddy sound | Worn out tube; Incorrect tube bias (if applicable to amplifizierer) | Replace the tube. Consult amplifier manual for bias adjustment if necessary (more common for power tubes). |
| Tube does not glow | Heater failure in tube; No power to tube socket | Replace the tube. If a new tube also doesn't glow, there may be an issue with the amplifier's heater circuit; seek professional service. |
If these steps do not resolve the issue, it is recommended to consult a qualified technician or the manufacturer's support.
Garantie und Support
For warranty information and technical support regarding your TELEFUNKEN Elektroakustik ECC83-TK vacuum tube, please refer to the official TELEFUNKEN Elektroakustik webWebsite oder wenden Sie sich direkt an den Kundendienst.
Offiziell WebWebsite: www.telefunken-elektroakustik.com
Please have your product model number (ECC83-TK) and purchase date ready when contacting support to expedite assistance.
