1. Einleitung
This manual provides essential information for the safe and effective use of your Cartrend Unitec 77947 Professional Battery Maintenance Device. Please read these instructions carefully before operating the device and retain them for future reference. This device is designed to maintain the charge of 12-volt vehicle batteries, ensuring they remain in optimal condition and ready for use.
2. Sicherheitshinweise
WARNUNG: Die Nichtbeachtung dieser Sicherheitshinweise kann zu Stromschlag, Brand oder schweren Verletzungen führen.
- Always ensure the device is disconnected from the power supply before making or breaking connections to the battery.
- Tragen Sie beim Umgang mit Batterien geeignete Schutzbrille und Schutzkleidung.
- Setzen Sie das Gerät nicht Regen oder übermäßiger Feuchtigkeit aus.
- Ensure adequate ventilation when charging batteries, as they can emit explosive gases.
- Außerhalb der Reichweite von Kindern aufbewahren.
- Do not use the device if the cables or housing are damaged.
- Schließen Sie die positive (rote) Klemme anamp an den Pluspol (+) der Batterie und den Minuspol (schwarz)amp an den Minuspol (-) der Batterie.
3. Packungsinhalt
Überprüfen Sie, ob alle Komponenten im Paket vorhanden sind:
- Cartrend Unitec 77947 Battery Maintenance Unit
- Batterie Clamps (Rot für positiv, Schwarz für negativ)
- Power Adapter with European Plug
Bild: Ein überview of the main components included: the battery maintenance unit, battery clamps (red and black), and the power adapter.
Bild: Ein anderes view of the battery maintenance device components, showing the power adapter and the main unit with connected clamps.
4. Produktüberschreitungview
The Cartrend Unitec 77947 is a professional battery maintenance device designed to keep your 12V vehicle batteries optimally charged. It is compatible with various battery types and features intelligent charging to prevent overcharging and self-discharge.
Hauptmerkmale:
- Suitable for all 12V battery types (Lead/Acid, GEL, AGM).
- Maximum charging current: 500 mA.
- Designed for batteries with capacities up to 120 Ah.
- Prevents self-discharge, ensuring the battery is always ready.
- Permanent monitoring of the charge status.
- Insulated and protective charging terminals for safety.

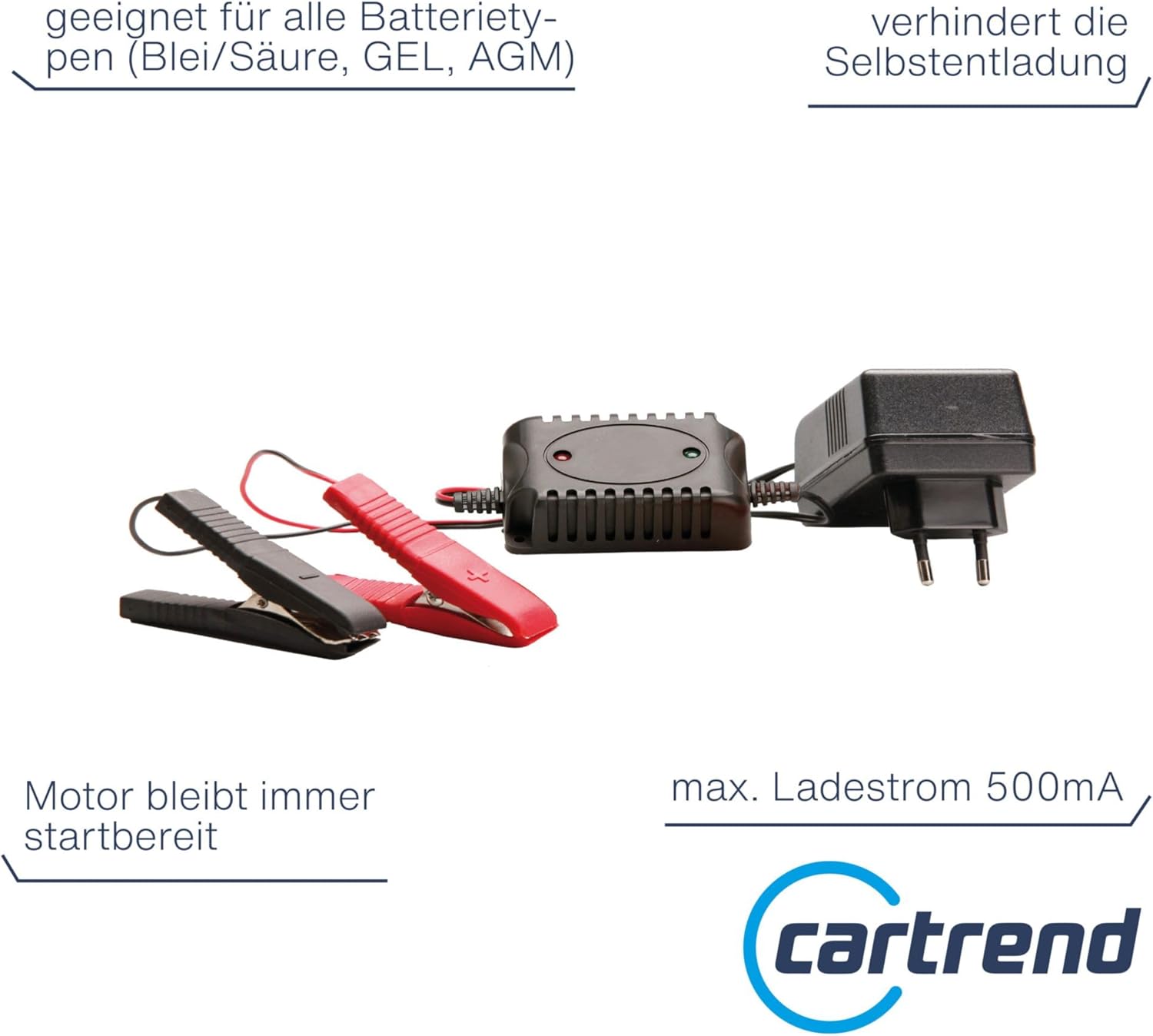

Image: The Cartrend Unitec 77947 battery maintenance device with its technical specifications, highlighting its compatibility with various battery types and charging current.
Image: Illustrating the device's electrical specifications: 12V DC output and 500mA charging current.
5. Einrichtung
Follow these steps to correctly set up your battery maintenance device:
- Bereiten Sie die Batterie vor: Ensure the vehicle is turned off and the ignition is switched off. Locate the vehicle's 12V battery.
- Pluspol anschließenamp: Verbinden Sie ROT positiv (+) clamp to the positive (+) terminal of the battery. Ensure a secure connection.
Image: A hand connecting the red positive clamp of the device to the positive terminal of a car battery.
- Schließen Sie den negativen Cl-Anschluss an.amp: Verbinden Sie SCHWARZ negativ (-) clamp an den Minuspol (-) der Batterie anschließen. Sicherstellen, dass eine sichere Verbindung besteht.
Image: A hand connecting the black negative clamp of the device to the negative terminal of a car battery.
- Netzteil anschließen: Plug the power adapter into the main battery maintenance unit.
Image: A hand connecting the power adapter to the main unit of the battery maintenance device.
- Anschluss an das Stromnetz: Plug the power adapter into a suitable 230V AC wall outlet.
Image: A hand plugging the power adapter into a power strip, indicating the final step of connecting the device to a power source.
6. Bedienungsanleitung
Once properly connected, the Cartrend Unitec 77947 device will automatically begin its maintenance cycle. It features intelligent charging and continuous monitoring.
- Automatische Operation: The device will detect the battery's charge status and automatically initiate the appropriate charging or maintenance mode.
- Statusanzeigen: The device is equipped with indicator lights (e.g., red for charging, green for fully charged/maintenance mode) to show its current status. Refer to the device itself for specific light indications.
- Kontinuierliche Überwachung: The device continuously monitors the battery's charge level, preventing both overcharging and self-discharge. This ensures the battery remains at an optimal charge, keeping your engine ready to start at all times.
Image: The battery maintenance device connected to a car battery, with indicator lights showing its operational status.
7. Wartung
Um die Langlebigkeit und einwandfreie Funktion Ihres Geräts zu gewährleisten:
- Reinigung: Disconnect the device from both the battery and mains power before cleaning. Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Lagerung: Store the device in a cool, dry place when not in use. Ensure cables are not kinked or damaged.
- Inspektion: Periodically inspect the cables, clamps, and housing for any signs of wear or damage. Do not use a damaged device.
8. Fehlerbehebung
Sollten Sie Probleme mit Ihrem Gerät haben, beachten Sie bitte die folgenden häufig auftretenden Probleme und Lösungen:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Device not turning on / No indicator lights | No power from mains outlet; Loose power connection; Damaged power adapter. | Check mains power supply; Ensure power adapter is securely plugged in; Inspect power adapter for damage. |
| Battery not charging / Red light not on | Incorrect battery connection; Battery is already fully charged; Severely discharged or faulty battery. | Verify correct polarity (+ to +, - to -) and secure clamp connections; If battery is full, device will enter maintenance mode (green light); Have battery tested by a professional. |
| Green light on immediately after connection | Der Akku ist bereits vollständig geladen. | This is normal. The device is in maintenance mode. |
Sollte das Problem nach Anwendung dieser Lösungsansätze weiterhin bestehen, wenden Sie sich bitte an den Kundendienst.
9. Spezifikationen
| Besonderheit | Spezifikation |
|---|---|
| Marke | Cartrend |
| Modell | 77947 |
| Hersteller | Unitec |
| Eingangslautstärketage | 230V AC (via power adapter) |
| Ausgangsvolumentage | 12 V Gleichstrom |
| Max. Ladestrom | 500 mA |
| Akkukapazitätsbereich | Bis zu 120 Ah |
| Kompatible Batterietypen | Lead/Acid, GEL, AGM |
| Artikelgewicht | 370 g |
| Versandabmessungen | 16.7 x 10.8 x 6.1 cm |
10. Garantie und Support
Informationen zur Garantie und zum Kundendienst finden Sie in der mitgelieferten Dokumentation oder wenden Sie sich direkt an den Händler/Hersteller. Bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
Manufacturer: Unitec
Modell: 77947
