1. Produktüberschreitungview
This manual provides essential information for the proper use, setup, and maintenance of the Ilco HY20-PT Transponder Key. This key is designed for late model Kia and Hyundai vehicles, serving as a replacement or spare transponder-equipped ignition key.
The HY20-PT key integrates a transponder chip, which is crucial for the vehicle's immobilizer system to recognize the key and allow the engine to start. It requires both physical cutting of the key blade to match the vehicle's lock cylinders and electronic programming of the transponder chip to the vehicle's immobilizer system.

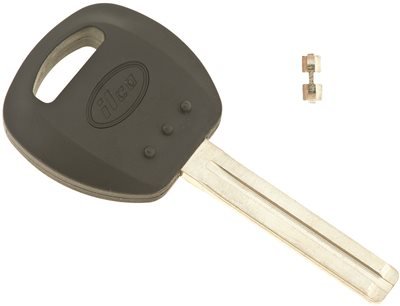

Figure 1: Ilco HY20-PT Transponder Key. The image displays the black plastic head of the key with the Ilco logo, the metallic key blade, and a small, separate transponder chip typically embedded within the key head.
2. Produktmerkmale
- Integrated Transponder Chip: Contains a chip necessary for vehicle immobilizer systems, allowing the engine to start.
- Fahrzeugkompatibilität: Specifically designed for late model Kia and Hyundai vehicles.
- Langlebige Konstruktion: Manufactured by KABA ILCO, ensuring quality and longevity.
- Replacement or Spare Key: Ideal for replacing lost keys or creating a spare.
3. Lieferumfang
The package for the Ilco HY20-PT Transponder Key typically includes:
- One (1) Kaba Ilco HY20-PT Transponder Key (Late Model)
Note: The transponder chip is usually pre-installed within the key head or supplied alongside the key blade, ready for programming.
4. Einrichtung und Programmierung
The Ilco HY20-PT Transponder Key requires two primary steps before it can be fully utilized with your vehicle:
- Key Blade Cutting:
The metallic key blade must be cut to match your vehicle's existing lock cylinders (ignition, doors, trunk). This process requires specialized key cutting equipment and should be performed by a qualified locksmith or automotive dealership. Attempting to cut the key yourself without proper tools may damage the key or your vehicle's locks.
- Transponder Chip Programming:
The transponder chip embedded within the key head must be electronically programmed to your vehicle's immobilizer system. This programming links the new key to your vehicle's security system, allowing the engine to start. Programming typically requires specialized diagnostic equipment and should be performed by:
- An automotive locksmith.
- An authorized automotive dealership (Kia or Hyundai).
Self-programming methods may exist for some vehicle models, but they often require at least one existing, working programmed key. Consult your vehicle's owner's manual or a professional for specific programming instructions for your vehicle model.
Wichtig: The key will not start the vehicle until both the key blade is cut and the transponder chip is successfully programmed.
5. Bedienungsanleitung
Once the Ilco HY20-PT Transponder Key has been properly cut and programmed, its operation is identical to your vehicle's original key:
- Unlocking/Locking Doors: Insert the key into the door lock cylinder and turn to unlock or lock the vehicle doors manually.
- Starten des Motors: Insert the key into the ignition cylinder. Turn the key to the "ON" position, allowing the vehicle's immobilizer system to recognize the transponder chip. Once recognized, turn the key further to the "START" position to crank the engine.
- Opening Trunk/Boot: If applicable, insert the key into the trunk lock cylinder and turn to open.
Ensure the key is fully inserted into the ignition or lock cylinder before attempting to turn it to prevent damage.
6. Pflege und Wartung
Proper care will extend the life of your Ilco HY20-PT Transponder Key:
- Trocken halten: Avoid exposing the key to excessive moisture or liquids, as this can damage the internal transponder chip.
- Vermeiden Sie extreme Temperaturen: Do not leave the key in direct sunlight or extremely cold environments for prolonged periods.
- Vorsichtig handhaben: Avoid dropping the key or subjecting it to strong impacts, which could damage the key blade or the transponder chip.
- Sanft reinigen: If cleaning is necessary, wipe with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
- Sicher aufbewahren: Keep the key in a secure location to prevent loss or theft.
7. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Key turns in ignition but engine does not start (cranks but no ignition). | Transponder chip not programmed or faulty. Vehicle immobilizer system not recognizing the key. | Ensure the key was correctly programmed by a professional locksmith or dealership. If it was, the chip might be faulty; contact the seller or manufacturer. |
| Key does not turn in ignition or door locks. | Key blade not cut correctly or damaged. | Verify the key blade was cut precisely to match your vehicle's locks. If it appears incorrect or damaged, consult a professional locksmith. |
| Key feels loose or wobbly in ignition/lock. | Key blade worn or improperly cut. Vehicle lock cylinder wear. | Have a locksmith inspect the key and your vehicle's lock cylinders. |
8. Produktspezifikationen
| Attribut | Detail |
|---|---|
| Modellnummer | HY20-PT |
| Hersteller | KABA ILCO |
| Technische Daten | 2 x 2 x 2 Zoll |
| Artikelgewicht | 1.6 Unzen |
| ASIN | B00PB93XVI |
| Erstes verfügbares Datum | 4. November 2014 |
9. Garantie und Kundendienst
For information regarding warranty coverage, technical support, or replacement parts for your Ilco HY20-PT Transponder Key, please contact the manufacturer directly:
- Hersteller: KABA ILCO
- Kontaktinformationen: Please refer to the official KABA ILCO webDie aktuellsten Kontaktdaten des Kundendienstes finden Sie auf der Website oder der Produktverpackung.
When contacting support, please have your product model number (HY20-PT) and purchase details readily available.
