Einführung
The Carson 5x MiniBrite LED Lighted Slide-Out Aspheric Magnifier (Model PO-55MU) is a compact and lightweight tool designed for enhanced magnification with integrated illumination. Its portable design and durable construction make it suitable for various applications, from reading fine print to inspecting small objects.
Image: Four Carson 5x MiniBrite LED Lighted Magnifiers (PO-55MU) in a pack.
Hauptmerkmale
- 5-fache Vergrößerung: Provides clear and powerful magnification for detailed viewing.
- Asphärische Linse: Features a crystal clear aspheric lens for distortion-free viewing across the entire field.
- Eingebautes LED-Licht: Integrated LED illumination enhances visibility in low-light conditions.
- Slide-Out Design: A protective sleeve slides out to reveal the lens and activate the LED light, also protecting the lens when not in use.
- Kompakt und leicht: Weighing only 1.7 ounces, it is highly portable and easy to carry in a pocket or bag.
- Batteriebetrieben: Betrieb mit 3 AAA-Batterien (nicht im Lieferumfang enthalten).
Aufstellen
Einlegen der Batterie
- Locate the battery compartment cover on the back of the magnifier.
- Gently slide the cover off to expose the battery slots.
- Insert 3 AAA batteries into the compartment, ensuring correct polarity (+/-) as indicated inside the compartment.
- Schieben Sie den Batteriefachdeckel wieder an seinen Platz, bis er sicher einrastet.
Hinweis: Batterien sind nicht im Lieferumfang enthalten und müssen separat erworben werden.
Image: The magnifier's LED light in action, illuminating fine print.
Bedienungsanleitung
Verwenden der Lupe
- To activate the magnifier and its LED light, simply slide the protective sleeve downwards. The lens will extend, and the LED light will automatically turn on.
- Position the magnifier over the object or text you wish to view. Adjust the distance until the image appears clear and magnified.
- To turn off the LED light and protect the lens, slide the protective sleeve back upwards until it fully covers the lens. The light will automatically turn off.
Image: Demonstrating the slide-out mechanism and LED activation.

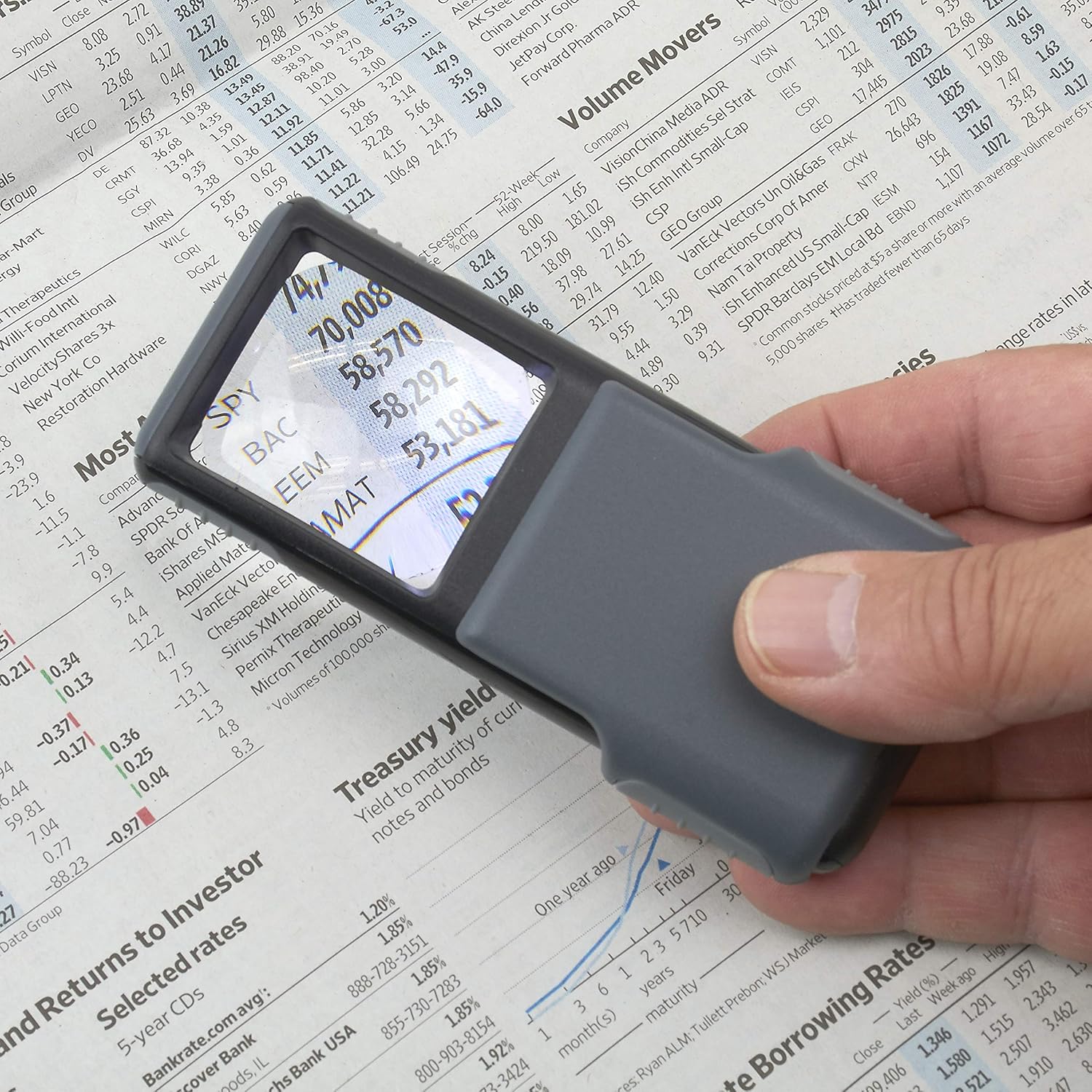

Image: Using the magnifier to read fine print in a newspaper.
Image: Inspecting jewelry with the magnifier.
Offizielles Produktvideo
Video: Ein überview of the Carson MiniBrite LED Lighted Magnifier, demonstrating its features and portability.
Wartung
Reinigen der Linse
To clean the aspheric lens, use a soft, lint-free cloth, preferably a microfiber cloth. Gently wipe the lens surface to remove dust or smudges. Avoid using abrasive cleaners or harsh chemicals, as these can damage the lens coating.
Batteriewechsel
When the LED light dims or stops working, it's time to replace the batteries. Follow the battery installation steps outlined in the "Setup" section to replace the 3 AAA batteries. Always dispose of used batteries responsibly according to local regulations.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Die LED-Leuchte geht nicht an. | Die Batterien sind leer oder falsch eingelegt. | Check battery polarity and replace with fresh AAA batteries. Ensure the slide-out mechanism is fully extended. |
| Image appears blurry or distorted. | Lens is dirty or incorrect viewing-Distanz. | Clean the lens with a soft, lint-free cloth. Adjust the distance between the magnifier and the object until clarity is achieved. |
| Magnifier does not slide smoothly. | Debris in the sliding mechanism. | Gently clean the sliding tracks to remove any dust or foreign particles. |
Technische Daten
| Besonderheit | Detail |
|---|---|
| Marke | Carson |
| Modellnummer | PO-55MU |
| Vergrößerungsstärke | 5x |
| Linsenmaterial | Acrylic (Aspheric) |
| Objektivabmessungen | 1.4 inch (L) x 1.5 inch (H) (approx. 36mm x 40mm) |
| Artikelgewicht | 1.7 Unzen |
| Technische Daten | 11.2"L x 2.1"W (when extended) |
| Stromquelle | 3 AAA-Batterien (nicht im Lieferumfang enthalten) |
| Im Lieferumfang enthaltene Komponenten | 5x MiniBrite Magnifiers - 4 units (for the pack) |
Garantie und Support
The Carson 5x MiniBrite LED Lighted Slide-Out Aspheric Magnifier comes with a Eingeschränkte lebenslange Garantie from Carson Optical, Inc. For warranty claims, technical support, or further inquiries, please refer to the official Carson webWebsite oder wenden Sie sich direkt an den Kundendienst.
