Einführung
This manual provides essential instructions for the installation, operation, and maintenance of the LASCO S-1008-3 Harcraft Faucet Stem Assembly. This product is designed as a replacement part for Harcraft brand faucets, suitable for both hot and cold water applications, featuring a B-Broach type stem.
Sicherheitshinweise
Warnung gemäß California Proposition 65: This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands thoroughly after handling this product.
Always turn off the main water supply before attempting any plumbing repairs or installations. Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
Produkt überview
The LASCO S-1008-3 is a Harcraft brand faucet stem assembly. It is specifically designed for use in Harcraft faucets and is compatible with both hot and cold water lines. This stem features a B-Broach design, ensuring proper fit and function for compatible faucet models. The product is manufactured in the USA.

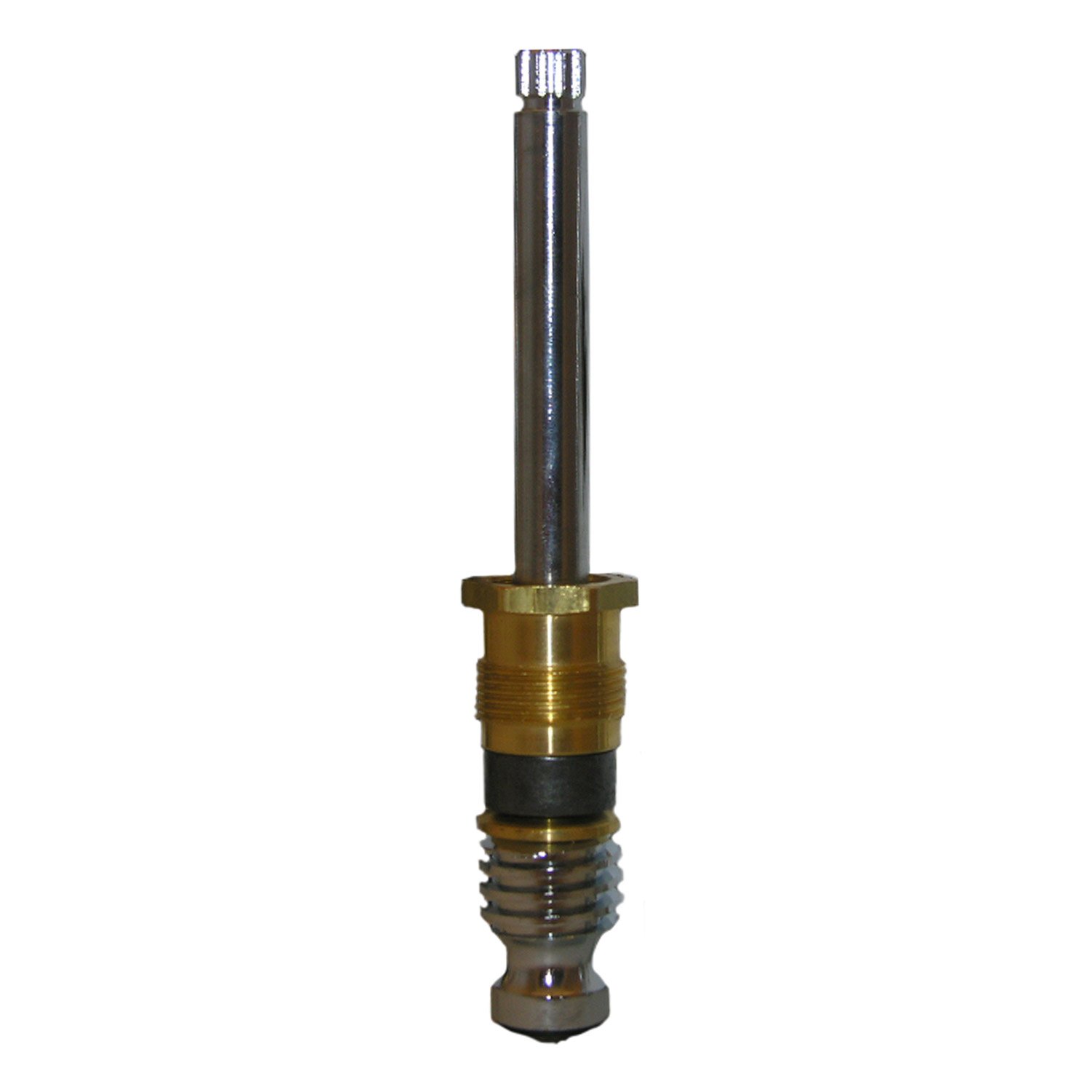

Image of the LASCO S-1008-3 Harcraft Faucet Stem Assembly, designed for hot or cold water applications.
Setup und Installation
- Wasserzufuhr abstellen: Locate the main water shut-off valve for your home or the specific shut-off valves for the faucet you are working on. Turn them off completely.
- Ablaufhahn: Öffnen Sie die Wasserhahn-Griffe, um das restliche Wasser aus den Leitungen abzulassen.
- Wasserhahngriff entfernen: Depending on your faucet model, remove the decorative cap (if present), then unscrew the handle screw and pull off the handle.
- Remove Packing Nut: Use an adjustable wrench to carefully loosen and remove the packing nut that secures the old stem in place.
- Extract Old Stem: Carefully pull out the old faucet stem. Note its orientation and any washers or O-rings.
- Überprüfen und reinigen: Inspect the faucet body for any debris or mineral buildup. Clean the area thoroughly before installing the new stem.
- Install New Stem: Insert the new LASCO S-1008-3 Harcraft Stem Assembly into the faucet body, ensuring it is properly seated.
- Replace Packing Nut: Hand-tighten the packing nut, then use a wrench to tighten it slightly more, ensuring a snug fit without overtightening.
- Griff wieder anbringen: Place the faucet handle back onto the stem and secure it with the handle screw. Replace any decorative caps.
- Wasserversorgung wiederherstellen: Slowly turn the main water supply back on. Check for any leaks around the faucet base and stem.
- Testhahn: Betätigen Sie den Wasserhahn, um einen ordnungsgemäßen Wasserdurchfluss und eine korrekte Temperaturregelung sicherzustellen.
Bedienungsanleitung
The LASCO S-1008-3 Harcraft Faucet Stem Assembly functions as the internal mechanism that controls water flow and temperature within your Harcraft faucet. Turning the faucet handle clockwise or counter-clockwise will open or close the water valve, allowing water to flow or stop. For hot/cold applications, the stem's design allows for the appropriate water temperature control when used in its designated hot or cold side.
Wartung
- Regelmäßige Inspektion: Periodically check the faucet for any signs of leaks around the handle or spout.
- Verbindungen festziehen: If minor leaks occur, gently tighten the packing nut. Avoid overtightening, which can damage the stem or packing.
- Abgenutzte Teile ersetzen: Over time, internal washers or O-rings within the stem assembly may wear out. If persistent leaks or difficulty in turning the handle occur, consider replacing the stem or its internal components.
- Reinigung: Keep the exterior of the faucet clean to prevent mineral buildup that could affect handle operation.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Faucet leaks around handle | Loose packing nut or worn packing washer/O-ring. | Gently tighten the packing nut. If the leak persists, replace the packing washer or the entire stem assembly. |
| Difficulty turning handle | Mineral buildup or worn stem components. | Disassemble the faucet and clean any mineral deposits. If necessary, replace the stem assembly. |
| Kein oder reduzierter Wasserdurchfluss | Water supply off, clogged aerator, or severely damaged stem. | Check if water supply is fully on. Clean or replace the faucet aerator. If the problem persists, inspect the stem for damage. |
Technische Daten
| Besonderheit | Detail |
|---|---|
| Hersteller | lasco |
| Teilenummer | S-1008-3 |
| Artikelgewicht | 4.8 Unzen |
| Technische Daten | 0.8 x 0.8 x 5.15 Zoll |
| Artikelmodellnummer | S-1008-3 |
| Artikelpaket Menge | 1 |
| Batterien erforderlich? | NEIN |
| ASIN | B016CVI9RG |
| Datum der ersten Verfügbarkeit | 1. Oktober 2015 |
Garantie und Support
Garantie: All Lasco merchandise is warranted to be free of manufacturing defects. The specific warranty period for this product is 1-Year Limited.
Unterstützung: For any plumbing questions, warranty claims, or defective part replacements, please contact the retail place of purchase directly. They will be able to provide the most accurate and timely assistance.
