Avaya 9608 IP-Tischtelefon – Benutzerhandbuch

2.1 Auspacken des Geräts

Carefully remove all components from the packaging. Ensure all items listed in the packing contents are present. Retain the packaging for future transport or storage.

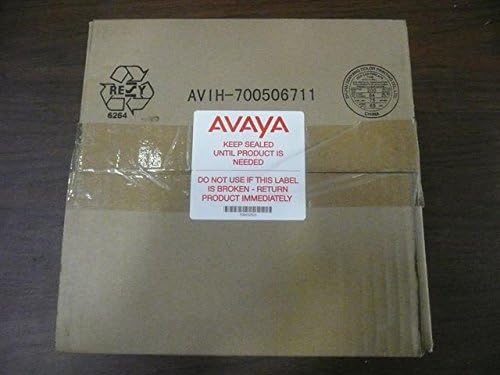

Figure 2.1: Avaya 9608 IP Deskphone in its original packaging. The image shows a brown cardboard box with an Avaya label, indicating the product is sealed until needed.

Figure 2.2: Product label for the Avaya 9608 IP Deskphone. The label displays model number 9608, product ID 700504844, serial number, MAC address, and manufacturing details.

2.2 Telefon anschließen

1. Connect the handset cord to the handset jack on the phone base.
2. Connect the Ethernet cable from your network wall jack to the LAN port on the back of the phone.
3. If using a separate power adapter (not included), connect it to the power jack. Otherwise, the phone will receive power over Ethernet (PoE).
4. Connect your computer to the PC port on the back of the phone (optional).

Abbildung 2.3: Rückseite view of the Avaya 9608 IP Deskphone, illustrating the various connection ports for network, handset, and optional power adapter.

3.1 Grundlegende Aufruffunktionen

• Einen Anruf tätigen: Heben Sie den Hörer ab oder drücken Sie die Lautsprechertaste und wählen Sie dann die Nummer.
• Anruf annehmen: Heben Sie den Hörer ab oder drücken Sie die Lautsprechertaste, wenn das Telefon klingelt.
• Anruf beenden: Legen Sie den Hörer wieder auf oder drücken Sie die Lautsprechertaste erneut.
• Halten: Drücken Sie die Halten softkey during an active call.
• Übertragung: Drücken Sie die Überweisen softkey, dial the new number, and then press Vollständig.

3.2 Using Softkeys and Display

The Avaya 9608 features a monochrome display and four context-sensitive softkeys located directly below the display. These softkeys change their function based on the current activity of the phone.

Abbildung 3.1: Vorderseite view of the Avaya 9608 IP Deskphone, highlighting the monochrome display and the four softkeys for interactive functions.

• Verzeichnis: Greifen Sie auf Ihr Kontaktverzeichnis zu.
• Kurzwahl: Use pre-programmed speed dial numbers.
• Anrufsverlauf: View recent incoming, outgoing, and missed calls.

3.3 High Definition Audio

The 9608 IP Deskphone supports high-definition audio for clearer voice communication. Ensure your network connection is stable for optimal audio quality.

4.1 Gerät reinigen

• Verwenden Sie ein weiches,amp cloth to clean the phone's exterior.
• Keine Scheuer- oder Lösungsmittel verwenden.
• Vermeiden Sie es, Flüssigkeiten direkt auf das Telefon zu sprühen.

4.2 Softwareaktualisierungen

Software updates are typically managed by your system administrator. Do not attempt to manually update the phone's firmware unless instructed by your IT department.

7.1 Produktgarantie

This Avaya product is covered by a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or contact your vendor for specific warranty terms and conditions. Keep your proof of purchase for warranty claims.

7.2 Technischer Support

For technical assistance, configuration support, or to report issues not covered in the troubleshooting section, please contact your system administrator or authorized Avaya service provider. Do not attempt to repair the device yourself.
