1. Einleitung
This manual provides essential information for the safe installation, operation, and maintenance of your Eglo Infesto 1 LED Outdoor Wall Light. Please read these instructions carefully before installation and retain them for future reference.
Eglo Infesto 1 LED Outdoor Wall Light installed on a modern grey wall next to stairs, emitting warm light.
2. Sicherheitshinweise
- Vor jeglichen Installations-, Wartungs- oder Reinigungsarbeiten muss stets die Hauptstromversorgung getrennt werden.
- Die Installation sollte von einem qualifizierten Elektriker gemäß den örtlichen Verdrahtungsvorschriften durchgeführt werden.
- Stellen Sie sicher, dass das Produkt ordnungsgemäß geerdet ist, um einen Stromschlag zu verhindern.
- Verändern Sie das Produkt in keiner Weise. Nicht autorisierte Änderungen können zum Erlöschen der Garantie führen und Sicherheitsrisiken bergen.
- This luminaire is designed for outdoor use with an IP44 rating, meaning it is protected against splashing water. Do not immerse in water.
- Nur mit dem angegebenen Volumen verwendentagvon 240 Volt.
- The integrated LED module is not user-replaceable. Do not attempt to open or replace the LED components.
3. Packungsinhalt
Vergewissern Sie sich vor Beginn der Installation, dass alle Komponenten vorhanden und unbeschädigt sind:
- 1 x Eglo Infesto 1 LED Outdoor Wall Light (Model 94877)
- 1 x Montageanleitung
4. Einrichtung und Installation
Befolgen Sie diese Schritte für eine ordnungsgemäße Installation. Eine Installation durch einen Fachmann wird empfohlen.
- Bereiten Sie den Installationsbereich vor: Stellen Sie sicher, dass die Stromversorgung des Installationsbereichs am Hauptleistungsschalter abgeschaltet ist.
- Bohrpunkte markieren: Position the mounting bracket on the desired wall surface and mark the drilling points.
- Löcher bohren und Dübel einsetzen: Drill holes at the marked positions and insert appropriate wall anchors (not included, choose based on wall material).
- Montieren Sie die Halterung: Befestigen Sie die Montagehalterung mit Schrauben an der Wand.
- Verkabelung anschließen: Carefully connect the electrical wires from the wall to the luminaire's terminals (Live, Neutral, Earth) according to the wiring diagram. Ensure all connections are secure.
- Befestigungselement anbringen: Secure the main body of the wall light to the mounting bracket, ensuring it is firmly attached.
- Strom wiederherstellen: Sobald die Installation abgeschlossen und alle Verbindungen überprüft sind, schalten Sie die Stromversorgung am Hauptschalter wieder ein.

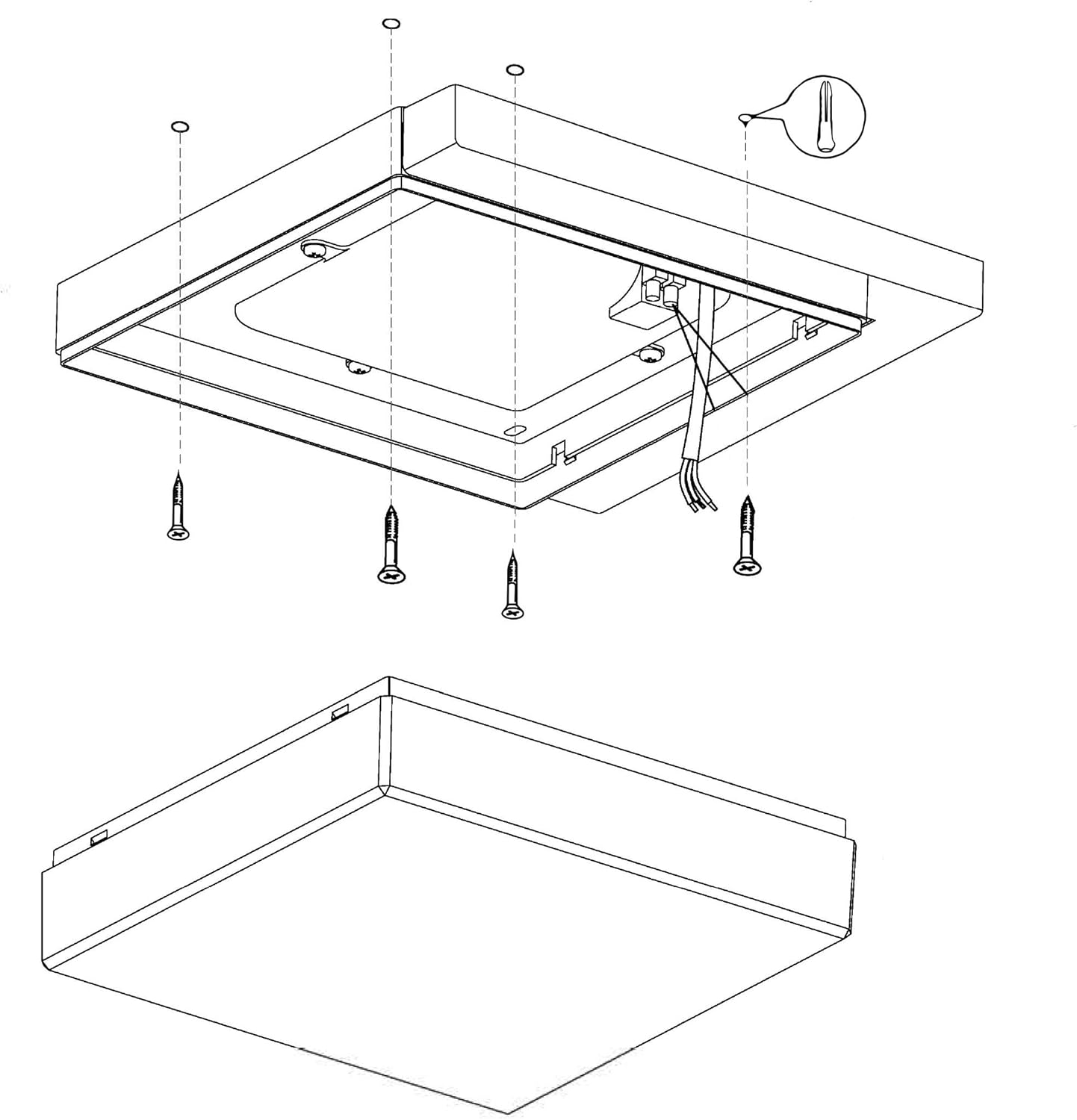

Explodierte view diagram illustrating the installation steps for the Eglo Infesto 1 LED Outdoor Wall Light, showing mounting screws and wiring.
Dimensional diagram of the Eglo Infesto 1 LED Outdoor Wall Light, showing length, width, and depth measurements.
5. Bedienungsanleitung
The Eglo Infesto 1 LED Outdoor Wall Light is operated via a standard wall switch connected to its power supply. Simply toggle the switch to turn the light on or off.
- Dimmbare Funktion: This luminaire is dimmable. To utilize the dimming function, ensure you have a compatible dimmer switch installed in your electrical system. Refer to your dimmer switch's instructions for proper operation.
Eglo Infesto 1 LED Outdoor Wall Light illuminating an outdoor space at dusk.
6. Wartung
- Reinigung: To clean the luminaire, ensure the power is off. Wipe the surface with a soft, dry, or slightly damp Mit einem Tuch abwischen. Verwenden Sie keine Scheuermittel, Lösungsmittel oder aggressive Chemikalien, da diese die Oberfläche beschädigen können.
- Led Modul: The LED module is integrated and designed for a long lifespan. It is not user-replaceable. If the LED module fails, the entire fixture may need to be replaced.
7. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Licht geht nicht an. | Keine Stromversorgung, lose Verkabelung, defekter Schalter. | Check main power supply, ensure all wiring connections are secure, test the wall switch. Consult a qualified electrician if necessary. |
| Licht flackert. | Loose wiring, incompatible dimmer switch. | Check all wiring connections. If using a dimmer, ensure it is compatible with LED luminaires. |
8. Spezifikationen
| Besonderheit | Detail |
|---|---|
| Modellnummer | 94877 |
| Marke | Eglo |
| Abmessungen (L x B x H) | 25 cm x 7 cm x 25 cm |
| Material | Kunststoff, Edelstahl |
| Farbe/Finish | Silber Weiss |
| Lichtquelle | Integrierte LED |
| Energieaufnahme | 8.2 Watt |
| Lichtstrom | 820 Lumen |
| Lichtfarbe | Warmweiß |
| Bandtage | 240 Volt |
| Wasserbeständigkeit | IP44 (wasserbeständig) |
| Montagetyp | Wandhalterung |
| Dimmbar | Ja (mit kompatiblem Dimmer) |
| Montage erforderlich | Ja |
| Bestimmungsgemäße Verwendung | Im Freien |
9. Garantie und Support
The Eglo Infesto 1 LED Outdoor Wall Light comes with a limited warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Eglo webWebsite.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Eglo customer support directly. Contact information can typically be found on the product packaging or the official Eglo webWebsite.
