PowerSmart PS90 6-Ton Electric Log Splitter User Manual

1. Einführung und Endeview

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your PowerSmart PS90 6-Ton Electric Log Splitter. This electric log splitter is designed for light-duty or home use, capable of splitting logs up to 22 inches in length and 10 inches in diameter with its 6-ton hydraulic system and 1.75 HP, 15 Amp induction motor.

Image: The PowerSmart PS90 6-Ton Electric Log Splitter, showcasing its red and black design with wheels and control handles.

2. Sicherheitshinweise

Always prioritize safety when operating the log splitter. Failure to follow these instructions may result in serious injury or damage to the equipment.

• Zweihandbedienung: The log splitter is equipped with a two-hand control system for user safety. Both hands must be engaged to operate the machine, ensuring hands are away from the splitting wedge.
• Entlüftungsschraube: Before each use, loosen the bleed screw by two turns to prevent damage to the hydraulic system. Failure to do so can cause pressure buildup and potential malfunction.
• Log Ejection: Be aware that split log pieces can be ejected with force. Maintain a safe distance and ensure no bystanders are in the operating area.
• Verlängerungskabel: Use only heavy-duty extension cords of appropriate gauge and length to prevent motor damage and ensure safe power delivery. Refer to the specifications for recommended cord types.
• Stabile Oberfläche: Operate the log splitter on a firm, level surface to prevent tipping or instability during use.
• Persönliche Schutzausrüstung (PSA): Always wear safety glasses, gloves, and sturdy footwear. Hearing protection is also recommended.

Image: Close-up of the log splitter's control panel, highlighting the two-hand operation for safety.

3. Montage und Einrichtung

The PowerSmart PS90 log splitter requires minimal assembly. Follow these steps to prepare your unit for operation:

1. Radinstallation: Attach the rear wheels to the main frame using the provided hardware. Ensure they are securely fastened for safe transportation.
2. Bleed Screw Preparation: Locate the hydraulic bleed screw and loosen it by two full turns before connecting the power. This releases air pressure from the hydraulic system. Remember to tighten it for storage and loosen it for operation.
3. Positionierung: Place the log splitter on a stable, level surface. For ergonomic operation, consider placing the unit on a sturdy workbench or stand to avoid excessive bending.
4. Stromanschluss: Connect the log splitter to a suitable 120V/60Hz/15A power outlet using a heavy-duty extension cord if necessary. Ensure the circuit can handle the 15 Amp laden.

Image: The log splitter with dimensions indicated (41-inch length, 19-inch width, 11.8-inch height) and highlighting the rear wheels for portability.

Image: Close-up of the 6-inch never-flat wheels, designed for easy transport across various terrains.

4. Bedienungsanleitung

Follow these steps for safe and effective log splitting:

• Protokollvorbereitung: Ensure logs are within the specified limits: up to 22 inches in length and 10 inches in diameter. Avoid logs with excessive knots or extremely hard, green wood, as these may exceed the splitter's capacity.
• Platzierung: Place the log firmly on the splitting table against the wedge. Ensure it is stable and will not roll during operation.
• Two-Hand Control: Simultaneously press and hold the power button and engage the hydraulic lever. The ram will extend, splitting the log. Release both controls to stop the ram.
• Splitting Technique: For larger logs, if the ram stops, release controls, rotate the log, and re-engage the controls to find a weaker point for splitting.
• Zykluszeit: The log splitter features an efficient 22-second cycle time, allowing for quick resets and continuous operation.
• Umweltnutzen: This electric log splitter produces zero fumes and less carbon dioxide compared to gasoline-powered machines, making it an environmentally friendly choice.

Image: The log splitter demonstrating a log being placed, with an overlay indicating maximum wood size of 10-inch diameter and 21-inch length.

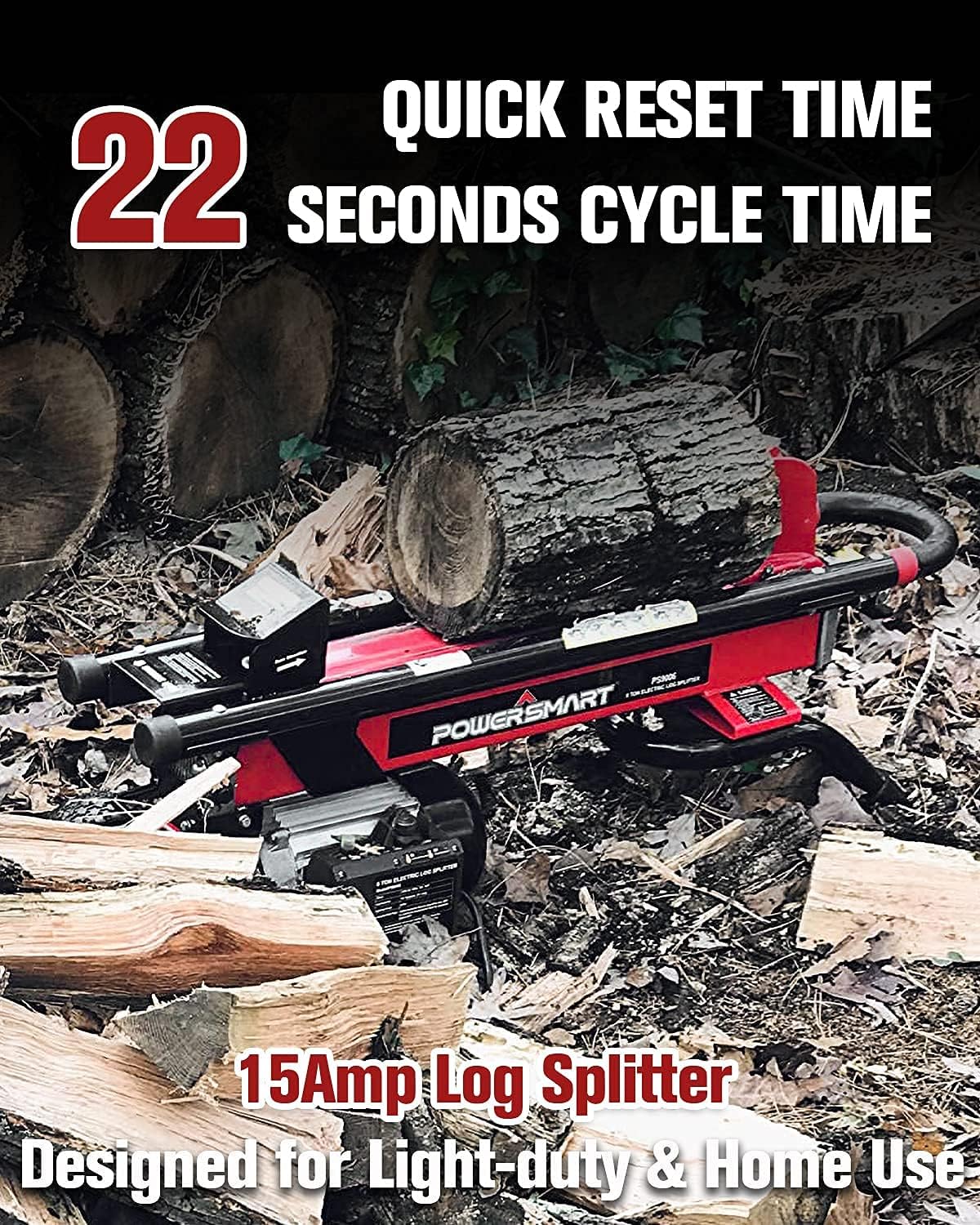

Image: The log splitter in action, with text highlighting its 22-second quick reset cycle time and its design for light-duty and home use.

5. Wartung

Regular maintenance ensures the longevity and optimal performance of your log splitter.

• Bleed Screw Management: Always loosen the bleed screw before operation and tighten it for storage or transport. This prevents hydraulic system damage.
• Reinigung: After each use, clean the log splitter to remove wood debris, dirt, and sap. A damp cloth is usually sufficient. Avoid using high-pressure water directly on electrical components.
• Inspektion: Periodically inspect all bolts, nuts, and hydraulic connections for tightness. Check the power cord for any signs of damage.
• Hydraulikflüssigkeit: Check the hydraulic fluid level periodically and refill if necessary, using only recommended hydraulic fluid types. Refer to the product manual for specific fluid requirements.
• Wedge Condition: Ensure the stainless steel wedge remains sharp and free of damage for efficient splitting.

Image: Close-up of the 5-inch stainless steel wedge, designed with a 45-degree angle for accurate splitting.

6. Fehlerbehebung

In diesem Abschnitt werden häufig auftretende Probleme behandelt, die bei Ihrem Holzspalter auftreten können.

• Ram Stops During Splitting: If the ram stops before fully splitting a log, release the controls, rotate the log to a different position, and re-engage the controls. This often helps find a weaker point in the wood. Ensure the log is within the specified diameter and length limits.
• Loss of Power/Motor Not Starting:
  • Check the power connection and ensure the extension cord (if used) is heavy-duty and undamaged.
  • Verify that the bleed screw is loosened by two turns.
  • Ensure both the power button and hydraulic lever are engaged simultaneously.
  • Check your circuit breaker for trips.
• Reduced Splitting Force:
  • Confirm the bleed screw is properly loosened.
  • Check the hydraulic fluid level and refill if low.
  • Ensure the log size is not exceeding the maximum recommended dimensions.

7. Spezifikationen

Image: The log splitter displaying key performance metrics: 1.75 Horsepower, 15 Amp 3450 RPM Motor, and 2740 PSI Hydraulic Pressure.

Image: A graphic detailing the electrical specifications: Voltage/Frequency/Current: 120V/60Hz/15A.

8. Garantie und Support

PowerSmart is committed to providing reliable tools and excellent customer service.

• Garantie: This product comes with a two-year warranty, reflecting our dedication to quality and customer satisfaction.
• Kundendienst: Our customer-centric service team is available to assist with any questions or concerns. We aim to respond to all inquiries within 24 hours. For support, please refer to the contact information provided with your product packaging or visit the official PowerSmart webWebsite.
