Allanson Industrial Gas Ignitor

1. Einleitung

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Allanson Industrial Gas Ignitor, Model 2260-TP. This electronic ignition transformer is designed for industrial gas applications, providing reliable ignition for various heating systems.

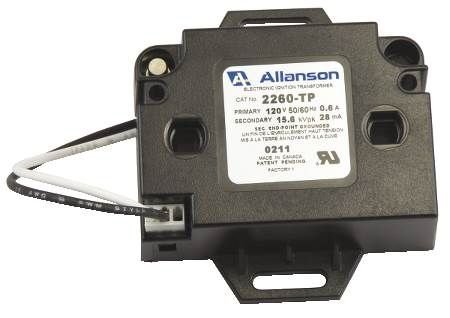

Abbildung 1: Allanson Industrial Gas Ignitor Model 2260-TP. This image displays the black rectangular electronic ignition transformer with a white label. The label clearly shows 'Allanson ELECTRONIC IGNITION TRANSFORMER CAT No. 2260-TP', along with primary and secondary voltage/current ratings. It also indicates 'MADE IN CANADA'. Electrical wires are visible, connected to one side of the unit.

2. Sicherheitshinweise

WARNUNG: Installation and servicing of this ignitor must be performed by a qualified and licensed professional. Failure to follow these instructions could result in property damage, personal injury, or death.

• Vor dem Einbau oder der Wartung des Zünders muss immer die Stromzufuhr zum Gerät unterbrochen werden.
• Stellen Sie sicher, dass alle Verkabelungen den lokalen und nationalen Elektrovorschriften entsprechen.
• Verify proper grounding to prevent electrical shock.
• Handle gas lines with extreme care. Check for gas leaks after installation.
• Do not operate the ignitor if any part is damaged or wet.

3. Produktüberschreitungview

The Allanson 2260-TP is an electronic ignition transformer designed to provide a high-voltage spark for igniting gas in industrial heating systems. It converts standard line voltage zu einem hohen Volumentage output, ensuring reliable and efficient ignition.

Hauptmerkmale:

• Electronic ignition for consistent performance.
• Kompaktes und langlebiges Design.
• Designed for industrial applications.

4. Einrichtung und Installation

Bevor Sie beginnen:

1. Ensure the power supply matches the ignitor's specifications (120V, 50/60Hz).
2. Confirm the ignitor is compatible with your specific heating system.
3. Gather necessary tools: screwdrivers, wire strippers, multimeter, mounting hardware.

Installationsschritte:

1. Stromabschaltung: Turn off all power to the heating system at the main circuit breaker. Verify power is off using a multimeter.
2. Remove Old Ignitor (if applicable): Carefully disconnect wiring and mounting hardware from the existing ignitor. Note wire connections for reference.
3. Montage: Securely mount the Allanson 2260-TP ignitor in the designated location using appropriate hardware. Ensure it is stable and free from vibration.
4. Verdrahtung: Connect the primary (input) wires to the 120V AC power supply according to the wiring diagram of your appliance. Connect the secondary (output) wires to the spark electrode or ignition rod. Ensure all connections are tight and insulated. Refer to the label on the ignitor for specific primary and secondary connections.
5. Erdung: Ensure the ignitor and the appliance are properly grounded.
6. Letzte Kontrollen: Double-check all wiring connections. Ensure no loose wires or potential short circuits.

5. Bedienungsanleitung

The Allanson 2260-TP ignitor operates automatically as part of the heating system's control sequence. Once properly installed and wired, it will generate a high-voltage spark when called upon by the system's control board to ignite the gas burner.

Zu bedienen:

1. Ensure all installation steps are completed and verified.
2. Die Stromversorgung der Heizungsanlage wiederherstellen.
3. Initiate a call for heat from the thermostat or control system.
4. Observe the ignitor's operation. It should produce a visible spark at the electrode, leading to gas ignition.
5. If ignition does not occur, refer to the Troubleshooting section.

6. Wartung

The Allanson 2260-TP ignitor is designed for long-term reliability with minimal maintenance. However, periodic inspection of the entire ignition system is recommended as part of routine appliance servicing.

• Jährliche Inspektion: During annual furnace or boiler maintenance, have a qualified technician inspect the ignitor and its wiring for any signs of wear, corrosion, or damage.
• Reinigung: Ensure the area around the ignitor and spark electrode is free from dust, debris, or carbon buildup, which can interfere with proper sparking.
• Drahtintegrität: Check that all electrical connections are secure and that insulation on wires is intact.

7. Fehlerbehebung

If the ignitor is not functioning correctly, perform the following checks. Always disconnect power before inspecting components.

If problems persist after troubleshooting, contact a qualified HVAC technician or the manufacturer for assistance.

8. Spezifikationen

9. Garantie und Support

Specific warranty information for the Allanson Industrial Gas Ignitor #2260-TP is not provided in this manual. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact Allanson directly through their official webSite oder Kundendienstkanäle.

For technical support or further assistance, please reach out to a qualified HVAC professional or the manufacturer's support team.
