Miserwe 550ML Aromatherapy Essential Oil Diffuser User Manual

Modell: 550ML

Einführung

This manual provides instructions for the safe and effective operation of your Miserwe 550ML Aromatherapy Essential Oil Diffuser. Please read this manual thoroughly before use and retain it for future reference.

Produktkomponenten

Das Paket enthält die folgenden Artikel:

Installationsanweisungen

Follow these steps to set up your diffuser:

  1. Heben Sie die Abdeckung an: Heben Sie vorsichtig die obere Abdeckung des Diffusors an, um an den Wassertank zu gelangen.
  2. Strom anschließen: Insert the power cable into the DC jack located at the bottom of the diffuser. Then, plug the adapter into a standard electrical outlet.
  3. Add Water and Oil: Using the provided measuring cup, fill the water tank with clean tap water up to the maximum fill line (550ML capacity). Do not overfill. Add 3-5 drops of your preferred essential oil directly into the water. The inner tank cover is detachable for easy cleaning.
  4. Abdeckung ersetzen: Place the top cover back onto the diffuser, ensuring it is securely seated.
  5. Einschalten: Press the 'Mist' button to turn on the diffuser.

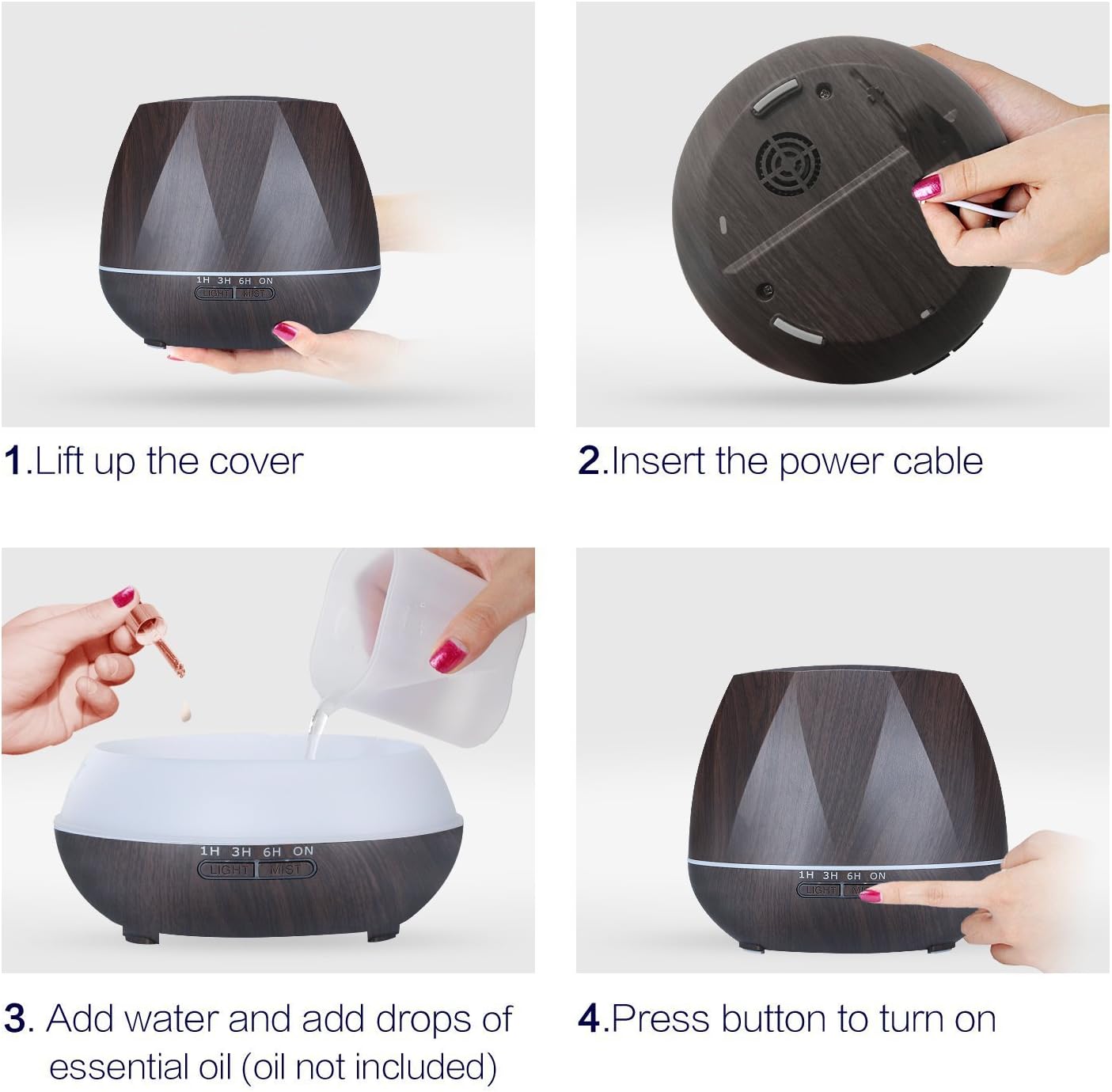

Four-panel image showing steps to set up the Miserwe diffuser: 1. Lifting the cover, 2. Inserting the power cable, 3. Adding water and essential oil, 4. Pressing the button to turn on.
Image: Step-by-step guide for diffuser setup, including lifting the cover, connecting power, adding water and oil, and powering on.

Bedienungsanleitung

Your diffuser features two main control buttons: 'Mist' and 'Light'.

Mist/Timer Button

To adjust mist intensity (big or small), press and hold the 'Mist' button for 2-3 seconds until you hear a beep. This indicates the mist intensity has been adjusted.

Lichttaste

Image showing the Miserwe diffuser with dimensions and a detailed explanation of the Fog/Timer button and Light button functions.
Image: Diffuser dimensions and a guide to the functions of the Fog/Timer and Light buttons.

Wartung

Regelmäßige Reinigung trägt dazu bei, die Leistung des Diffusors aufrechtzuerhalten und seine Lebensdauer zu verlängern.

  1. Leeres Wasser: Before cleaning, ensure the diffuser is unplugged. Empty any remaining water from the tank.
  2. Tank abwischen: Use a soft cloth or sponge to gently wipe the inside of the water tank. The inner tank cover is detachable for easier access.
  3. Ultraschallplatte reinigen: If mineral deposits accumulate on the ultrasonic plate (the small ceramic disc at the bottom of the tank), gently wipe it with a cotton swab dipped in white vinegar. Do not use harsh chemicals or abrasive materials.
  4. Gründlich trocknen: Lassen Sie alle Teile vollständig an der Luft trocknen, bevor Sie den Diffusor wieder zusammenbauen oder verstauen.

Notiz: Do not immerse the diffuser base in water. Always unplug the unit before cleaning.

Fehlerbehebung

Sollten Sie Probleme mit Ihrem Diffusor haben, beachten Sie bitte die folgenden häufig auftretenden Probleme und Lösungen:

ProblemMögliche UrsacheLösung
Kein oder schwacher NebelLow water level; Water overfill; Ultrasonic plate dirty; Air inlet blocked.Add water to appropriate level; Ensure water is below max line; Clean ultrasonic plate; Check for obstructions at air inlet.
Diffusor lässt sich nicht einschaltenNo power; Unit not plugged in correctly.Check power adapter connection; Ensure outlet is functional.
Licht funktioniert nichtLichtfunktion ausgeschaltet.Press the 'Light' button to activate.
Ungewöhnliche GeräuscheLow water level; Diffuser not on a flat surface.Add water; Place diffuser on a stable, flat surface.

Technische Daten

Sicherheitshinweise

Garantie und Support

Specific warranty details are not provided in this manual. For warranty information, technical support, or customer service inquiries, please refer to the product packaging or contact Miserwe customer support directly through their official webWebsite oder den Händler, bei dem das Produkt gekauft wurde.
