MOKA SFX Mini CO2-Handblaster (Modell MK-C07) Bedienungsanleitung

1. Einleitung

This manual provides essential information for the safe and effective operation of your MOKA SFX Mini CO2 Handheld Blaster (Model MK-C07). Please read all instructions carefully before use to ensure proper functionality and to prevent injury or damage.

1.1. Sicherheitshinweise

• Always operate the CO2 blaster in well-ventilated areas.
• Never point the CO2 jet directly at people or animals. The CO2 stream is extremely cold and can cause frostbite.
• Vor dem Betrieb sicherstellen, dass alle Verbindungen sicher und dicht sind.
• Use only CO2 gas cylinders with a siphon tube for optimal performance and to prevent damage to the unit.
• Verändern Sie das Gerät in keiner Weise.
• Außerhalb der Reichweite von Kindern aufbewahren.

2. Produktüberschreitungview

The MOKA SFX Mini CO2 Handheld Blaster is a portable special effects device designed to create dramatic CO2 fog jets for various events. It operates without electrical power, offering flexibility and ease of use.

2.1. Hauptmerkmale

• Tragbares Design: Lightweight at approximately 2.5 kg (6.09 pounds) for easy handling.
• No Electrical Power Required: Operates solely on CO2 pressure.
• No Ice Residue: Advanced technology ensures clean fog emission without ice particles.
• Langlebige Konstruktion: Made with low-temperature resistant and high-quality materials.

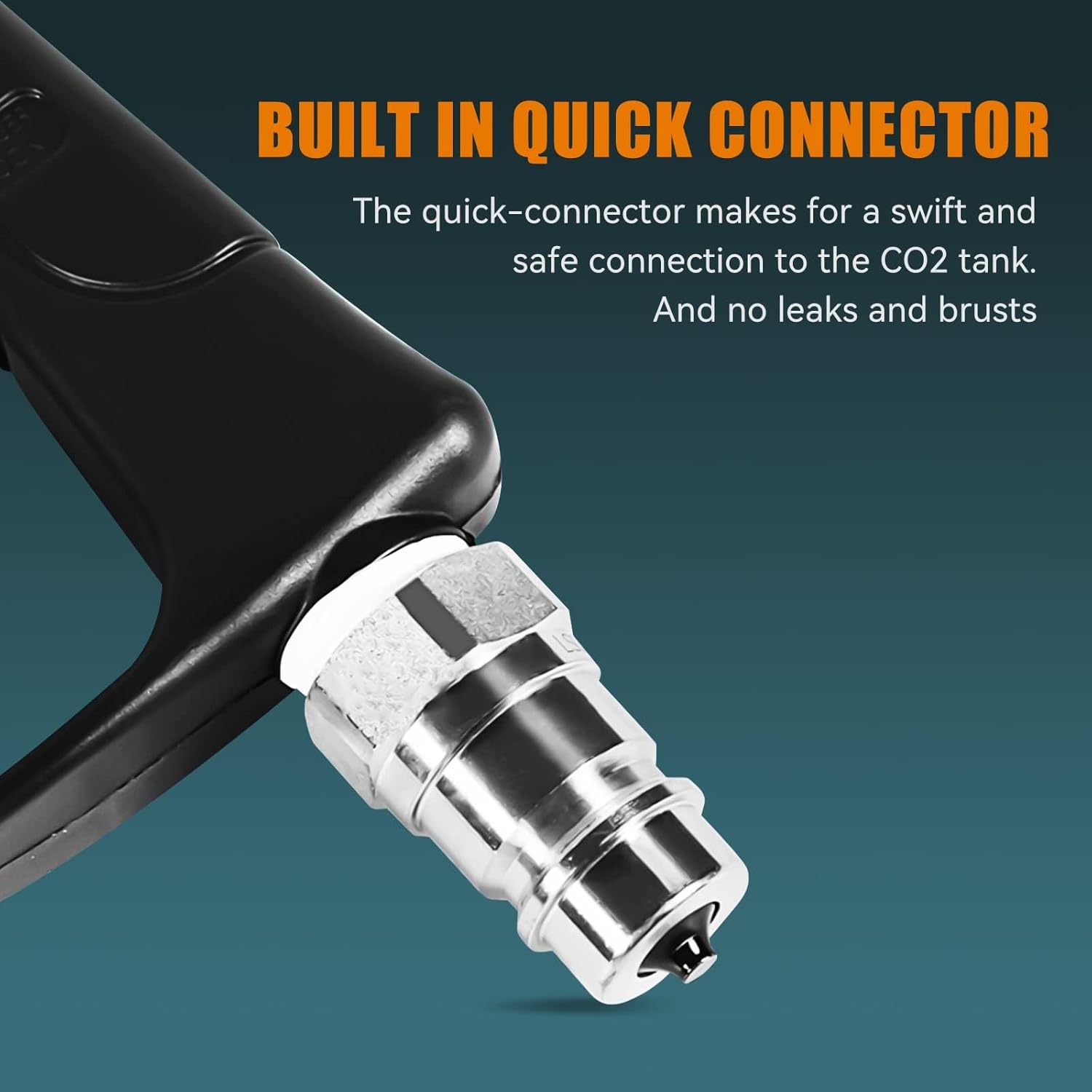

• Schnellverbinder: Facilitates swift and secure connection to the CO2 tank, preventing leaks.

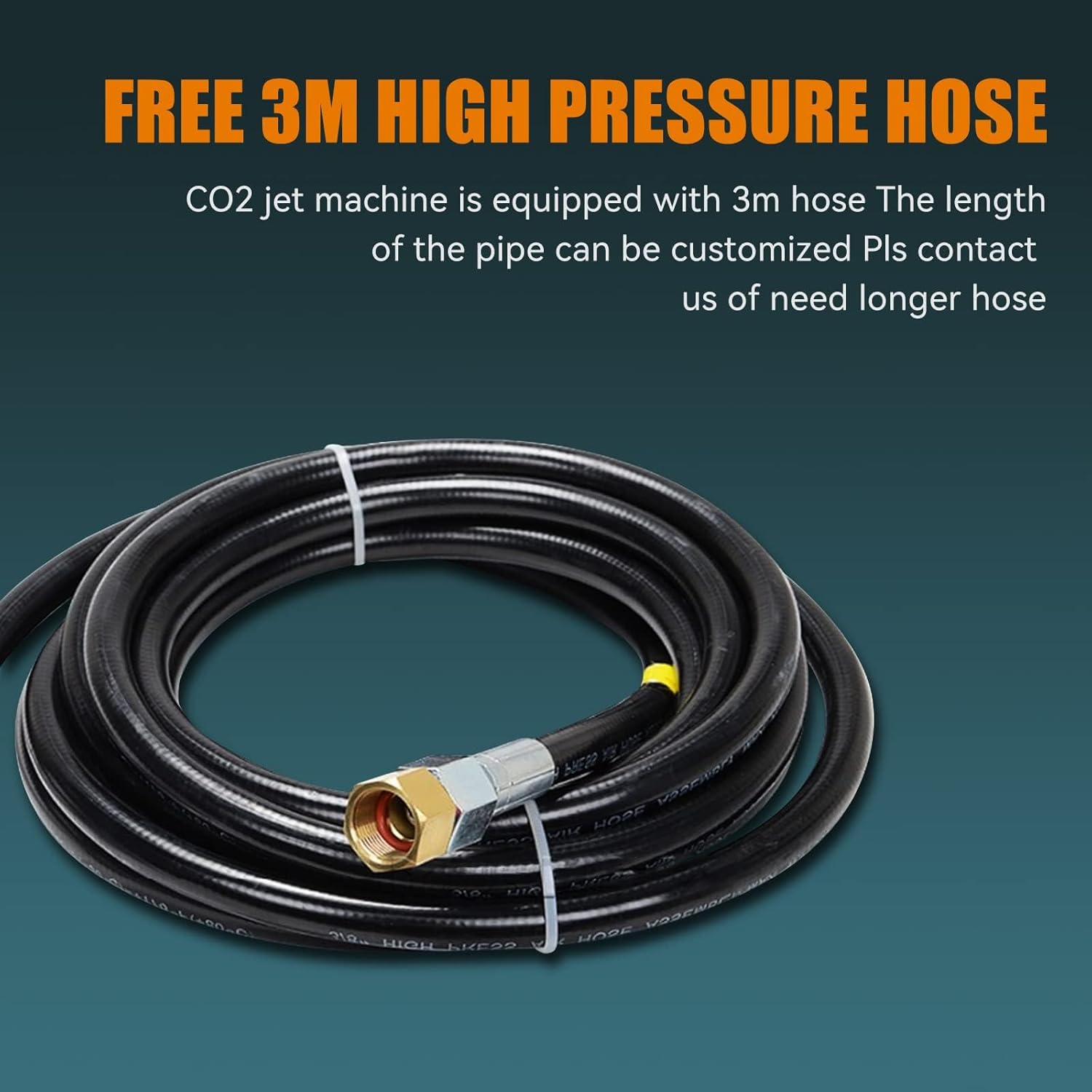

• Hochdruckschlauch: Includes a 3-meter high-pressure hose. Longer hoses may be available upon request from the manufacturer.

2.2. Komponenten

The MOKA SFX Mini CO2 Handheld Blaster consists of the following main components:

1. Handheld Blaster Unit
2. High-Pressure Hose with Quick Connectors
3. CO2 Tank Adapter (for connecting to standard CO2 cylinders)

3. Einrichtung

Follow these steps to set up your MOKA SFX Mini CO2 Handheld Blaster:

1. Prepare CO2 Cylinder: Ensure you are using a CO2 cylinder equipped with a siphon tube. This is crucial for proper operation.
2. Connect Hose to Blaster: Attach one end of the high-pressure hose to the quick connector at the base of the handheld blaster. Ensure it clicks securely into place.
3. Connect Hose to CO2 Cylinder: Attach the other end of the high-pressure hose to the CO2 cylinder's valve. Use a wrench to tighten the connection firmly to prevent gas leaks.
4. Auf Lecks prüfen: Before opening the CO2 cylinder valve completely, slowly open it slightly and listen for any hissing sounds, indicating a leak. If a leak is detected, tighten the connections further.
5. Open CO2 Valve: Once all connections are secure, fully open the CO2 cylinder valve. The system is now pressurized and ready for operation.

4. Bedienung

To operate the MOKA SFX Mini CO2 Handheld Blaster:

1. Hold Blaster Securely: Grip the blaster firmly with both hands.
2. Sicher zielen: Point the nozzle of the blaster in a safe direction, away from people, animals, and fragile objects.
3. Activate CO2 Jet: Press the trigger on the handle to release a stream of CO2 fog. The spray height can reach 6-8 meters.
4. Auslösetrigger: Release the trigger to stop the CO2 flow.
5. Auswirkungen beobachten: The blaster produces a dense, white fog without ice residue, creating a visual effect.

4.1. Operative Vorführungen

5. Wartung

Regular maintenance ensures the longevity and reliable performance of your CO2 blaster:

• Reinigung: After each use, wipe down the exterior of the blaster with a clean, dry cloth. Ensure no moisture enters the internal components.
• Schlauchinspektion: Periodically inspect the high-pressure hose for any signs of wear, cracks, or damage. Replace the hose if any damage is found.
• Steckerprüfung: Regularly check the quick connectors for debris or damage that could lead to leaks.
• Lagerung: Store the blaster and hose in a cool, dry place away from direct sunlight and extreme temperatures. Disconnect the CO2 cylinder and release any residual pressure before storage.

6. Fehlerbehebung

If you encounter issues with your MOKA SFX Mini CO2 Handheld Blaster, refer to the following common problems and solutions:

7. Spezifikationen

8. Garantie und Support

For warranty information, technical support, or inquiries regarding your MOKA SFX Mini CO2 Handheld Blaster, please contact MOKA SFX customer service directly. Refer to the product packaging or the official MOKA SFX webWebsite für Kontaktdaten.
