Aesfee LED Lighted Makeup Vanity Mirror (Model AF-802) User Manual

Einführung

This manual provides detailed instructions for the safe and effective use of your Aesfee LED Lighted Makeup Vanity Mirror. Please read this manual thoroughly before operating the device and retain it for future reference.

Produkteigenschaften

Doppelseitiger Spiegel: Features 1x magnification for regular makeup application and 7x magnification for detailed tasks.
360° Schwenkdesign: Allows for easy rotation to switch between magnification levels and adjust viewwinkeln.
LED-Beleuchtung: Equipped with 21 energy-efficient LEDs providing natural daylight illumination.
Dimmbarer Touchscreen: Offers three adjustable brightness levels controlled by a sensitive touch sensor.
Wiederaufladbarer Akku: Built-in 2000mAh lithium battery provides extended cordless operation.
USB-Aufladung: Conveniently recharges via a Micro USB port.

Aufstellen

Aufladen des Spiegels

Before first use, fully charge the mirror. The mirror is powered by a built-in 2000mAh lithium battery.

Locate the Micro USB charging port on the side of the mirror frame.
Connect the provided USB cable to the mirror's charging port and to any standard DC 5V/1A power source (e.g., wall charger, power bank, laptop).
The touch button will indicate the charging status: Rot zum Laden, Blau for fully charged.
A full charge typically takes 4-5 hours and provides approximately 280 minutes of working time at maximum brightness.

Micro USB Port for Charging — Image: The Micro USB port for charging is located on the side of the mirror frame. A USB cable is included for convenient charging.

Video: This video demonstrates the charging process and general operation of the Aesfee LED Lighted Makeup Vanity Mirror.

Bedienungsanleitung

Ein-/Ausschalten und Helligkeitseinstellung

The mirror features a multi-function touch screen button for controlling the LED lights.

To turn the LED lights ON, lightly touch the bulb icon on the mirror surface.
To adjust the brightness, touch the bulb icon repeatedly to cycle through the three brightness levels (Primary, Medium, Enhanced).
To turn the LED lights AUS, continue touching the bulb icon until the lights extinguish.

Multifunktions-Touch-Taste — Image: The touch button on the mirror surface controls the power and brightness settings of the LED lights.

Brighter Natural Light & 3 Light Settings — Image: The mirror offers three distinct brightness settings to suit various lighting conditions and makeup needs.

Using Magnification and Rotation

The mirror is double-sided and designed for versatile use.

Der 1x Spiegel provides a standard, true-to-life reflection suitable for general makeup application.
Der 7x magnified mirror allows for precise detailing, such as applying eyeliner, mascara, or plucking eyebrows.
To switch between the 1x and 7x mirrors, simply rotate the mirror head 360 degrees. The sturdy metal rotating shaft ensures smooth and stable adjustment.

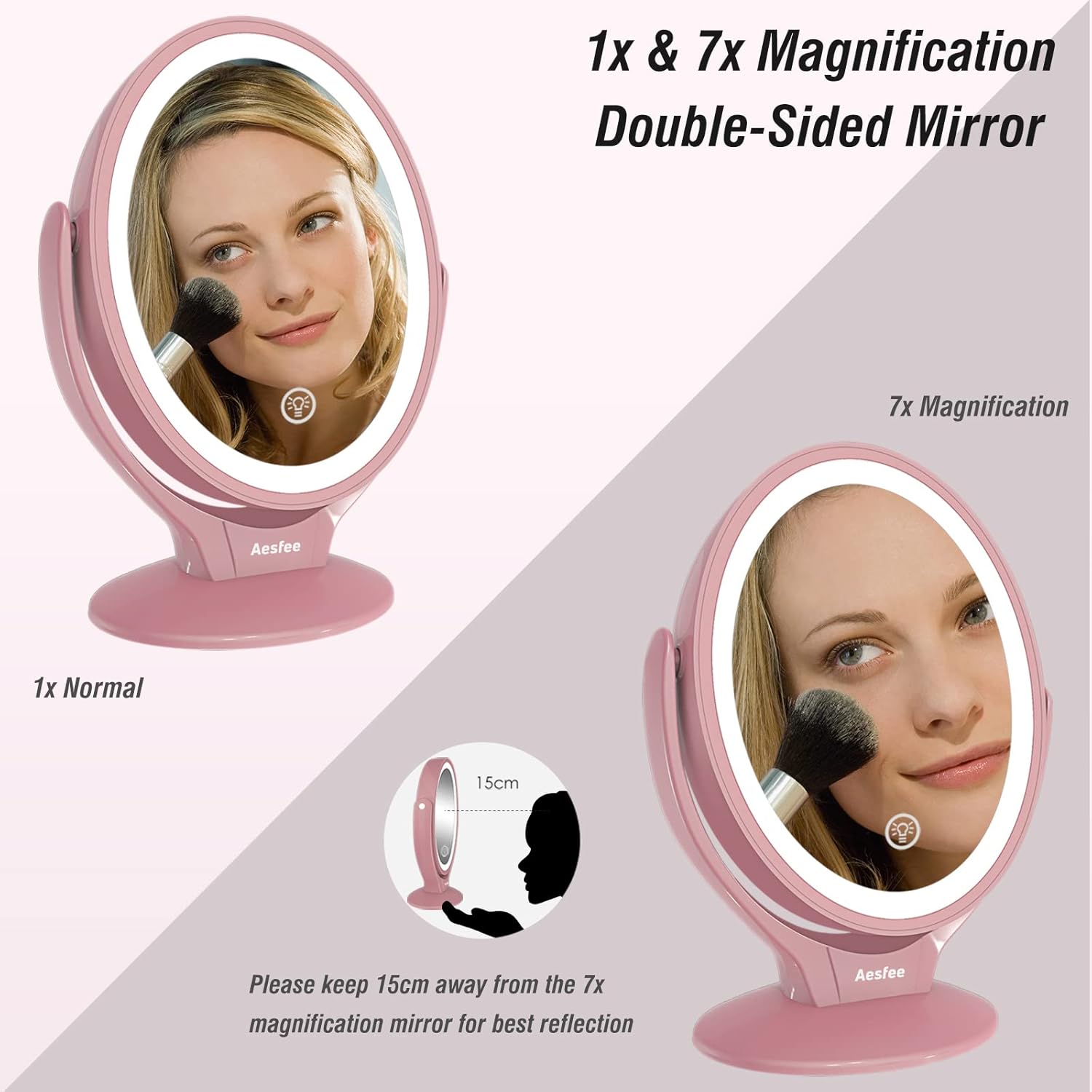

1x & 7x Magnification Double-Sided Mirror — Image: The mirror features both 1x normal and 7x magnified sides for versatile use. For optimal reflection with the 7x magnification, maintain a distance of approximately 15 cm (6 inches) from the mirror.

Double-Sided Mirror 360° Rotation — Image: The mirror head can be rotated 360 degrees on its stand, allowing easy switching between the 1x and 7x magnification sides.

Important Usage Tip for 7x Magnification

When using the 7x magnifying mirror, it is crucial to maintain a distance of approximately 15 cm (6 Zoll) from the mirror for a clear and undistorted reflection. Moving too close or too far may result in a blurry image.

Wartung

Reinigung

Vor der Reinigung sicherstellen, dass der Spiegel ausgeschaltet und vom Stromnetz getrennt ist.
Wipe the mirror surface with a soft, lint-free cloth. For stubborn spots, a small amount of glass cleaner can be applied to the cloth (not directly to the mirror).
Clean the mirror frame and base with a soft, damp Mit einem Tuch abwischen. Vermeiden Sie scheuernde Reiniger oder Lösungsmittel.

Lagerung

Store the mirror in a cool, dry place away from direct sunlight and excessive humidity. When traveling, consider using protective packaging to prevent scratches or damage.

Fehlerbehebung

Problem	Mögliche Ursache	Lösung
Die LED-Leuchten schalten sich nicht ein.	Batterie ist leer.	Charge the mirror using the provided USB cable. Ensure the charging indicator turns red.
Die Lichter sind schwach oder flackern.	Niedriger Batteriestand oder falsche Helligkeitseinstellung.	Recharge the mirror. Tap the touch button to cycle through brightness levels.
7x magnification appears blurry.	Falsch viewing-Distanz.	Maintain a distance of approximately 15 cm (6 inches) from the 7x magnified mirror.
Touch button is unresponsive.	Vorübergehender Softwarefehler oder niedriger Akkustand.	Ensure the mirror is charged. Try restarting by fully discharging and then recharging.

Technische Daten

Besonderheit	Detail
Modellnummer	AF-802
Vergrößerung	1x / 7x
Batteriekapazität	2000mAh Lithiumbatterie
Ladezeit	4 - 5 Stunden
Running Time (Max Brightness)	Bis zu 280 Minuten
Eingang	Gleichstrom 5 V/1 A
Material	60% Glass, 40% Plastic
Technische Daten	8.86"L x 5.12"W (Mirror size: 5" wide x 6" high; 9" tall with base)
Artikelgewicht	1.43 Pfund (650 Gramm)
Besondere Merkmale	2-Sided, 360 Degree Rotation, Adjustable Brightness, Lighted, Touch Sensor

Aesfee LED Lighted Makeup Vanity Mirror Dimensions — Image: Detailed dimensions of the Aesfee LED Lighted Makeup Vanity Mirror.

Garantie und Support

For warranty information or technical support, please refer to the product packaging or contact Aesfee customer service directly. Contact details are typically available on the manufacturer's official webWebsite oder über Ihren Händler.
