1. Einleitung
This manual provides detailed instructions for the installation, operation, and maintenance of your Anlapus 1080p HD-TVI Surveillance Camera. Please read this manual thoroughly before using the product to ensure proper function and safety.
The Anlapus HD-TVI camera is designed for both indoor and outdoor surveillance, offering high-definition video quality and robust performance in various environmental conditions.
2. Packungsinhalt
Bitte prüfen Sie, ob alle unten aufgeführten Artikel in Ihrem Paket enthalten sind. Sollten Artikel fehlen oder beschädigt sein, kontaktieren Sie bitte unseren Kundenservice.
- 4 x Anlapus 1080p HD-TVI Cameras
- 4 x BNC Video Cables
- 1 x Netzteil
- 1 x 1-zu-4-Stromverteilerkabel
- 4 x Warnaufkleber
- 4 x Mounting Screw Bags (including screws and wall plugs)
- 4 x Montagelochschablonen
- 1 x Kurzanleitung
3. Produktmerkmale
- 1080p HD-Auflösung: Bietet klare und detaillierte Video-Footage (1920x1080 Pixel).
- Breit Viewing-Winkel: Equipped with a 3.6mm lens, offering a 90-degree field of view.
- HD-TVI Compatibility: Designed to work with HD-TVI DVRs. Ensure your DVR supports HD-TVI technology.
- Erweiterte Nachtsicht: Features 24 IR-Cut LEDs for up to 24 meters (80 feet) of clear black and white night vision.
- IP66-Wetterschutzklasse: Robust metal housing ensures protection against dust and water, suitable for both indoor and outdoor use in various weather conditions.
- Flexible Montage: Features a 3-axis adjustable bracket for ceiling or wall mounting, allowing 360-degree horizontal and 180-degree vertical adjustment.
4. Einrichtung und Installation
4.1 Checkliste vor der Installation
- Ensure your DVR is compatible with HD-TVI cameras.
- Plan the camera placement to cover desired surveillance areas.
- Ensure power outlets are accessible for the camera power supply.
- Gather necessary tools: drill, screwdriver, ladder (if mounting high).
4.2 Montage der Kamera
- Select a suitable mounting location (wall or ceiling) that provides the desired viewing angle and is within reach of the BNC cable and power supply.
- Use the provided mounting hole template to mark the drill points on the surface.
- Bohren Sie an den markierten Stellen Führungslöcher.
- Insert the wall plugs into the drilled holes (if mounting on masonry or drywall).
- Befestigen Sie die Kamerabasis mit den mitgelieferten Schrauben an der Oberfläche.
- Adjust the camera angle using the 3-axis bracket. The bracket allows for 360-degree horizontal rotation and 180-degree vertical tilt. Tighten the adjustment screws once the desired angle is achieved.
4.3 Anschließen der Kamera

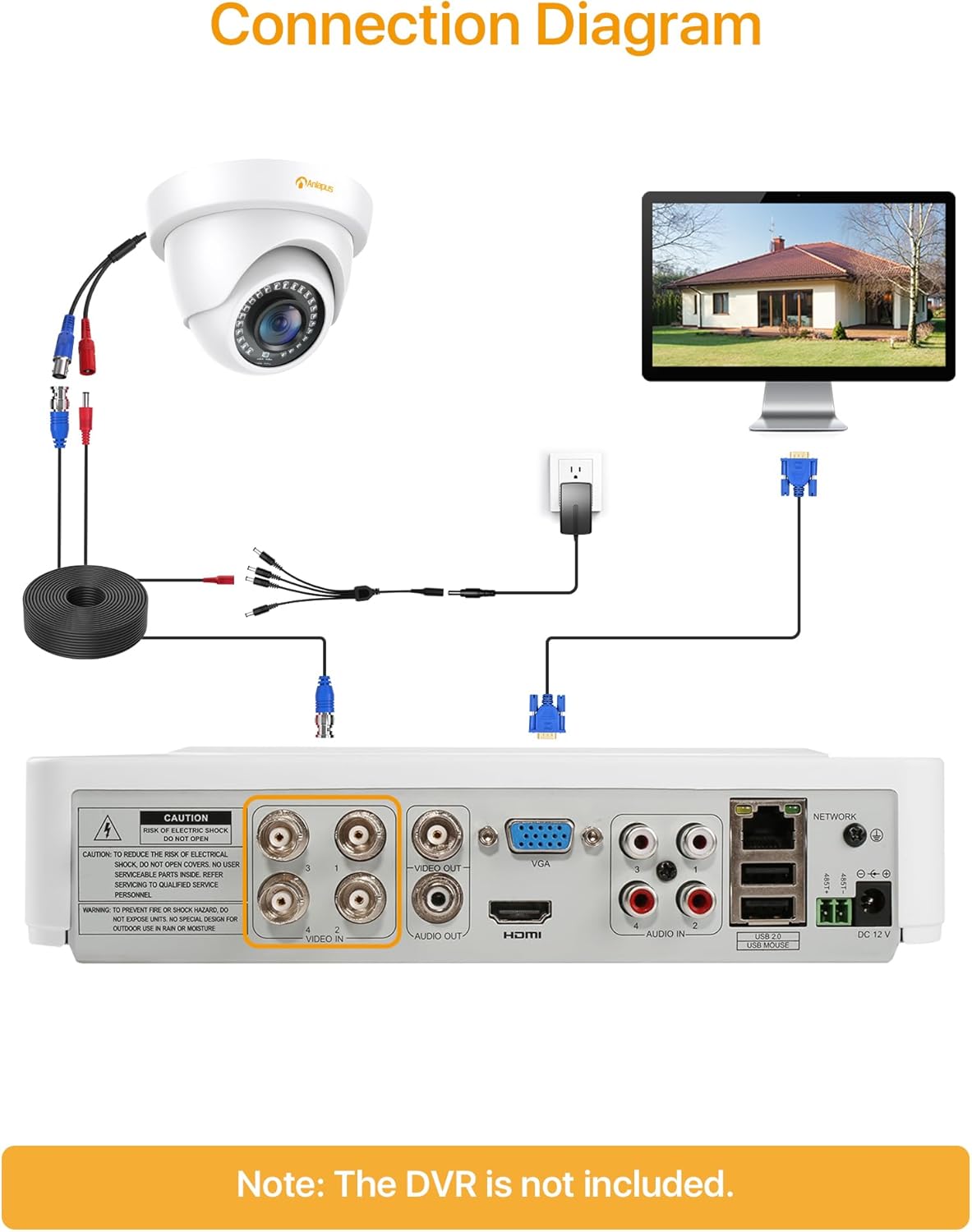

Beachten Sie das untenstehende Anschlussdiagramm für die korrekte Verdrahtung.
- Connect one end of the BNC video cable to the video output port of the camera.
- Connect the other end of the BNC video cable to a "VIDEO IN" port on your HD-TVI DVR.
- Connect the camera's power input to one of the outputs on the 1-to-4 power splitter cable.
- Connect the power supply to the 1-to-4 power splitter cable.
- Stecken Sie das Netzteil in eine normale Steckdose.
- Repeat these steps for all cameras.
Wichtig: Stellen Sie sicher, dass alle Verbindungen sicher sind, bevor Sie das System einschalten.
5. Bedienungsanleitung
Once the cameras are properly installed and connected to your HD-TVI DVR, refer to your DVR's instruction manual for specific operating procedures, including:
- Viewleben footage von den Kameras.
- Recording and playback of video.
- Configuring motion detection and alerts.
- Accessing the system remotely via mobile app or web Schnittstelle.
- Adjusting camera settings (if supported by your DVR).
The Anlapus camera provides a continuous video feed to the DVR. Its night vision capabilities activate automatically in low-light conditions.
6. Wartung
- Reinigung: Reinigen Sie das Kameraobjektiv und das Gehäuse regelmäßig mit einem weichen Tuch.amp Mit einem Tuch abwischen. Vermeiden Sie scheuernde Reiniger oder Lösungsmittel.
- Kabelinspektion: Regularly check all cables for signs of wear, damage, or loose connections.
- Firmware-Updates: While the camera itself does not typically require firmware updates, ensure your DVR's firmware is up-to-date for optimal performance and compatibility.
- Umweltschutz: Although the camera is IP66 weatherproof, extreme weather conditions (e.g., heavy snow, ice) may temporarily affect performance. Ensure the camera is securely mounted to withstand strong winds.
7. Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| No image on DVR screen |
|
|
| Schlechte Bildqualität / unscharfes Video |
|
|
| Nachtsicht funktioniert nicht |
|
|
If you encounter issues not covered here, please contact Anlapus customer support.
8. Spezifikationen
| Modellnummer | AJ-A4K-202T4-WPES |
| Videoauflösung | 1080p (1920 x 1080 Pixel) |
| Linse | 3.6 mm |
| Viewing-Winkel | 90 Grad |
| Nachtsichtbereich | Bis zu 24 Meter (80 Fuß) |
| IR-LEDs | 24 pcs IR-Cut LEDs |
| Wetterfeste Bewertung | IP66 |
| Material | Metall |
| Konnektivitätstechnologie | Kabelgebunden (BNC) |
| Leistungsaufnahme | 12 Volt |
| Energieaufnahme | 12 Watt |
| Abmessungen (L x B x H) | 42.9 x 27 x 8.71 cm |
| Gewicht | 2.61 kilograms (for the package) |
| Empfohlene Verwendung | Überwachung |
| Kompatible Geräte | Digital Video Recorder (DVR) |
9. Garantie und Support
Anlapus products are designed for reliability and performance. For warranty information and technical support, please refer to the warranty card included in your package or visit the official Anlapus webWebsite.
If you require assistance with installation, troubleshooting, or have any questions regarding your Anlapus surveillance camera, please contact our customer support team. Contact details can typically be found on the Anlapus brand store page or in the quick start guide.
