BENELLI miniFold 16 Electric Assist Bicycle User Manual

1. Einleitung

This manual provides essential information for the safe and efficient operation, maintenance, and care of your BENELLI miniFold 16 Electric Assist Bicycle. Please read this manual thoroughly before your first ride and keep it for future reference. Understanding the features and proper handling procedures will ensure a safe and enjoyable experience with your electric bicycle.

This image shows the BENELLI miniFold 16 electric assist bicycle fully assembled and ready for use. The white frame, 16-inch wheels, and compact design are visible, highlighting its urban utility.

2. Sicherheitshinweise

Ihre Sicherheit steht an erster Stelle. Beachten Sie stets die folgenden Richtlinien:

• Trage einen Helm: Tragen Sie stets einen zugelassenen Fahrradhelm, der richtig passt.
• Befolgen Sie die Verkehrsregeln: Follow all local traffic laws, regulations, and road signs.
• Check vor der Fahrt: Before each ride, inspect brakes, tires, quick releases, and the battery connection.
• Sichtweite: Verwenden Sie Lichter und reflektierende Kleidung, insbesondere bei Fahrten in schlechten Lichtverhältnissen.
• Wetterbedingungen: Exercise caution when riding in wet or adverse weather. Braking distances increase.
• Batteriesicherheit: Use only the provided charger. Do not expose the battery to extreme temperatures or puncture it.
• Gewichtsbeschränkung: Do not exceed the bicycle's maximum weight capacity.

3. Packungsinhalt

Upon unpacking your BENELLI miniFold 16, please ensure all the following items are present:

• BENELLI miniFold 16 Electric Assist Bicycle
• Ladegerät
• Benutzerhandbuch (dieses Dokument)
• Any included accessories (e.g., tools, reflectors)

Falls Artikel fehlen oder beschädigt sind, wenden Sie sich bitte umgehend an Ihren Händler.

4. Einrichtung

4.1 Das Fahrrad aufklappen

1. Place the folded bicycle on a stable, flat surface.
2. Release the main frame latch, typically located near the center of the frame. Carefully unfold the main frame until it locks into place. Ensure the latch is securely fastened.
3. Raise the handlebar stem and secure it with the quick-release lever. Ensure the stem is aligned with the front wheel.
4. Adjust the handlebar height to your preferred riding position and tighten the quick-release.
5. Insert the seat post into the frame and adjust the saddle height. Secure it with the quick-release lever. Ensure the minimum insertion mark is not visible.
6. Klappen Sie die Pedale aus, falls sie klappbar sind.

4.2 Einlegen und Laden der Batterie

• Locate the battery compartment. Insert the battery firmly until it clicks into place.
• To charge, connect the charger to the battery charging port and then to a power outlet. The indicator light on the charger will show the charging status.
• Laden Sie den Akku vor Ihrer ersten Fahrt vollständig auf.

4.3 Vorabkontrollen

• Reifen: Check tire pressure. Recommended pressure is usually indicated on the tire sidewall.
• Bremsen: Ensure both front and rear brakes engage firmly and release smoothly.
• Schnellveröffentlichungen: Verify all quick-release levers (seat post, handlebar stem) are securely tightened.
• Batterie: Confirm the battery is securely installed and sufficiently charged.

5. Bedienungsanleitung

5.1 Powering On/Off the Electric Assist System

• To power on, press and hold the power button on the control panel (usually located on the handlebars). The display will illuminate.
• Zum Ausschalten halten Sie die Einschalttaste erneut gedrückt, bis sich das Display ausschaltet.

5.2 Selecting Assist Modes

The BENELLI miniFold 16 offers multiple levels of pedal assist. Use the '+' and '-' buttons on the control panel to cycle through the assist modes (e.g., Eco, Standard, Power). Higher assist levels provide more motor assistance, while lower levels conserve battery life.

5.3 Gangwechsel

Your bicycle is equipped with a 3-speed gear system. Use the shifter (typically a twist grip or lever) on the handlebars to change gears. Shift to a lower gear for easier pedaling on inclines and a higher gear for faster speeds on flat terrain. Shift gears smoothly while pedaling.

5.4 Bremsen

The bicycle has front and rear brakes. The right lever typically controls the rear brake, and the left lever controls the front brake. Apply both brakes simultaneously and gradually for effective stopping. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.

5.5 Zusammenklappen des Fahrrads

1. Ensure the electric assist system is powered off.
2. Senken Sie die Sattelstütze in die unterste Position ab.
3. Release the handlebar stem quick-release and fold the handlebars down.
4. Release the main frame latch and carefully fold the frame in half until it locks into its folded position.
5. Klappen Sie die Pedale ein, sofern sie einklappbar sind.

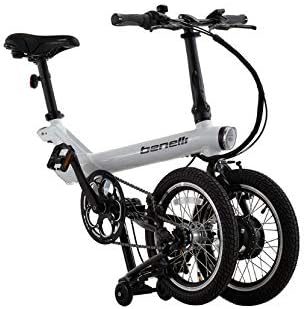

This image illustrates the BENELLI miniFold 16 in its compact, folded configuration, ideal for storage or transport. The handlebars are folded down, and the frame is collapsed, showcasing dank seines platzsparenden Designs.

6. Wartung

Regular maintenance ensures the longevity and safe operation of your BENELLI miniFold 16.

• Batteriepflege: Laden Sie den Akku regelmäßig auf, auch wenn er nicht verwendet wird, um seine Lebensdauer zu erhalten. Bewahren Sie den Akku an einem kühlen, trockenen Ort auf. Vermeiden Sie häufiges vollständiges Entladen des Akkus.
• Reifendruck: Check and maintain correct tire pressure weekly. Under-inflated tires can reduce range and increase puncture risk.
• Bremsenprüfung: Periodically check brake pads for wear and brake cables for tension. Replace worn pads promptly.
• Kettenschmierung: Um reibungslose Gangwechsel zu gewährleisten und Rost vorzubeugen, sollte die Kette sauber und geschmiert gehalten werden.
• Allgemeine Reinigung: Reinigen Sie das Fahrrad regelmäßig mit einem Reinigungstuch.amp Stoff. Vermeiden Sie die direkte Anwendung von Hochdruckreinigern auf elektrischen Bauteilen.
• Befestigungsmaterial: Überprüfen Sie regelmäßig alle Schrauben und Muttern auf festen Sitz.

7. Fehlerbehebung

Hier finden Sie Lösungen für häufig auftretende Probleme:

8. Spezifikationen

Key specifications for the BENELLI miniFold 16 Electric Assist Bicycle:

• Marke: Benelli
• Modell: miniFold 16
• Fahrradtyp: Elektrisches Hilfsfahrrad
• Radgröße: 16 Zoll
• Gear Count: 3 Gänge
• Batteriekapazität: 5.2 Ah
• Zielalter: Erwachsene
• ASIN: B082XPCGSL

9. Garantie und Support

For detailed warranty information, terms, and conditions, please refer to the warranty card or documentation included with your purchase. For technical support, spare parts, or service inquiries, please contact your authorized Benelli dealer or the retailer from whom you purchased the bicycle. Keep your proof of purchase for warranty claims.
