1. Einleitung
The FMS Pitts V2 1400mm RC Aerobatic Biplane is a high-performance remote control aircraft designed for aerobatic maneuvers. Built with robust EPO foam, it features a powerful 4258 brushless motor, 50A Hobbywing ESC, and responsive 17g servos, ensuring precise control and exhilarating flight. Its design includes authentic detailing and a large battery bay for extended flight times.
Image: The FMS Pitts V2 1400mm RC Aerobatic Biplane in a dynamic flight pose.
2. Sicherheitshinweise
Always operate your RC aircraft in a safe and responsible manner. Failure to do so may result in injury or damage to property. Please observe the following safety guidelines:
- Lesen Sie das gesamte Handbuch: Familiarize yourself with all product features and operating instructions before use.
- Altersempfehlung: Dieses Produkt wird für Benutzer ab 14 Jahren empfohlen.
- Fluggebiet: Fly in open areas away from people, buildings, and other obstacles. Avoid flying near power lines or busy roads.
- Wetterbedingungen: Fliegen Sie nicht bei starkem Wind, Regen oder anderen widrigen Wetterbedingungen.
- Vorflugkontrolle: Führen Sie vor jedem Flug eine gründliche Vorflugkontrolle durch, um sicherzustellen, dass alle Komponenten fest angebracht sind und ordnungsgemäß funktionieren.
- Batteriesicherheit: Use only recommended batteries and chargers. Follow all battery charging and handling instructions to prevent fire or injury.
- Propellersicherheit: Keep hands, face, and loose clothing away from the rotating propeller.
- Behalten Sie die Kontrolle: If you lose control of the aircraft, immediately reduce throttle and attempt to regain control.
3. Lieferumfang
The FMS Pitts V2 1400mm PNP (Plug and Play) package includes the following components:
- FMS Pitts V2 1400mm Airframe (fuselage, wings, tail sections)
- 4258 Brushless Motor (pre-installed)
- 50A Hobbywing-sourced Electronic Speed Controller (ESC) (pre-installed)
- 17g Servos (pre-installed, 4x)
- Propeller
- Fahrwerk
- Flügelstreben
- Small parts for assembly (screws, pushrods, etc.)
Note: This PNP version does NOT include a battery, radio transmitter, or charger.
Image: All components of the FMS Pitts V2 1400mm laid out for assembly.
4. Aufbau und Montage
The FMS Pitts V2 features an ingeniously designed screw-together mechanism for swift and hassle-free assembly. Follow these steps:
- Komponenten auspacken: Carefully remove all airplane components from the packaging.
- Flügel anbringen: Securely attach the wings to the fuselage using the provided screw-together mechanism. Ensure proper alignment.
- Flügelstreben montieren: Slide the wing struts onto the wings and secure them in place.
- Fahrwerk montieren: Befestigen Sie das Fahrwerk am Rumpf.
- Propeller montieren: Montieren Sie den Propeller auf der Motorwelle.
- Install Receiver & Speed Control: If not pre-installed, install your receiver and speed control.
- Servos anschließen: Connect the pre-installed servos to your receiver according to your radio system's instructions.
- Batterie einlegen: Place your 6S battery (not included) into the oversized battery compartment. Ensure it is secured to prevent shifting during flight.
- Schwerpunkt (CG): Verify the aircraft's Center of Gravity (CG) is within the recommended range (refer to specifications section). Adjust battery position if necessary.
- Radio-Setup: Bind your radio transmitter to the receiver and set up control throws as recommended by your radio system's manual.
Bild: Nahaufnahme view of the 4258 brushless motor, 50A Hobbywing ESC, and 17g servos.
5. Bedienungsanleitung
The FMS Pitts V2 is designed for high-powered aerobatic performance. Its robust EPO construction ensures durability, while authentic detailing enhances the flying experience.
Vorflugkontrollen:
- Stellen Sie sicher, dass der Akku vollständig geladen und sicher eingesetzt ist.
- Check all control surfaces (ailerons, elevator, rudder) for free movement and correct direction.
- Prüfen Sie, ob der Propeller fest sitzt und unbeschädigt ist.
- Confirm radio signal strength and range.
Abheben:
Position the aircraft into the wind on a clear runway. Gradually increase throttle to full, applying slight up-elevator as needed for a smooth lift-off. The powerful motor will provide ample thrust for quick takeoffs.
Flug:
The Pitts V2 is highly maneuverable, capable of a wide range of aerobatic stunts. Its responsive 17g servos allow for precise control. Practice basic maneuvers before attempting advanced aerobatics. The large capacity battery bay accommodates powerful 6S packs for extended flight times.
Landung:
Approach the runway into the wind. Gradually reduce throttle and maintain a controlled descent. Apply slight up-elevator just before touchdown for a soft landing. The robust landing gear is designed to handle various landing conditions.

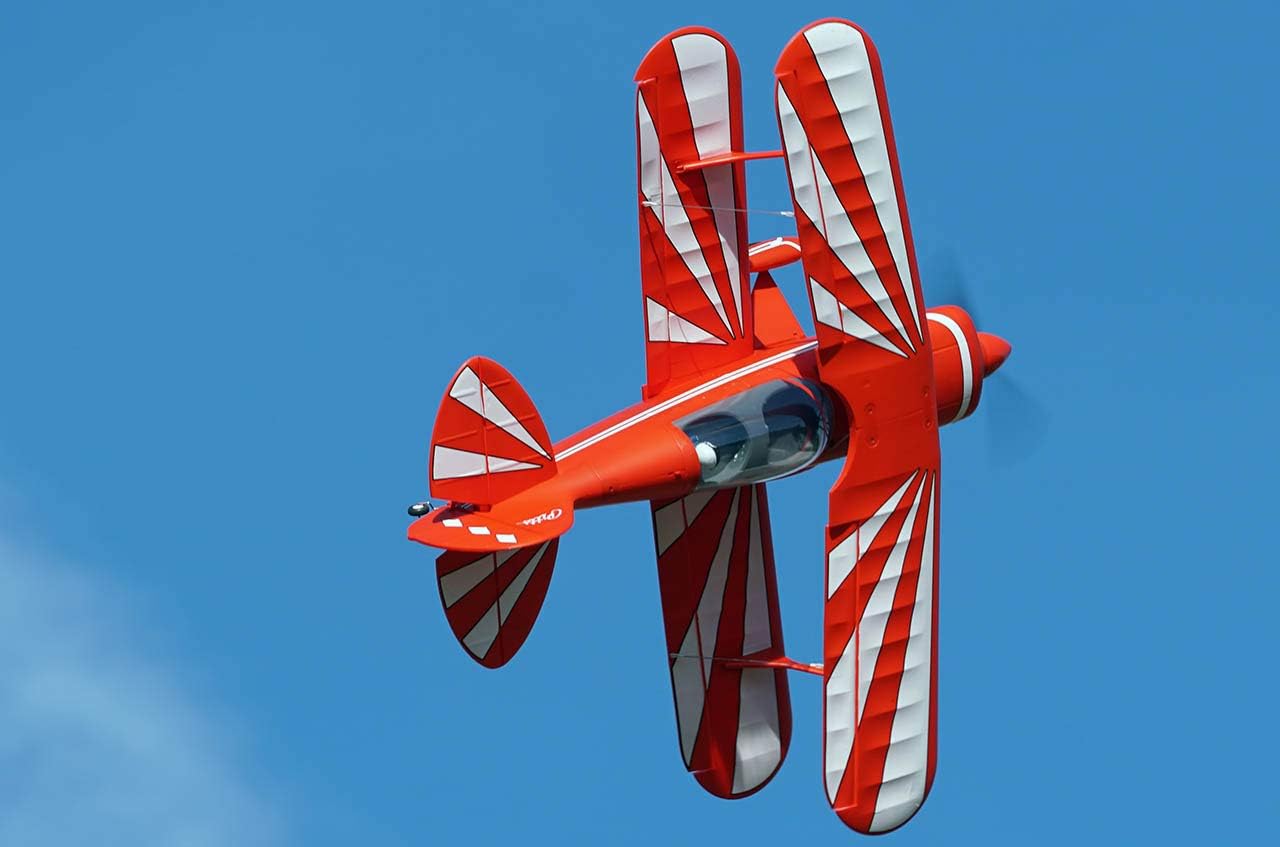

Images: Various dynamic flight shots of the FMS Pitts V2 1400mm RC Biplane.
Offizielles Produktvideo:
Video: FMS 1400mm Pitts V2 - Flight and Features. This video showcases the aircraft's flight capabilities and key features.
6. Wartung
Regular maintenance will ensure the longevity and optimal performance of your FMS Pitts V2.
- Reinigung: Wischen Sie das Flugzeug nach jedem Flug mit einem weichen, trockenen Tuch ab, um Schmutz, Staub oder Feuchtigkeit zu entfernen.
- Inspektion: Regularly inspect the airframe for any cracks, dents, or damage to the EPO foam. Check control surfaces, hinges, and pushrods for wear or looseness.
- Propeller: Inspect the propeller for nicks, cracks, or bends. Replace if damaged to ensure balanced flight and prevent motor strain.
- Motor & Regler: Ensure the motor spins freely and the ESC connections are secure. Avoid overheating the motor and ESC.
- Servos: Check servos for smooth operation and ensure they are securely mounted.
- Batteriepflege: Store batteries in a cool, dry place. Do not overcharge or over-discharge LiPo batteries.
7. Fehlerbehebung
If you encounter issues with your FMS Pitts V2, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Das Flugzeug reagiert nicht auf die Steuerung. | Unbound receiver, low transmitter/receiver battery, damaged wiring. | Re-bind receiver, check battery levels, inspect and repair wiring. |
| Motor dreht sich nicht | Disconnected motor/ESC, faulty ESC, low battery. | Check all connections, test ESC, charge/replace battery. |
| Poor flight performance/unstable | Incorrect CG, control surface trim, damaged airframe. | Adjust CG, trim control surfaces, inspect and repair airframe. |
| Kurze Flugzeiten | Akku nicht vollständig geladen, alter/beschädigter Akku. | Ensure full charge, replace old batteries. |
8. Spezifikationen
| Besonderheit | Wert |
|---|---|
| Technische Daten | 47.5 x 19.5 x 12.5 Zoll |
| Artikelgewicht | 14 Pfund |
| ASIN | B089Q56CGH |
| Artikelmodellnummer | FMM126P |
| Vom Hersteller empfohlenes Alter | Ab 14 Jahren |
| Hersteller | FMS-Modell |
Image: Detailed specifications table for the FMS Pitts V2 1400mm.
9. Garantie und Support
FMS is committed to providing quality products and support. For any inquiries or issues, please refer to the following:
- Rückgaberecht: Für dieses Produkt gilt eine 30-tägige Rückgabe-/Umtauschregelung.
- Beschädigtes Paket: If your package was damaged during shipping, please contact FMS support immediately. Keep all packing material and original boxes. Provide photos of the damaged product and box.
- Wrong Product Received: If you received the wrong product, contact FMS support. Keep all packing material and original boxes. The incorrect item must be returned new and unused (FMS will cover return shipping).
- Hersteller: FMS-Modell
- Markenshop: Besuchen Sie die FMS Store on Amazon für weitere Produkte und Support.
