Cangaroo Kimchi High Chair Instruction Manual

1. Einleitung

Thank you for choosing the Cangaroo Kimchi High Chair. This manual provides essential information for the safe assembly, operation, and maintenance of your high chair. Please read these instructions carefully before use and keep them for future reference. This high chair is designed for children who can sit unaided, from approximately 6 months up to 3 years, or a maximum weight of 15 kg.

2. Wichtige Sicherheitshinweise

• WARNUNG: Lassen Sie das Kind niemals unbeaufsichtigt.
• WARNUNG: Benutzen Sie stets das Rückhaltesystem.
• WARNUNG: Always use the crotch strap in combination with the waist harness.
• WARNUNG: Ensure that any harness is correctly fitted and adjusted.
• WARNUNG: Ensure that the high chair is fully erected and all locking mechanisms are engaged before placing your child in it.
• WARNUNG: Verwenden Sie den Hochstuhl nicht, wenn ein Teil gebrochen, zerrissen ist oder fehlt.
• WARNUNG: Be aware of the risk of open fires and other sources of strong heat in the vicinity of the high chair.
• WARNUNG: Be aware of the risk of tilting when your child pushes its feet against a table or any other structure.
• Um Verletzungen zu vermeiden, sollten Kinder während der Montage und des Zusammenklappens vom Produkt ferngehalten werden.
• Überprüfen Sie regelmäßig alle Teile auf Verschleiß. Ersetzen Sie verschlissene oder beschädigte Teile umgehend.
• Verwenden Sie ausschließlich vom Hersteller zugelassenes Zubehör oder Ersatzteile.
• Place the high chair on a flat, stable surface.
• Erlauben Sie Kindern nicht, mit dem Hochstuhl zu spielen.

3. Stückliste

Vor der Montage sicherstellen, dass alle Komponenten vorhanden sind:

• High Chair Frame (main structure with legs and seat base)
• Seat Unit with Upholstery and 5-point Safety Harness
• Removable Double Tray
• Fußstütze
• Aufbewahrungskorb
• Wheels (pre-attached to rear legs)

Abbildung 1: Fully assembled Cangaroo Kimchi High Chair, showing the main components including the seat, tray, and frame.

4. Aufbau und Montage

The Cangaroo Kimchi High Chair is designed for easy setup. Follow these steps to prepare the high chair for use:

1. Aufklappen des Hochstuhls:

   Place the folded high chair on a flat surface. Locate the folding release mechanisms (usually buttons or levers on the side of the frame). Press these mechanisms and gently pull the legs apart until the frame locks into its fully open position. Ensure all locking indicators are engaged and the chair is stable.

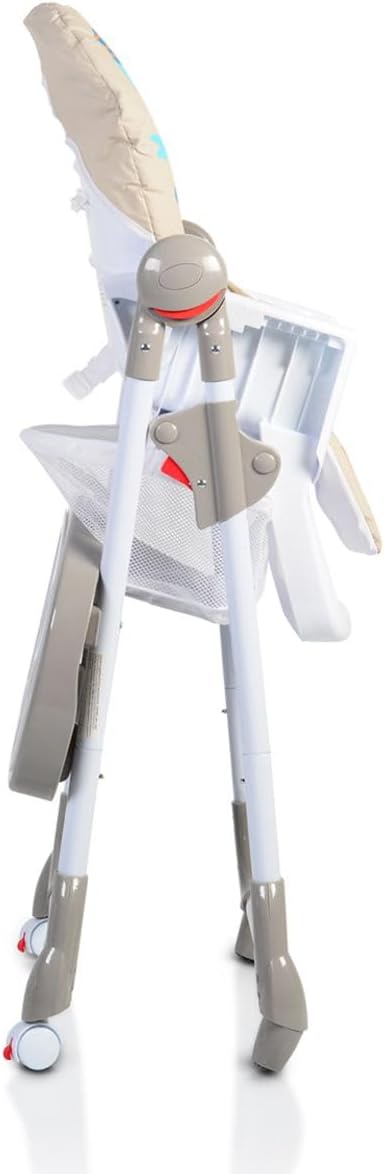

   Abbildung 2: The Cangaroo Kimchi High Chair in its compact folded state, demonstrating its space-saving design.

2. Anbringen der Ablage:

   Align the tray with the slots on the armrests of the high chair. Slide the tray onto the armrests until it clicks securely into place. The tray can be adjusted to different depths. Ensure it is firmly attached before placing your child in the chair.
3. Einstellen der Fußstütze:

   The footrest can be adjusted to provide comfort for your child. Locate the adjustment points on the side of the footrest and set it to a comfortable position for your child's legs.

4. Installing the Storage Basket:

   Attach the storage basket to the designated hooks or clips underneath the seat unit. Ensure it is securely fastened.

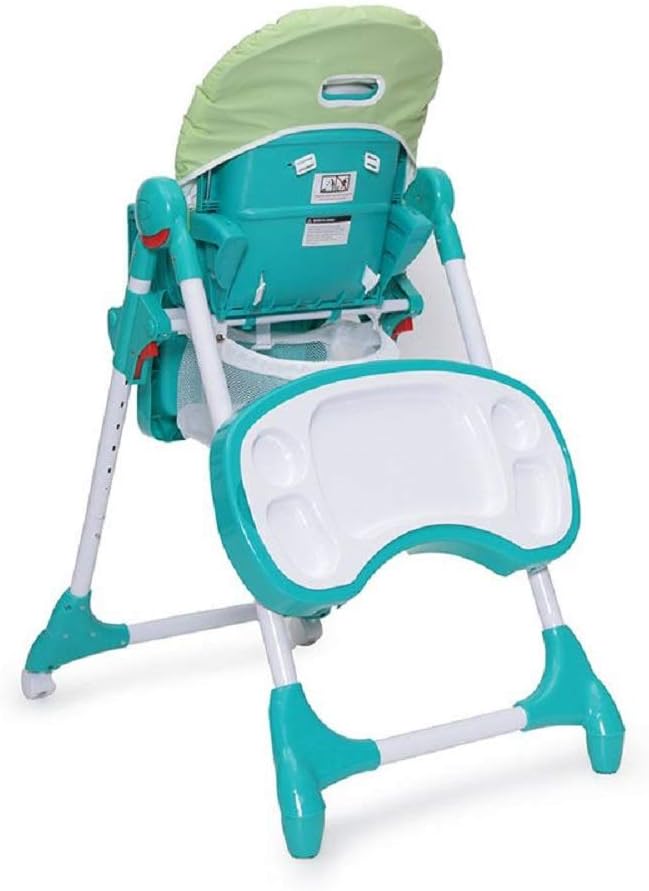

   Abbildung 3: Hinteren view of the high chair, showing the attached storage basket and the back of the removable tray.

5. Bedienungsanleitung

Familiarize yourself with the various adjustable features of your Cangaroo Kimchi High Chair:

1. Höhenverstellung:

   The high chair offers 5 height positions. To adjust, locate the height adjustment buttons on the side of the main frame (usually near the top of the legs). Press these buttons simultaneously and slide the seat unit up or down to the desired height. Release the buttons to lock the seat into position. Ensure both sides are locked at the same height.



   Abbildung 4: Front view of the high chair, highlighting the numbered markings for height adjustment on the frame.

2. Rückenlehnenneigung:

   The backrest can be adjusted to 3 different recline positions. Locate the recline lever or button behind the backrest. Press or pull the lever and adjust the backrest to the desired angle. Release the lever to lock it in place.

3. Tray Adjustment and Removal:

   The double tray can be adjusted forward or backward to accommodate your child. To adjust, locate the release mechanism (often a lever or buttons) under the tray or on the sides. To remove the tray for cleaning or to bring the chair closer to a table, activate the release mechanism and slide the tray off the armrests.
4. Using the 5-Point Safety Harness:

   Always secure your child with the 5-point safety harness. Place your child in the seat, bring the shoulder straps over their shoulders, and the waist straps around their waist. Connect the two shoulder straps to the waist straps, then insert all buckles into the central buckle until they click. Adjust the straps to ensure a snug, secure fit without being too tight. To release, press the button on the central buckle.

5. Moving the High Chair:

   The high chair is equipped with two wheels on the rear legs for easy movement. To move the chair, slightly lift the front legs and roll the chair using the rear wheels. Ensure the chair is stable and locked in place once positioned.

6. Zur Aufbewahrung zusammenklappbar:

   To fold the high chair for compact storage, remove the tray. Locate the folding release mechanisms on the frame (similar to unfolding). Activate these mechanisms and gently push the legs together until the chair folds into its compact position. Ensure it is securely locked in the folded state.



   Abbildung 5: Seite view of the high chair demonstrating its folded configuration for storage.

6. Wartung und Reinigung

Regular cleaning and maintenance will prolong the life of your high chair:

• Sitzpolsterung: The soft seat cushion is removable and washable. Refer to the care label on the fabric for specific washing instructions. Typically, it can be wiped clean with a damp cloth and mild soap, or hand-washed.
• Tablett: The removable double tray is dishwasher-safe for convenient cleaning. Alternatively, wash it by hand with warm soapy water.
• Rahmen: Reinigen Sie die Kunststoff- und Metallteile des Rahmens mit einem Tuch.amp Mit einem Tuch und milder Seife reinigen. Gründlich trocknen lassen. Keine Scheuermittel oder Lösungsmittel verwenden.
• Geschirr: Clean the safety harness straps with a damp Tuch und milde Seife. Vor Gebrauch vollständig an der Luft trocknen lassen.
• Lagerung: When not in use, store the high chair in a clean, dry place, away from direct sunlight and extreme temperatures.

7. Fehlerbehebung

If you encounter any issues with your Cangaroo Kimchi High Chair, refer to the following common problems and solutions:

• High Chair does not unfold/fold easily:

  Ensure all locking mechanisms are fully disengaged before attempting to fold or unfold. Check for any obstructions in the folding joints. Apply gentle, even pressure.
• Die Ablage ist nicht sicher befestigt:

  Verify that the tray is correctly aligned with the slots on the armrests. Push firmly until you hear a click, indicating it is locked in place. Check for any debris in the slots.

• Seat height or backrest recline not locking:

  Ensure the adjustment buttons/levers are fully released after selecting the desired position. Wiggle the seat/backrest slightly to confirm it is securely locked.

• Harness straps are too tight/loose:

  Adjust the length of the straps using the adjusters on each strap. Ensure the harness is snug but comfortable, allowing one finger to fit between the strap and your child's body.

8. Spezifikationen

Abbildung 6: High chair dimensions: 85cm length, 103cm height, 60cm width.

9. Garantie und Support

Informationen zur Garantie finden Sie in den Garantiebedingungen, die Ihnen Ihr Händler zum Zeitpunkt des Kaufs mitgeteilt hat. Bewahren Sie Ihren Kaufbeleg für eventuelle Garantieansprüche auf.

For technical support, spare parts, or further assistance, please contact the retailer where you purchased the Cangaroo Kimchi High Chair or the manufacturer, Moni. Contact details can usually be found on their official weboder auf Ihrem Kaufbeleg.
