LawnMaster GV1314 15-Inch 12.5AMP Scarifier and Dethatcher User Manual

1. Wichtige Sicherheitshinweise

Read all instructions carefully before operating the LawnMaster GV1314 Scarifier and Dethatcher. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Persönliche Sicherheit: Always wear appropriate personal protective equipment, including safety glasses, gloves, and sturdy footwear. Do not operate the machine barefoot or in open-toed shoes.
• Elektrische Sicherheit: Stellen Sie sicher, dass die Steckdose mit der Spannung des Geräts kompatibel ist.tage. Use only a heavy-duty outdoor extension cord of appropriate gauge for the length and amperage. For a 12.5AMP tool, a 12-gauge extension cord is recommended for lengths up to 100 feet to prevent overheating and motor damage. Keep the extension cord clear of the working area and cutting blades.
• Arbeitsbereich: Keep children, bystanders, and pets away from the operating area. Clear the area of any objects that could be thrown by the blades, such as rocks, sticks, or debris.
• Betrieb: Never operate the machine in wet conditions. Do not overreach or stand on unstable surfaces. Maintain proper footing and balance at all times. Always push the machine forward; do not pull it towards you.
• Wartung: Disconnect the power supply before performing any adjustments, cleaning, or maintenance. Regularly inspect the machine for damage or wear. Replace worn or damaged parts with genuine LawnMaster replacements.
• Klingensicherheit: The blades are sharp. Handle them with care. Always wear gloves when handling or changing the cylinders.

2. Produktüberschreitungview und Komponenten

Familiarize yourself with the parts of your LawnMaster GV1314 Scarifier and Dethatcher before use.

Abbildung 2.1: Überview of the LawnMaster GV1314 components. Key parts include the Aerator Cylinder, Scarifier Cylinder, Start/Stop Bale Switch, Safety Switch Button, Foam Grip, Upper Handle, Cord Retainer, Power Cord, Wing Nut, Cable Clip, Safety Guard Flap, Motor Cover, Front Wheel, Collection Bag Handle, Lower Handle, Collection Bag, Height Adjustment Lever, and Rear Wheel.

• Aerator Cylinder: Equipped with tines for aerating the lawn.
• Vertikutierzylinder: Equipped with blades for scarifying and dethatching.
• Start/Stop-Ballenschalter: Engages and disengages power to the motor.
• Safety Switch Button: Must be pressed before the bale switch can be engaged.
• Höhenverstellhebel: Adjusts the working depth of the cylinders.
• Sammelbeutel: Gathers dethatched material.
• Kabelhalter: Sichert das Verlängerungskabel, um ein versehentliches Trennen zu verhindern.

3. Montageanleitung

The LawnMaster GV1314 requires minimal assembly. Follow these steps to prepare your unit for use:

1. Griffmontage: Attach the lower handle to the main unit using the provided bolts and wing nuts. Secure the middle handle to the lower handle, and then the upper handle to the middle handle. Ensure all connections are tight.
2. Kabelhalter: Install the cord retainer on the upper handle. This will be used to secure your extension cord.
3. Sammelbeutel: Assemble the collection bag frame and attach the bag. Slide the assembled collection bag onto the designated hooks at the rear of the unit.
4. Zylindereinbau: The scarifier cylinder is typically pre-installed. If you wish to use the aerator cylinder, refer to the "Cylinder Exchange" section below.

4. Einrichtung und Vorbereitung

4.1 Cylinder Exchange

Your LawnMaster GV1314 comes with two interchangeable cylinders: a scarifier cylinder (pre-installed) and an aerator cylinder. Always disconnect the power before changing cylinders.

Abbildung 4.1: The two easily exchangeable work cylinders (Scarifier and Aerator) and their mounting mechanism, including the mounting bolt and bearing cover.

1. Stellen Sie sicher, dass die Maschine vom Stromnetz getrennt ist.
2. Turn the machine on its side to access the underside.
3. Locate the bearing cover and mounting bolt on the side of the cylinder.
4. Loosen and remove the mounting bolt and bearing cover.
5. Carefully slide the installed cylinder out of its housing.
6. Insert the desired cylinder (aerator or scarifier), ensuring the square drive end aligns correctly with the motor shaft.
7. Reattach the bearing cover and tighten the mounting bolt securely. Ensure the cylinder is properly seated and rotates freely.

4.2 Höhenverstellung

The working depth of the cylinders can be adjusted using the height adjustment lever located on the side of the unit. There are multiple settings:

• Transport Setting: For moving the machine without engaging the blades with the ground.
• Einstellungen 1-3: Progressively deeper working depths. Start with a higher setting (less aggressive) and adjust as needed based on your lawn's condition and the amount of thatch.

Always adjust the height before starting the machine and while it is unplugged.

4.3 Extension Cord Connection

Connect a suitable outdoor-rated extension cord to the power cord of the dethatcher. Secure the connection using the cord retainer to prevent accidental disconnection during operation. Refer to the safety section for recommended extension cord gauge.

5. Bedienungsanleitung

Follow these steps for safe and effective operation of your LawnMaster GV1314.

5.1 Starten und Stoppen der Maschine

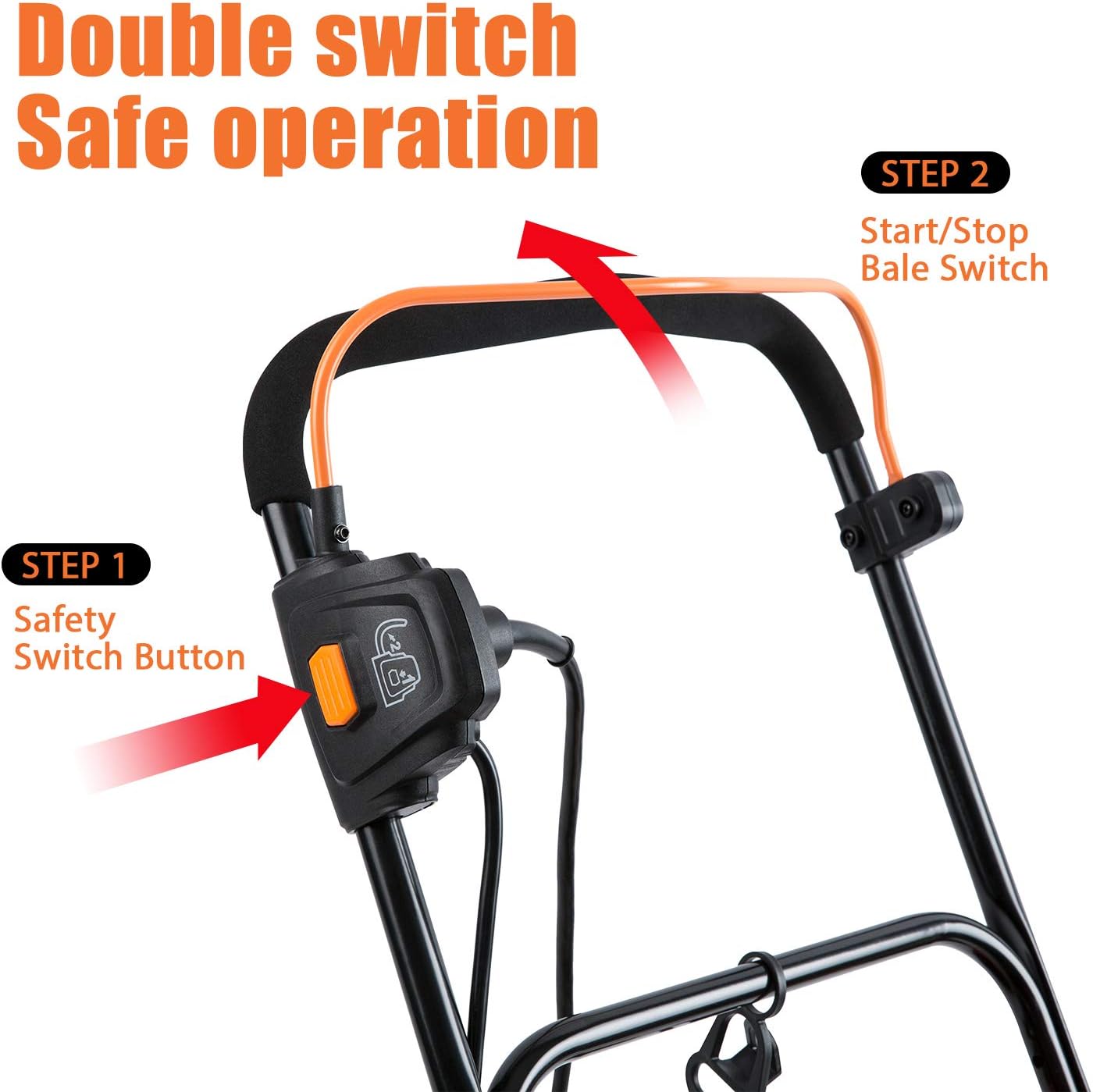

Abbildung 5.1: The double switch system for safe operation, highlighting the Safety Switch Button (Step 1) and the Start/Stop Bale Switch (Step 2).

1. Ensure the machine is on a level surface and the desired working depth is set.
2. Plug the extension cord into a suitable outdoor power outlet.
3. To start, press and hold the Sicherheitsschaltknopf (Figure 5.1, Step 1).
4. While holding the safety button, pull the Start/Stop-Ballenschalter towards the handle (Figure 5.1, Step 2). The motor will start.
5. Sobald der Motor läuft, lassen Sie den Sicherheitsschalter los.
6. To stop, release the Start/Stop Bale Switch. The motor will shut off.

5.2 Operating Techniques

Abbildung 5.2: The LawnMaster GV1314 in operation, showcasing its maneuverability on a lawn.

• Wendigkeit: The machine is designed for easy pushing. The front wheels are 6.7 inches and rear wheels are 3.15 inches, aiding in smooth movement across the lawn.
• Working Pattern: Work in straight, overlapping lines, similar to mowing. Avoid sudden turns or twisting the machine.
• Sammelbeutel: The collection bag will fill quickly, especially during heavy dethatching. Monitor its fill level and empty it frequently to maintain performance. For very thick thatch, it may be more efficient to remove the bag and rake up the debris manually after dethatching.
• Überladung vermeiden: Do not force the machine through dense areas. If the motor slows significantly, raise the working depth or reduce your pace.
• Kühlungsöffnungen: Regularly check and clear the cooling vents on the motor cover to prevent overheating.

6. Wartung

Regular maintenance ensures the longevity and optimal performance of your LawnMaster GV1314. Always disconnect power before maintenance.

• Reinigung: After each use, clean the machine thoroughly. Remove any grass, dirt, or debris from the housing, wheels, and especially the cooling vents. A garden hose can be used, but avoid spraying water directly into the motor area.
• Zylinderprüfung: Inspect the scarifier and aerator cylinders for wear or damage. Replace dull or bent blades/tines to maintain effectiveness. Ensure the cylinder is securely mounted and the square drive connection is not worn.
• Schmierung: Periodically apply a light lubricant to moving parts, such as the height adjustment mechanism and cylinder mounting points, to ensure smooth operation.
• Lagerung: Store the machine in a dry, protected area away from direct sunlight and moisture.

7. Fehlerbehebung

If you encounter issues with your LawnMaster GV1314, refer to the following common problems and solutions:

8. Produktspezifikationen

9. Garantie und Kundendienst

For warranty information, replacement parts, or technical assistance, please contact LawnMaster customer support. Refer to your product packaging or the official LawnMaster webAuf dieser Website finden Sie die aktuellsten Kontaktdaten und Garantiebedingungen.

WebWebsite: Besuchen Sie den LawnMaster Store auf Amazon.
