LawnMaster MEB1114K Electric Corded Lawn Mower

1. Produktüberschreitungview

The LawnMaster MEB1114K is an 11-Amp electric corded lawn mower designed for efficient lawn care. It features a 14-inch cutting width and a lightweight, compact design for easy maneuverability and storage.

Image: LawnMaster MEB1114K Electric Corded Lawn Mower in operation on a green lawn.

Image: Diagram highlighting key features of the LawnMaster MEB1114K, including the 3300-RPM motor, 7-gallon collection bag, 7.75-inch rear wheels, 5.5-inch front wheels, 5-position height adjustment, and quick push-start button.

Hauptmerkmale:

• POWERFUL PERFORMANCE: Tackle your yard with 3,300 RPM of power and a 14-inch cutting width.
• ENVIRONMENTALLY FRIENDLY: No gas or batteries needed to power the mower.
• CUSTOMIZE YOUR CUT: Effortlessly change the height of your cut with 5 cutting positions varying between 1.4-inches and 3-inches.
• MAX MANEUVERABILITY: Features 7.75-inch rear wheels for easy navigation around the lawn.
• 7-GALLON COLLECTION BAG: Neatly stores grass clippings for a tidier lawn.
• LIGHTWEIGHT & COMPACT DESIGN: Weighs only 28lbs and push handles fold for extremely compact storage.

2. Sicherheitshinweise

Always prioritize safety when operating the lawn mower. Read and understand all safety instructions before use.

Wichtige Sicherheitsrichtlinien:

• Adult supervision is needed when children are present.
• Keep hands and feet away from the cutting blade.
• Tragen Sie geeignete Schutzausrüstung, einschließlich Augenschutz und festem Schuhwerk.
• Ensure the power cord is always behind you and clear of the cutting path.
• Betreiben Sie den Rasenmäher nicht bei Nässe.

Image: Illustration showing how to properly secure the power cord using the cord retainer hook to prevent accidental disconnection or damage during mowing.

3. Aufbau und Montage

Your LawnMaster MEB1114K requires some assembly before first use. Follow these steps to prepare your mower.

Montageschritte:

1. Attach the handle assembly to the mower body using the provided hardware.
2. Secure the grass collection bag to the rear of the mower.
3. Adjust the cutting height to your desired setting using the central adjustment lever.
4. Vergewissern Sie sich, dass alle Verbindungen fest sitzen, bevor Sie das Netzkabel anschließen.

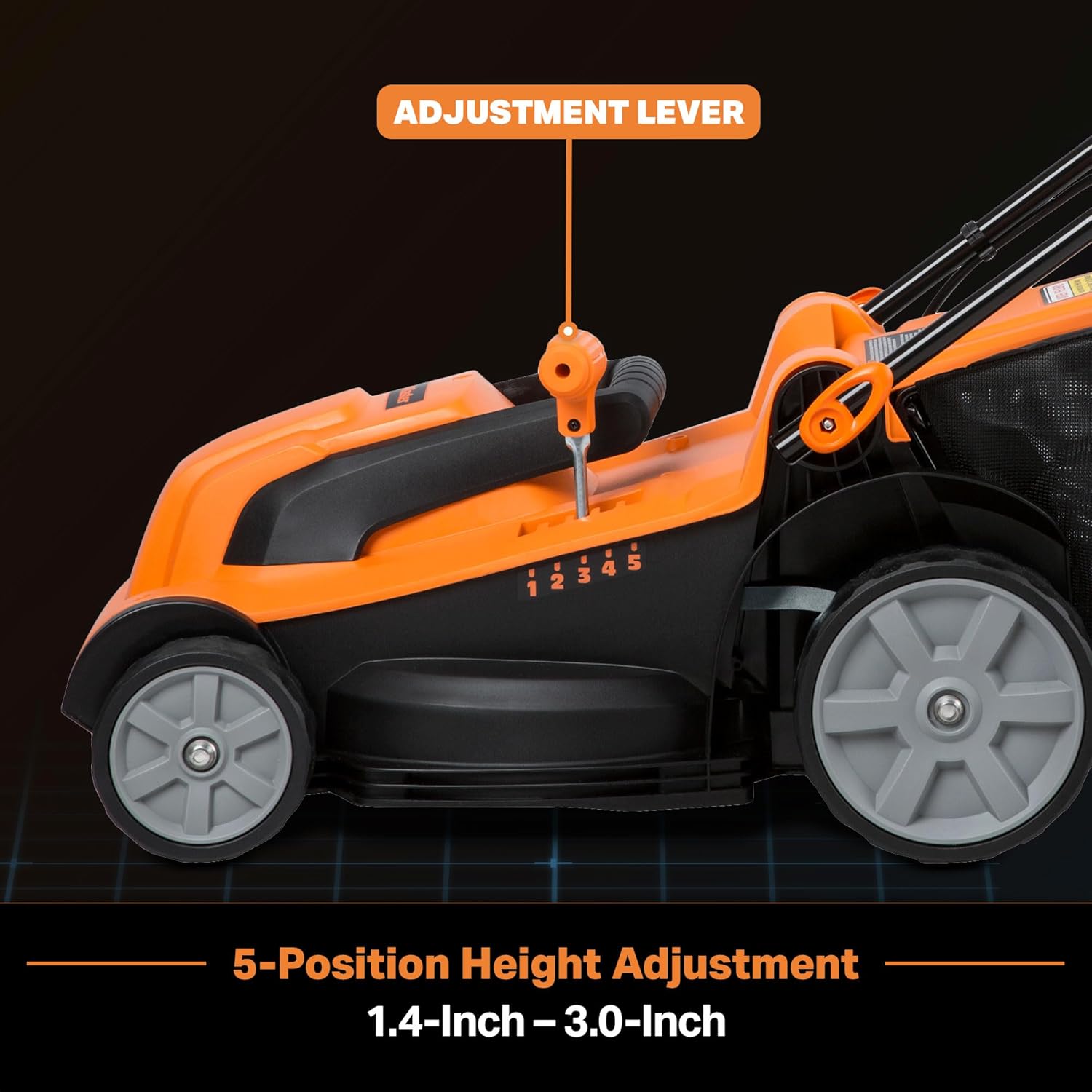

Image: Close-up of the 5-position height adjustment lever on the side of the LawnMaster mower, showing settings from 1.4 inches to 3.0 inches.

Setup Demonstration:

4. Bedienungsanleitung

Follow these steps for safe and effective operation of your LawnMaster MEB1114K electric lawn mower.

Starten des Mähers:

1. Ensure the mower is on a level surface and the power cord is securely connected and routed away from the cutting path.
2. Halten Sie den Sicherheitsknopf gedrückt und ziehen Sie dann den Bügelhebel in Richtung Griff. Der Motor startet.
3. Release the safety button, but continue to hold the bail lever to keep the mower running.

Mähtechnik:

• Push the mower forward in overlapping rows to ensure even cutting.
• Schneiden Sie nicht mehr als ein Drittel der Grashöhe auf einmal ab.
• Empty the grass collection bag regularly to maintain optimal performance and prevent clogging.

Image: The LawnMaster MEB1114K electric mower on a lawn, emphasizing its easy maintenance with no gas, oil, or emissions.

Image: A person operating the LawnMaster MEB1114K electric mower, showcasing the 7-gallon collection bag that neatly stores grass clippings.

Image: A person removing the large grass collection bag from the LawnMaster mower, illustrating how it helps keep the lawn free of thatch.

Image: The LawnMaster mower in action, demonstrating its ability to mow and collect leaves in one pass, eliminating the need for raking.

Funktionsdemonstration:

5. Wartung

Regular maintenance ensures the longevity and optimal performance of your LawnMaster MEB1114K.

Reinigung und Lagerung:

• Always disconnect the mower from the power supply before cleaning or performing any maintenance.
• Clean the underside of the mower deck after each use to prevent grass buildup.
• Wischen Sie das Äußere mit Werbung abamp Mit einem Tuch abwischen. Keine Wasserstrahlen oder scharfe Chemikalien verwenden.
• Store the mower in a dry, secure location. The handles can be folded for compact storage.

Image: The LawnMaster MEB1114K electric mower with its handles folded down, illustrating its compact design for easy storage.

6. Fehlerbehebung

If you encounter issues with your LawnMaster MEB1114K, refer to the following common troubleshooting tips:

• Rasenmäher startet nicht: Ensure the power cord is securely plugged into a working outlet and the mower. Check that the safety button and bail lever are engaged correctly.
• Schlechte Schneidleistung: The blade may be dull or damaged. Inspect the blade and replace if necessary. Ensure the cutting height is appropriate for the grass length.
• Übermäßige Vibration: This could indicate a bent or unbalanced blade. Disconnect power and inspect the blade for damage.
• Grass not collecting: The collection bag may be full or improperly attached. Clear any blockages in the discharge chute.

For persistent issues, please contact LawnMaster customer support.

7. Spezifikationen

Detailed technical specifications for the LawnMaster MEB1114K Electric Corded Lawn Mower:

Spezifikationen vorbeiview:

8. Garantie und Support

Your LawnMaster MEB1114K Electric Corded Lawn Mower is backed by a manufacturer's warranty. For specific warranty details and to register your product, please refer to the documentation included with your purchase or visit the official LawnMaster webWebsite.

Rückgaberecht:

Für dieses Produkt gilt über Amazon eine 30-tägige Rückgabe-/Umtauschgarantie.

Kundendienst:

For technical assistance, parts, or service, please contact LawnMaster customer support. You can also visit the LawnMaster Store bei Amazon Für weitere Informationen und Produktzubehör.
