DOGNESS Black Everyday Automatic Feeder (7 Liters) User Manual

Einführung

This manual provides comprehensive instructions for the setup, operation, and maintenance of your DOGNESS Black Everyday Automatic Feeder. Designed to simplify your pet's feeding schedule, this programmable feeder ensures consistent meal delivery for your dog or cat. Please read this manual thoroughly before using the device to ensure proper function and safety.

Produkt überview

The DOGNESS Everyday Automatic Feeder is a 7-liter capacity device designed to dispense dry pet food. It features a user-friendly control panel for programming up to four meals daily with adjustable portion sizes. The feeder operates independently without internet connectivity and includes a dual-power supply option for reliability.

Abbildung 1: Vorderseite view of the DOGNESS Black Everyday Automatic Feeder.

Aufstellen

1. Auspacken: Carefully remove all components from the packaging. Ensure all parts are present: feeder unit, food tray, USB power cord, and user manual.
2. Stromversorgung:
   • USB-Stromversorgung: Connect the provided 10-foot USB power cord to the feeder's power input port and plug the adapter into a standard electrical outlet.
   • Batterie-Backup: Für unterbrechungsfreien Betrieb bei Stromausfalltages, install three 'D' size batteries (not included) into the battery compartment located at the bottom of the feeder.
3. Assemble Food Tray: Attach the food tray securely to the base of the feeder.
4. Futterbehälter füllen: Open the lid of the feeder and pour dry pet food into the hopper. The feeder has a capacity of up to 7 liters. Ensure the lid is securely closed after filling to maintain food freshness.
5. Platzierung: Place the feeder on a flat, stable surface in an area accessible to your pet and away from direct sunlight or moisture.

Figure 2: Dimensions of the DOGNESS Automatic Feeder (approximately 14.8 x 8.3 x 14 inches).

Bedienungsanleitung

The feeder's control panel and LCD screen allow for easy programming of meal schedules and portions.

1. Aktuelle Uhrzeit einstellen:
   • Press the 'SET' button to enter time setting mode.
   • Use the 'UP' and 'DOWN' buttons to adjust the hour and minute.
   • Press 'SET' again to confirm each setting.
2. Program Meal Times and Portions:
   • Press the 'MEAL' button to cycle through up to 4 available meal settings (M1, M2, M3, M4).
   • For each meal, use 'UP' and 'DOWN' to set the desired feeding time.
   • Press 'PORTION' to adjust the number of portions for that meal (1 to 39 portions). Each portion is approximately 10g.
   • Press 'MEAL' again to save the current meal setting and move to the next, or exit programming mode.
3. Manuelle Zuführung:
   • Press the 'FEED' button on the control panel to dispense one portion of food immediately.
   • Press repeatedly for additional portions.
4. Record Voice Message:
   • Press and hold the 'REC' button. Speak into the built-in microphone to record a personalized message (up to 10 seconds).
   • Release the 'REC' button to save the message. This message will play automatically at each scheduled feeding.
5. Play Voice Message:
   • Press the 'PLAY' button to listen to your recorded message.

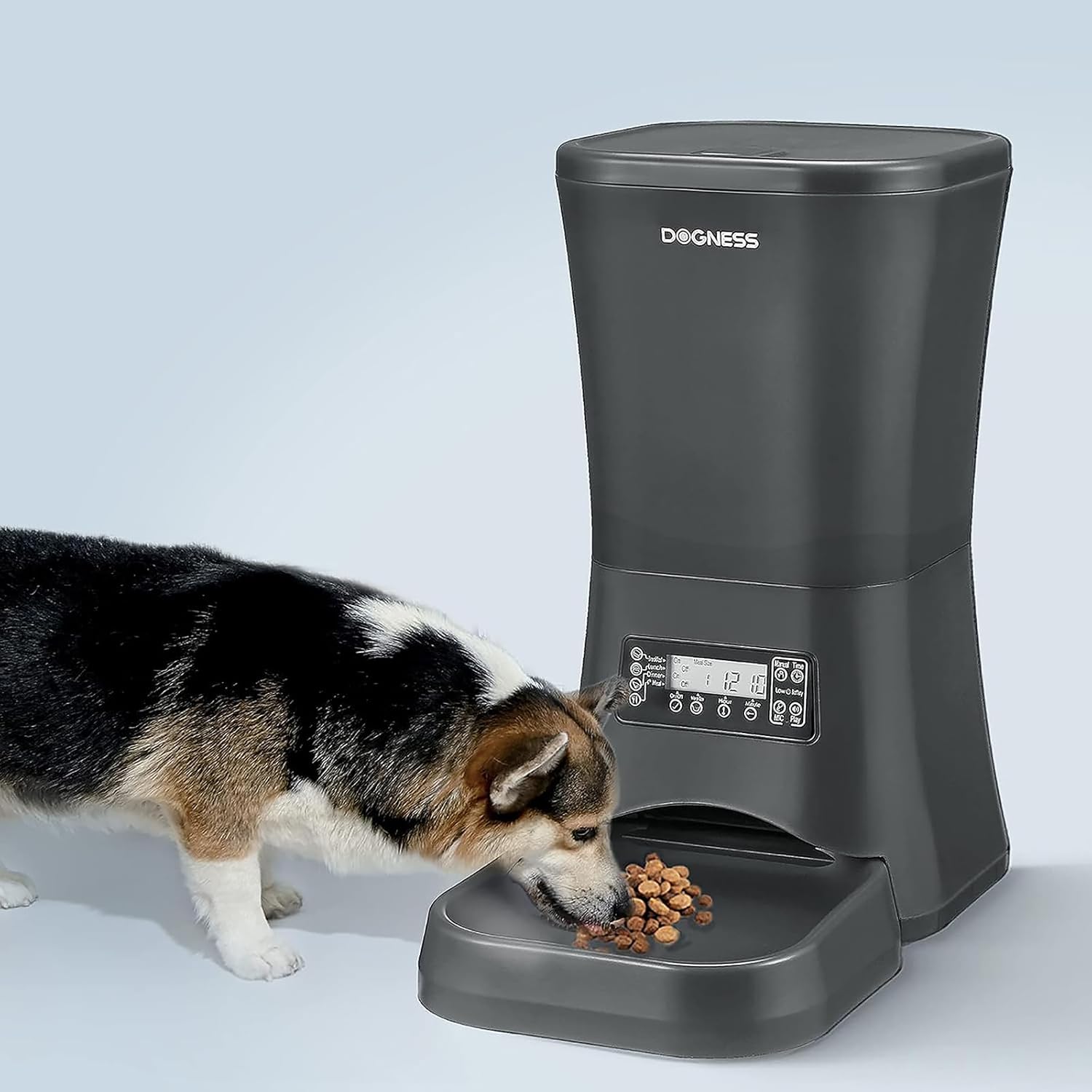

Figure 3: A dog consuming food dispensed by the automatic feeder.

Wartung

• Reinigung: The food hopper and food tray are removable for cleaning. Wash these components by hand with mild soap and water. Ensure all parts are completely dry before reassembling to prevent food spoilage or feeder malfunction. The main unit should be wiped clean with a damp Stoff; Tauchen Sie es nicht in Wasser.
• Food Refill: Regularly check the food level in the hopper and refill as needed to ensure your pet does not miss meals.
• Batteriewechsel: If using battery backup, replace the 'D' size batteries every 6-12 months, or when the low battery indicator appears on the LCD screen, to ensure continuous operation.

Fehlerbehebung

• Futterautomat gibt kein Futter aus:
  • Prüfen Sie, ob der Futterbehälter leer ist.
  • Ensure the food chute is not clogged by large kibble or debris.
  • Verify that the power supply (USB or batteries) is connected and functional.
  • Confirm that meal times and portions are correctly programmed.
• Stromunterbrechung:
  • If the feeder loses power, check the USB connection and wall outlet.
  • If using battery backup, ensure batteries are installed correctly and are not depleted.
• Voice Message Not Playing:
  • Ensure a message has been successfully recorded. Try re-recording.
  • Check the speaker for any obstructions.
• Falsche Zeitanzeige:
  • Reset the current time following the instructions in the 'Operating Instructions' section.

Technische Daten

Garantie und Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. You may also visit the official DOGNESS webWebsite für weitere Unterstützung.
