HXFAFA Wall-Mounted Folding Table User Manual

1. Einleitung

Thank you for choosing the HXFAFA Wall-Mounted Folding Table. This product is designed to provide a versatile and space-saving surface for various applications in your home or office. Please read this manual carefully before installation and use to ensure proper assembly, safe operation, and optimal performance.

Produkteigenschaften:

• Platzsparendes Design: Easily folds against the wall when not in use, ideal for small spaces.
• Langlebige Konstruktion: Made from Medium Density Fiberboard (MDF) with piano paint finish, supported by stainless steel triangle brackets.
• Vielseitig einsetzbar: Suitable as a kitchen workbench, dining table, cafe table, desk, laundry table, or for various other purposes.
• Stabile Unterstützung: Designed to bear significant weight when properly installed.

2. Sicherheitshinweise

Sicherheit hat bei Installation und Verwendung stets oberste Priorität. Die Nichtbeachtung dieser Anweisungen kann zu Verletzungen oder Schäden am Produkt oder am Eigentum führen.

• Ensure the wall surface is suitable for mounting. This table must be securely fastened to solid wood studs, brick, or concrete walls. Do not install on drywall alone without proper anchors into studs.
• Verify that all screws and hardware are tightened before use. Regularly check for loose connections.
• Die maximale Tragfähigkeit von 90 Pfund (ca. 40 kg) darf nicht überschritten werden.
• Keep children away from the table during folding and unfolding to prevent pinching or injury.
• Vermeiden Sie es, heiße Gegenstände ungeschützt direkt auf die Tischoberfläche zu stellen.

3. Packungsinhalt

Bitte prüfen Sie vor Beginn der Montage, ob alle Komponenten vorhanden sind:

• Folding Tabletop (MDF with Piano Paint)
• Stainless Steel Triangle Brackets (2 units)
• Erweiterungsstecker
• Bold Screws
• Installation Hardware (additional screws, etc.)

Sollten Teile fehlen oder beschädigt sein, wenden Sie sich bitte an den Kundendienst.

4. Einrichtung und Installation

The following steps outline the installation process for your wall-mounted folding table. Basic tools such as a drill, screwdriver, level, and measuring tape are required.

Installationsschritte:

1. Bereiten Sie die Wand vor: Ensure the wall surface is clean and clear. Identify suitable mounting points (wood studs, solid brick, or concrete).
2. Installationsort bestimmen: Use a level and measuring tape to mark the desired height and position for the brackets on the wall. Ensure the table will be level when unfolded.
3. Befestigungsschrauben: Drill pilot holes at the marked locations. Insert expansion plugs if necessary (for brick/concrete). Secure the brackets to the wall using the provided bold screws. Ensure they are firmly tightened.

Image: Step-by-step guide for mounting the brackets to the wall.

4. Fixed Completion: Once both brackets are securely mounted, double-check their stability.
5. Fix the Board: Align the tabletop with the brackets. Secure the tabletop to the brackets using the appropriate screws.
6. Die Installation ist abgeschlossen: Test the table by gently applying pressure to ensure it is stable and securely attached to the wall.

Bild: Detailliert view of the triangle stable bracket, expansion plugs, and bold screws.

Produktabmessungen:

Image: Visual representation of the table's dimensions (Length: 50cm/20in, Width: 30cm/12in).

5. Bedienungsanleitung

Folding and Unfolding the Table:

• Entfalten: Gently pull the tabletop downwards until it locks into a horizontal position. Ensure both brackets are fully extended and locked.
• Falten: Locate the release mechanism on each bracket (usually a lever or button). Press or pull the mechanism to disengage the lock, then gently lift the tabletop upwards until it rests flush against the wall.

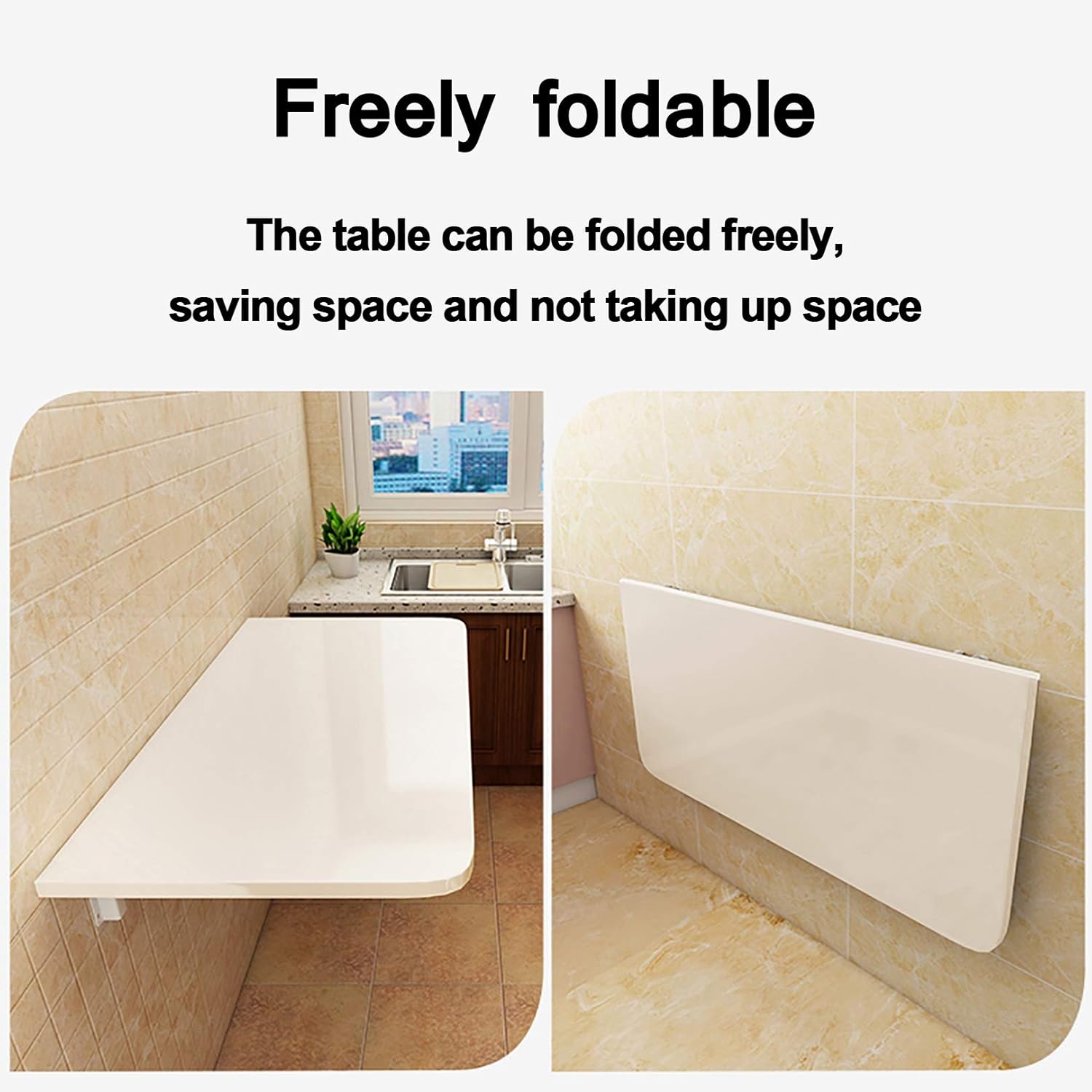

Image: The table shown in both its unfolded and folded states, highlighting its space-saving design.

6. Wartung

Regular maintenance will help prolong the life of your folding table.

• Reinigung: Wischen Sie die Tischoberfläche mit einem weichen, fusselfreien Tuch ab.amp cloth. For stubborn stains, use a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the piano paint finish.
• Hardwareprüfung: Überprüfen Sie regelmäßig alle Schrauben und Verbindungen, um sicherzustellen, dass sie fest sitzen. Ziehen Sie sie gegebenenfalls nach.
• Kantenversiegelung: The product features a standard edge sealing process. This design prevents cracks or damage under normal use.

7. Fehlerbehebung

• Table is not stable:
  • Ensure all wall mounting screws are fully tightened.
  • Verify that the brackets are securely locked in the unfolded position.
  • Confirm that the table is mounted to a suitable, sturdy wall structure.
• Difficulty folding or unfolding:
  • Check the bracket hinges for any obstructions or debris.
  • Ensure the release mechanism is fully engaged or disengaged as required.

8. Spezifikationen

Image: Demonstrates the table's practical use and structural integrity, highlighting its thickened sheet and strong bearing capacity of up to 60kg (132lb).

Image: Illustrates the rounded corner design of the table, intended for smoother aesthetics and bump prevention.

9. Garantie und Support

For warranty information or technical support, please refer to the product packaging or contact the retailer where you purchased this item. Keep your purchase receipt for any warranty claims.
