Tribesigns 2-Drawer Lateral File Cabinet (B09CH716L) User Manual

Einführung

This manual provides detailed instructions for the assembly, operation, and maintenance of your Tribesigns 2-Drawer Lateral File Cabinet. This multifunctional cabinet features open storage spaces, two file drawers, and a storage cabinet designed to organize office machines, paper, files, and supplies. It can be positioned beside or under a desk and is equipped with wheels for mobility.

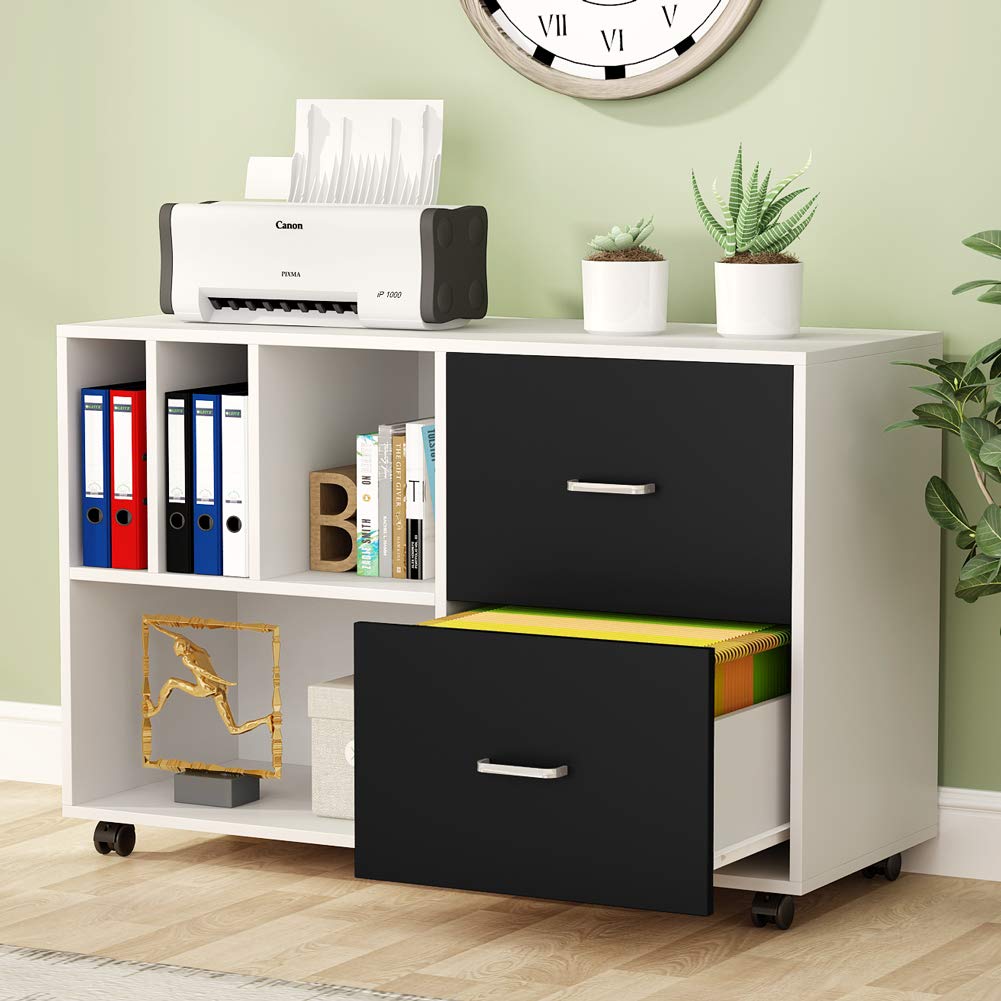

Gesamt view of the Tribesigns 2-Drawer Lateral File Schrank, Ausstellungsstückasing sein Design und seine Funktionen.

Sicherheitshinweise

• Lesen Sie alle Anweisungen vor dem Zusammenbau und der Verwendung sorgfältig durch.
• Halten Sie Kleinteile und Verpackungsmaterialien von Kindern fern.
• Montieren Sie den Schrank auf einer weichen, sauberen Oberfläche, um Kratzer zu vermeiden.
• Schubladen und Regale nicht überladen. Gewicht gleichmäßig verteilen.
• Ensure the cabinet is placed on a level surface to prevent tipping.
• Engage wheel brakes when the cabinet is stationary to prevent unintended movement.

Packungsinhalt

Before beginning assembly, please verify that all components and hardware listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

• Cabinet Panels (Top, Bottom, Sides, Back, Internal Shelves)
• Schubladenkomponenten (Fronten, Seiten, Rückwände, Böden)
• Schubladenführungen
• Griffe
• Casters (Wheels) with Brakes
• Montagezubehör (Schrauben, Dübel, Exzenterverbinder usw.)
• Montagewerkzeuge (z. B. Sechskantschlüssel)

Einrichtung und Montage

Follow these steps carefully for proper assembly of your file Kabinett.

Schritt 1: Auspacken und Teile identifizieren

Carefully unpack all components and hardware from the packaging. Refer to the included parts list to identify each piece and ensure nothing is missing.

Schritt 2: Rollen anbringen

Attach the four casters to the designated holes on the bottom panel of the cabinet. Ensure that the two casters with built-in brakes are positioned at the front of the cabinet for easy access and stability.

Detail of a 360-degree swivel caster with an integrated brake for securing the cabinet.

Step 3: Assemble Cabinet Frame

Connect the side panels, back panel, and internal shelves to the bottom panel using the provided hardware (e.g., screws, dowels, cam locks). Follow the diagrams in your assembly guide to ensure correct orientation. Tighten all connections securely but do not overtighten.

Schritt 4: Schubladen zusammenbauen

Assemble the two drawers by connecting the front, side, and back panels with the drawer bottoms. Attach the drawer slides to the sides of the drawers and the corresponding tracks inside the cabinet frame. Secure the handles to the drawer fronts.

Detail of the sturdy steel handle for the file cabinet drawers.

Illustration of the drawer slide mechanism, designed for smooth and full extension.

Schritt 5: Endkontrolle

Once all components are assembled, perform a final check to ensure all screws are tightened and the cabinet is stable. Place the top panel securely. The cabinet is now ready for use.

Dimensional diagram of the assembled file cabinet, indicating overall size and internal compartment measurements.

Bedienungsanleitung

Mit dem File Schubladen

The two large drawers are designed to accommodate legal-size hanging file folders. Pull the drawers out fully for easy access to your documents. The high-quality steel handles provide a comfortable grip.

The two spacious drawers are designed to hold legal-size hanging files, Bereitstellung ample storage for documents.

Detail illustrating the document organizer section and the capacity for legal-size files in the drawers.

Utilizing Open Storage Shelves

The open storage shelves provide convenient space for documents, books, and decorative items. The partitioned compartments allow for organized storage and easy categorization of your belongings.

Mobile Funktionalität

The cabinet is equipped with four casters, allowing it to be moved and adjusted freely. To secure the cabinet in a desired position, engage the brakes on the front casters by pressing down on the lever.

Wartung

Reinigung

Wischen Sie alle Oberflächen mit einem weichen, trockenen Tuch ab.amp cloth. Avoid using abrasive cleaners, harsh chemicals, or solvents, as these may damage the finish. The cabinet's surface is designed to be easy to clean, anti-scratch, waterproof, and heat-resistant.

Key features of the cabinet's durable surface for easy maintenance.

Allgemeine Pflege

Periodically check all hardware connections, including screws and bolts, and tighten them if necessary to maintain the cabinet's stability and structural integrity.

Fehlerbehebung

Drawers Not Aligning Perfectly

If the drawers do not align perfectly or slide smoothly, check that all drawer slides are correctly installed and that the cabinet frame is assembled squarely. Adjust screws on the slides or frame as needed to correct alignment.

Schrankinstabilität

Ensure that all casters are locked when the cabinet is stationary. Verify that all assembly hardware is securely tightened. If the cabinet still feels unstable, re-check the assembly steps to ensure all components are correctly fitted.

Beschädigte oder fehlende Teile

If you encounter scratches, chipped boards, or missing screws upon arrival or during assembly, please contact Tribesigns customer support immediately for assistance and replacement parts.

Technische Daten

Garantieinformationen

This Tribesigns product is covered by a 1-year limited warranty. This warranty covers manufacturing defects and material flaws under normal use. Please retain your proof of purchase for any warranty claims. The warranty does not cover damage caused by misuse, accidents, or unauthorized modifications.

Kundenservice

For any questions, technical assistance, or to report missing or damaged parts, please contact Tribesigns customer support. Refer to your purchase documentation or the Tribesigns official webDie aktuellsten Kontaktinformationen finden Sie auf dieser Webseite.
