Samsung 4.5 cu. ft. High Efficiency Front Load Washer User Manual

1. Einleitung

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Samsung 4.5 cu. ft. High Efficiency Front Load Washer (Model: WF45T6000AV). Please read this manual thoroughly before using your appliance and keep it for future reference.

2. Sicherheitshinweise

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury to persons. Keep children away from the appliance. Do not wash items that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances as they give off vapors that could ignite or explode.

3. Einrichtung

3.1 Auspacken und Aufstellen

Carefully remove all packaging materials. Ensure the washer is placed on a solid, level floor. Adjust the leveling feet to prevent vibration and noise during operation.

3.2 Anschließen von Wasser- und Abwasserschläuchen

Connect the hot and cold water supply hoses to the corresponding inlets on the back of the washer. Ensure all connections are tight to prevent leaks. Securely attach the drain hose to a standpipe or laundry tub.

3.3 Elektrischer Anschluss

Schließen Sie die Waschmaschine an eine geerdete 120-V-, 60-Hz-, 15-V-Steckdose an. Amp electrical outlet. Do not use extension cords.

3.4 Abmessungen

• Produktabmessungen (T x B x H): 31"T x 27"B x 38.75"H
• Artikeltiefe: 34 Zoll
• Depth With Door Open Maximum: 52.69 Zoll

4. Bedienungsanleitung

4.1 Bedienfeld vorbeiview

The control panel features a rotary dial for cycle selection and touch buttons for various options. The LED display shows cycle status and remaining time.

4.2 Wäsche einladen

Open the washer door and load items loosely into the drum. Do not overload the washer to ensure optimal cleaning performance and prevent damage.

4.3 Zugabe von Waschmittel und Zusatzstoffen

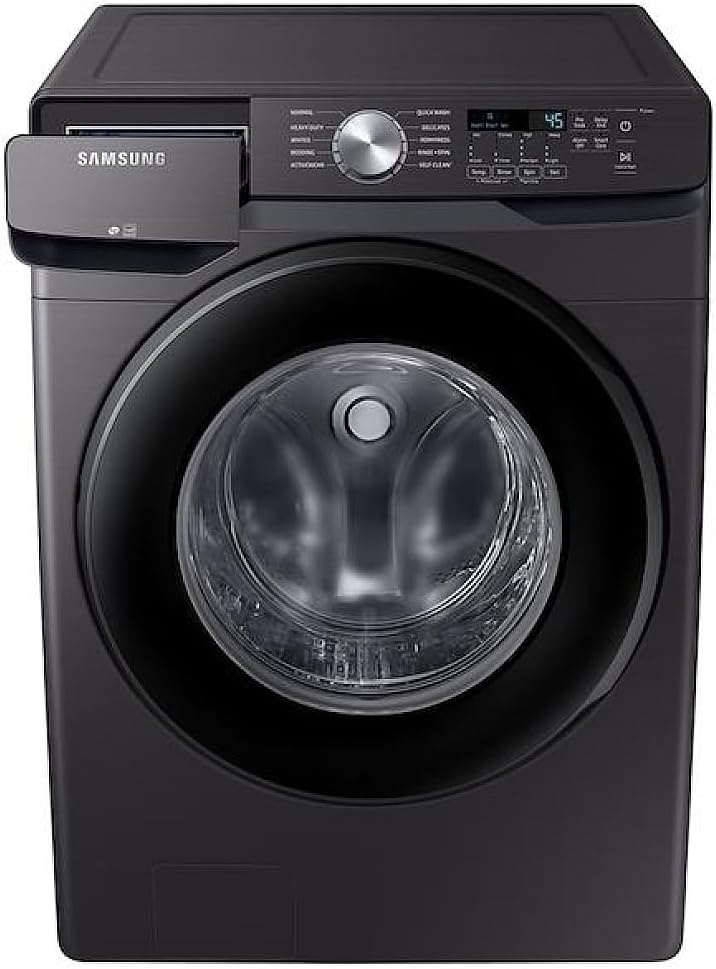

Pull out the dispenser drawer located on the top left of the control panel. Add liquid or powder detergent to the main wash compartment. Fabric softener and bleach can be added to their respective compartments.

4.4 Auswahl eines Waschprogramms

Turn the rotary dial to select the desired wash cycle. Available cycles include:

• Normal: For everyday cottons and linens.
• Schwere Beanspruchung: Für stark verschmutzte Wäsche.
• Weiße: For white fabrics.
• Bettwäsche: Optimized for bed sheets and duvets.
• Aktivbekleidung: For athletic clothing.
• Schnellwäsche: Für leicht verschmutzte Wäschestücke, die schnell gewaschen werden müssen.
• Feinheiten: For delicate fabrics, use delicate detergent.
• Dauerwelle drücken: For permanent press items to reduce wrinkles.
• Spülen + Schleudern: To rinse and spin items without a full wash cycle.
• Self Clean+: For cleaning the washer drum.

4.5 Adjusting Cycle Options

Nach Auswahl eines Zyklus können Sie die Einstellungen mithilfe der Touch-Tasten anpassen:

• Temperatur: Adjust water temperature (Hot, Cold, etc.).
• Abspritzen: Select number of rinses.
• Rotieren: Adjust spin speed (High, No Spin, etc.).
• Boden: Set soil level (Heavy, Light, etc.).
• Pre Soak: Adds a pre-soak phase.
• Verzögerungsende: Delays the end of the cycle.
• Intelligente Pflege: For smart diagnostics via a smartphone app.

4.6 Starten eines Zyklus

Halten Sie die Zum Starten gedrückt halten Taste zum Starten des ausgewählten Waschprogramms.

5. Wartung

5.1 Self Clean+ Cycle

The Self Clean+ cycle eliminates 99% of bacteria that can form in the drum. The washer will prompt you when it's time to run this cycle. Follow the instructions on the display.

5.2 Reinigung des Waschmittelspenders

Regularly clean the detergent dispenser drawer to prevent residue buildup. Remove the drawer, rinse it under warm water, and clean any stubborn residue with a brush. Dry thoroughly before reinserting.

5.3 Reinigung des Abflussfilters

Periodically check and clean the drain filter located at the bottom front of the washer. This helps prevent blockages and ensures efficient draining. Refer to the diagram below for location.

6. Fehlerbehebung

If you encounter any issues with your washer, please refer to the following common troubleshooting tips before contacting service:

• Waschmaschine startet nicht: Ensure the power cord is securely plugged in, the door is fully closed, and the 'Hold to Start' button has been pressed and held.
• Übermäßige Vibrationen/Geräusche: Check that the washer is level and all shipping bolts have been removed. Ensure the load is balanced inside the drum.
• Wasser läuft nicht ab: Inspect the drain hose for kinks or blockages. Clean the drain filter as described in the Maintenance section.
• Fehlercodes: Consult the full user manual (available online) for specific error code definitions and solutions.

7. Spezifikationen

8. Garantieinformationen

Your Samsung WF45T6000AV Front Load Washer comes with the following warranty:

• One (1) Year: Teile und Arbeit
• Three (3) Years: Stainless Steel Drum (Part Only)
• Ten (10) Years: Direct Drive Motor (Part Only)

Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or visit the official Samsung webWebsite.

9. Kundendienst

For further assistance, technical support, or service requests, please contact Samsung Customer Support. You can find contact information on the official Samsung webWebsite oder in der Dokumentation Ihres Geräts.
