Sharp QW-MA814-SS3 Freestanding Dishwasher User Manual

1. Einleitung

Thank you for choosing the Sharp QW-MA814-SS3 Freestanding Dishwasher. This manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your appliance. Please read this manual thoroughly before using the dishwasher and keep it for future reference.

2. Sicherheitshinweise

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is intended for household use only. Do not allow children to play with or in the dishwasher. Ensure the appliance is properly grounded. Do not operate the dishwasher if it is damaged. Only qualified personnel should perform repairs.

3. Produktmerkmale

The Sharp QW-MA814-SS3 dishwasher is designed for efficient and convenient dish cleaning, offering a range of features to suit various needs:

• Kapazität: 14 place settings, accommodating a wide range of dishes.
• 8 Waschprogramme: Includes Auto, Intensive, Normal, Glass, Eco, 90 min, Rapid, and Soak, providing versatile options for different soil levels.
• 3-Layer Cutlery Drawer: Offers flexible loading solutions for cutlery and small items.
• Alternative Wash: Allows cleaning of only the upper or lower basket, or both, optimizing water and energy for partial loads.
• Smart Sensor (Auto Program): Automatically adjusts water and energy consumption based on load size and soil level for efficient cleaning.
• Edelstahlbadewanne: Durable and hygienic, designed to reduce odors.
• Anti-bacterial Filter: Helps inhibit micro-organism buildup for enhanced hygiene.
• LED-Innenbeleuchtung: Illuminates the tub for easier loading and unloading.
• Kindersicherung: Secures the control panel to prevent accidental operation.
• Verzögerung beim Start: Allows pre-selection of washing time from 1 to 24 hours for flexible operation.

Abbildung 1: Diagram of Sharp QW-MA814-SS3 Dishwasher interior components, including LED light, top spray arm, adjustable 3rd rack, adjustable upper rack, upper spray arm, lower spray arm, lower rack, detergent dispenser, rinse aid dispenser, tub gasket, power wash spray, heating element, filter system, cup shelf, and control panel.

Abbildung 2: This image displays the spacious interior of the dishwasher, featuring a dedicated three-layer cutlery drawer for organizing utensils and a durable stainless steel tub designed for hygiene and odor reduction.

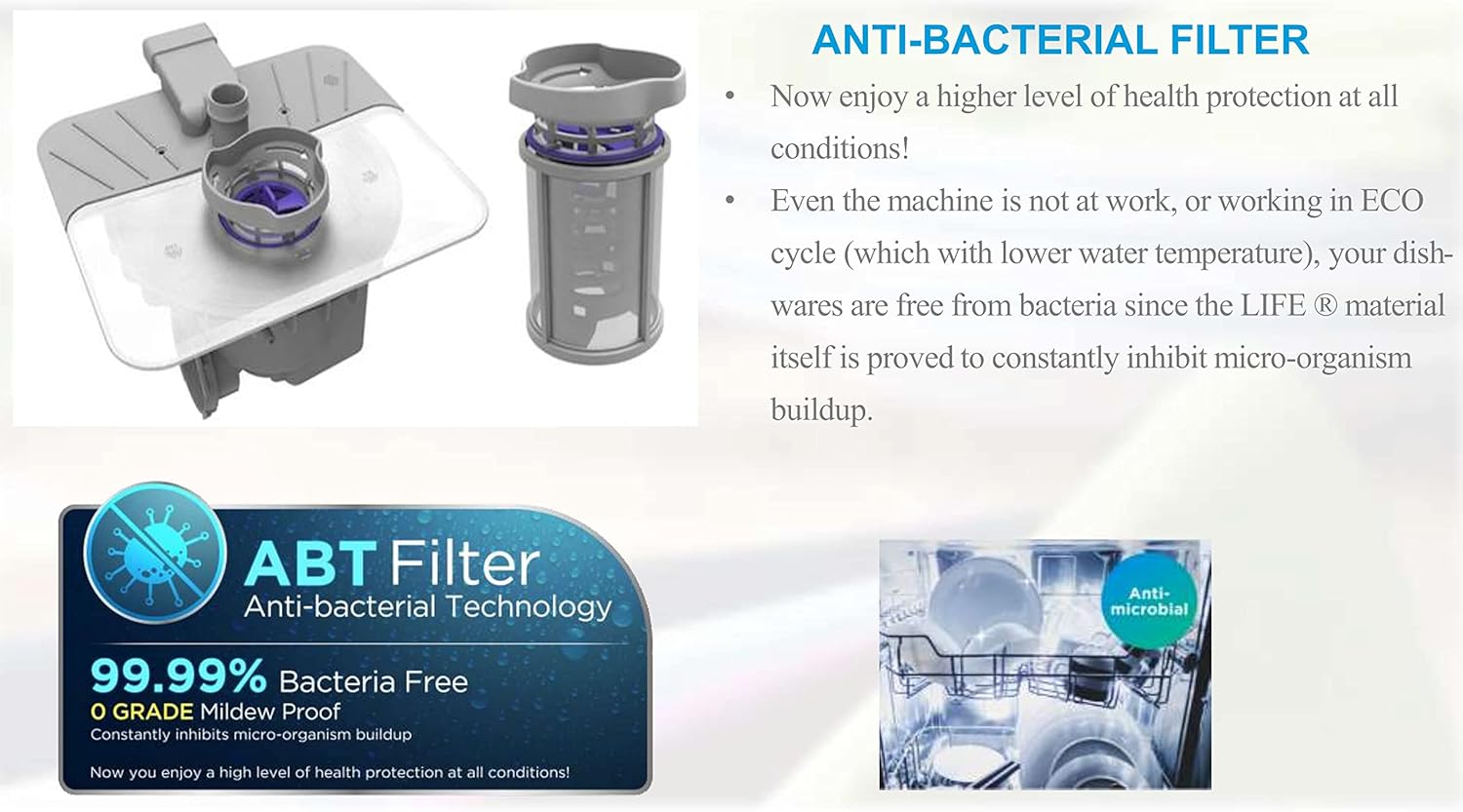

Abbildung 3: The multi-component anti-bacterial filter system helps maintain a high level of hygiene by inhibiting micro-organism buildup, even during eco-friendly cycles.

Abbildung 4: The interior LED light illuminates the tub for easier loading and unloading. The image also conceptually represents the child lock feature, which secures the control panel to prevent accidental operation.

4. Einrichtung und Installation

Eine fachgerechte Installation ist entscheidend für die Leistung und Sicherheit Ihres Geschirrspülers. Wir empfehlen, die Installation von einem qualifizierten Techniker durchführen zu lassen.

4.1 Platzierung

• Position the dishwasher on a level, stable surface near a water supply, drain, and electrical outlet.
• Ensure adequate clearance for the door to open fully.

4.2 Wasseranschluss

• Connect the water inlet hose to a hot water supply (max 60°C) with sufficient pressure.
• Connect the drain hose to a suitable drain pipe or sink trap, ensuring it is securely fastened to prevent leaks.

4.3 Elektrischer Anschluss

• Stellen Sie sicher, dass die Stromversorgung den Angaben auf dem Typenschild entspricht.
• The dishwasher must be properly grounded to prevent electric shock.

4.4 Nivellierung

• Adjust the leveling feet to ensure the dishwasher is perfectly level. This prevents water leakage and ensures proper operation.

5. Bedienungsanleitung

Follow these steps for optimal cleaning results.

5.1 Bedienfeld vorbeiview

Abbildung 5: The control panel displays the 8 wash programs: Auto, Intensive, Normal, Glass, Eco, 90 min, Rapid, and Soak. Use the push buttons to select your desired program and options.

5.2 Einräumen des Geschirrspülers

• Grobe Speisereste von Geschirr abkratzen.
• Größere Gegenstände gehören in den unteren Korb, kleinere, empfindliche Gegenstände in den oberen.
• Utilize the 3-layer cutlery drawer for forks, knives, and spoons.
• Stellen Sie sicher, dass sich die Sprüharme frei drehen können.

Abbildung 6: Das view shows the dishwasher with its door open and racks pulled out, demonstrating the accessibility for loading dishes into both the upper and lower baskets.

Abbildung 7: A close-up of the lower rack, illustrating the foldable plate supports that provide flexibility to accommodate larger items like pots and pans.

5.3 Waschmittel und Klarspüler hinzufügen

• Füllen Sie den Spülmittelbehälter mit der entsprechenden Menge Geschirrspülmittel.
• Check the rinse aid indicator and refill the rinse aid dispenser as needed for spot-free drying.

5.4 Selecting a Program and Starting a Cycle

• Drücken Sie die Power-Taste, um den Geschirrspüler einzuschalten.
• Select your desired wash program using the program selection button.
• Close the dishwasher door firmly to start the cycle.

5.5 Using Delay Start

Abbildung 8: This image illustrates the delay start feature on the control panel, allowing users to pre-select a washing time from 1 to 24 hours for flexible operation.

• After selecting a program, press the Delay Start button repeatedly to set the desired delay time (1-24 hours).
• Close the door to activate the delay. The cycle will begin after the set delay time.

5.6 Using Alternative Wash

Abbildung 9: The alternative wash feature allows cleaning of only the upper or lower basket, or both for a full load, optimizing water and energy usage for partial loads.

• This feature allows you to wash dishes in only the upper or lower basket, or both.
• Select the desired program, then press the Alternative Wash button to cycle through upper basket only, lower basket only, or full load options.
• The corresponding spray arms will activate for the selected zone.

6. Wartung

Regelmäßige Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihres Geschirrspülers.

6.1 Filter reinigen

• Das Filtersystem am Boden des Geschirrspülers sollte regelmäßig überprüft und gereinigt werden.
• Entfernen Sie Speisereste und spülen Sie die Filter unter fließendem Wasser ab.
• Reassemble the filters correctly to prevent damage and ensure proper drainage.

6.2 Reinigungssprüharme

• Periodically remove the spray arms and clean the nozzles to ensure unobstructed water flow.
• Use a soft brush or toothpick to clear any blockages.

6.3 Außen- und Innenreinigung

• Wischen Sie die Außenseite mit adamp Tuch und mildem Reinigungsmittel.
• Clean the interior with a dishwasher cleaner or a mixture of vinegar and baking soda to remove mineral buildup and odors.

7. Fehlerbehebung

Bevor Sie sich an den Kundendienst wenden, lesen Sie bitte in diesem Abschnitt nach, welche Probleme häufig auftreten und welche Lösungen sie bieten.

8. Spezifikationen

9. Garantie und Support

Your Sharp QW-MA814-SS3 Dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage period and service procedures. For technical support, spare parts, or service inquiries, please contact Sharp customer service through their official webWebsite oder die in Ihren Garantieunterlagen angegebenen Kontaktinformationen.
