Einführung
This manual provides essential information for the safe and efficient use of your Haier HW80-B14959TU1 Freestanding Washing Machine. Please read these instructions carefully before installation, operation, and maintenance. Keep this manual for future reference.
Abbildung: Vorderseite rechts view of the Haier HW80-B14959TU1 washing machine, showcasing its white finish, large dark porthole door, and black control panel with an LED display.
Sicherheitshinweise
Beachten Sie beim Gebrauch elektrischer Geräte stets die grundlegenden Sicherheitsvorkehrungen, um das Risiko von Bränden, Stromschlägen und Verletzungen zu verringern.
- Stellen Sie sicher, dass das Gerät ordnungsgemäß geerdet ist.
- Erlauben Sie Kindern nicht, auf oder im Gerät zu spielen.
- Vor der Reinigung oder Durchführung von Wartungsarbeiten ziehen Sie den Netzstecker des Geräts.
- Bei Beschädigungen oder Funktionsstörungen darf das Gerät nicht betrieben werden.
- Halten Sie brennbare Materialien vom Gerät fern.
- Only use the appliance for its intended purpose of washing laundry.
Installation
1. Auspacken
Carefully remove all packaging materials. It is crucial to remove all transit bolts and their rubber bungs from the rear of the machine before operation. Failure to do so will cause excessive vibration and potential damage.
2. Positionierung
Place the washing machine on a firm, level floor. Adjust the leveling feet to ensure the machine is stable and does not rock. Maintain adequate space around the machine for ventilation and access.
Image: Diagram showing the dimensions of the Haier HW80-B14959TU1 washing machine: 85cm height, 59.5cm width, and 49.7cm depth.
3. Wasseranschluss
Connect the inlet hose to a cold water tap with a 3/4-inch thread. Ensure all connections are tight to prevent leaks. Do not overtighten.
4. Abwasseranschluss
Securely attach the drain hose to a standpipe or a sink trap. Ensure the drain hose is not kinked or obstructed and is positioned at an appropriate height (between 60 cm and 100 cm from the floor).
5. Elektrische Verbindung
Stecken Sie das Netzkabel in eine geerdete Steckdose. Stellen Sie sicher, dass die Lautstärketage and frequency match the specifications of your appliance. Do not use extension cords or adapters.
Betrieb
1. Systemsteuerung überview
The control panel features an LED display, a program selection dial, and touch-sensitive buttons for various functions.

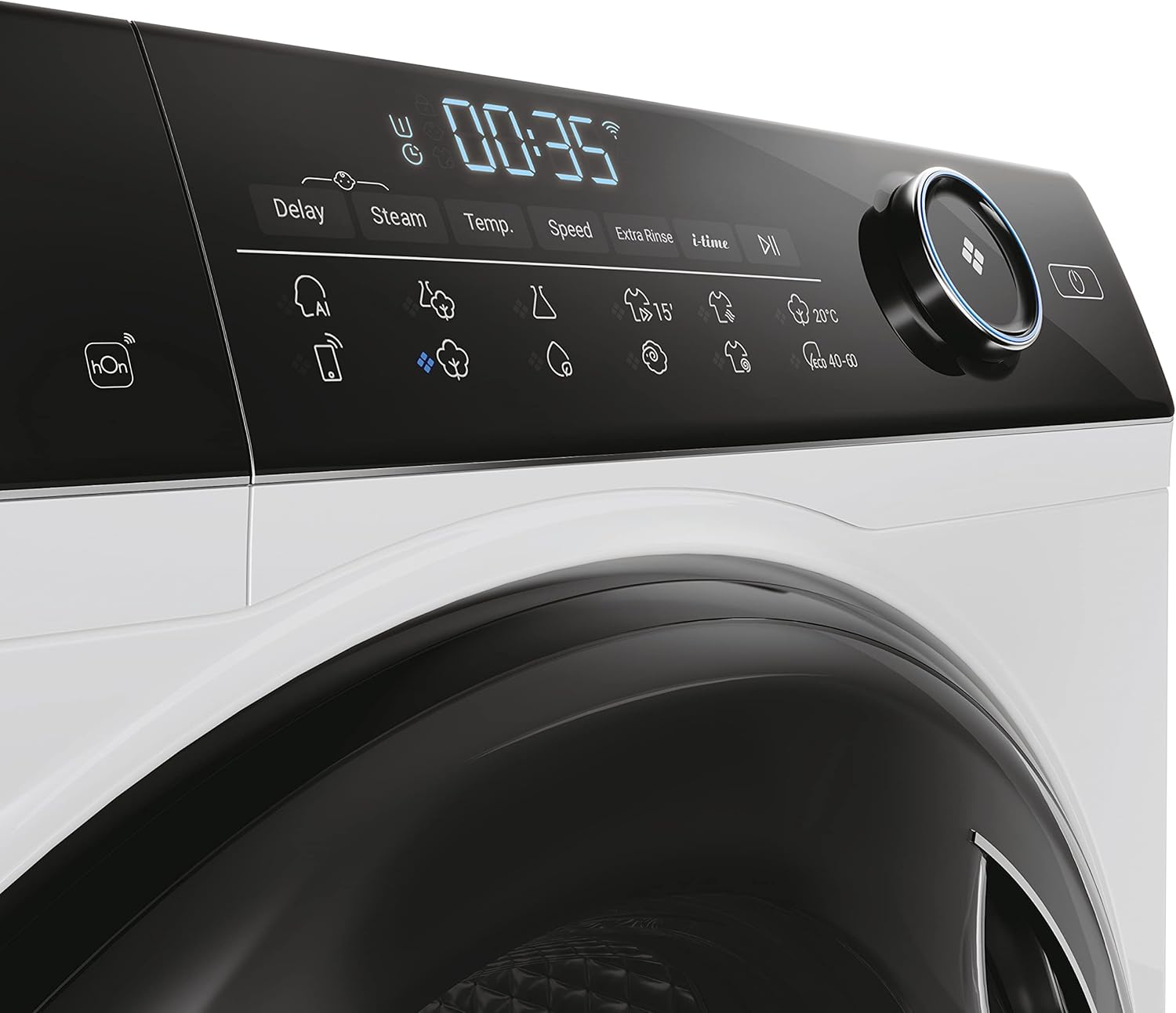

Bild: Nahaufnahme view of the Haier HW80-B14959TU1 washing machine's black control panel, showing the LED display with '00:35' and icons for Delay, Steam, Temp, Speed, Extra Rinse, and i-Time, alongside the program selection dial.
2. Wäsche einlegen
Open the porthole door and load laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The maximum load capacity is 8 kg.
3. Reinigungsmittel hinzufügen
Pull out the detergent dispenser drawer. Add the appropriate amount of detergent and fabric softener to the designated compartments. Refer to your detergent packaging for dosage recommendations.
4. Programmauswahl
Turn the program selection dial to choose the desired wash program (e.g., Cotton, Synthetics, Delicates, Quick Wash). The LED display will show the default settings for the selected program.
5. Anpassen der Einstellungen
Use the touch buttons to adjust temperature, spin speed, or add special functions like 'Steam' or 'Extra Rinse' if available for the selected program.
6. Starten eines Waschgangs
Press the 'Start/Pause' button to begin the wash cycle. The machine will automatically lock the door and start filling with water.
7. Sonderfunktionen
- Verzögerung beim Start: Allows you to postpone the start of a wash cycle for a specified number of hours.
- Direktantriebsmotor: Provides quiet and efficient operation with fewer moving parts.
- App-Steuerung: This model supports control via a mobile application, allowing remote scheduling and monitoring of wash cycles.
Wartung und Reinigung
1. Waschmittelspender
Regularly clean the detergent dispenser drawer to prevent residue buildup. Remove the drawer, rinse it under running water, and use a brush to clean any stubborn deposits.
2. Trommelreinigung
Run a maintenance wash cycle (e.g., 'Drum Clean' or a hot wash with no laundry and a descaling agent) periodically to remove detergent residue and prevent odors.
3. Filterreinigung
Locate the drain pump filter, usually at the bottom front of the machine. Open the cover, drain any residual water, and unscrew the filter. Clean the filter of lint and foreign objects, then reassemble securely.
4. Äußere Pflege
Wischen Sie das Äußere der Maschine mit einem weichen, damp Tuch. Keine Scheuer- oder Lösungsmittel verwenden.
Fehlerbehebung
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Maschine startet nicht | Power cord unplugged; door not closed properly; 'Start/Pause' not pressed. | Stromanschluss prüfen; sicherstellen, dass die Tür verriegelt ist; 'Start/Pause' drücken. |
| Übermäßige Vibration | Transportsicherungen nicht entfernt; Maschine steht nicht waagerecht; ungleichmäßige Beladung. | Remove transit bolts and rubber bungs; adjust leveling feet; redistribute laundry. |
| Wasserleck | Hoses loose or damaged; detergent drawer overflowing. | Check hose connections; ensure detergent drawer is clean and not overfilled. |
| Schlechte Waschergebnisse | Incorrect program; insufficient detergent; overloaded machine. | Select appropriate program; use correct detergent dosage; reduce load size. |
Technische Spezifikationen
| Besonderheit | Spezifikation |
|---|---|
| Modellname | HW80-B14959TU1 |
| Marke | Haier |
| Kapazität | 8 Kilogramm |
| Maximale Schleudergeschwindigkeit | 1400 U/min |
| Produktabmessungen (T x B x H) | 49.7 x 59.5 x 85 cm |
| Artikelgewicht | 65 Kilogramm |
| Energieeffizienzklasse | A |
| Motortyp | Direct Motion Motor |
| Besondere Merkmale | Delay Start, App Control |
| Steuerelementtyp | Wählen |
Image: EU Energy Label for the Haier HW80-B14959TU1 washing machine, indicating an 'A' energy efficiency rating, 49 kWh/100 cycles, 8.0 kg capacity, 3:48 program duration, 48 L water consumption, and 70 dB noise level during spinning. For more details, visit energy-label.ec.europa.eu.
Image: Product Information Sheet for the Haier HW80-B14959TU1, detailing energy consumption, water consumption, spin speed, and other technical data as per EU regulations.
Garantie und Kundendienst
This appliance comes with a manufacturer's guarantee of 24 months. For warranty claims or technical assistance, please contact Haier customer support.
For further information and support, please visit the official Haier webWebsite: www.haier.com.
