1. Einleitung
Thank you for choosing the CIARRA CAW6903A 60 cm Under-Cabinet Range Hood. This appliance is designed to provide efficient ventilation for your kitchen, removing smoke, grease, and odors to maintain a fresh and clean cooking environment. Its compact design allows for seamless integration under kitchen cabinets, making it ideal for small to medium-sized kitchens.
This manual provides essential information for the safe installation, operation, and maintenance of your new range hood. Please read it thoroughly before use and keep it for future reference.
2. Sicherheitshinweise
Beachten Sie beim Gebrauch elektrischer Geräte stets die grundlegenden Sicherheitsvorkehrungen, um das Risiko von Bränden, Stromschlägen und Verletzungen zu verringern.
- Stellen Sie sicher, dass das Netzteil mit der Lautstärke übereinstimmttage ist auf dem Typenschild angegeben.
- Installation must be performed by a qualified person in accordance with all local codes and standards.
- Betreiben Sie die Dunstabzugshaube nicht, wenn das Netzkabel oder der Stecker beschädigt ist.
- Reinigen Sie Fettfilter regelmäßig, um Fettablagerungen zu vermeiden, die eine Brandgefahr darstellen können.
- Lassen Sie frittierte Speisen niemals unbeaufsichtigt, da sich überhitztes Öl entzünden kann.
- Sorgen Sie für ausreichende Belüftung im Raum, wenn die Dunstabzugshaube gleichzeitig mit Gas- oder anderen brennstoffbetriebenen Geräten verwendet wird.
- Das Gerät ist nicht für Personen (einschließlich Kinder) mit eingeschränkten körperlichen, sensorischen oder geistigen Fähigkeiten oder mangelnder Erfahrung und Wissen vorgesehen, es sei denn, sie wurden beaufsichtigt oder unterwiesen.
Lightbulb Recycling and Cleaning: For information on recycling and cleaning broken or damaged lightbulbs, please consult local regulations and guidelines for safe disposal and handling of electrical components.
3. Produktüberschreitungview
The CIARRA CAW6903A range hood features a sleek design with intuitive controls and efficient extraction capabilities.
Front view of the CIARRA CAW6903A 60 cm Under-Cabinet Range Hood.
Maße
Detailed dimensions of the range hood: 59.6 cm (L) x 50 cm (D) x 8 cm (H).
Bedienfeld
Close-up of the push-button control panel for power, fan speeds, and light.
Lieferumfang
- CIARRA CAW6903A Range Hood
- Aluminium-Fettfilter (vorinstalliert)
- LED-Leuchten (vorinstalliert)
- Befestigungsschrauben und Dübel
- Ducting Adapter (for ducted mode)
- Bedienungsanleitung
Image showing the range hood, mounting hardware, and ducting components included in the package.
4. Einrichtung und Installation
The CIARRA CAW6903A range hood can be installed in either ducted (extraction) or ductless (recirculation) mode. Choose the mode that best suits your kitchen setup.
Installation Modes: Ducted vs. Ductless
Diagram illustrating the difference between ducted (left) and ductless (right) installation modes. Ducted mode expels air outside, while ductless mode recirculates filtered air back into the kitchen.
- Abluftmodus: Air is extracted through a duct to the outside. This mode requires a ducting kit (included) and an external vent.
- Abluftloser Betrieb: Air is filtered through an optional carbon filter (sold separately) to remove odors and then recirculated back into the kitchen. This mode is suitable when external venting is not possible.
Montage
The range hood is designed for under-cabinet or wall-mounted installation. Ensure the mounting surface is strong enough to support the appliance's weight.
Unterseite view of the range hood, showing the filter area and mounting points.
- Measure and mark the drilling points on the wall or underside of the cabinet according to the provided template.
- Löcher bohren und Dübel einsetzen.
- Secure the range hood using the provided screws.
- For ducted mode, connect the ducting to the exhaust outlet. For ductless mode, ensure the carbon filter is installed (if using).
5. Bedienungsanleitung
The CIARRA CAW6903A features simple push-button controls for easy operation.
Close-up of the control buttons: Power, Fan Speed 1, Fan Speed 2, Fan Speed 3, and Light.
- Power-Taste (⏻): Drücken Sie diese Taste, um die Dunstabzugshaube ein- oder auszuschalten.
- Lüftergeschwindigkeitstasten (⏻, ⏻, ⏻): Select from three fan speeds (low, medium, high) to adjust extraction power based on your cooking needs. The maximum extraction rate is 220 m³/h.
- Lichttaste (☀): Press to turn the 2W LED light on or off, illuminating your cooking area.
The range hood effectively extracts cooking fumes and steam, ensuring a fresh kitchen environment.
Diagram illustrating the effective 60 cm coverage area of the range hood over a cooking surface.
6. Wartung
Regelmäßige Wartung gewährleistet optimale Leistung und verlängert die Lebensdauer Ihrer Dunstabzugshaube.
Fettfilter reinigen
The metal grease filters capture grease particles from cooking fumes. They should be cleaned regularly (every 2-4 weeks depending on usage) to maintain extraction efficiency.
A person cleaning the exterior of the range hood with a cloth.
- Turn off and unplug the range hood before cleaning.
- Remove the metal filters by releasing ihre Verschlüsse.
- Wash the filters in warm soapy water or in a dishwasher. Ensure they are completely dry before re-installing.
- Wipe the exterior of the range hood with a soft cloth and mild detergent. Do not use abrasive cleaners.
Austausch von Kohlefiltern (nur im Abluftbetrieb)
If using the range hood in ductless mode, the optional carbon filters (sold separately) should be replaced every 3-6 months, depending on usage, to effectively remove odors.
- Turn off and unplug the range hood.
- Entfernen Sie die Metallfettfilter.
- Locate the carbon filters (usually attached to the motor housing).
- Remove the old carbon filters and install new ones, ensuring they are securely in place.
- Bauen Sie die Metallfettfilter wieder ein.
7. Fehlerbehebung
If you encounter any issues with your range hood, refer to the table below for common problems and their solutions.
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Die Dunstabzugshaube schaltet sich nicht ein. | Keine Stromversorgung Defektes Netzkabel/Stecker Problem mit dem Bedienfeld | Prüfen Sie, ob das Gerät eingesteckt ist und der Sicherungsautomat eingeschaltet ist. Inspect the power cord for damage. Contact customer support if damaged. Kontaktieren Sie den Kundendienst. |
| Schlechte Extraktionsleistung | Verstopfte Fettfilter Incorrect installation (e.g., ducting issues) Carbon filters saturated (ductless mode) | Fettfilter reinigen oder ersetzen. Check ducting for blockages or leaks. Ensure proper distance from cooking surface. Kohlefilter austauschen. |
| Übermäßiger Lärm | Lose Komponenten Motorproblem Ducting obstruction | Check for loose screws or parts and tighten them. Kontaktieren Sie den Kundendienst. Inspect ducting for any obstructions or improper bends. |
| LED-Licht funktioniert nicht | Glühbirne defekt Verdrahtungsproblem | Replace the LED light (if replaceable). Kontaktieren Sie den Kundendienst. |
If the problem persists after attempting these solutions, please contact CIARRA customer support for assistance.
8. Spezifikationen
Technical specifications for the CIARRA CAW6903A Range Hood.
| Besonderheit | Spezifikation |
|---|---|
| Modellnummer | CAW6903A |
| Abmessungen (L x T x H) | 59.6 x 50 x 8 cm |
| Gewicht | 3.5 kg |
| Material | Metall |
| Montagetyp | Under-Cabinet / Wall-Mounted |
| Steuerungstyp | Druckknopf |
| Bandtage | 220 Volt |
| Frequenz | 50 Hz |
| Energieaufnahme | 81.5 Watt |
| Luftstromkapazität | 220 m³/h (max) |
| Geräuschpegel | 55 dB(A) (max) |
| Lichtquelle | 2W LED |
| Filtertyp | Metal Grease Filter (Aluminum) |
| Belüftungstyp | Ducted / Ductless (with optional carbon filter) |
| Energieeffizienzklasse | C |
| Jährlicher Energieverbrauch | 42.8 kWh / Jahr |

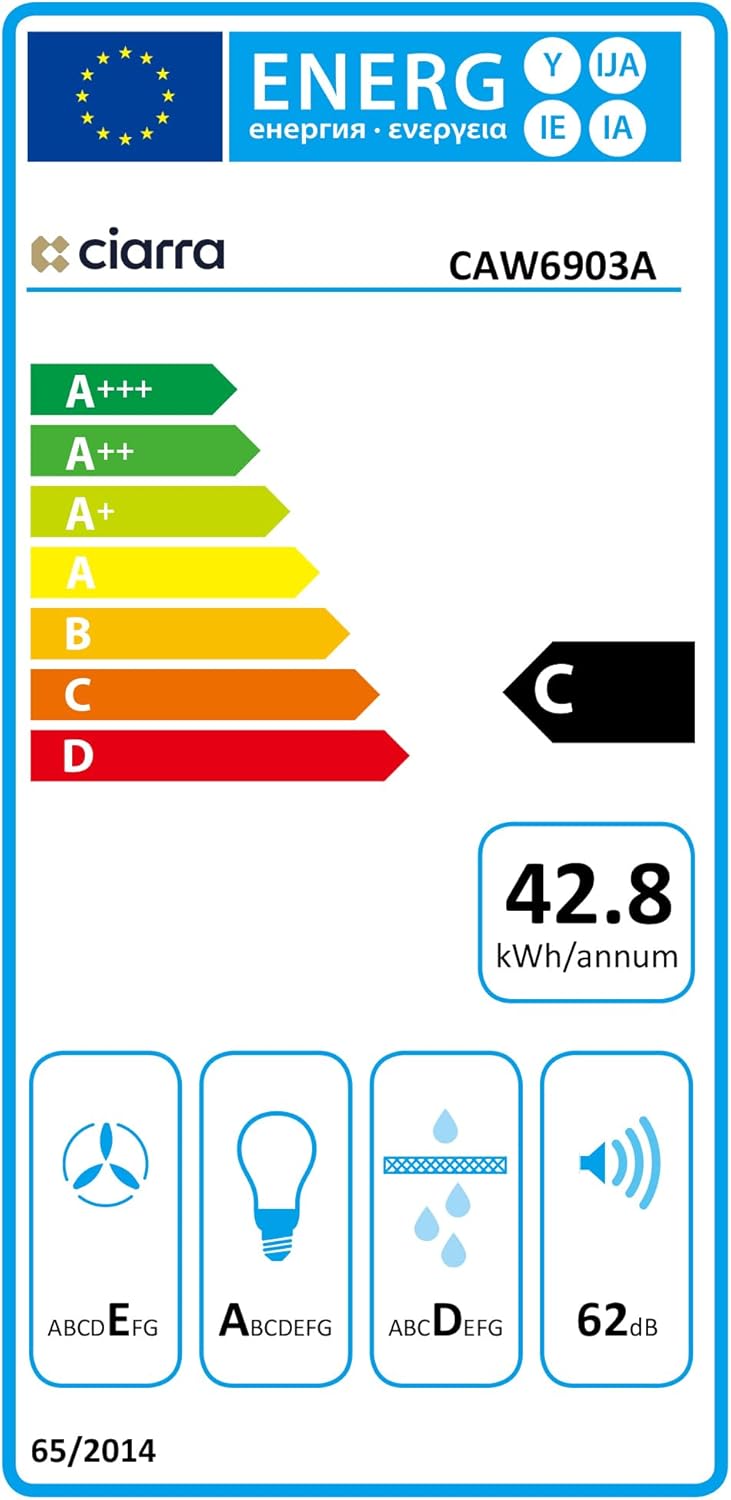

Energieeffizienzlabel
Official EU Energy Efficiency Label for the CIARRA CAW6903A.

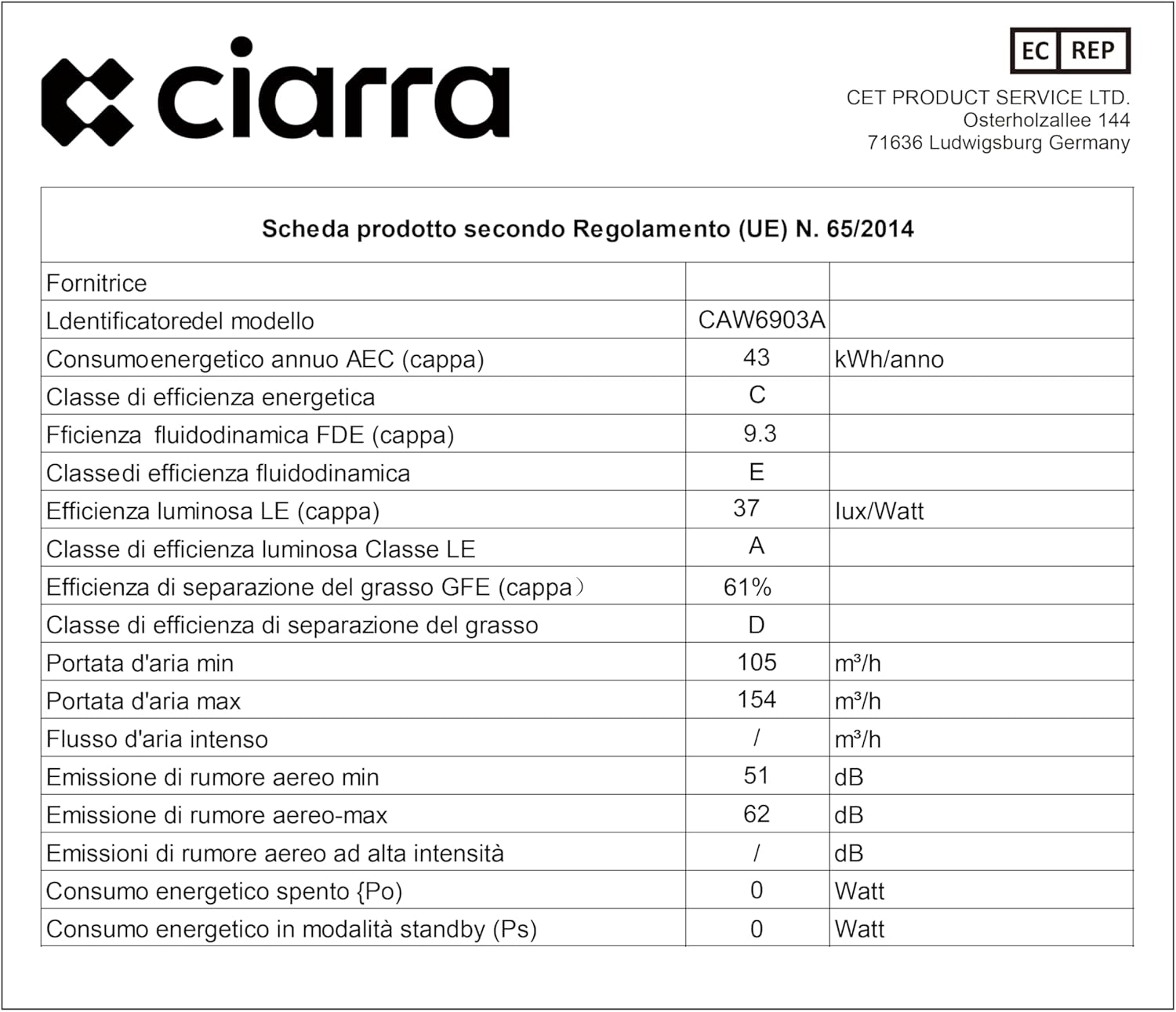

Produktdatenblatt
Detailed product data sheet with performance metrics.
9. Garantie und Support
CIARRA products are manufactured to high-quality standards. In the unlikely event of a defect due to faulty materials or workmanship, your product is covered by a warranty.
Rückgaberecht: If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the Amazon return policy page. If you have received a defective or damaged product, please consult the Amazon help page on returns. For specific information on purchases made on the Marketplace, please consult the Amazon help page.
For technical support, spare parts, or warranty claims, please contact CIARRA customer service through the retailer where you purchased the product or visit the official CIARRA webWebsite für Kontaktinformationen.
