FENRIR Motorcycle Side Mirrors

1. Produktüberschreitungview

The FENRIR Model 801-0502 Motorcycle Side Mirrors are designed for universal fitment on various motorcycle types, including Adventure, Standard, Dual Sport, Naked, Street Bike, Cruiser, Minimoto, and Scooter models. Constructed from CNC machined aluminum alloy, these mirrors feature an anti-glare white lens with an R1200 curvature for enhanced clarity and a wide field of view. The design incorporates anti-vibration technology to minimize mirror shake during operation.

2. Hauptmerkmale

• Material: CNC Machined Aluminum Alloy body with durable black coating for long-lasting performance.
• Linse: White lens with R1200 curvature, providing excellent clarity, reduced glare, and a wide rear view.
• Vibrations-Resistenz: Engineered with an anti-vibration design to significantly reduce mirror shake caused by engine resonance.
• Universal Fit: Compatible with M10/M8 mounting threads, suitable for a broad range of motorcycles.
• Verstellbarkeit: Features multiple adjustment points for optimal viewwinkeln.

Image: Key features of the FENRIR motorcycle mirrors, including the anti-glare lens and aluminum alloy construction.

3. Packungsinhalt

Im Paket sind folgende Komponenten enthalten:

• 1 Pair of FENRIR Motorcycle Side Mirrors (Right and Left)
• Befestigungsschrauben:
  • 2 x M8xP1.25x20 Clockwise Mounting Screws
  • 1 x M8xP1.25x20 Counterclockwise Mounting Screw
  • 2 x M10xP1.25x20 Clockwise Mounting Screws
  • 1 x M10xP1.25x20 Counterclockwise Mounting Screw
  • 2 x M10xP1.5x20 Clockwise Mounting Screws

Image: Detailed dimensions of the mirrors and the complete set of mounting hardware provided.

4. Installationsanweisungen

1. Kompatibilität prüfen: Before beginning installation, verify that the thread size of your motorcycle's rearview mirror mounting hole is compatible with the provided M8 or M10 bolts.
2. Remove Existing Mirrors: Carefully remove your motorcycle's original mirrors.
3. Select Correct Bolts: Choose the appropriate M8 or M10 mounting screws (clockwise or counterclockwise) that match your motorcycle's thread type.
4. Attach Mirrors: Securely attach the FENRIR mirrors to the handlebar mounts using the selected bolts. Ensure all connections are firm but do not overtighten initially.
5. Adjust Initial Angle: The mirrors feature a unique adjustment mechanism. The handlebar mount allows for X-axis rotation, and the mounting arm elbow provides Y-axis rotation. The mirror plate itself rotates on the Z-axis. Loosen the allen bolts slightly to allow for adjustment.
6. Abschließendes Anziehen: Einmal das gewünschte viewing angle is achieved, tighten all allen bolts securely. It is crucial to ensure all bolts are properly tightened to prevent movement during riding.

Image: FENRIR mirrors mounted on a motorcycle, demonstrating the installed look.

5. Bedienungsanleitung

Once installed, adjust the mirrors to provide the best possible rear view, minimizing blind spots. The R1200 curved lens and anti-glare coating are designed to enhance visibility and reduce eye strain from bright lights. The anti-vibration design helps maintain a clear image even at higher speeds.

• Anpassen View Winkel: Loosen the adjustment bolts slightly to reposition the mirror head and arm. Once the optimal angle is found, re-tighten the bolts firmly.
• Anti-Glare Function: The specialized lens reduces glare from headlights and sunlight, improving safety during day and night riding.

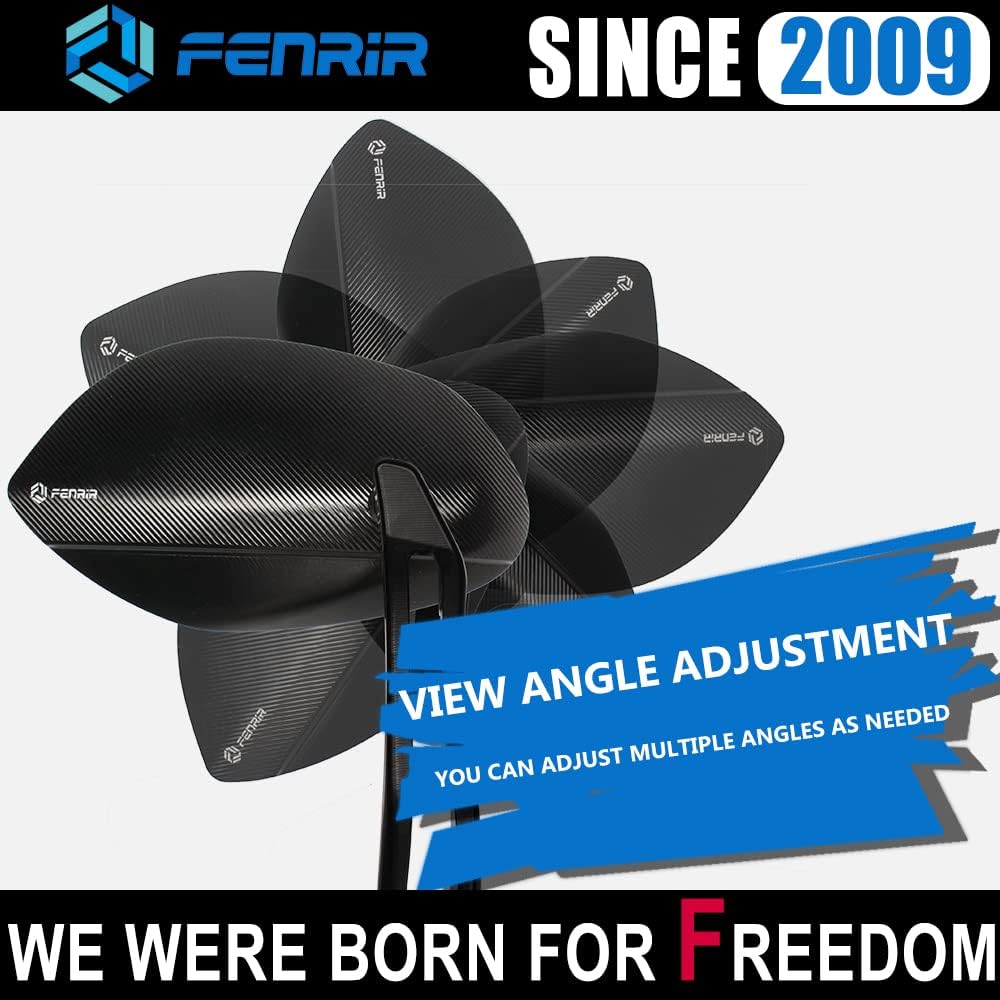

Image: Illustration of the mirror's multi-angle adjustment capability.

Image: Visual comparison highlighting the anti-glare effectiveness of the FENRIR lens.

6. Wartung

To ensure the longevity and optimal performance of your FENRIR motorcycle mirrors, follow these maintenance guidelines:

• Regelmäßige Reinigung: Clean the mirror surfaces with a soft, damp cloth and a mild cleaning solution. Avoid abrasive cleaners or materials that could scratch the lens or finish.
• Befestigungselemente prüfen: Periodically inspect all mounting bolts and adjustment screws for tightness. Re-tighten if necessary to prevent mirrors from shifting or vibrating excessively.
• Auf Schäden prüfen: Regularly check the mirror housing and arm for any signs of damage or wear. Replace components if they are compromised.

7. Fehlerbehebung

• Übermäßige Vibration: While designed to be anti-vibration, some motorcycles may still experience minor vibration at certain speeds. Ensure all mounting bolts are securely tightened. If vibration persists, verify the mirror is correctly installed and not loose at any joint.
• Mirror Loosening After Adjustment: If mirrors do not hold their position after adjustment, ensure the allen screws at the adjustment points are fully tightened. It may require firm tightening to secure the mirror's position.
• Installationsschwierigkeiten: If you encounter difficulty with installation, double-check the thread size of your motorcycle's mounting holes against the provided bolts. Refer to your motorcycle's manual for specific mirror mounting requirements.

8. Spezifikationen

9. Garantie und Support

FENRIR is committed to providing high-quality products. For any questions, concerns, or support needs regarding your motorcycle mirrors, please refer to the seller's contact information or visit the official FENRIR brand store on Amazon. Keep your purchase receipt for any warranty claims.

FENRIR Brand Store: Visit FENRIR Store
