1. Einleitung
This manual provides detailed instructions for the XTOOL IP616 V2.0 OBD2 Scanner Diagnostic Tool. It covers the device's features, setup, operation, maintenance, and troubleshooting to ensure optimal performance and accurate vehicle diagnostics. The XTOOL IP616 V2.0 is designed for comprehensive automotive system analysis, offering a wide range of diagnostic and maintenance functions.

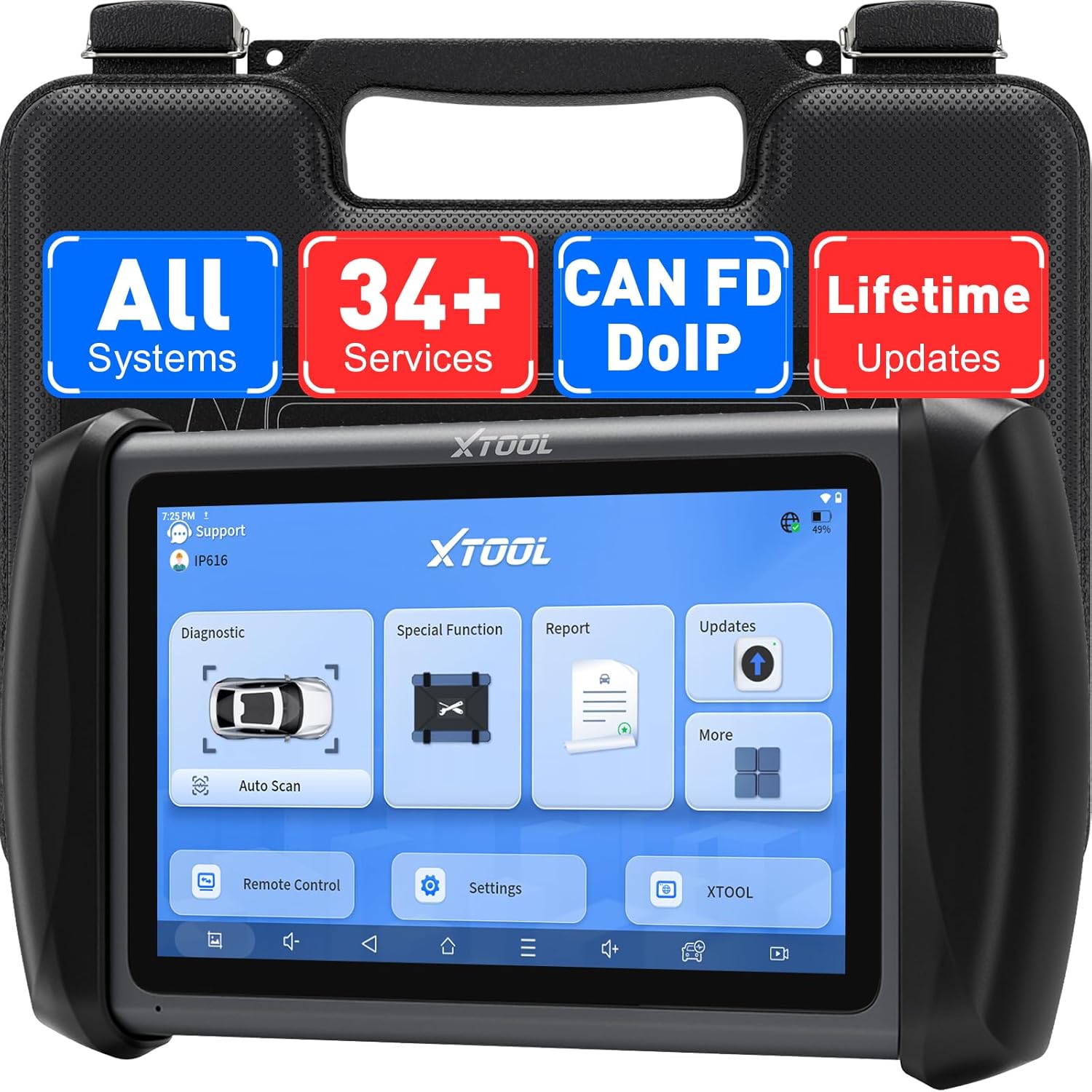

Image 1.1: The XTOOL IP616 V2.0 Diagnostic Tool, showcasing its user interface and robust design.
2. Produktüberschreitungview
2.1. Lieferumfang
The XTOOL IP616 V2.0 package includes the following components:
- XTOOL InPlus IP616 OBD2 Scanner Diagnostic Tool
- Charger for Tablet (US Adapter, EU Adapter, EN Adapter)
- VGA to OBD II Main Cable
- USB-Kabel
- Packliste
- Qualitätszertifikat
- Werkzeugkoffer
- Bedienungsanleitung
Image 2.1: Contents of the XTOOL IP616 V2.0 package, including the diagnostic tool and accessories.
2.2. Hauptmerkmale
The XTOOL IP616 V2.0 offers a robust set of features for comprehensive vehicle diagnostics:
- Lebenslange kostenlose Software-Updates: Ensures the tool remains current with the latest vehicle coverage and diagnostic capabilities.
- 34+ Wartungs-Reset-Services: Includes functions like oil reset, throttle adaptation, ABS bleeding, injector coding, tire size reset, AC relearn, and crank sensor relearn.
- CAN FD- und DoIP-Protokollunterstützung: Compatible with newer vehicle communication protocols, including FCA AutoAuth for 2018+ Chrysler models.
- ECU Configuration: Allows activation of manufacturer-built capabilities and restoration of factory defaults.
- Full System Code Reading & Scanning: Provides dealer-grade coverage for Engine, Transmission, ABS, SRS Airbags, TPMS, HVAC, Battery, Steering, and more.
- Automatischer VIN-Scan: Erkennt automatisch Fahrzeuginformationen für eine schnelle Diagnose.
- 8-PID Live Data Streaming: Displays up to 8 live data streams simultaneously for real-time performance analysis.
- Breites Fahrzeugspektrum: Supports over 10,000 OBDII-equipped vehicle models from 1996 to present.
- Mehrsprachige Unterstützung: Operates in 23 languages, with English as the default.
Bild 2.2: Überview of the XTOOL IP616 V2.0's primary features and capabilities.
3. Einrichtung
3.1. Erstes Aufladen
Before first use, fully charge the XTOOL IP616 V2.0. Connect the provided charger to the device's Type-C port and plug it into a power outlet. The device features a 5000mAh battery for extended operation.
3.2. Einschalten
Press and hold the power button located on the side of the device until the screen illuminates. The device runs on Android 10.0 and will boot up to the main interface.
3.3. Verbindung zum Fahrzeug herstellen
- Suchen Sie den OBDII-Anschluss des Fahrzeugs, der sich üblicherweise unter dem Armaturenbrett auf der Fahrerseite befindet.
- Connect the VGA to OBD II Main Cable to the diagnostic tool and then to the vehicle's OBDII port.
- Drehen Sie die Zündung des Fahrzeugs in die Position EIN (Motor aus).
- The diagnostic tool will establish communication with the vehicle.
3.4. WiFi Verbindung
To access software updates and online resources, connect the device to a Wi-Fi network:
- From the main menu, tap on 'Settings'.
- Wählen Sie „Wi-Fi“ und anschließend das gewünschte Netzwerk aus.
- Geben Sie gegebenenfalls das Passwort ein und stellen Sie die Verbindung her.
4. Bedienungsanleitung
4.1. Vollständige Systemdiagnose
The IP616 V2.0 can perform a comprehensive scan of all available electronic control units (ECUs) in the vehicle. This includes Engine, Transmission, ABS, SRS Airbags, TPMS, HVAC, and more.
- From the main menu, tap 'Diagnostic'.
- Wählen Sie „Automatischer Scan“ oder geben Sie Fahrzeugmarke, Modell und Baujahr manuell an.
- The tool will scan all systems and display any detected Diagnostic Trouble Codes (DTCs).
- You can then 'Read DTCs' for detailed descriptions or 'Clear DTCs' after repairs are completed.
Image 4.1: Full system diagnostic interface, illustrating the comprehensive scanning capabilities.
4.2. Special Functions (34+ Reset Services)
The tool provides over 34 maintenance and reset services. These functions are crucial for post-repair procedures and routine maintenance.
- Ölrücksetzung: Setzt das Öllebensdauersystem nach einem Ölwechsel zurück.
- ABS-Blutung: Performs bleeding functions for the Anti-lock Braking System.
- Injektorcodierung: Codiert neue Einspritzdüsennummern an das Steuergerät.
- Tire Size Reset: Adjusts vehicle parameters after changing tire sizes.
- AC Relearn: Relearns AC system parameters.
- Airbag-Reparatur: Resets the airbag warning light after airbag system repairs.
- And many more, including EPB Reset, BMS Reset, TPMS Reset, Throttle Relearn, Headlight adjustment, etc.
Note: Compatibility of special functions varies by vehicle. Always check compatibility with your vehicle's VIN before performing any service.
Image 4.2: A selection of the 34+ maintenance and reset services available on the IP616 V2.0.
4.3. Steuergerätekonfiguration
This function allows you to activate or deactivate certain manufacturer-built features that may be disabled by default, or to restore factory settings without permanent changes to the ECU software.
- Unfold or turn off functions as needed.
- Re-flash hidden functions.
- Activate high-level hidden features.
- Optimize vehicle performance.
Note: This feature is compatible with specific vehicle brands such as Toyota, VW, Audi, BMW, Mercedes-Benz, Lexus, and more. Always verify compatibility for your specific vehicle model and year.
Image 4.3: ECU Configuration interface, detailing options for customizing vehicle features.
4.4. Live Data Streaming and Graphing
Monitor real-time data from various sensors and systems to diagnose intermittent issues or verify repairs. The IP616 V2.0 can display up to 8 PIDs (Parameter IDs) simultaneously in a graphical format.
- After a system scan, select 'Live Data'.
- Choose the parameters you wish to monitor (e.g., RPM, fuel pressure, sensor status, temperature).
- View data in numerical or graphical format. The graphing feature allows for easy analysis of data trends over time.
- Data can be recorded, played back, and exported for further analysis.
Image 4.4: Live data graphing feature, showing multiple data streams for real-time analysis.
4.5. Automatischer VIN-Scan
The Auto VIN Scan feature automatically identifies the vehicle's make, model, and year, streamlining the diagnostic process by quickly matching the correct software.
- Connect the tool to the vehicle.
- Select 'Auto Scan' from the diagnostic menu.
- The tool will attempt to automatically detect the VIN.
- If Auto VIN fails, you can manually enter the VIN data.
4.6. Diagnoseberichte
Generate detailed diagnostic reports that include VIN-specific trouble code analysis. These reports can be saved, printed, or exported via email for sharing with mechanics or customers.
Image 4.5: Diagnostic report generation and sharing capabilities.
5. Wartung
5.1. Software-Updates
The XTOOL IP616 V2.0 comes with lifetime free software updates. Regular updates ensure the tool has the latest vehicle coverage, new functions, and improved diagnostic capabilities.
- Stellen Sie sicher, dass das Gerät mit einem stabilen WLAN-Netzwerk verbunden ist.
- From the main menu, tap 'Updates'.
- Folgen Sie den Anweisungen auf dem Bildschirm, um verfügbare Updates herunterzuladen und zu installieren.
- It is recommended to perform updates regularly to maintain optimal performance.
Image 5.1: The lifetime free update feature, highlighting continuous improvement and support.
6. Fehlerbehebung
If you encounter issues with your XTOOL IP616 V2.0, consider the following common solutions:
- Gerät lässt sich nicht einschalten: Stellen Sie sicher, dass das Gerät vollständig aufgeladen ist. Ist der Akku schwach, schließen Sie es an das Ladegerät an.
- Keine Kommunikation mit dem Fahrzeug:
- Verify the OBDII cable is securely connected to both the tool and the vehicle's OBDII port.
- Stellen Sie sicher, dass die Zündung des Fahrzeugs eingeschaltet ist.
- Prüfen Sie, ob die Fahrzeugbatterie ausreichend geladen ist.
- Versuchen Sie, eine Verbindung zu einem anderen Fahrzeug herzustellen, um ein fahrzeugspezifisches Problem auszuschließen.
- Software Function Not Working:
- Ensure the software is up to date. Perform a 'One-click update' if available.
- Verify the function's compatibility with your specific vehicle model and year.
- Restart the diagnostic tool and the vehicle.
- Langsame Leistung: Close any unnecessary applications running in the background. Ensure sufficient storage space.
For persistent issues or specific technical support, please contact XTOOL customer service at xtoolinplusus@outlook.com. Provide your device's serial number (S/N) for faster assistance.
7. Spezifikationen
| Besonderheit | Spezifikation |
|---|---|
| Marke | XTOOL |
| Modell | IP616 |
| Betriebssystem | Android 10.0 |
| Batterie | 1 Lithium-Ionen-Akku (im Lieferumfang enthalten), 5000 mAh |
| Artikelgewicht | 4.67 Pfund |
| Technische Daten | 0.98 x 0.13 x 0.56 Zoll |
| Konnektivität | CAN FD, DoIP, OBDII |
| Fahrzeugabdeckung | 10,000+ models, 1996 to present |
| Unterstützte Sprachen | 23 (English, Spanish, German, French, etc.) |
| Software-Updates | Lebenslange kostenlose Updates |
8. Garantie und Support
The XTOOL IP616 V2.0 comes with lifetime free software updates, ensuring your device remains up-to-date with the latest vehicle data and diagnostic functions. XTOOL also provides lifetime online assistance to help users with any operational or technical queries.
For support, please reach out to the XTOOL customer service team:
- E-Mail: xtoolinplusus@outlook.com
- When contacting support, please include your device's serial number (S/N) for efficient service.
